Everyone, Please Post Your Switch Banks.

[psraff]

It's time to upgrade my switches and relay banks. Due to many different changes I've ended up with switches in different places and my relays in and out of my cabin. Time to clean it up. I would love to mount them at eye level or higher and I've seen a few posted on here but not sure who or where they were at. Can people assist and post pictures of their switches?

I personally think a bank of switches mounted on the dash above the clock and air vents would be perfect. I saw one like that but don't remember anything on how it was mounted or other details...

I'm tempted to start with something like this, though I'm not a fan of the large volt meter in the middle of it.....

https://www.amazon.com/dp/B01CDTW03K/ref=wl_it_dp_o_pC_S_ttl?_encoding=UTF8&colid=1GR0NNX7KNPQE&coliid=I5PG64GRMKO68&psc=1#Ask

Thanks!!



[Tucson4runner]

I'm to embarrassed to post mine... Maybe after a beer. Sub'd to see some good ideas on what to get

Sent from my SM-N910V using Tapatalk



[Unner]

[MENTION=46329]blcktpgsr[/MENTION] has a super clean set up.



[cj80cruiser]

I'm not sure I have a photo of mine but I went to a single din radio so I could fit some switches under the radio. Bought the bracket from a guy on Tacoma World a couple years ago. I'll see if I can dig that up for you.

***Edit***

https://www.tacomaworld.com/threads/6-switch-plate-under-radio-location.315089/



[Dezert4Runner]

[MENTION=135677]michaeljtomey[/MENTION] has an overhead switch setup

http://www.toyota-4runner.org/3rd-gen-t4rs/104161-what-did-you-do-your-3rd-gen-today-887.html


Not an overhead panel, but there is also a switch panel that a guy local to me in San Diego makes that goes under the radio. It's really one of the only direct bolt in prefab'd panels that you could get without making your own, at least that I've ever seen. Reasonably priced too. They fit 1st Gen Tacos and 3rd Gen T4R's.

1st Gen Tacoma Din Switch plate (6 switch holes) | Paranoid Fabrications



[psraff]

[MENTION=46329]blcktpgsr[/MENTION] has a super clean set up.

Yeah.... That thing scares the hell out of me!!!!! LOL That's some intense work he put into that. It's amazing!



[Rock_Rat]

I have the Paranoid Fab installed with a piece of black construction paper on the back of it until I decide what switches (Contura V, X, etc) and what I will be using all six switches for, along with a few other decisions I need to make. There's a picture of it installed in this post. It's very clean and professional looking. Pioneer DEH-X9600BHS Installation and Paranoid Fabrications Panel

EDIT: I went to a single din just because I wanted this panel.



[michaeljtomey]

[MENTION=135677]michaeljtomey[/MENTION] has an overhead switch setup



http://www.toyota-4runner.org/3rd-gen-t4rs/104161-what-did-you-do-your-3rd-gen-today-887.html

Hey! Nice find lol that was deep in the forum.

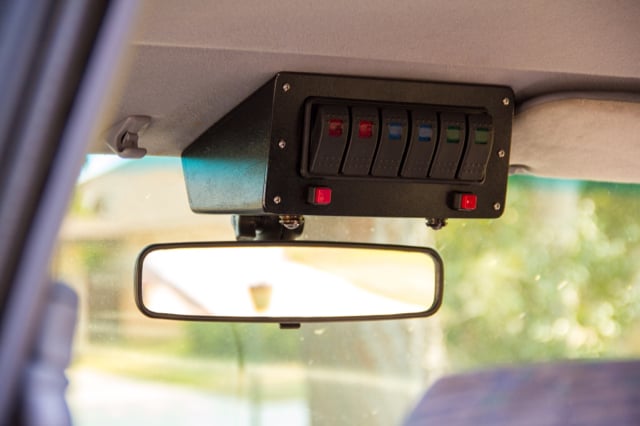

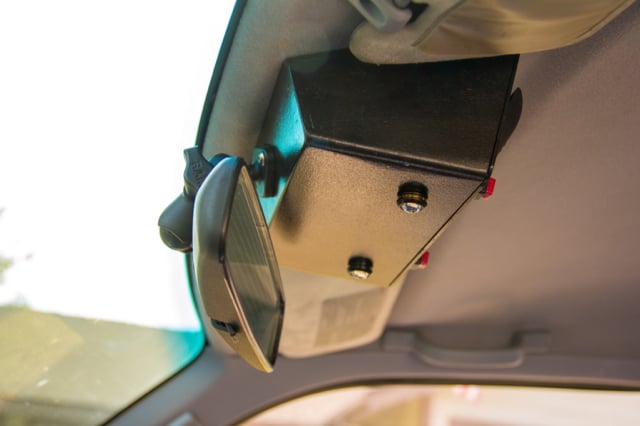

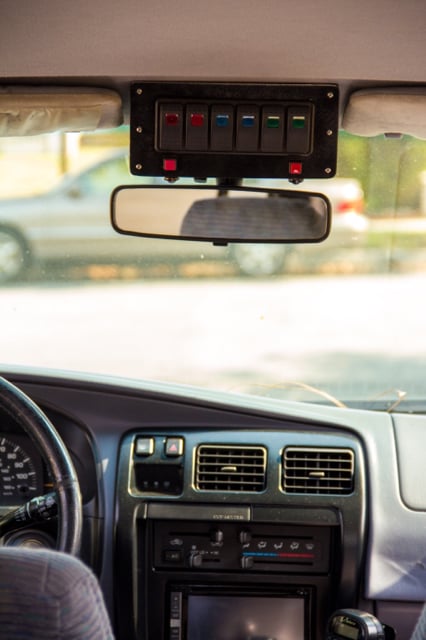

Here's some more pics of it

Sent from my iPhone using Tapatalk



[Roc Doc]

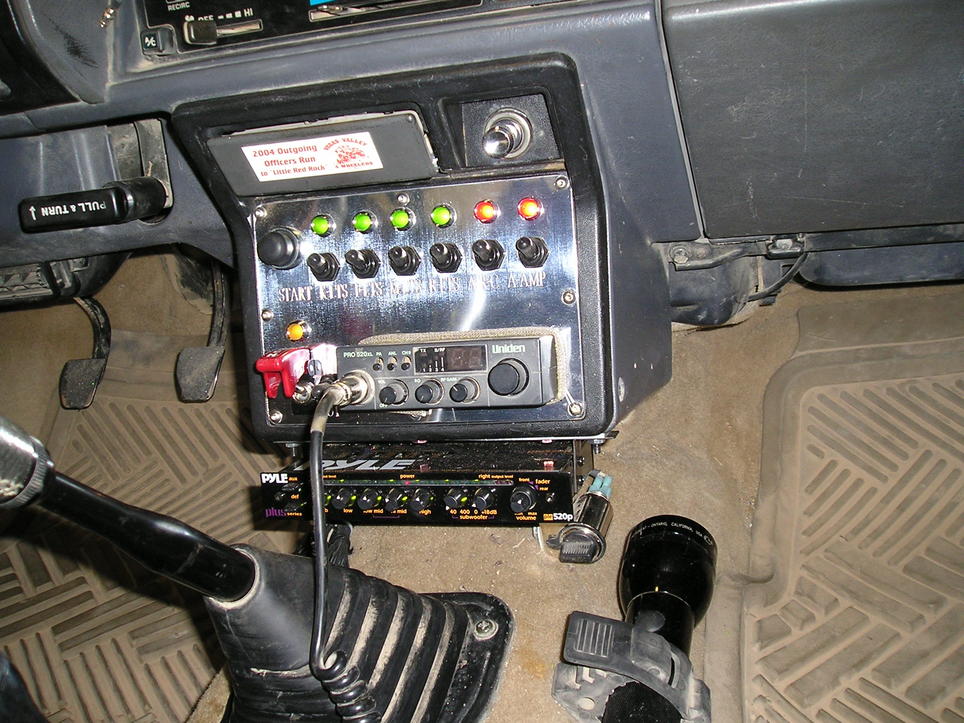

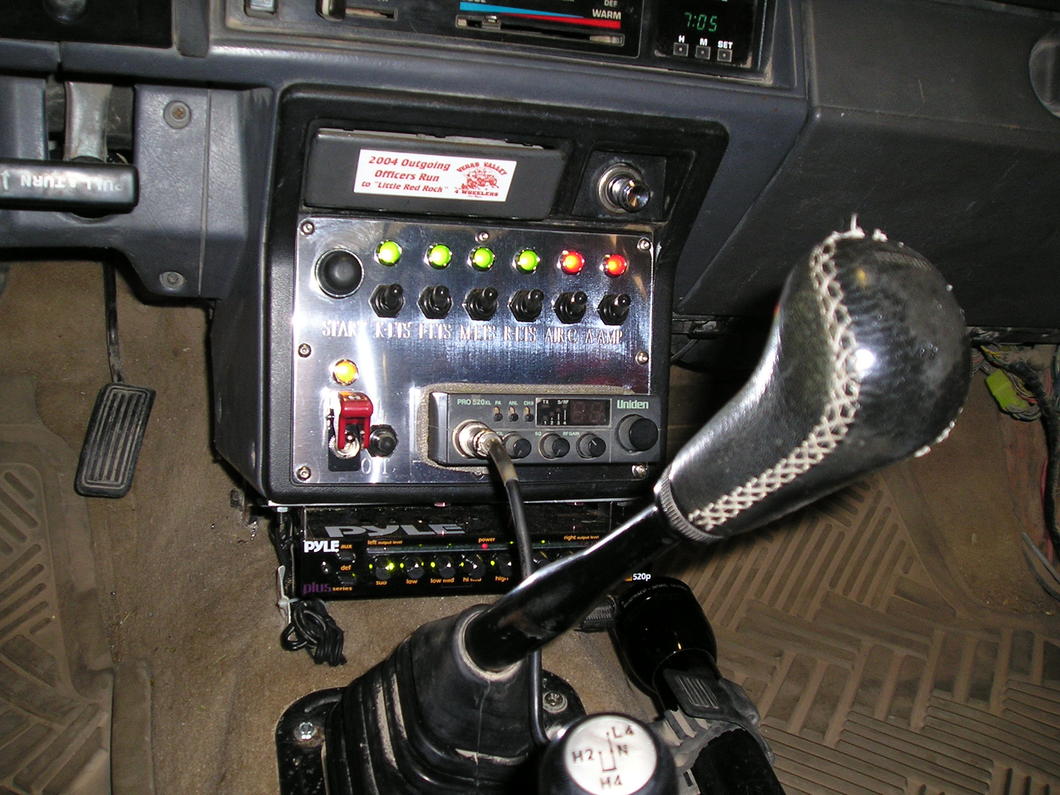

This was in my 1985 pickup. Panel from 12voltguy.com.

Edit;

Start
KLTS (KC lights)
FLTS (front rock lights)
MLTS (mid rock lights)
RLTS (Rear backup lights)
ARC (Air Compressor)
AMP (Amplifer)

And winch control with emergency shutdown cover.



[Bandit Runner]

You might have been referring to me.

I really like this location too. I had to make a custom piece to fit there.



[Tucson4runner]

You might have been referring to me.

I really like this location too. I had to make a custom piece to fit there.

Would you be interested in making another custom piece?

Sent from my SM-N910V using Tapatalk



[psraff]

You might have been referring to me.

I really like this location too. I had to make a custom piece to fit there.

THAT'S IT!!!!! Yes, I loved that when I saw it. I'll have to make something like that though I have no idea how to start. I know your skills\equipment were top of the line.

Time to brainstorm.



[infamousRNR]

i really love how creative everyone has been and really like the clean look of [MENTION=135677]michaeljtomey[/MENTION] 's rear view mirror creation.

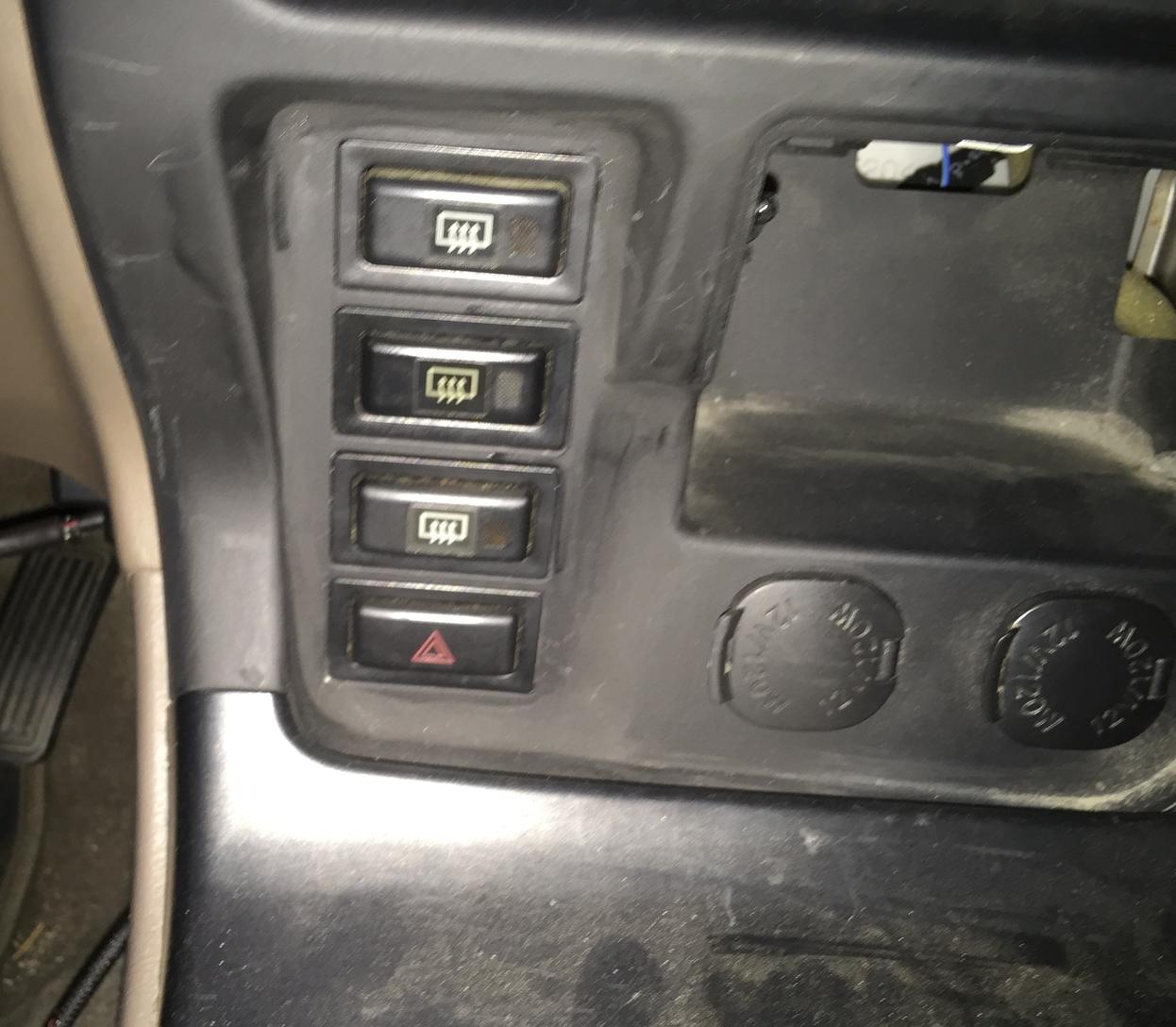

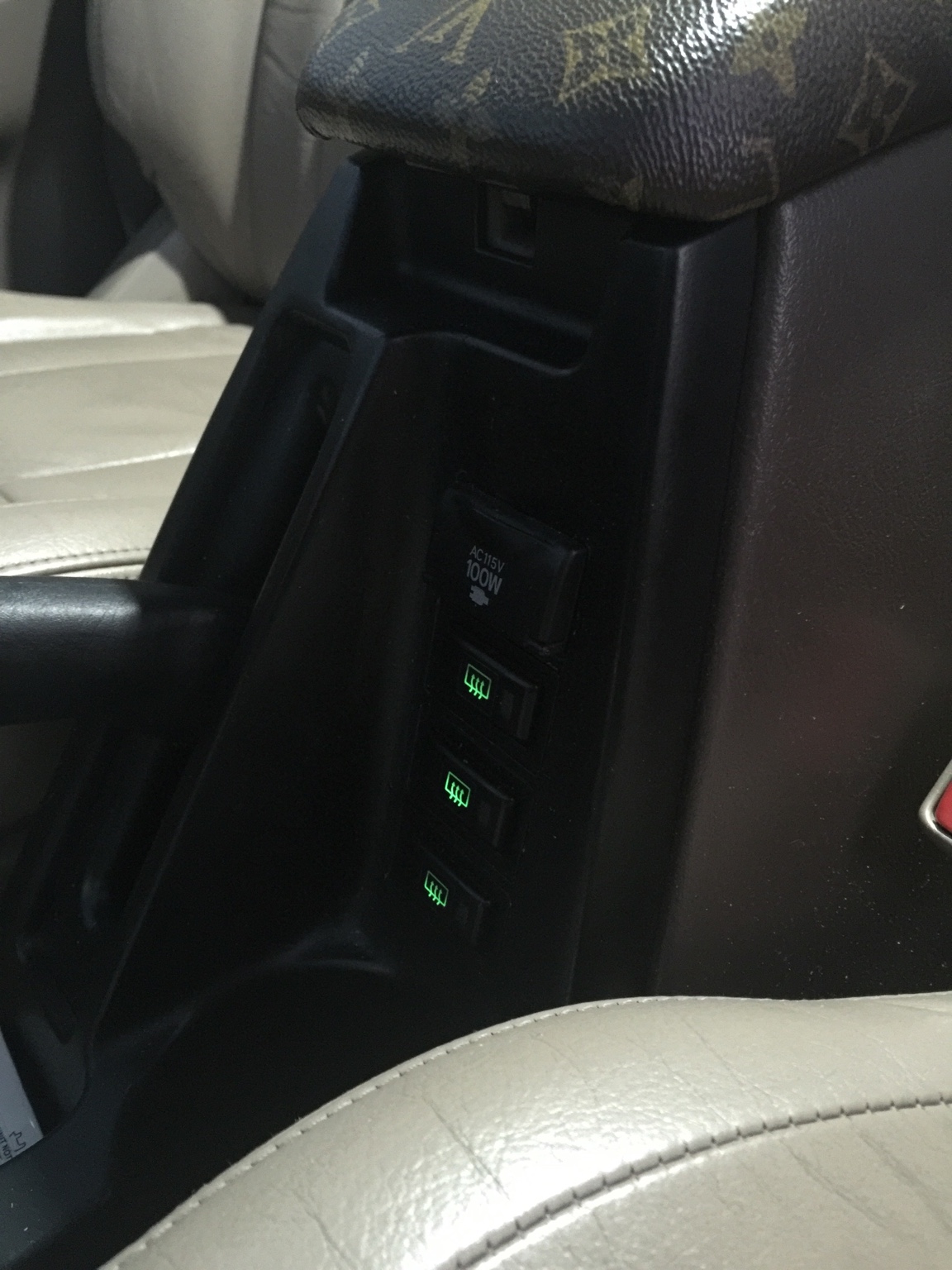

but i am a sucker for OEM type looks. and [MENTION=74071]Brilliant[/MENTION] 's OEM switch mod in the center arm rest console is awesome. so, with the help of [MENTION=133963]GGFerrier[/MENTION] we bring to you: OEM look switch panels & OEM switches. now, i don't know who was the first to do this but i first noticed it on [MENTION=74071]Brilliant[/MENTION] 's .

i have a plan to re-locate my HAZARD switch, just have to tie in longer wire. Any thoughts regarding the different switch [MENTION=10169]TheDurk[/MENTION]
.



[GGFerrier]

i really love how creative everyone has been and really like the clean look of [MENTION=135677]michaeljtomey[/MENTION] 's rear view mirror creation.



but i am a sucker for OEM type looks. and [MENTION=74071]Brilliant[/MENTION] 's OEM switch mod in the center arm rest console is awesome. so, with the help of [MENTION=133963]GGFerrier[/MENTION] we bring to you: OEM look switch panels & OEM switches. now, i don't know who was the first to do this but i first noticed it on [MENTION=74071]Brilliant[/MENTION] 's .



i have a plan to re-locate my HAZARD switch, just have to tie in longer wire. Any thoughts regarding the different switch [MENTION=10169]TheDurk[/MENTION]

.

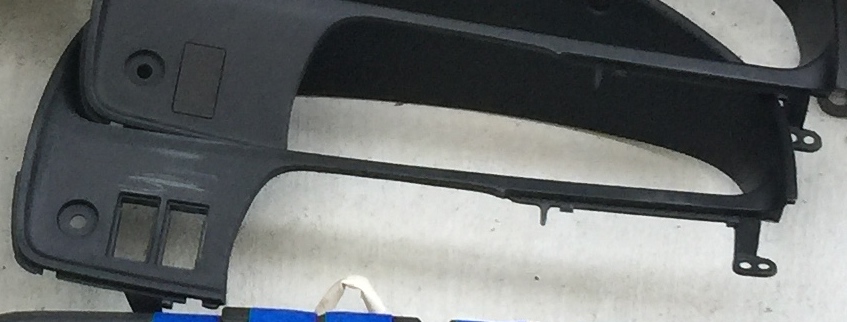

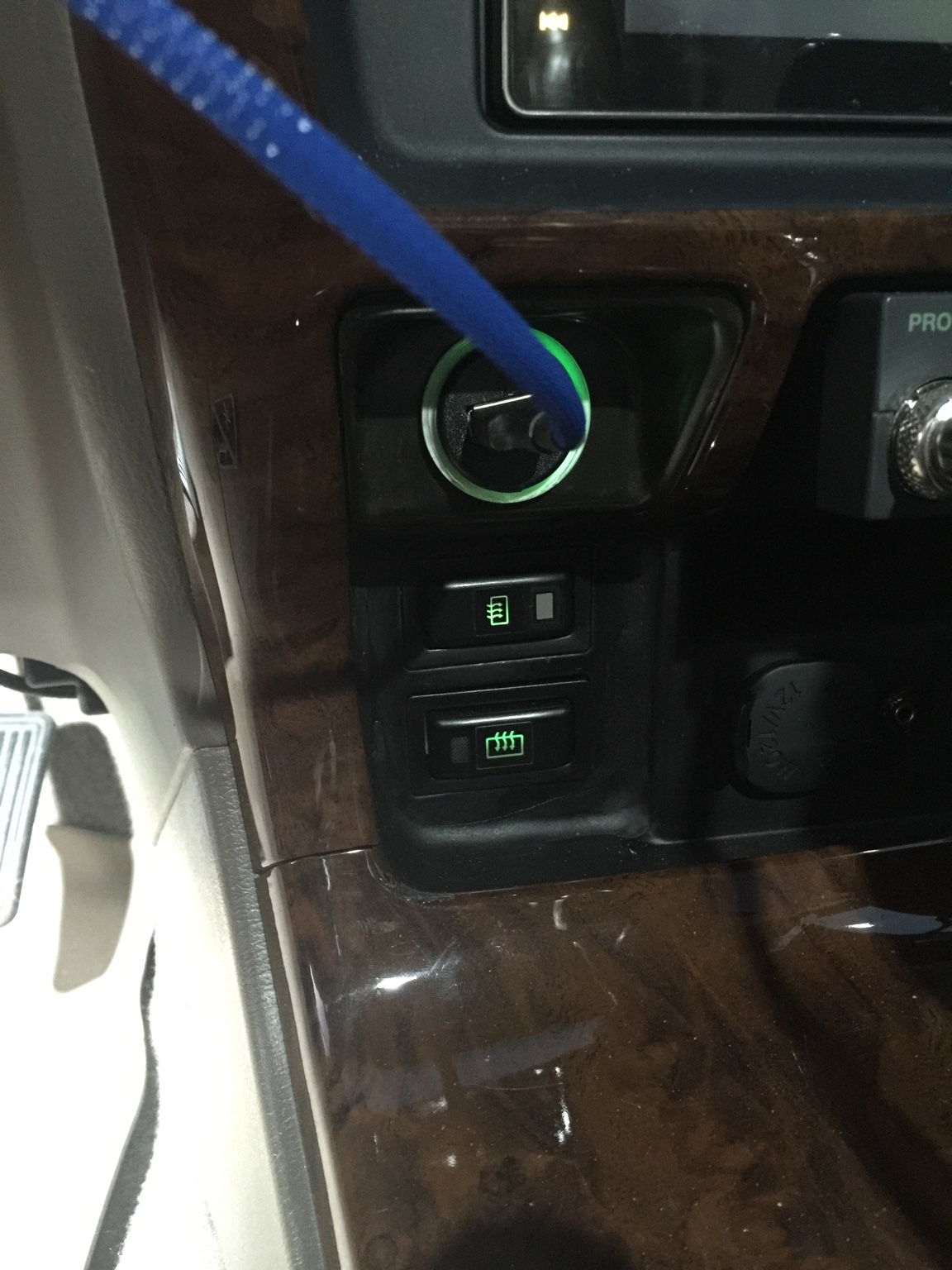

Couple different options we've been working on...



[Brilliant]

[MENTION=102606]infamousRNR[/MENTION] looks good... maybe I should redo mine from 2 to 4....

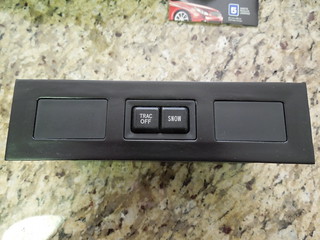

My thread main page links to a few pics of these if you want to replicate.



[GGFerrier]

[MENTION=102606]infamousRNR[/MENTION] looks good... maybe I should redo mine from 2 to 4....

My thread main page links to a few pics of these if you want to replicate.

Yep, I thought he was crazy when we were talking about doing it... Two was enough for me cause of the 4 I copied in the center after seeing yours.



[cj80cruiser]

I have the Paranoid Fab installed with a piece of black construction paper on the back of it until I decide what switches (Contura V, X, etc) and what I will be using all six switches for, along with a few other decisions I need to make. There's a picture of it installed in this post. It's very clean and professional looking. Pioneer DEH-X9600BHS Installation and Paranoid Fabrications Panel

EDIT: I went to a single din just because I wanted this panel.

When and if the black paper tears, you can get these for the ones not used. OTRATTW :: Accessories :: Switch Holders & Accessories :: V-Series Panel Plug



[psraff]

This might have some potential.... Row of 6 switches. Two gauges below (or some other combination. Though I still like the mount above the vents... Again, eye level. But I think this may be a good second choice.

Cut out the original area, and make a flat face out of fiberglass. Able to cut out a rectangle and use the switch holders to hold the switches. PVC pipe to slightly angle the gauges up and towards the driver. I would need to find a spare trim if I do this.... I'll brainstorm the area above the vents first, even though I think this one would be easier.



[Doc2012]

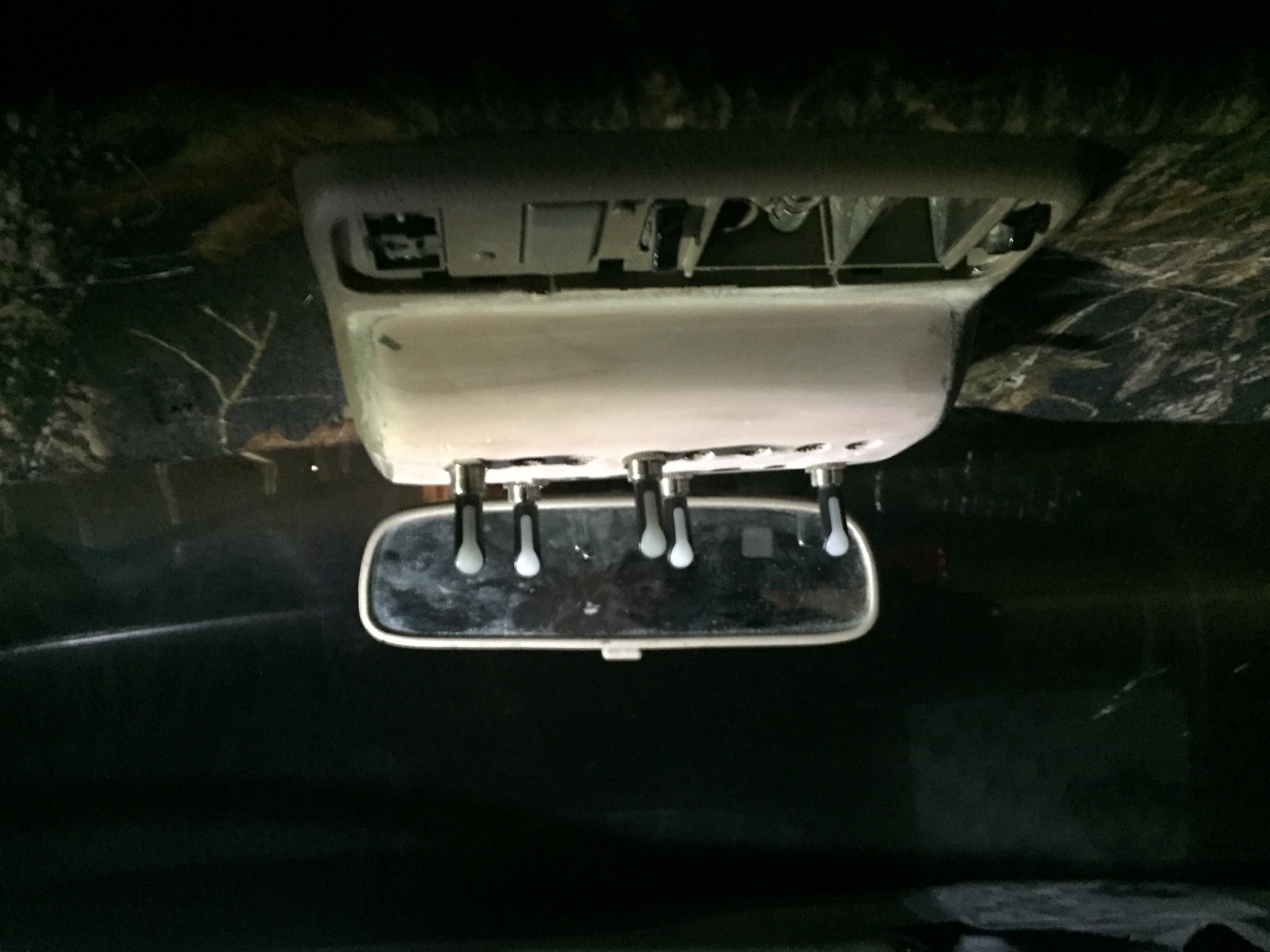

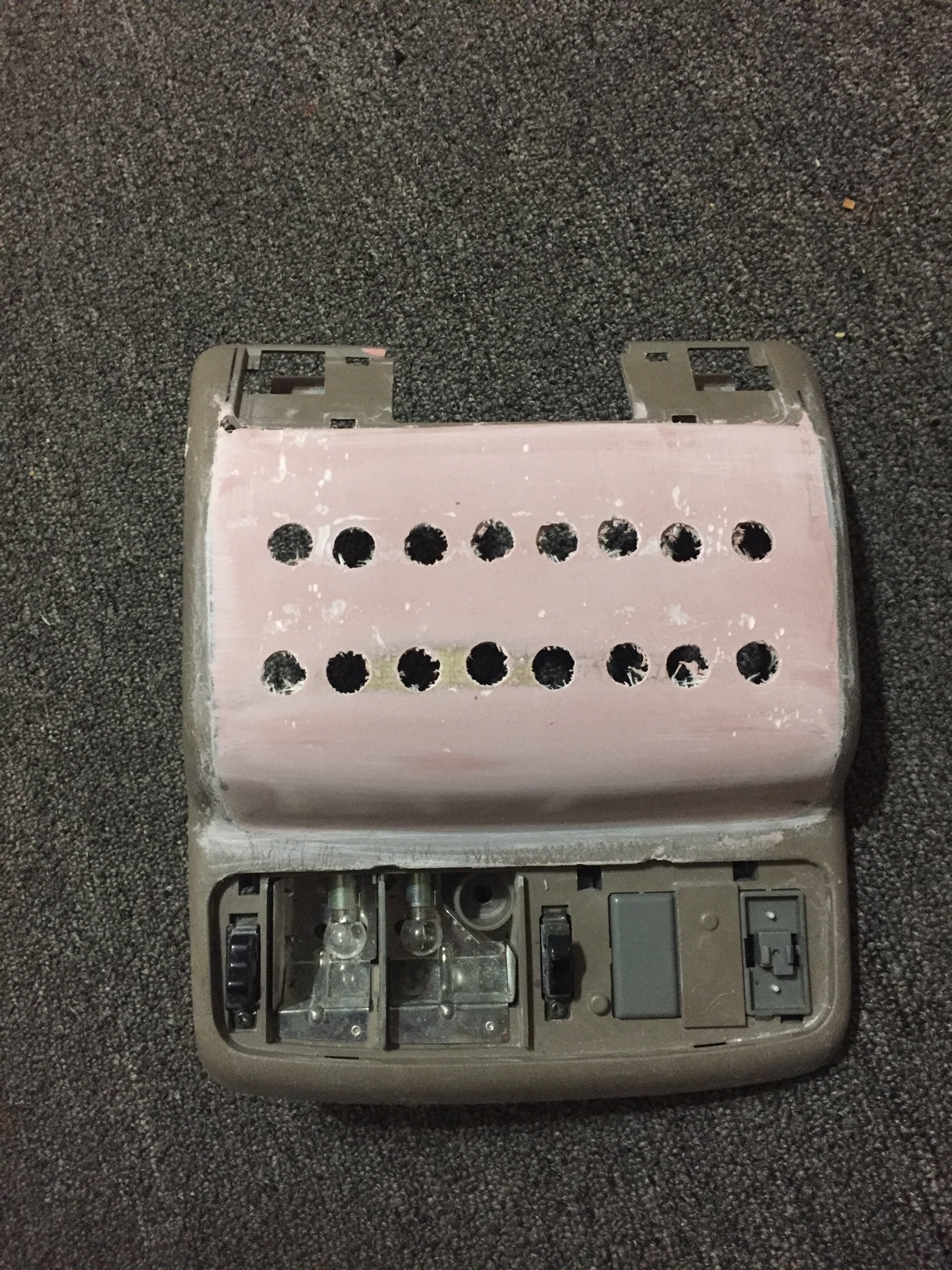

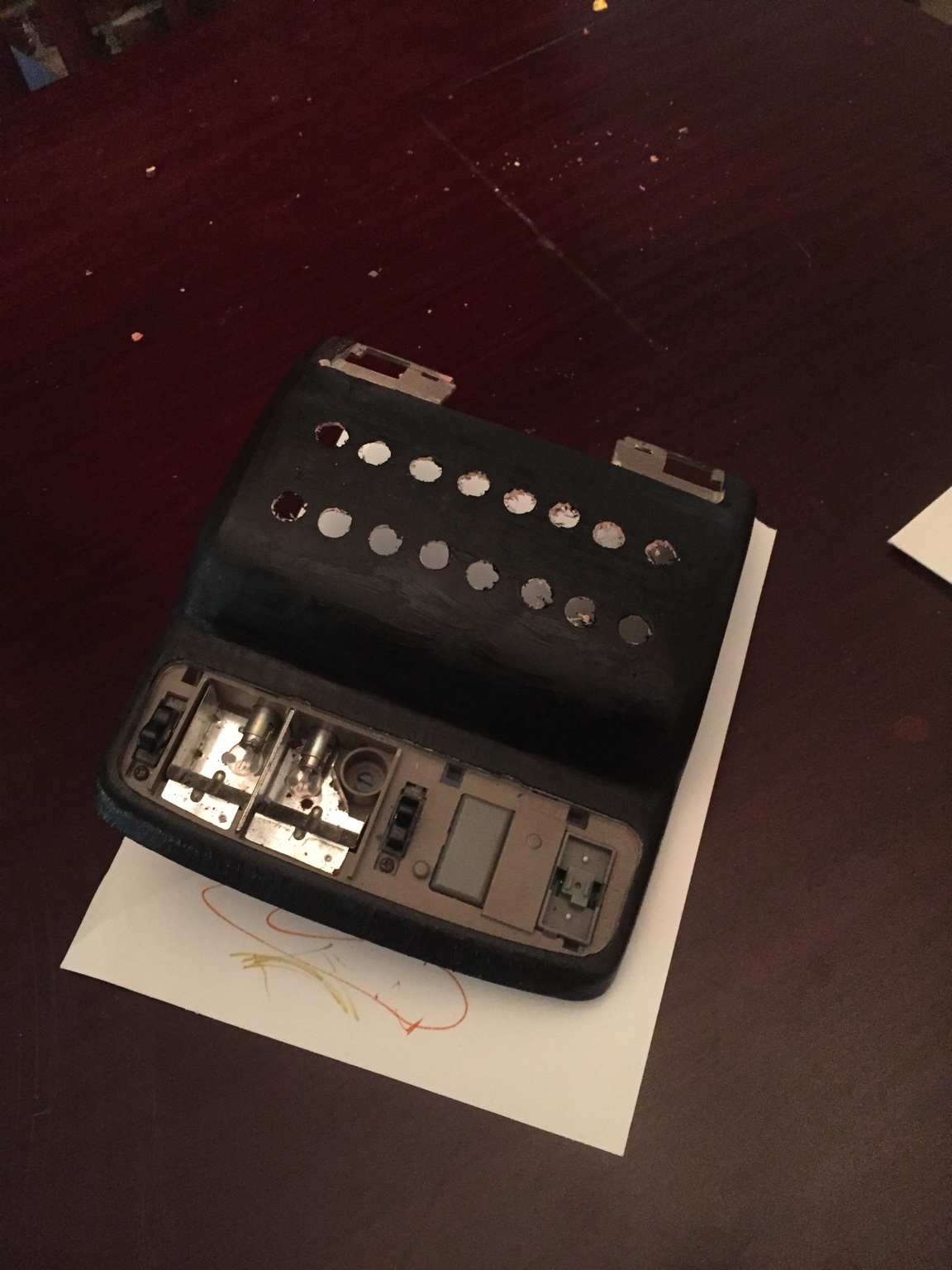

If you have the sunroof, here's how I did mine. It's going to be 16 switches in all, and I'll probably mount the relay box under the passenger rear seat, where the Jack was located.

This is the rough idea, and if I can find another over head console, With sunroof controls, I'll be redoing it. With enough space to add switch covers, even though I'll know pretty much where everything is, someone else might not.

Sent from my PRC-119 using morse code



[Rock_Rat]

Back in May last year I started a similar thread. Here's a post from that thread you might like. http://www.toyota-4runner.org/3rd-gen-t4rs/197305-center-bezel-lower-console-mod.html#post2019682


Thanks [MENTION=56109]cj80cruiser[/MENTION] This week is the week I'll be buying the switches and the backs. I've had to take care of a few other projects.
