TotalAutomotiveLV
New member
5th Gen TOYOTA 4RUNNER 4WD
Obtain increased wheel travel with a mild lift height with this heavy duty Upper Control Arm system.
The tubular Upper Control Arms feature 1.25” OD, .120” wall thick chromoly tube construction with
1” diameter Stainless Steel Uniballs that attach to the factory spindle without drilling.
The replacement UCA’s have been designed to work in conjunction with Fabtech’s Stainless Steel
Dirt Logic 2.5 Coilover shocks providing 10” of wheel travel for a complete front suspension system
upgrade. The Dirt Logic 2.5 Coilovers feature cold wound coil springs for a smooth ride with the
ability to tackle aggressive offroad terrain.
Fabtech rear Dual Rate coil springs replace the factory springs with a two stage design. In the
first stage they provide a supple ride quality at lower speeds with the ability to allow for more
wheel travel when traversing large offroad obstacles. The second stage provides increased
spring rate for load carrying capacity of gear while providing a superior ride at higher speeds.
The rear Dirt Logic 2.25 shocks will also provides 9&quo; of travel due the remote reservoir
allowing for the full stroke of the shock.
This system is perfect for those that want increased suspension performance with a low lift height.
A great choice for daily drivers that overland and hit the trails on weekends.
FEATURES:
- Arms eliminate upper ball joint w/ super strong 1” ID Stainless American Uniball
- Chromoly tubing reduces flex found in stock arms for more positive road feel
- 17-4 Stainless Steel Heat treated Uniball pin fits into factory ball joint taper without modification to the spindle
- Dual Rate rear coil springs provide increased flexibity and smooth ride
- Great system for the daily driver that requires increased offroad performance
- Dirt Logic Shocks
– Allows for wheel travel of 10” Front & 9” Rear
– Stainless Steel Body
– 7/8” NitroSteel® Piston Rod
TIRES & WHEELS
Tire Size – 33/12.50R17 Wheel Size – 17×8 w/ 4 5/8in BS w/minor trimming
Tire Size – 275/70R18 Wheel Size – 18×9 w/ 4 3/4in BS w/minor trimming
Tire Size – 275/60R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming

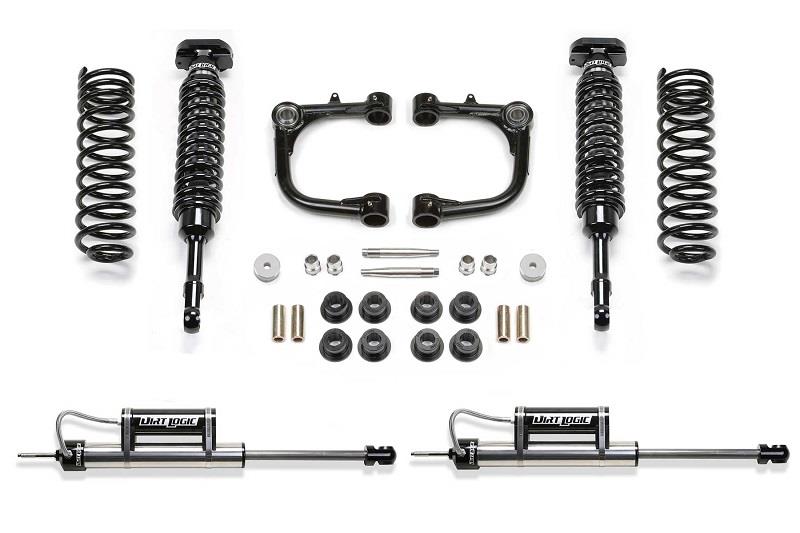

Toyota 4Runner Non-KDSS
Part #K7079DL

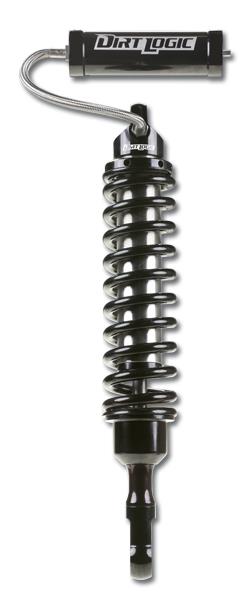

FRONT DIRT LOGIC 2.5 COILOVERS

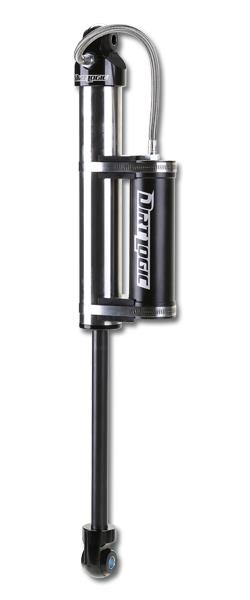

REAR DIRT LOGIC 2.25 SHOCKS w/Res
UNIBALL UCA
3" Rear Coils
MSRP: $3,620.20

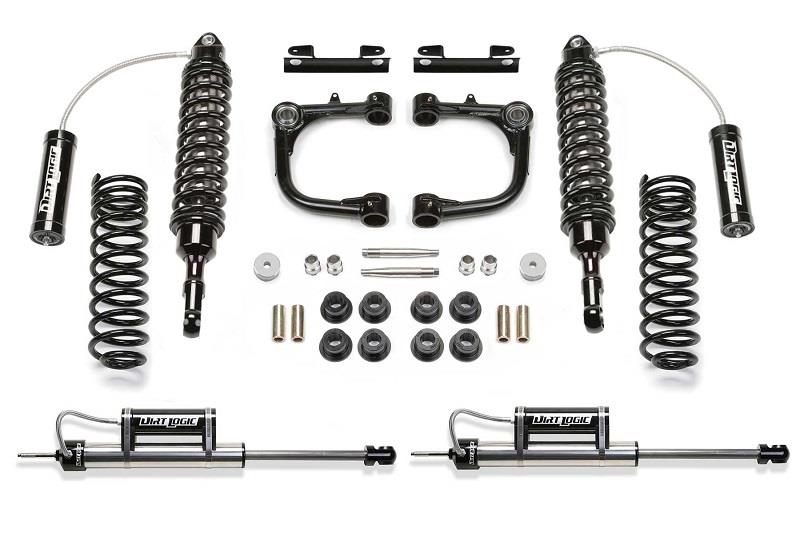

Part #K7080DL
FRONT DIRT LOGIC 2.5 COILOVERS w/Res
REAR DIRT LOGIC 2.25 SHOCKS w/Res
UNIBALL UCA
3" Rear Coils
MSRP: $3,916.60
Toyota 4Runner with KDSS
Part #K7081DL
FRONT DIRT LOGIC 2.5 COILOVERS
REAR DIRT LOGIC 2.25 SHOCKS w/Res
UNIBALL UCA
3" Rear Coils
MSRP: $3,620.20
Part #K7082DL
FRONT DIRT LOGIC 2.5 COILOVERS w/Res
REAR DIRT LOGIC 2.25 SHOCKS w/Res
UNIBALL UCA
3" Rear Coils
MSRP: $3,916.60
To see all options - Click Here
This is a New Product Release by FabTech.
We are still working on a Forum Discount for everyone.
