Fixed: Dead Instrument Cluster in 2003 Toyota 4Runner (Corrosion Issue)

[TheSpeakGeek]

TLDR; Fixed dead instrument cluster in my 2003 4Runner

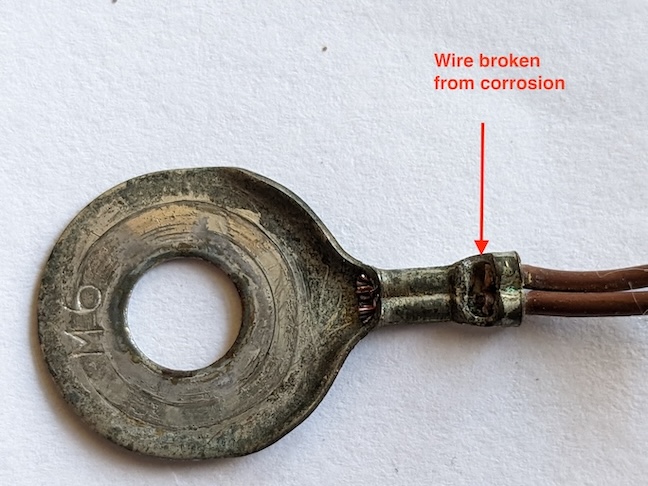

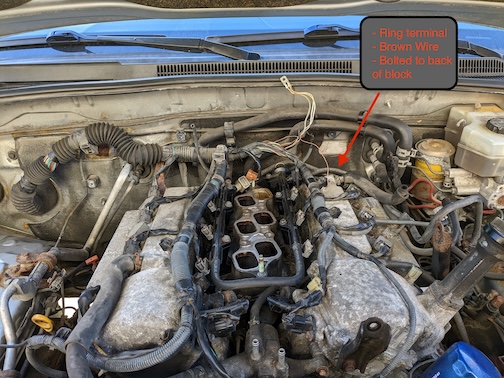

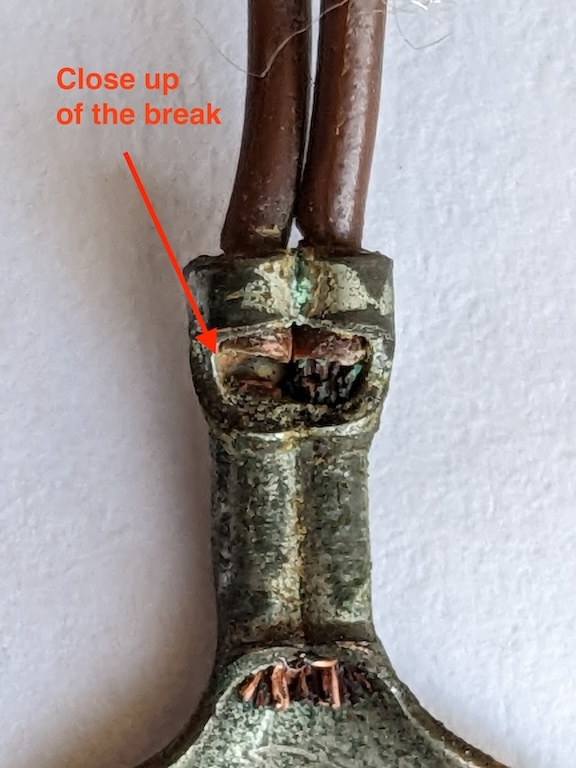

Hey guys, after weeks of troubleshooting, I finally fixed the dead instrument cluster in my 2003 4Runner. It turned out to be a corroded and broken wire at the ring terminal of ground EF on the backside of the block on the driver's side.

Here's a quick summary of the symptoms I had:
Tachometer, speedometer, odometer, fuel gauge, engine temp gauge, trip computer, and gear indicator were all dead.
Door ajar buzzer didn't work, but the indicator light did.
High beam and check engine lights worked fine.
Sometimes the "R" gear indicator would light up slightly.
Basically, it seemed like most of the instrument cluster was dead, but a few random things still worked.

Here's a rundown of what I went through:
Initially suspected a bad instrument cluster, but swapping it didn't help.
Considered mice damage, even replaced a knock sensor, but found no wiring damage.

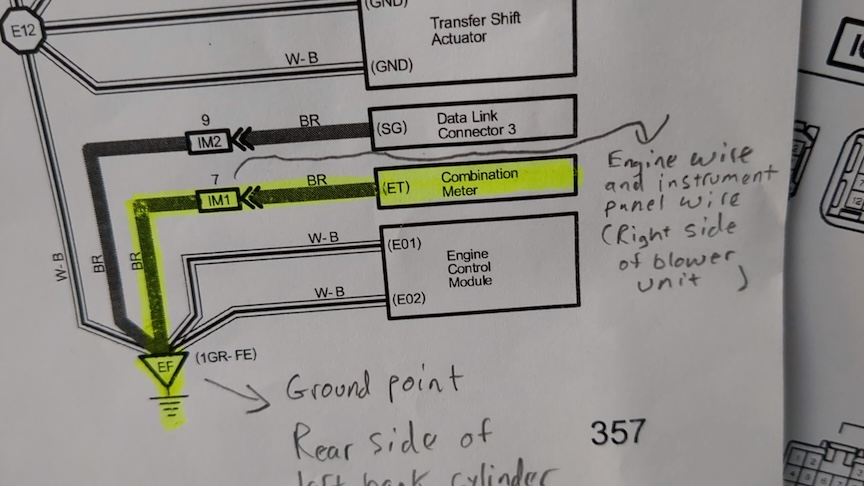

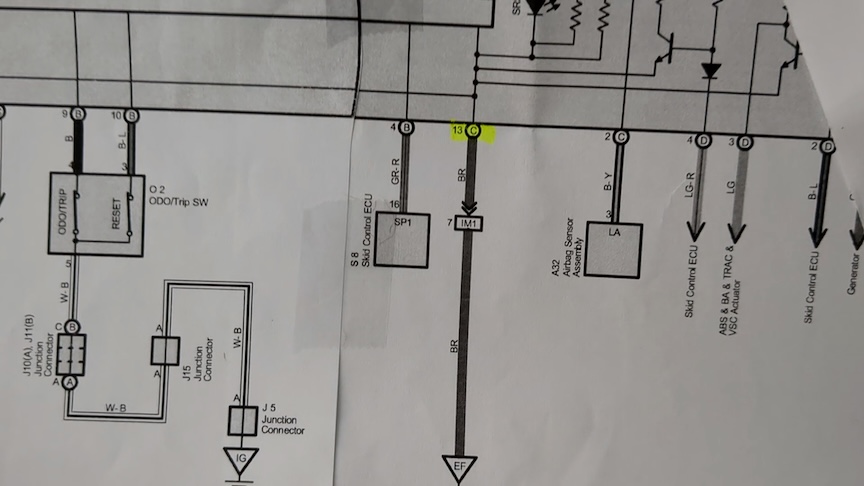

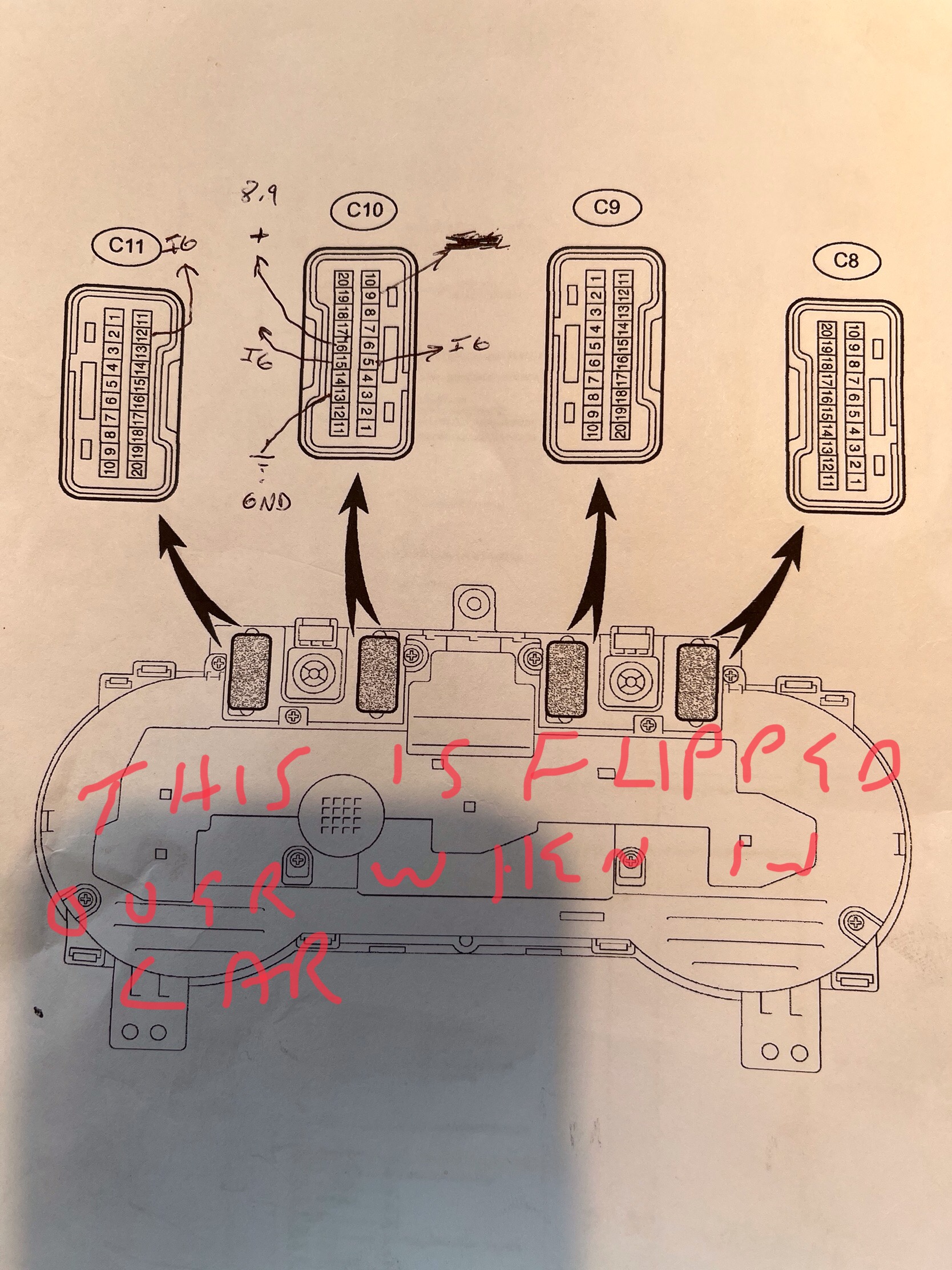

Spent hours tracing the wiring diagram and checking connections.

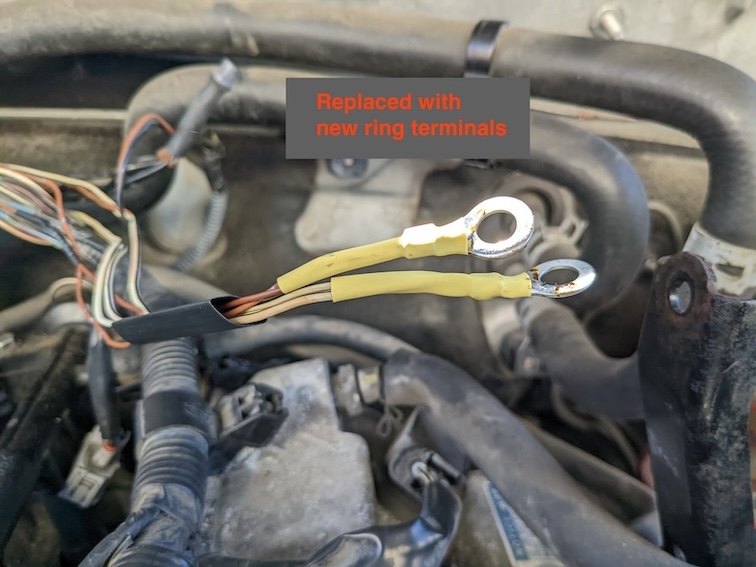

Finally found the faulty ground wire and replaced the ring terminal on it, restoring the instrument cluster.
If you're having similar issues, definitely check your grounds! It might save you a lot of time and headache. Hope this helps someone out there.



[Capt Kirk]

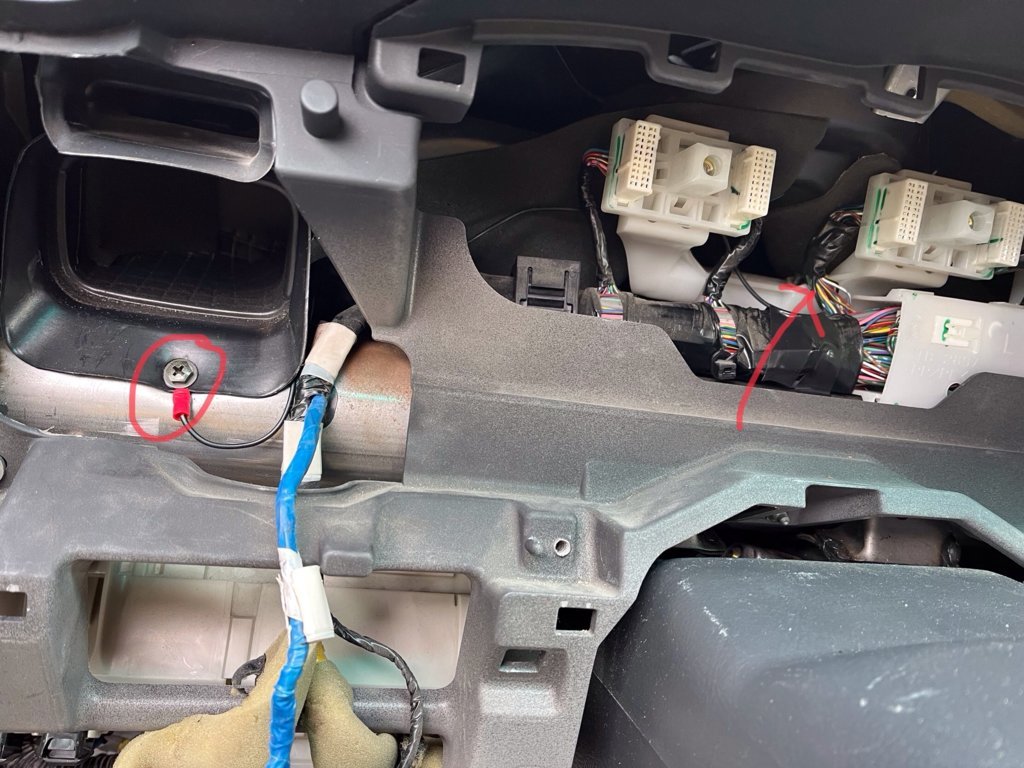

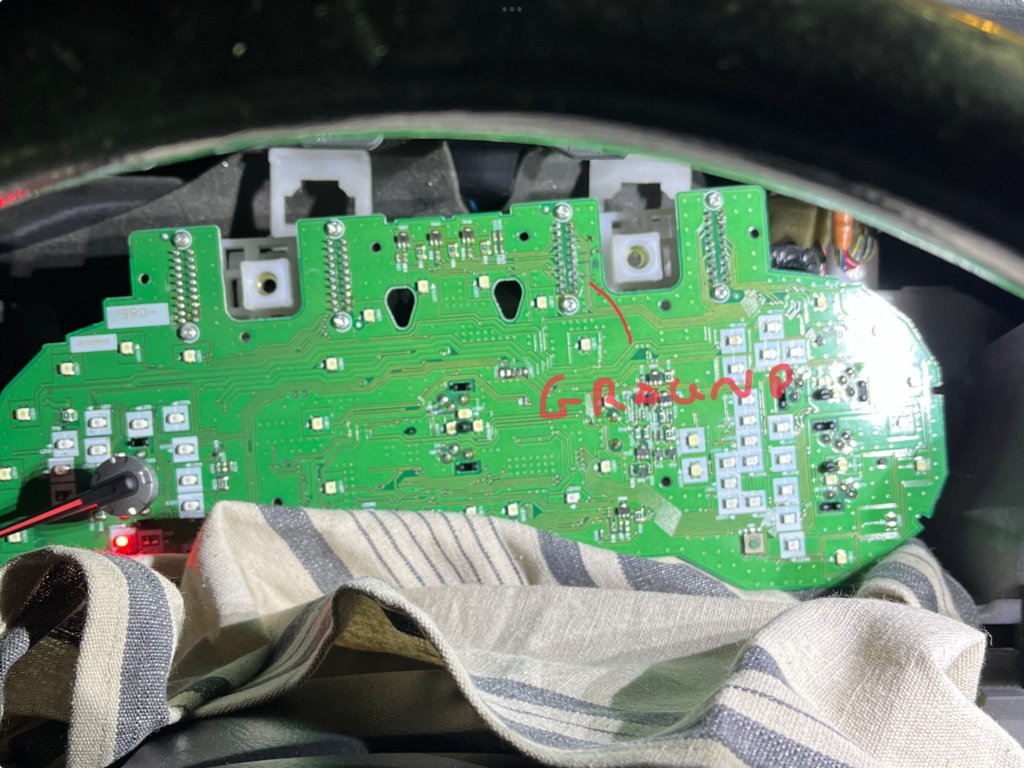

Good morning, you have described the exact conditions that I experianced, the digital displays are blank, Tach, fuel, speed & Temp are not functional, the VSS sensor is showing .8 vdc at the sensor and the plug on the ECM besides the glove box. Hoping I find this is the problem. I did get a "ABS" malfunction, but that cleared and the brakes are still working.

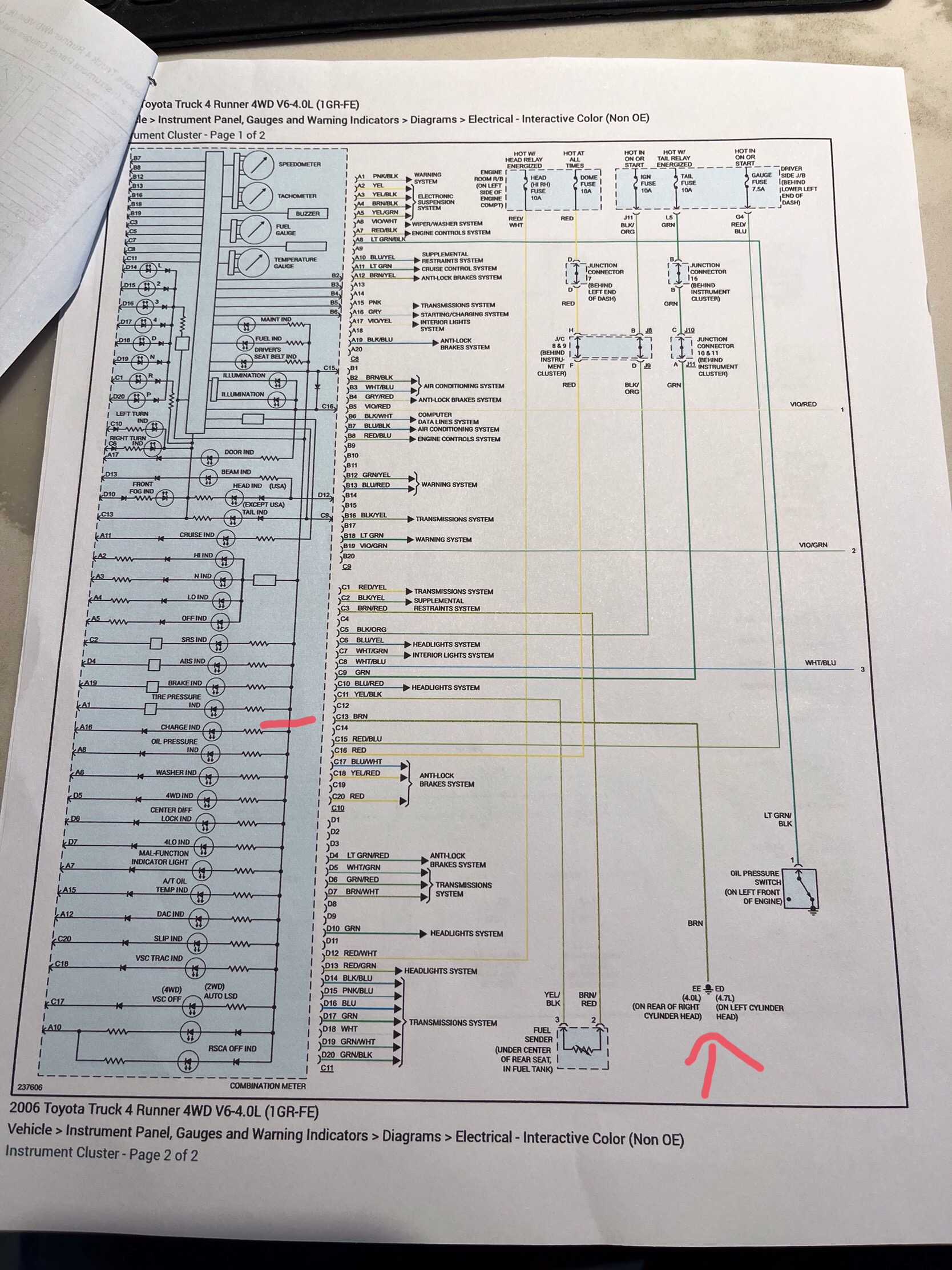

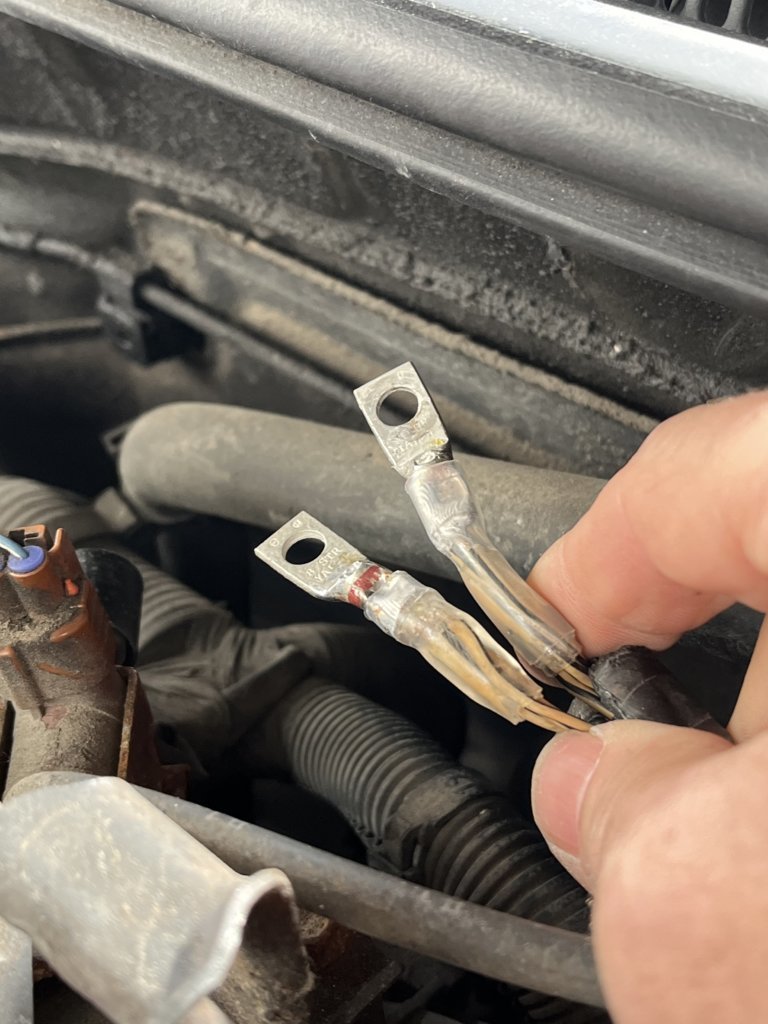

***UPDATE** If your instrument cluster stops working, dash turn indicators are dim,no cruise or "KEY in ignition" alarm and no digital read outs are displaying there is a 6(Brown) wire ground point "EE" at the back of the PS engine head. This is a secondary ground connection for multiple modules. Trouble shoot with key in the ignition off position. When it dings you may be done. I found some corrosion and "Black wire" in multiple wires. Trimmed back to clean wire soldered and waterproofed connections and working like its supposed too.



[SurferUK]

Hopefully I never need this, but that's a fantastic bit of diagnosis, thanks for sharing it.



[Capt Kirk]

You got me in the right location, but there was another point "EE" on the "Passenger side", 6 brown wires and those were the problem. Got everything working including a grease job and oil change. Thanks
