Foothillsflyer 02 Sports Edition Build Thread

[Foothillsflyer]

Hey Gang,

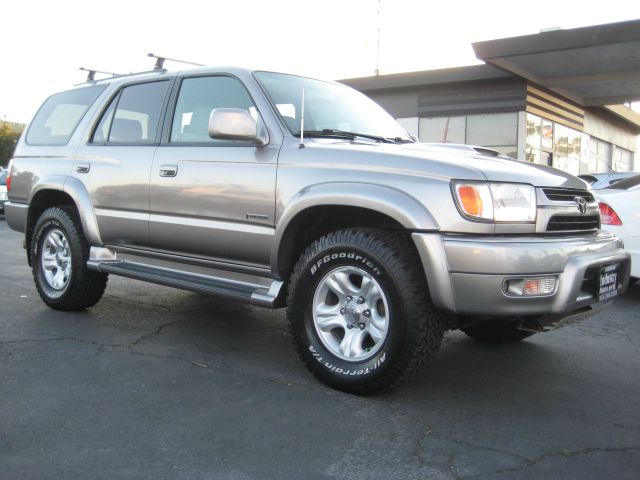

Nearly 12 months later and just got it finished! Took a bone-stock 2002 4Runner Sport Edition and built her to below specs. ( I haven’t even taken her off pavement yet) Currently stands w/ 163K Miles. I am not original owner but this rig had a clean Car Fax when I bought it and after careful inspection it appears clean and accident free. History shows Arizona and California owner history and there is no rust.
This rig was done professionally and done RIGHT by Concept Motorsports, Grass Valley.
Sound System and Alarm by Jim Inman and his Team @ Electronic Solutions, Grass Valley.

The good news = Build turned out amazing
The bad news = It wasn't cheap
The worse news = Might consider letting this one go to build a Tundra

Hope you enjoy!

If you love this rig and feel like you "need" one like this in your driveway, PM Me

Here is the breakdown (minus a few details I have overlooked or lost track of)
Used 2002 4R Sport Edition
Below is a listing of Mod’s.

Drive Train
Engine and Gears are Stock Set Up
Stock Center Lock Diff
4WD Hi Lo
Add On K&N Filter Concept Mtr
Add On Magnaflow Exhaust Concept Mtr
Add On External Tran Cooler Concept Mtr
Add On Large Radiator Reservoir (relocated due to dual battery set up-see pics) Concept Mtr
OME 881 Front
OME 90004 Front Shocks
OME Trim Packer and Top Place
Main Diff Spacers (diff Drop)
OME 890 Rear Coils
OME 60028 Rear Shocks
OME 661 Shock Stone Guards
Suspension / Lift (ToyTEC)

Tires / Wheels
FN Wheels Konig Six Shooter (Graphite Gun Metal 17X8)
Black SD Lug Nuts
Nitto Trail Grapplers AT : M+S P285/70R-17

Body & Armour
Side Sliders Custom Fab by Concept Motor Sports
Front Bumper by Outdoor Logic, Modified by Concept Motorsport for better fitment
Bumper Color Painted to Match Concept Mtr
Repainted Hood Scoop due to oxidization Concept Mtr
Front Skid Plate Custom Fab by Concept Motor Sports

Rack :
Custom Built by Concept Motor Sports
Powder Coated Black Concept Mtr
Expanded Metal Inserts Concept Mtr
All Wires Internally routed (single plug for disconnect) Concept Mtr
Rack mounts into factory rails (roof has not been drilled or cut) Concept Mtr

Electronics :
Added 2nd Battery Concept Mtr
Custom Battery Tray by Concept Motorsports Concept Mtr
Dual Battery Solenoid and Electonic Controller by National Luna
New Drivers Door Lock Actuator

Stereo & Alarm : Electronic Solutions of Grass Valley
Pioneer Head Unit : DEH-X8500BH Bluetooth HD Radio
Rockford Fosgate Amp(s)
4 Channel Main (P600X4)
1 Channel Sub (P500X1BD)
Rockford Fosgate Remote Sub Control :
Speakers
Front Speakers : Rockford Fosgate T16-ST1 Power 6” Component
Rear Speakers : Rockford Fosgate T16 Power 6” 2 Way Coaxial
Sub Woofer : Rockford Fosgate P3D4-10 Dual Voice Coil 10”
Sub Box :
Sub Grille : Rockford Fosgate
Zero Gauge Wire from Battery to Fuse Block in Amp Location
Sound Matting/Dampening Material in Doors
Alarm : Viper w/ Pager Remote Model 3305V
Prof Instal

Exterior Lighting :
Headlights : HID HI/LO Conversion (Purchased Through Concept MotorSports)
Brake Lights : LED Conversion (V3 Triton Red High Power-VLEDS.com)
3rd Brake Light : LED Conversion (VLEDS 921_14_HP_R1 Red 5W)
License Plate Lights : LED Conversion (Putco 287431W)
Reverse Lights : LED Conversion (VLED 921_19_HP_W_5K White 19LED 8W High Power)
Turn Signals Rear : LED Conversion (VLED 7443_21_Amber)
Turn Signal Front : LED Conversion (3 AMBER LED w/ Clear Lens)
Turn Signal Load Equalizer (VLEDS V3_CLS_20)
Parking Lights : LED Conversion (VLEDS 194_10_CP_A Amber 10 LED)
Rock Lights : 8 LED Vision-X Multi-Color/Multi-Effect with Remote Control (Purchased Through Concept MotorSports)
Behind Grill : 2 qty Zues 6” Spot Beam (Purchased Through Concept MotorSports)
Bumper Lights : HID Pencil Beam (Purchased Through Concept MotorSports)

Rack Lights: (Purchased Through Concept MotorSports)
Front Light = Zues 30” Flood Beam Concept Mtr
Side Lights = Zues 6” Flood Beam Concept Mtr
Rear Lights = Zues 6” Spot Beam Concept Mtr

Interior Lighting :
Dome Light : LED Conversion (VLED DIY_48_SMT_WW Warm White 48 LED Board)

Miscellaneous:
Wet Okole Seat Covers
Wheelskins Leather Steering Wheel Cover
Hella Dual Red Horns
Window Vent Visors
Front Weather Tech Mats
Rear Cargo Weather Tech Floor Mat


Updated pictures coming soon
http://s1340.photobucket.com/user/Foothillsflyer/slideshow/4Runner

Limited Pictures but there LED's Left/Right & Rear

SKID

Slider



[Rod]

Nicely done...cant wait to see the details on the buildup.



[downpour11]

Welcome! Where in NorCal?



[Foothillsflyer]

Updated Footillsflyer Build

Updates to Build...

LED Interior (Warm White 48 LED from VLEDS)
LED Exterior (Taillights, 3rd Brake, License Plate, Corner Markers, Turn Signals)
ROLA Rear Cargo Organizer

Parts Ordered and In Process...

Dual Battery Setup (National Luna Intelligent Solenoid & Dual Controller)
Custom Battery Tray
Cold Air Intake & Filter Setup
MagnaFlow Muffler
HID HeadLight High & Low Conversion
Clear Front Bumper Turn Signal Lens w/ LED Ambers

96-98 Grille Mod...a few in process pictures.



[gotopless]

very nice start



[ranbar02]

Looks good. Ready to see the grill on your 4runner.



[Dezert4Runner]

Heyyy, that grille emblem looks familiar! Hoopless color matched ODL looks great. The roof rack design is clean too. What brand led light bar? Output pics? Nice build so far.



[4x4runner2002]

looks clean
where did you run the wires for the lights on the roof rack?



[morbidsanity]

niiiice



[Foothillsflyer]

Rack/Lighting Questions

Thanks everyone for the positive feedback...

Here are a few shots of how the rack is currently wired. This is the temporary set up. Rack comes off next week and we are adding two feet to support the front of rack near sunroof location. Also we are adding a removable section over sun roof that can provide extra cargo space when desired. Finally the rack is getting powder coated once all this is done. We will then re-wire everything with appropriate shrink wire wrap so it's a finished product. We are also toying with the idea of corner LED's to add range to the flood patttern.

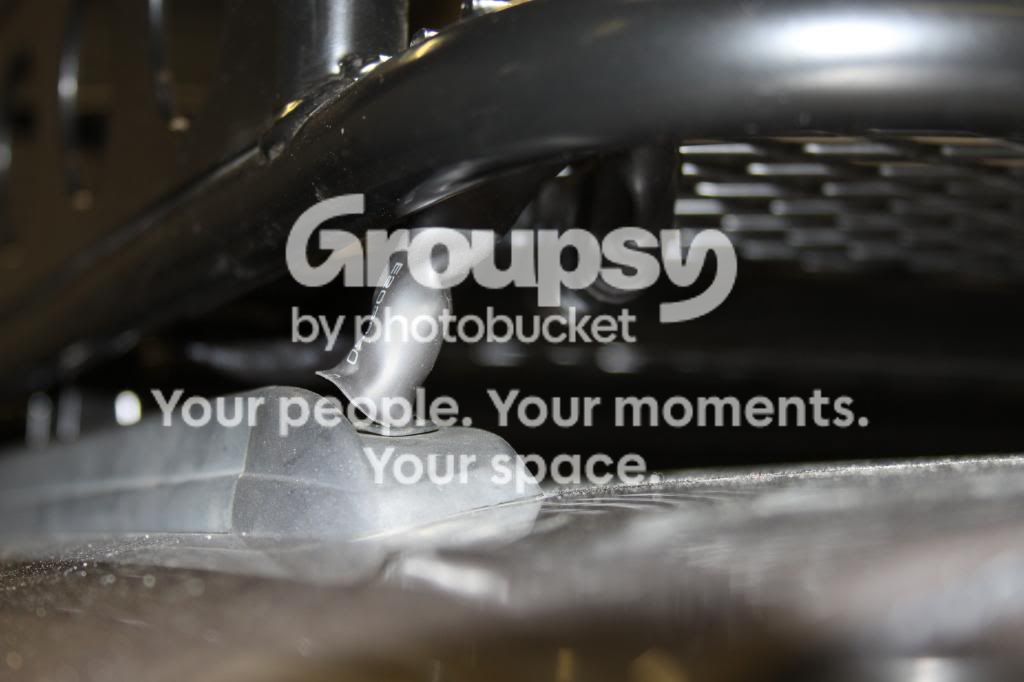

All the wiring is inside the rack. Everything exits the rear of the rack and is connected through just one plug. This provides an easy option if the rack needs to be quickly removed for some unforseen reason. There is a small port drilled into the factory rail system where you can see the wires enter the cabin. Wires run under headliner to B pillar and then over to tranny column where you will see we mounted 3 switches to operate (frront/rear/sides). A fourth switch is going into this same location to run the bumber mounted HID's. Depending on what we add for corner lights we may need to consolidate or add switching. Will keep posting details as we go along, and will attempt some night shots once we get everything put back in place next week. Enjoy



[liftedbrigade]

Looks awesome! I'm jealous. That a RI Light-bar? They're a pretty penny, but god I want one! Can't wait to see the details! :banana:



[JWaldz]

:wave: Welcome!

Sharp looking rig ya got there!

:snacker:



[Dark Lord]

Any progress on this? I like how this is turning out. I'd like to see more details. What front skid plate is that? I like how your roof rack lights are wired. It's kind of like how I wired my license plate light through my tube bumper to my tire carrier.



[Foothillsflyer]

Build Update Coming Soon

I hope to have new pics and details this week for of all the work that has been done since the last update. We should be buttoned up this week with all sorts of new updates, lights, mods, etc.

On a not so good note, my Satoshi mod didn't work for my model year so I put it up for sale it on the Forum.



[Foothillsflyer]

Updates

Here is a look at a few of the updates that have been done recently...

Custom Dual Battery Tray

Smart Solenoid

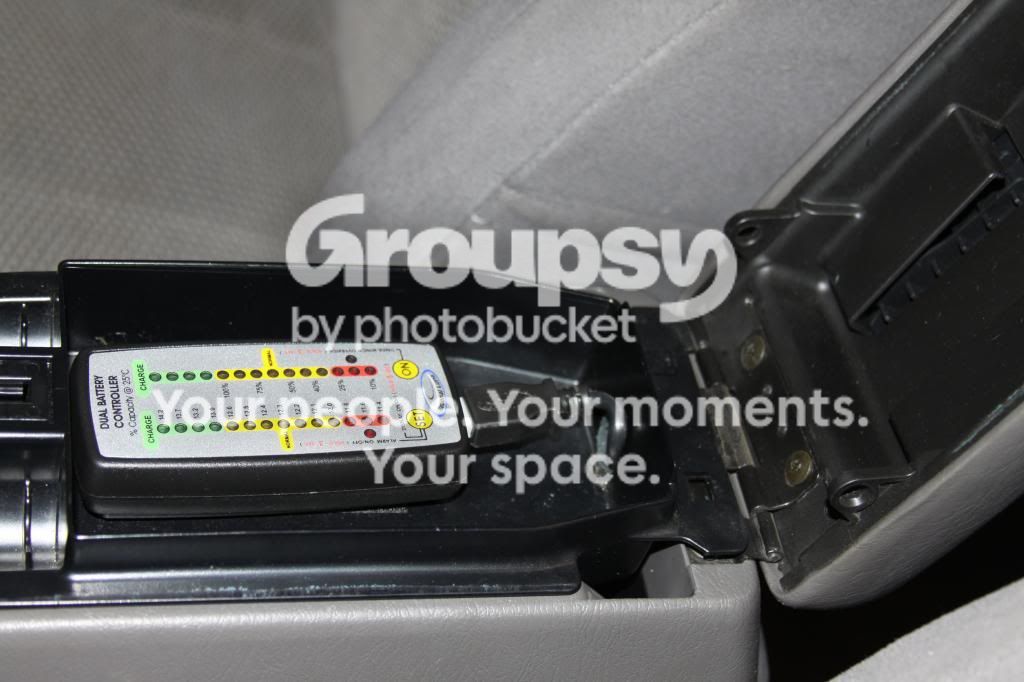

Dual Battery Controller in upper arm rest, velcro application for easy removal

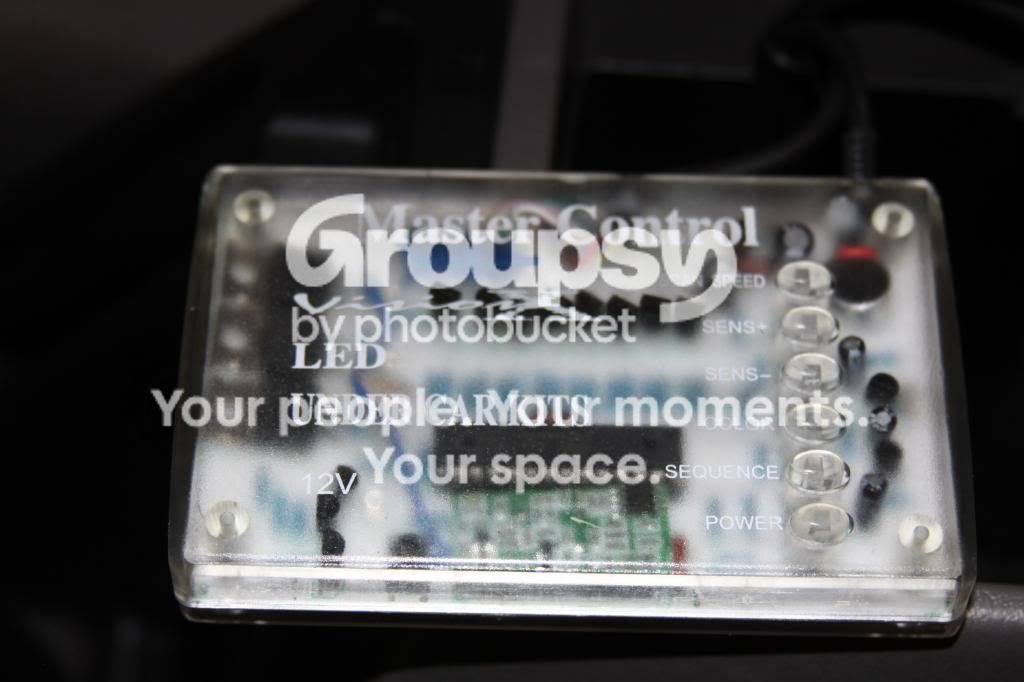

Brain for UnderCarriage Rock Lights

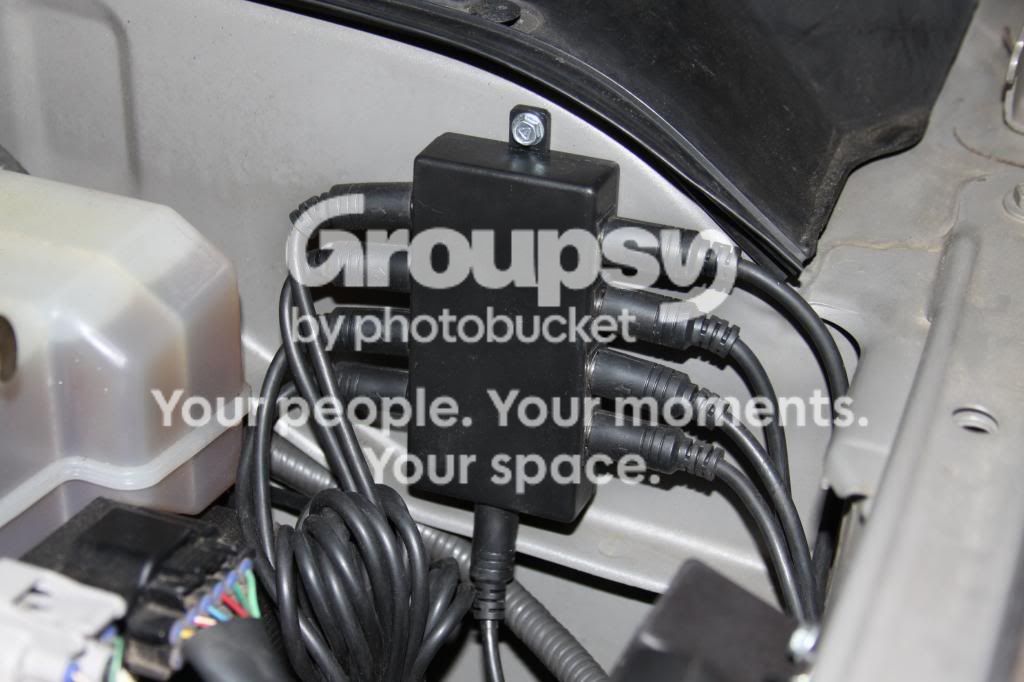

Distribution Block for 8 rock lights

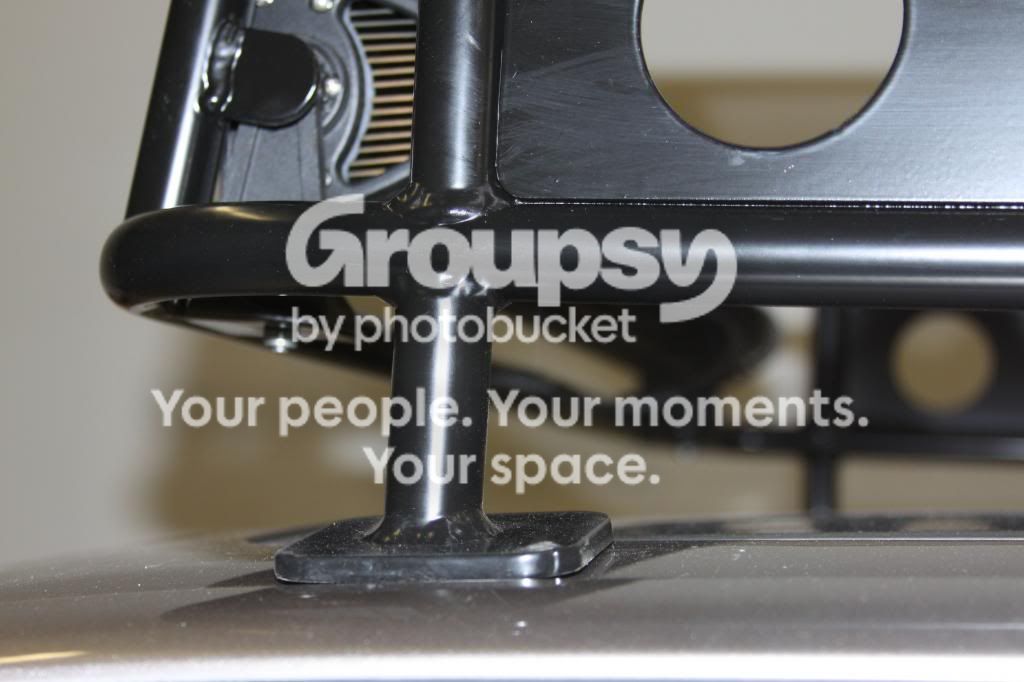

New Front Footings added to rack

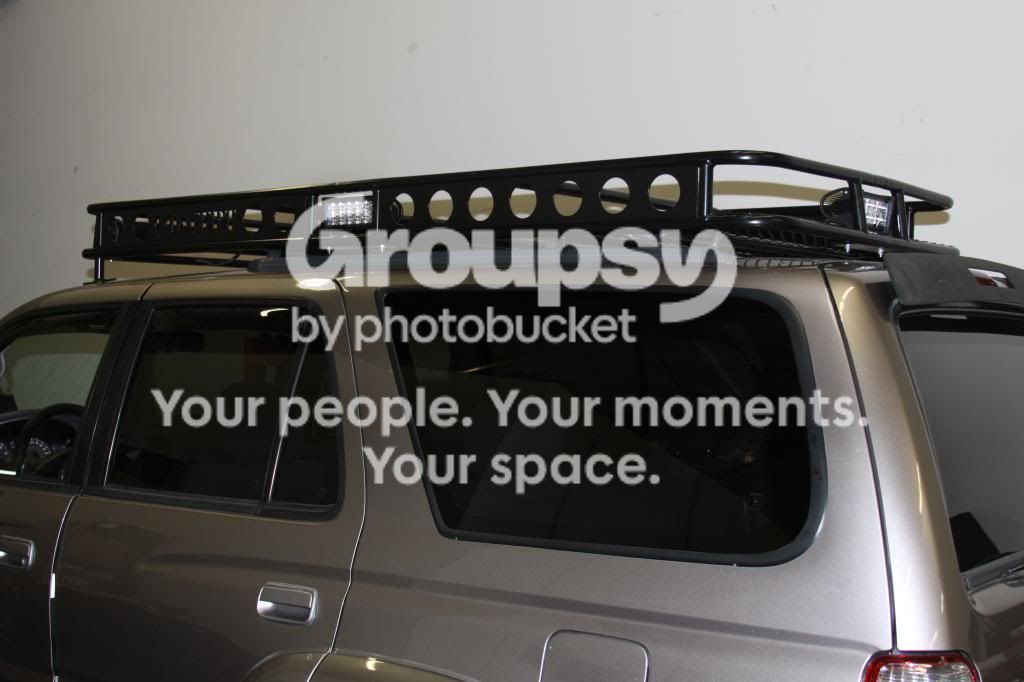

Rack Powder Coated

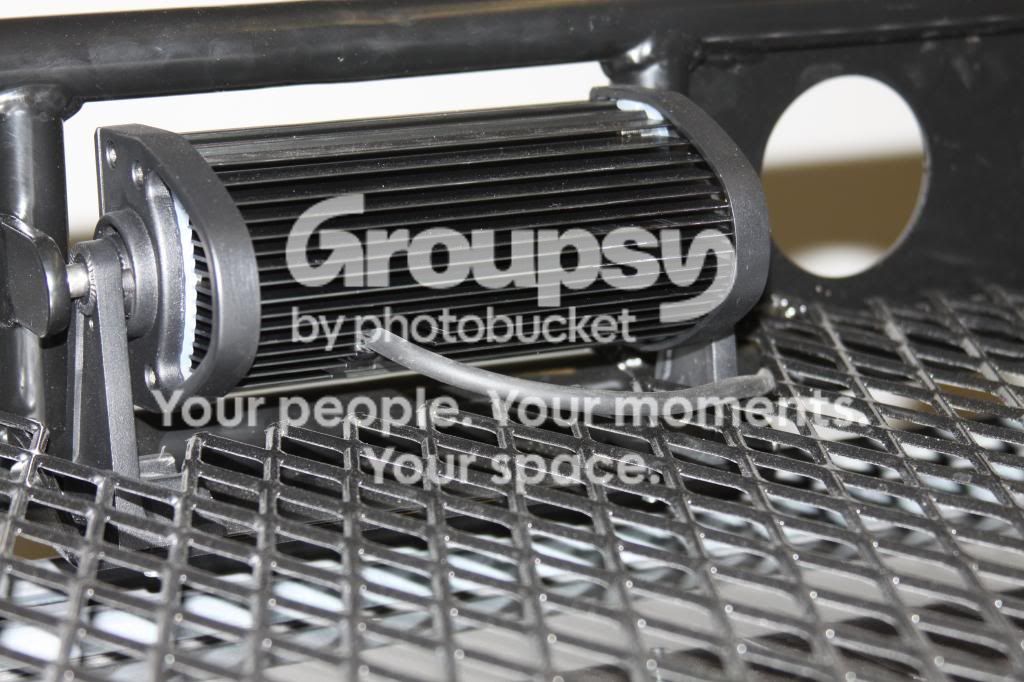

Rack Light

Rack Master Plug for LED

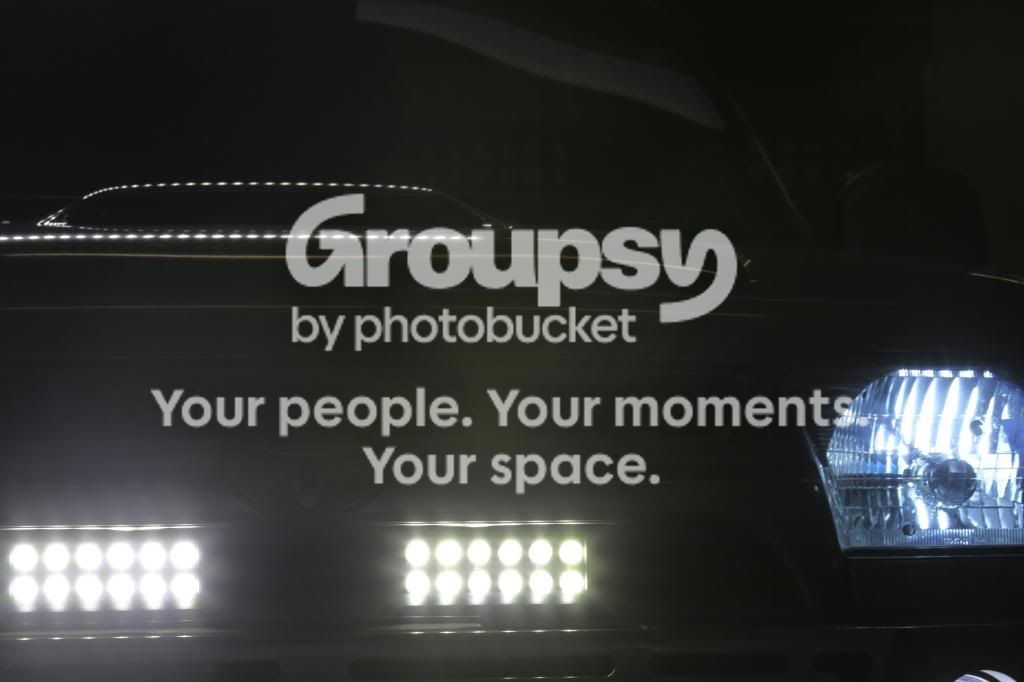

HID Headlight HI/LO Conversion

LED Spots behind modified grill



[Brian757]

Super clean rig man! I didn't look too hard, but did you post what wheels you have on that truck? I really like them.



[A.Wilson013]

Very, VERY good looking 4Runner, [MENTION=92913]Foothillsflyer[/MENTION] . I would be very interested in some more pictures of the lights behind the grill. I cannot justify the price of an off-road bumper (until I rear-end someone, perhaps) but I would love to see if I could do something similar with my stock bumper/grill.

A few questions:

What's the intent of your build? Do you just want a neat looking daily driver, or is this being purpose built? Either way, I really like the way you're going. It would appear you have expensive taste, and it's quite literally paying off.

What brand are the lights you're running?

What else do you have planned for the future?

Again, it looks awesome. I am envious of the speed in which you're able to execute your build.



[Kurtis]

First time I've seen this build. Looks nice. What rock lights are you running? I've been looking for a set of rock lights for my truck.



[Foothillsflyer]

Thank you

Super clean rig man! I didn't look too hard, but did you post what wheels you have on that truck? I really like them.

I personally think that FN Wheels are the best looking 4R wheel you can run. FN Wheels I am running the Konig Six Shooters in Gun Metal



[Foothillsflyer]

Very, VERY good looking 4Runner, [MENTION=92913]Foothillsflyer[/MENTION] . I would be very interested in some more pictures of the lights behind the grill. I cannot justify the price of an off-road bumper (until I rear-end someone, perhaps) but I would love to see if I could do something similar with my stock bumper/grill.

A few questions:

What's the intent of your build? Do you just want a neat looking daily driver, or is this being purpose built? Either way, I really like the way you're going. It would appear you have expensive taste, and it's quite literally paying off.

What brand are the lights you're running?

What else do you have planned for the future?

Again, it looks awesome. I am envious of the speed in which you're able to execute your build.

Thank you...

Intent = Very capable and well mannered driver that stands out. Living near tahoe and addicted to almost every outdoor activity I choose a M+S for more compliance. I use this rig as a rolling sports locker for whatever is on the list that day (ski, bike, paddle, etc)

Lights = Zues, my builder Joe is a desert racer/builder and has the hook up on these. His phone # is at top of my thread. Way better price point than what you typically find for this quality. The rig is stupid bright and is just about capable of inflicting sunburn on anyone who passes in front of it. Joe covered the full spectrum with a flood up top, spots behind the grill, HID HI/LO conversion to the headlights, and HID Pencil Beams in the bumper. The rack sides are flood pattern that cast out to meet with the front beams so there are no fade or dark spots in the transition from front to side light. The rear rack light is a spot light and the "anti-tailgater" button is endless entertainment.

Future = More Lights..... Just kidding (I gave some tweaker a heart attack @ 4a.m. the other morning while he was walking aimlessly through our neighborhood. Not sure if he mistook me for a cop or "Close Encounters of the 3rd Kind". Probably the later) We just did external tranny cooler, K&N Filter and Magnaflows. Would like a new set of plugs and wires next (NGK??? Thoughts?). Although tempting, I don't think a supercharger is in the cards. I have a few other rides that quell my power/speed addiction so I think I will save the funds for a treatment to the vehicles backside. Aftermarket rear bumper, wheel caddy, etc. so I can delete the rear tow etc.
