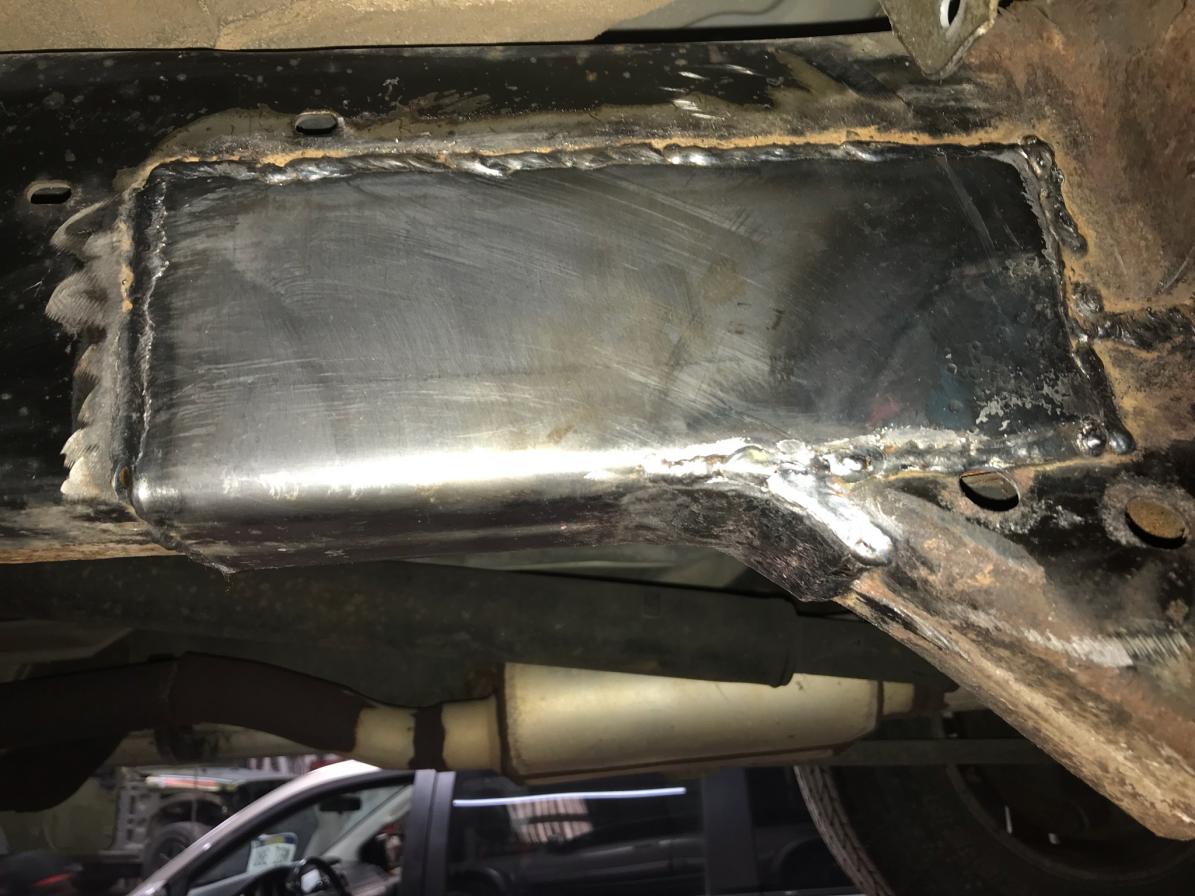

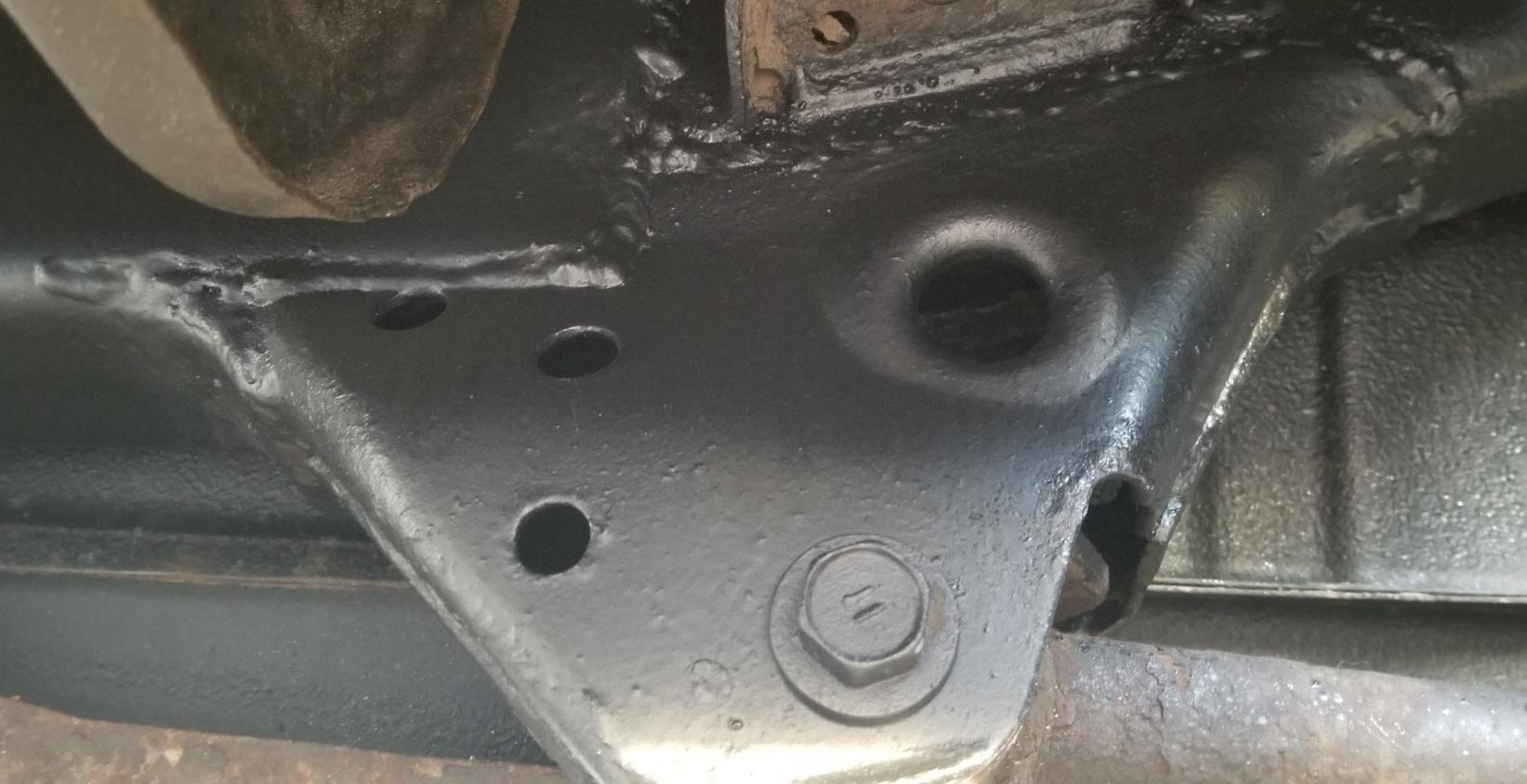

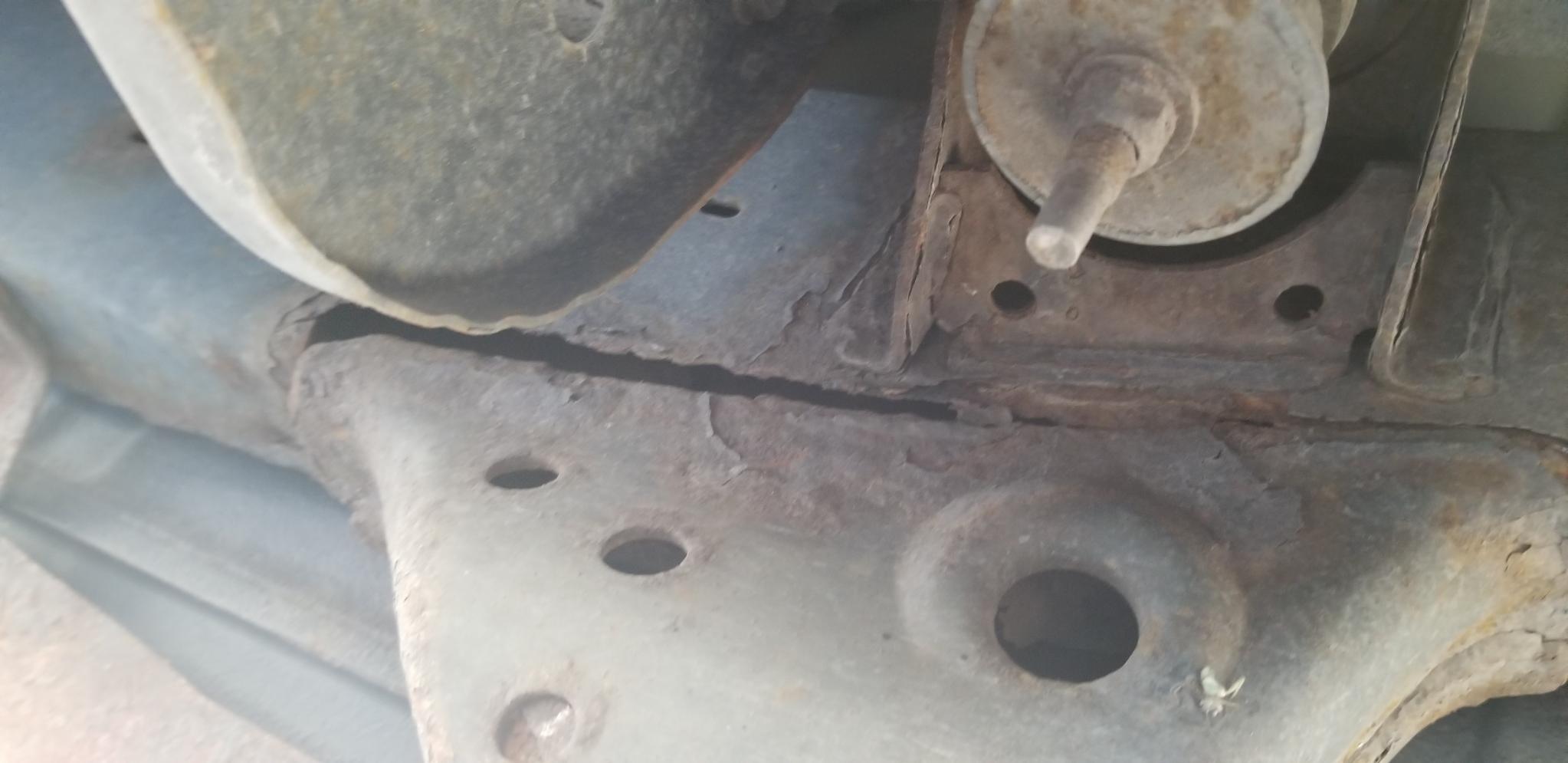

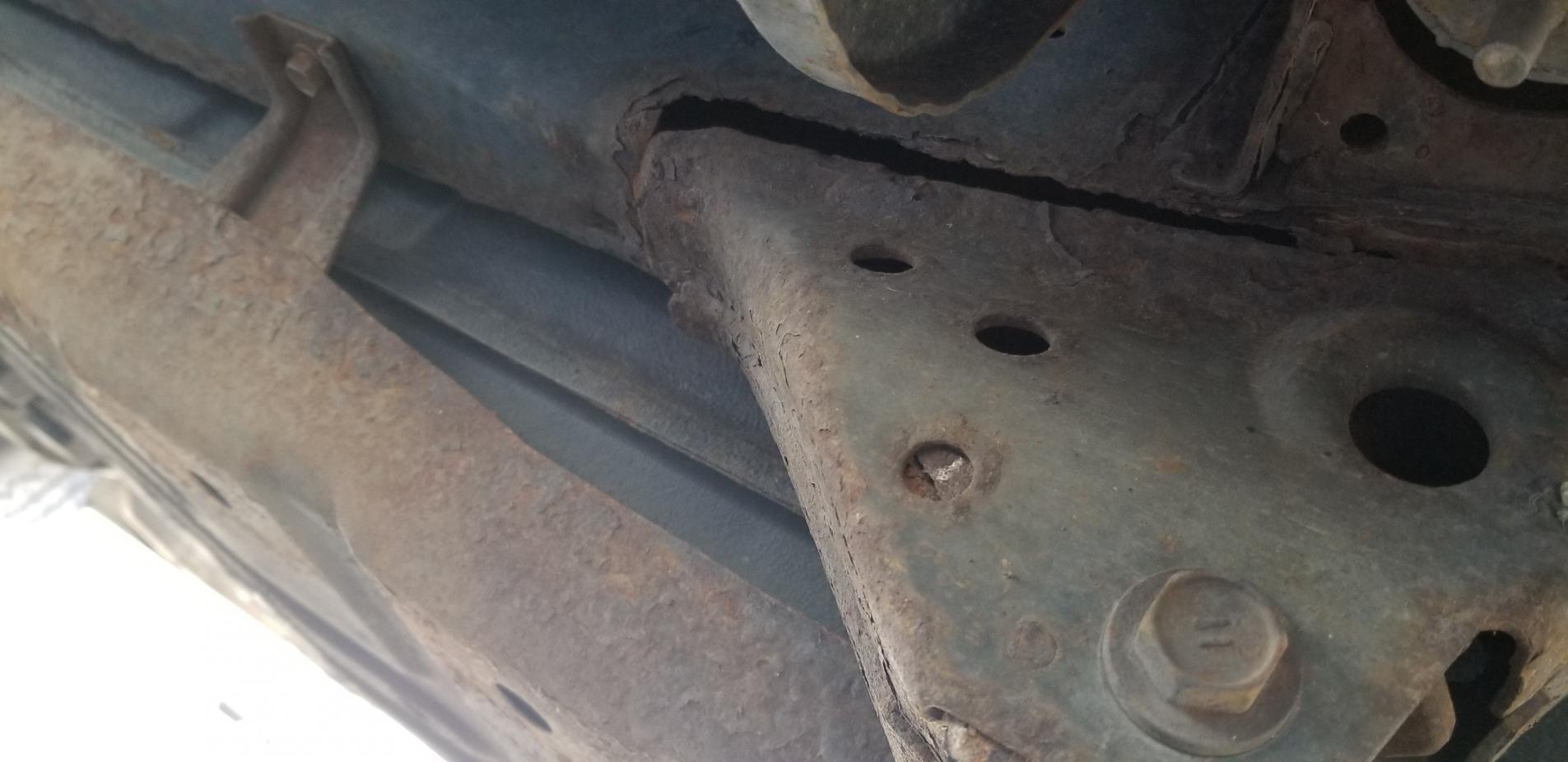

We couldn't find any kits available so everything was fabricated in shop.
jjf8
New member
frame
I lost my first runner, 2002, to the same issue, but worse, along with the control arm , I had a long crack along the rail and my shock towers were in bad shape,. One welder said it could be fixed, one said no way and with the rest of the frame not looking great, I sold it to a person with full disclosure who is basically using as a farm truck.
Not to be dismayed, I set my search out and saw a few with that issue that were described as "frame in great shape".
Finally found one with a pretty clean frame, lived half its live in AZ, but I could see that down the line I might have that same issue, just on the passenger side, the rest of the frame was in very good condition.

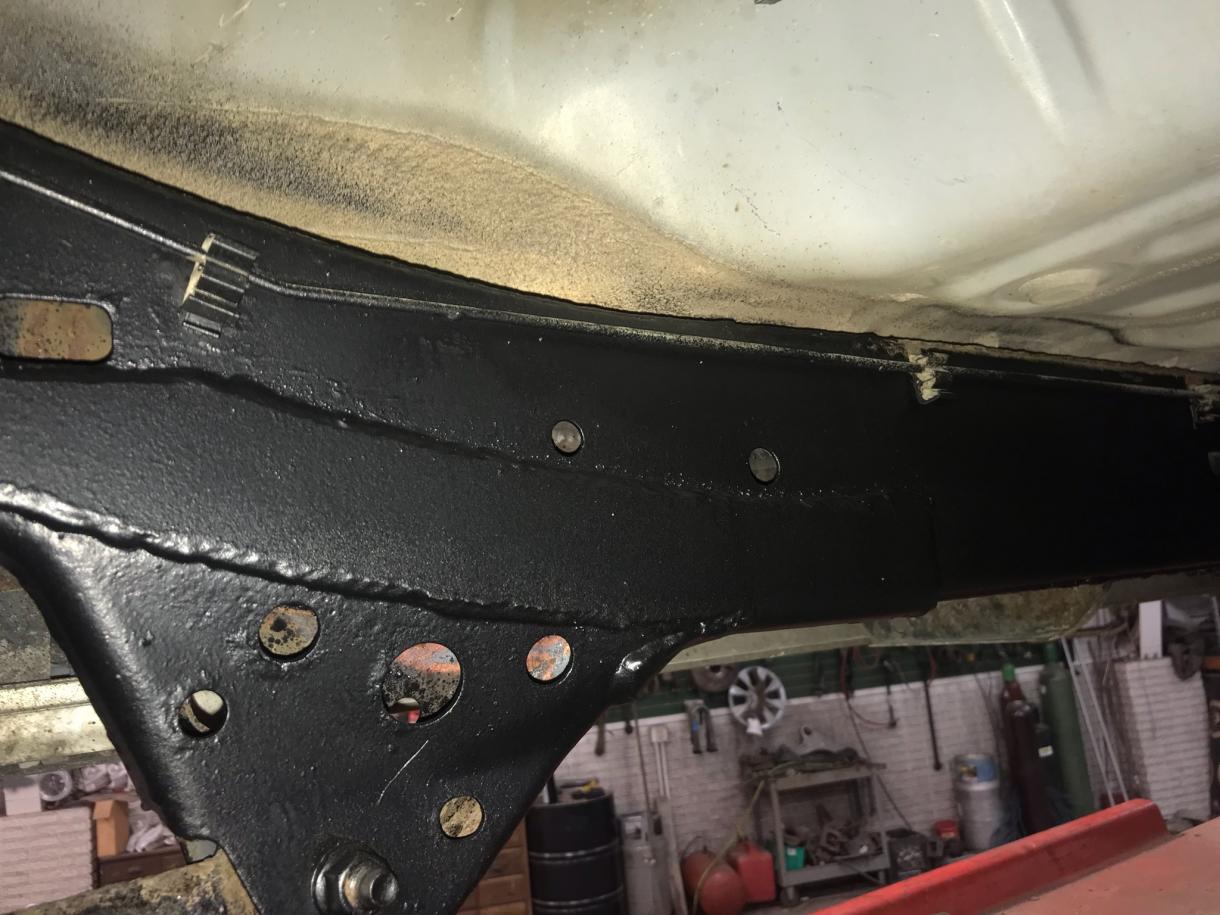

After speaking with a welder, I decide to be preemptive and did basically the same thing you have there, They made the plates as well. My weld was not nearly as extensive as yours, a re enforcement is a better way to put it
I had the rest of the frame inspected, no issues, threw some under coating on it . Worth it to me as it's a great condition Desert Dune that runs perfectly, but I'm in the NE, so it something we just live with.
Glad you were able to save yours.
I lost my first runner, 2002, to the same issue, but worse, along with the control arm , I had a long crack along the rail and my shock towers were in bad shape,. One welder said it could be fixed, one said no way and with the rest of the frame not looking great, I sold it to a person with full disclosure who is basically using as a farm truck.
Not to be dismayed, I set my search out and saw a few with that issue that were described as "frame in great shape".
Finally found one with a pretty clean frame, lived half its live in AZ, but I could see that down the line I might have that same issue, just on the passenger side, the rest of the frame was in very good condition.
After speaking with a welder, I decide to be preemptive and did basically the same thing you have there, They made the plates as well. My weld was not nearly as extensive as yours, a re enforcement is a better way to put it
I had the rest of the frame inspected, no issues, threw some under coating on it . Worth it to me as it's a great condition Desert Dune that runs perfectly, but I'm in the NE, so it something we just live with.
Glad you were able to save yours.
Last edited:
Did ya cut the rusty section out and put new metal or sleeve it with new metal?
2016 4Runner SR5
Senior Member
I'm a certified structural welder and I can tell you those welds are trash. I hope that repair holds up but I don't have much faith in it.
2ndhandyotaman
Member
AvE has a saying :
Glad that you go the truck back and I hope that it's safe for you and everyone else around you on the road. Those are some sketchy looking welds though.
Glad that you go the truck back and I hope that it's safe for you and everyone else around you on the road. Those are some sketchy looking welds though.
MaineRunna
Member
They may not be safe for bridge or pipeline construction, but they look adequate for holding a 2 pound piece of metal on the frame of an old rusty truck.
I am curious why you say this? I have heard to never weld vertically on the frame as these welds will fail as the frame flexes. Could you please elaborate. In the one pic it looks like they just welded rust back together...
Last edited:
But are you a CWI?
2016 4Runner SR5
Senior Member
In the pictures the welds are all over the place and there appears to be poor penetration. Yes i'm certified by an AWS instructor. No I am not an instructor.
MaineRunna
Member
Between the Atlantic ocean and the road salt frames take a beating here. I patch these commonly and those plates will be fine for normal driving for years if you prevent the rust from spreading further. My old employee booger welded the sway bar link mount back to the lower spring seat on a buddy of mine's Grand Cherokee and it lasted for almost 2 years of normal driving. Those patches are great compared to the some of the terrible frame repairs that I see come into my shop. If you were using this vehicle for moderate to serious off-roading I would want to see more of the old frame cut out and some 1/8" angle steel welded in. These rust out bad enough here that I frequently have to patch inside, outside and bottom, usually on both sides and sometimes all the way to the gas tank cross-member.
thegipper
New member
It's hard to draw any conclusions on the quality of the weld based on a couple pictures. On face value, the welds look ok. Are they the best I've ever seen? Nope, not even close.
Are they the worst I've ever seen? Nope, not even close.
It will probably hold up just fine although I do agree the penetration does appear to be a little light (again, just based on 2 pix)
PS. A CWI is a Certified Welding Inspector, not instructor (although many instructors are also CWI's).
Are they the worst I've ever seen? Nope, not even close.
It will probably hold up just fine although I do agree the penetration does appear to be a little light (again, just based on 2 pix)
PS. A CWI is a Certified Welding Inspector, not instructor (although many instructors are also CWI's).
Last edited:
Moonbandit
New member
Just spray oil in the inside of the frame rails. The welds will hold up for years to come... it’ll be fine.
No need to scare the guy over nothing. It’s an old truck that is being kept on the road. It’s not going to break all of a sudden :lalala:
No need to scare the guy over nothing. It’s an old truck that is being kept on the road. It’s not going to break all of a sudden :lalala:
Looks better than what you had before. As I said in another post, I have been in touch with the owner of autorust.com and he said they are actively working on making their excellent Safe T Cap solutions available for 3rd Gen 4Runners.
So, at the worst, you bought yourself some time and you will have other more serious options available.
Check it out here. They already have kits available for 4th Gen 4Runners:
Toyota 4 Runner 2003-2009 Archives - autorust.com
I bought a kit from eBay but I don't plan on installing it. It seems like this is a common problem for Jeeps and they have many of these types kits available. It would be awesome have the same for our 4Runners.
Thanks for sharing and good luck! BTW, your solution appears to be a pretty good design.
So, at the worst, you bought yourself some time and you will have other more serious options available.
Check it out here. They already have kits available for 4th Gen 4Runners:
Toyota 4 Runner 2003-2009 Archives - autorust.com
I bought a kit from eBay but I don't plan on installing it. It seems like this is a common problem for Jeeps and they have many of these types kits available. It would be awesome have the same for our 4Runners.
Thanks for sharing and good luck! BTW, your solution appears to be a pretty good design.
