HELP - 60A Fuse Stuck
- Thread starter nicheel8
- Start date
Register to hide this ad
ExCabSwap
New member
Some of those bigger fuses or screwed in from the back seat got to pull the panelI am trying to replace the 60A Heater Fuse but I can't get the old copper blades out. Does anyone know how to get these things out?
Sent from my LG-H830 using Tapatalk
BlackWorksInc
New member
I believe that's bolted internally, need to tear down the fuse block to unbolt it.
Thank you guys. While panicking I found the following articles.
http://www.toyota-4runner.org/problems-warranty-issues/25350-changing-fuse-simple-not-2.html
how do you replace a 140 amp fuse on a toyota... - JustAnswer
So I got it done and it kicked my @$$. I will post instructions and pics.
http://www.toyota-4runner.org/problems-warranty-issues/25350-changing-fuse-simple-not-2.html
how do you replace a 140 amp fuse on a toyota... - JustAnswer
So I got it done and it kicked my @$$. I will post instructions and pics.
Long story short. I've been trying to fix my AC/Heater blower fan so I was testing all the fuses. As I was checking the 60A Heater Fuse, I broke the plastic casing and thought I could just swap it. I was wrong. Like Blackworks and ExCab said I need to get inside the fuse box.
**Disclaimer - I am not a mechanic and you can really jack up your vehicle if break, cut or mess up the electric components in the fuse box.

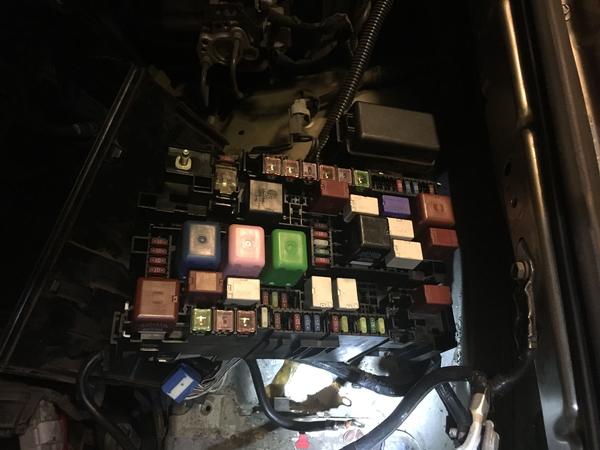

I followed the instructions from the previous post. You need to remove the battery, a couple of bolts, loosen some clamps that hold down the cables, then press the 4 tabs and lift from the fuse box. It's real tight, so be very careful. It took some time but I got it out. You will also need to cut the zip ties under the box. But how do I get the inside to the second bolt.

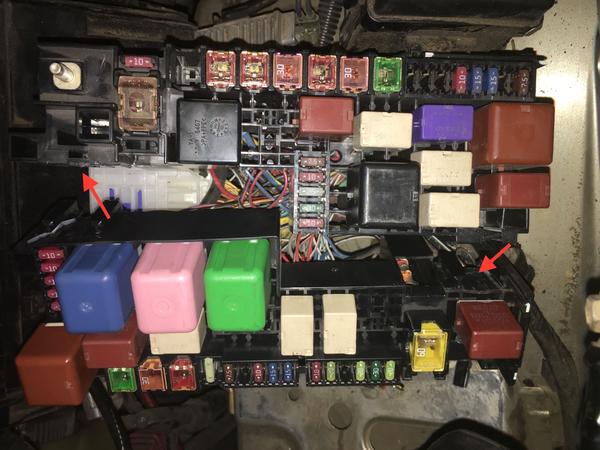

It turns out the block breaks down to 2 fuse blocks. If you press the 2 tabs they slide apart. Again be careful it takes time and a lot of wiggling.

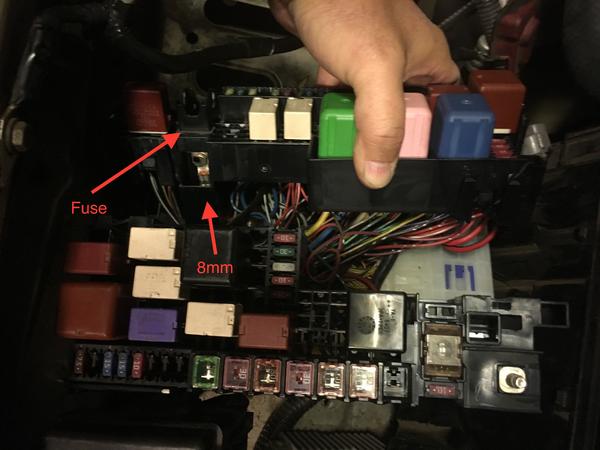

Finally, the 8mm bolt is exposed. I was able to remove it and swap out the fuse. Another reminder take your time putting the bolt back in. I almost dropped it and that would have sucked.
Slide the fuse blocks back together and make sure you get everything properly aligned so it stays sealed.
**Disclaimer - I am not a mechanic and you can really jack up your vehicle if break, cut or mess up the electric components in the fuse box.
I followed the instructions from the previous post. You need to remove the battery, a couple of bolts, loosen some clamps that hold down the cables, then press the 4 tabs and lift from the fuse box. It's real tight, so be very careful. It took some time but I got it out. You will also need to cut the zip ties under the box. But how do I get the inside to the second bolt.
It turns out the block breaks down to 2 fuse blocks. If you press the 2 tabs they slide apart. Again be careful it takes time and a lot of wiggling.
Finally, the 8mm bolt is exposed. I was able to remove it and swap out the fuse. Another reminder take your time putting the bolt back in. I almost dropped it and that would have sucked.
Slide the fuse blocks back together and make sure you get everything properly aligned so it stays sealed.
Last edited:
Yes it was. On a positive note, I fixed by AC issue. After troubleshooting the blower motor, controller, AC amp, fuses, and wiring. It was the blower controller/resistor. After installing a Beck/Arnley parts two times, my cousin recommended I use a Toyota part and he was right. The fan blows air and it adjust correctly with the temp control.
His advice, only use OEM parts for electrical.
I want to say it's a dealer only part. I purchased several parts from Camelback Toyota at the time. https://parts.camelbacktoyota.com/
I would call them and make sure this was the part I purchased.
Toyota Relay Assy. Part Number: 9098704010
snukkums
New member
Thank you very much and a quick reply as well!
No problem. The fuse assembly is plastic and there are a lot of wires, so take your time. And don't forget to remove your battery.
