LED Flasher Relay

[sam.basye]

I repurposed my turn signals into shoulder lights and relocated the front turn signals to the filler plates below the headlights.

Each front signal is 6 x 9w amber LED's utilizing the stock turn signal wiring.



Rear turn signals are stock incandescent bulbs.

Left and right signals hyper flash, but hazards flash normally.

I bought a Novita EP35 LED flasher relay and it only made it worse. Left and right signals and hazards all hyper flash. Argh!
Specs:
3 x 27w + 5w
6 x 27w
Max 6 lamps

What's the next step and why it no worky?!?!

A load resistor for each side?



[Tyler James Inc]

No, just buy an adjustable 3 pin relay off Amazon.
This is the one I ordered/am using-
https://www.amazon.com/gp/aw/d/B01E...F8&qid=1483754206&sr=1&pi=AC_SX236_SY340_QL65
Direct plug 'n play.
My retrofit-
https://vimeo.com/198429827



[sam.basye]

No, just buy an adjustable 3 pin relay off Amazon.
This is the one I ordered/am using-
https://www.amazon.com/gp/aw/d/B01E...F8&qid=1483754206&sr=1&pi=AC_SX236_SY340_QL65
Direct plug 'n play.
My retrofit-
https://vimeo.com/198429827

Thanks for the link!

What'd you do to get the Amber's to stay on like DRLs and blink?



[Tyler James Inc]

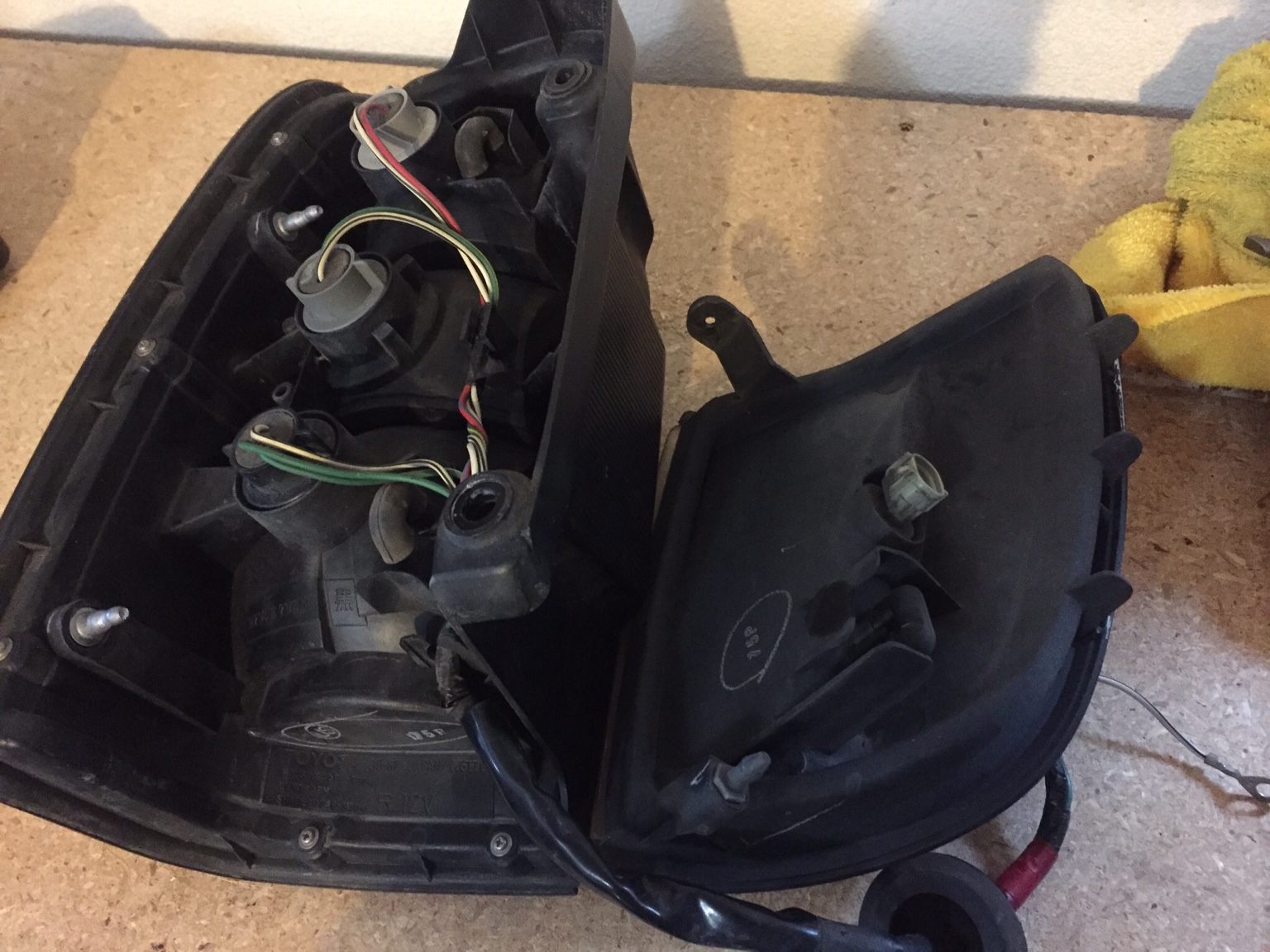

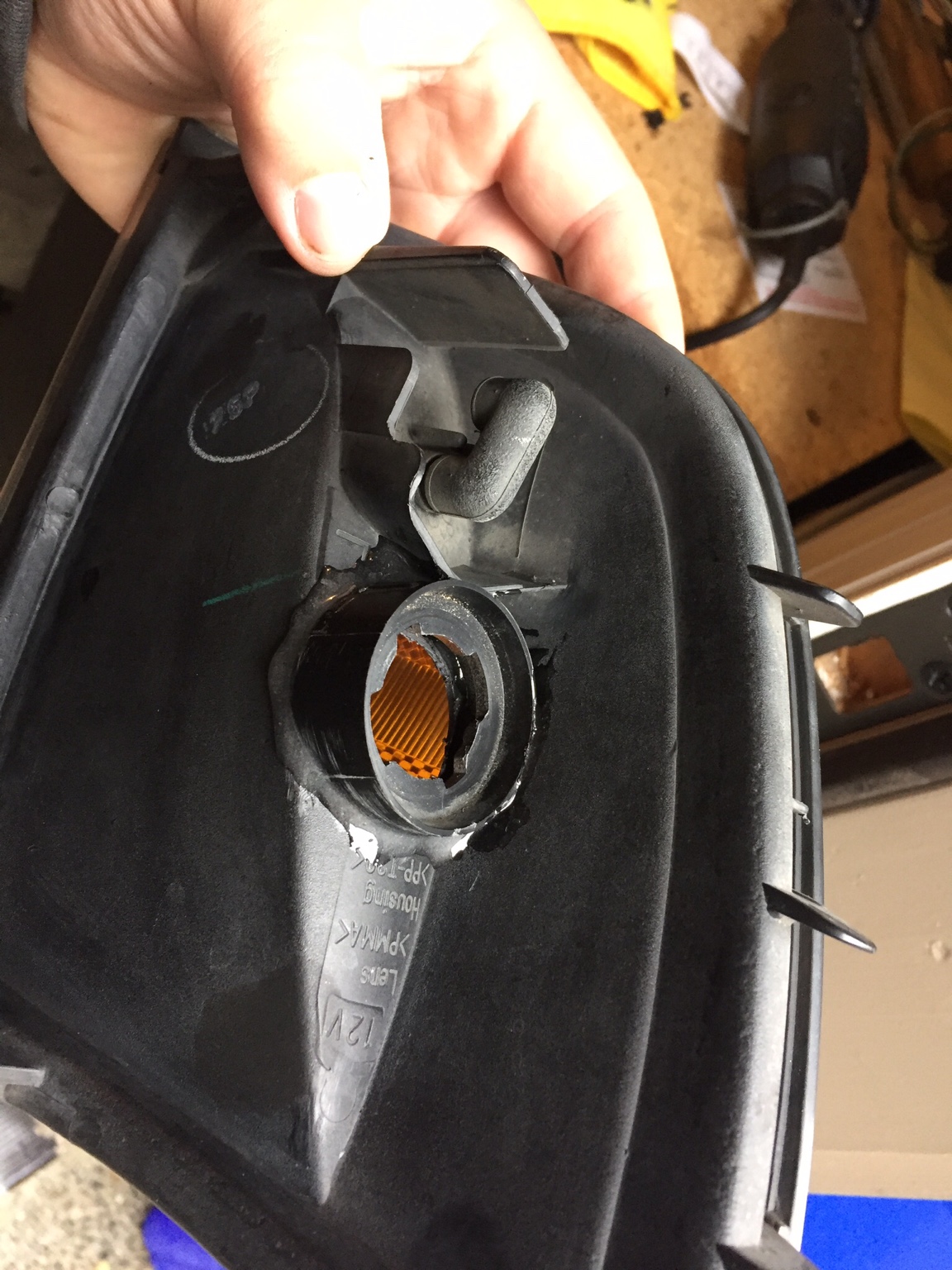

I retrofitted 7443 bulbs from a OEM tail/brake housing.
Updating my headlights soon, and will be swapping these out for the '99+ corners. Therefore, this set is for sale.



[UnderFire]

I've got a Tridon EP35 from Autozone, works perfect, no hyperflash even with no front signals.



[sam.basye]

I retrofitted 7443 bulbs from a OEM tail/brake housing.
Updating my headlights soon, and will be swapping these out for the '99+ corners. Therefore, this set is for sale.

Since it's a dual filament bulb, how did you wire it up?



[sam.basye]

I've got a Tridon EP35 from Autozone, works perfect, no hyperflash even with no front signals.

Interesting..

I wonder why it isn't working for me? Any ideas?



[sam.basye]

Got it all straightened out with the part suggested by Tyler James Inc. Thanks again!

I was starting to get used to the fast clicking. Now that it clicks at a normal pace, it seems slow. Haha

No more looking like mall security!

They bright



[Tyler James Inc]

Since it's a dual filament bulb, how did you wire it up?

Just saw this, I'm sorry.
It has a ground, and then the green(tail) splices into the park hot(green), and the green/black(brake) splices into the signal hot(green/yellow?).
Don't quote me on those colors, my memory on that is a hair foggy.
Edit-

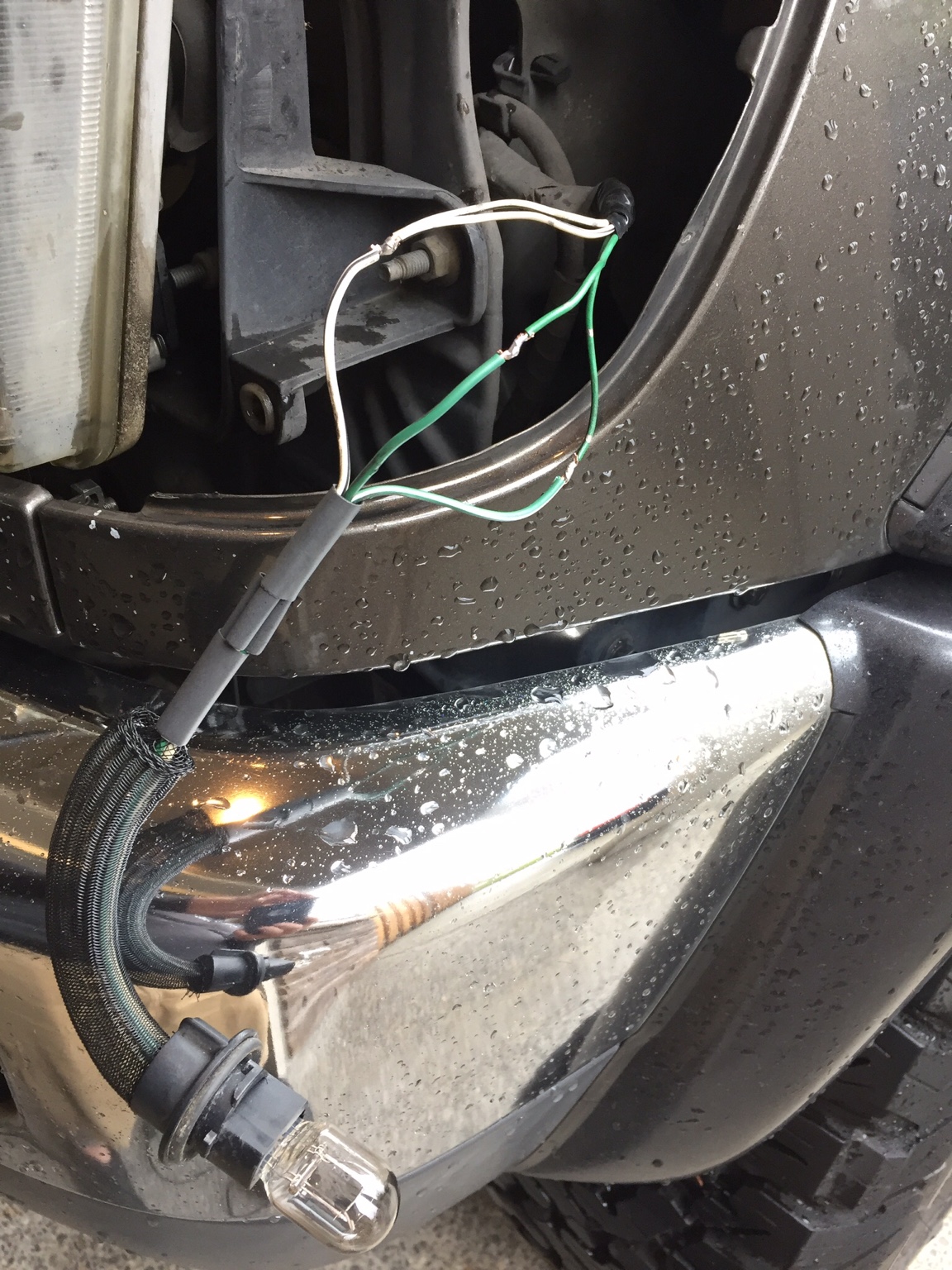

Found a pic-

The grounds being spliced together is redundant, but I just decided to do it that way.
Looks like my color-guessing was a bit off, but you can see the signal is green/black, and is spliced with the brake(green/white).



[Jason B]

How about some pics of the LEDS below the headlights?



[sam.basye]

Just saw this, I'm sorry.
It has a ground, and then the green(tail) splices into the park hot(green), and the green/black(brake) splices into the signal hot(green/yellow?).
Don't quote me on those colors, my memory on that is a hair foggy.
Edit-
Found a pic-

The grounds being spliced together is redundant, but I just decided to do it that way.
Looks like my color-guessing was a bit off, but you can see the signal is green/black, and is spliced with the brake(green/white).

It's all good. I like the concept.
I kinda want my LED's to act as both DRL's and turn signals, but think it will be more work than I'm willing to put forth. Lol



[sam.basye]

How about some pics of the LEDS below the headlights?

Here's what I bought off Amazon
https://www.amazon.com/gp/aw/d/B01A...&pf_rd_p=1c5f02ae-183e-4906-990b-5a293310a66c
