LED light bar wiring help needed

[JeratBP]

I need some help making sure I get this right.... do I have Switch Green and Blue correct?

Switch to Harness:
Black to Black (ground)
Yellow to Add a fuse?
Blue to White? Source w/in-line fuse
White to Blue? Connect to relay

I bought the MicTuning 32” LED light bar, the MicTuning Heavy Duty wiring harness, and MicTuning Toyota Push Switch.



[BackOff]

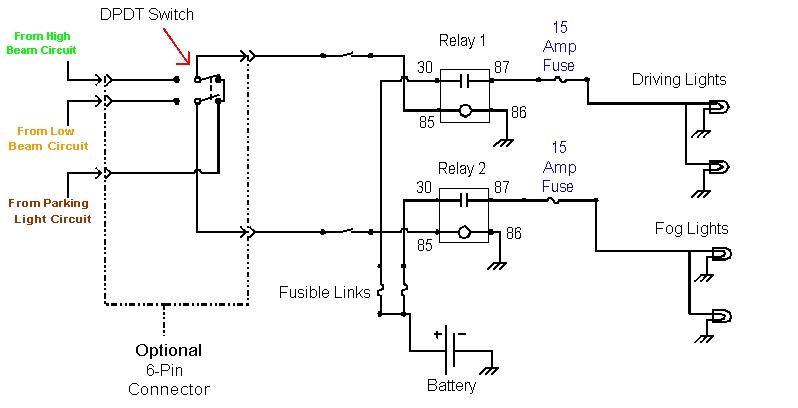

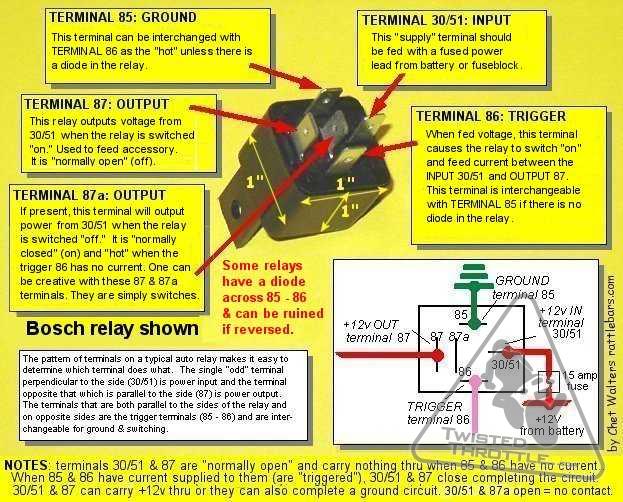

This help at all?



[JeratBP]

This help at all?

No, I could not make sense of the diagram. The harness came with a switch like what you shared, but I’m using the MT Toyota push button, with the green connector.

I found some YouTube videos and found I got my wiring correct. Bought the Add A Fuse and connectors, everything is in place just needs to be connected and secured.



[JeratBP]

I tried plugging into the IGN port and added the 10 amp fuse but my car wouldn’t start. So I picked a different port and everything works but no lights on the button. I need to find a working Volt meter


Sent from my iPhone using Tapatalk



[N4RNR]

Which port did you choose to tap into for power? Looking for a source to tap that only powers with ignition on but can handle lights that will draw a lot of power. What gauge wire did you use to tap into the port? Thanks.
