PDFs for 4th Gen Fender Liners

Slowgoat

Slowgoat

New member
I uploaded the PDFs for everyone:

4th Gen Fender Liners PDF

You will need a printer that can do 11 x 17.


UPDATE 6/26/18:



Thanks to [MENTION=113703]46runner[/MENTION], here is the link to PDFs you can print on an 8.5x11 printer and piece together:



http://im.toyota-4runner.org/attachments/4th-gen-t4rs/268736d1506110940-pdfs-4th-gen-fender-liners-aprontemplates.pdf



I used some oil resistant rubber from Grainger:

GRAINGER APPROVED Rubber,Vinyl,1/8 In Thick,12 x 24 In - Rubber Sheets and Strips - 1MXU1|360-1/8B - Grainger Industrial Supply

"Oil-resistant Vinyl Rubber, Plain Back, 1/8" Thk, 12" X 24", 80a Durometer "

Part number on grainger.com is: 1MXU1

I think I put around $20 bucks into it (I think 2 sheets did it??? 1 sheet is ~ $11.50 ).




Also, people are cutting up Rubbermaid trash cans, or using trimmable floormats.




According to Preacher35:

"4WDFTW made templates for these pieces."

"The parts that you are referring to are the front fender apron seal (smaller piece) and front fender splash shield (larger piece). The part #'s are as follows:
LH FAS: 53736D
LH FSS: 53886H
RH FAS: 53735B
RH FSS: 53886H (yes, same as the left hand)"





Many thanks to [MENTION=89791]preacher35[/MENTION], [MENTION=100938]acronin2[/MENTION], [MENTION=115707]4WDFTW[/MENTION], and everyone who contributed to this!!!




:thumb: :cheers: :thumb3: :beer:




Original Thread



Another Thread

Last edited:
Register to hide this ad
Slowgoat said:
I uploaded the PDFs for everyone:


4th Gen Fender Liners PDF



You will need a printer that can do 11 x 17.




I used some oil resistant rubber from Grainger:

GRAINGER APPROVED Rubber,Vinyl,1/8 In Thick,12 x 24 In - Rubber Sheets and Strips - 1MXU1|360-1/8B - Grainger Industrial Supply

"Oil-resistant Vinyl Rubber, Plain Back, 1/8" Thk, 12" X 24", 80a Durometer "

Part number on grainger.com is: 1MXU1

I think I put around $20 bucks into it (I think 2 sheets did it??? 1 sheet is ~ $11.50 ).




Also, people are cutting up Rubbermaid trash cans, or using trimmable floormats.




According to Preacher35:

"4WDFTW made templates for these pieces."

"The parts that you are referring to are the front fender apron seal (smaller piece) and front fender splash shield (larger piece). The part #'s are as follows:
LH FAS: 53736D
LH FSS: 53886H
RH FAS: 53735B
RH FSS: 53886H (yes, same as the left hand)"





Many thanks to [MENTION=89791]preacher35[/MENTION], [MENTION=100938]acronin2[/MENTION], [MENTION=115707]4WDFTW[/MENTION], and everyone who contributed to this!!!




:thumb: :cheers: :thumb3: :beer:




Original Thread



Another Thread
Click to expand...

For anyone ordering using part numbers, here are the numbers and quantity courtesy of Greg at Factory Toyota Parts and Toyota Accessories We are an OEM Parts Supplier.

53735-35150 SEAL, FENDER $16.48 x 1
53886-35020 SEAL, FENDER $17.76 x 2
53736-35150 SEAL, FENDER $20.04 x 1

Total for all 4 parts (for me) came out to $90.35 shipped.

Thanks for posting this. You and everyone who contributed saved me $80.

I did want to mention that Grainger also sells a 1/16 " thick version of the oil resistance
vinyl rubber. The part number is 1MXT9 and it costs $6.19 per 12"x24" sheet.

Enigma 4 said:
What kind of fasteners did you use? The 1/8 inch rubber is too thick for the original ones.
Click to expand...


Yeah.

I couldn't get them to fit either.

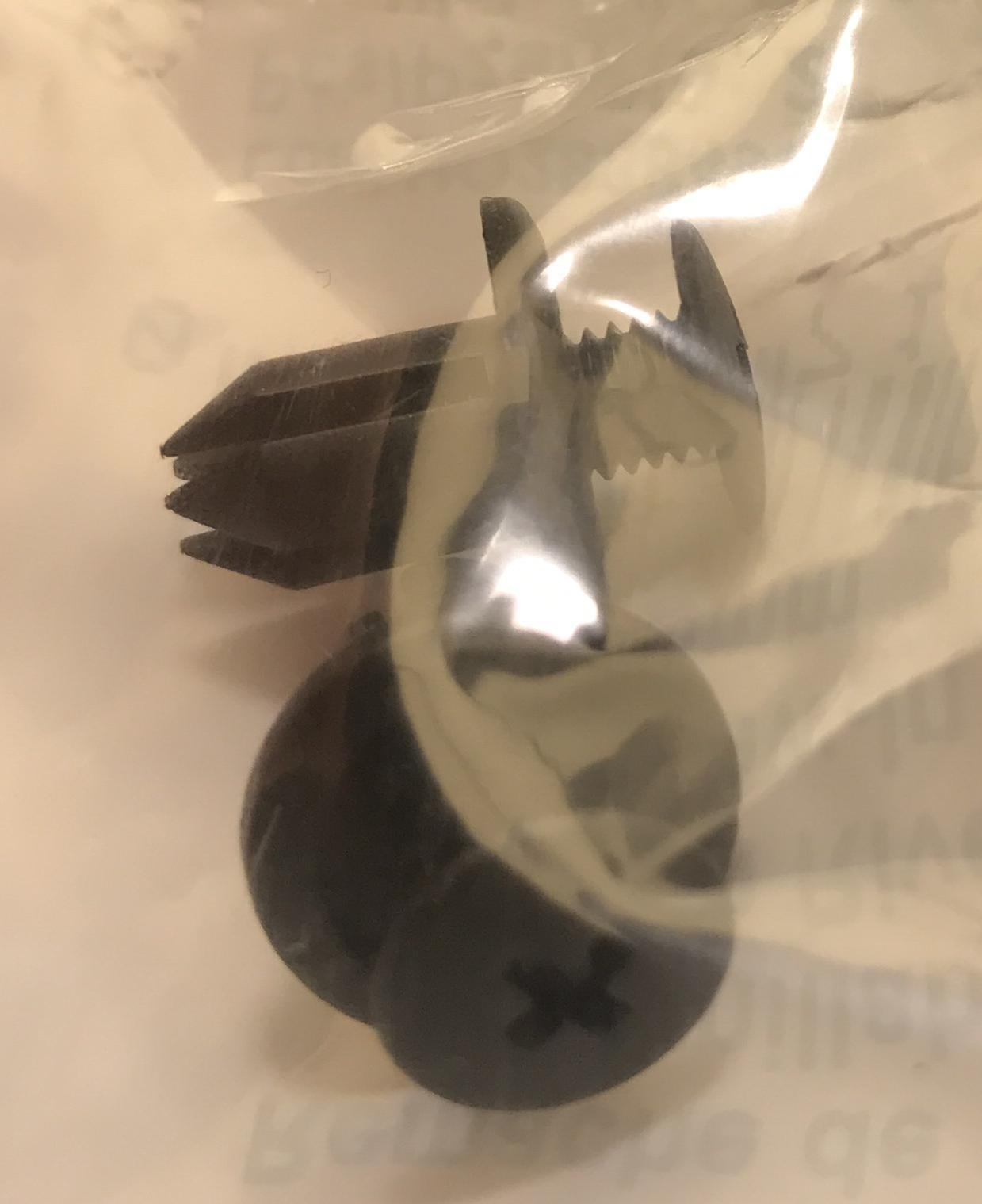

I just used the plastic rivets that have a Phillips head on them from Lowes. The ones sold in pairs.

They are actually really easy to remove. Just unscrew them to pop them out. It was a happy accident. They were out of the standard ones.

They look like this (**edited to the right pic 3/2017**):


Attachments

  • IMG_1288.jpg
    76.6 KB · Views: 4,782
Last edited:
Fan-freakin-tastic! Getting ready to order some material. For those who've done this, opinions on using 1/16 or 1/8 material?


Sent from my iPhone using Tapatalk

Slowgoat said:
Yeah.

I couldn't get them to fit either.

I just used the plastic rivets that have a Phillips head on them from Lowes. The ones sold in pairs.

They are actually really easy to remove. Just unscrew them to pop them out. It was a happy accident. They were out of the standard ones.

They look like this:

Click to expand...

Thanks for the PDF!!! :bravo:

Where did you get the fastners (Edit: I just saw you did mention Lowes)and what diameter are they?

Last edited:

Attachments

  • IMG_0619.jpg
    111 KB · Views: 4,902
  • IMG_1288.jpg
    76.6 KB · Views: 4,677
Last edited:
Slowgoat said:

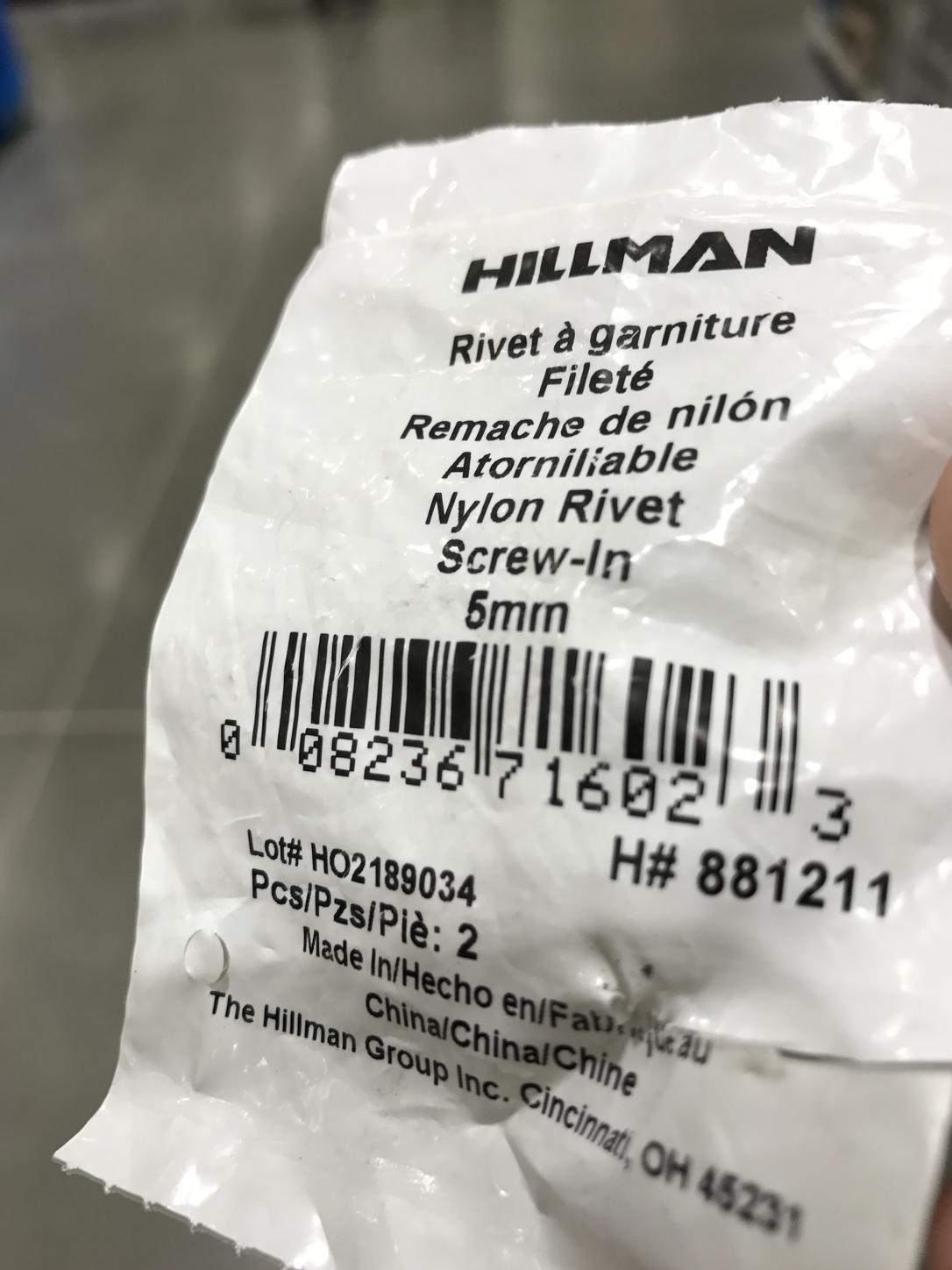

These are the ones I used:

https://m.lowes.com/pd/The-Hillman-Group-5mm-Nylon-Push-Rivets/3012819

The pic on the lowes website is wrong. It really looks like the attachment one post below.

They are 5mm.

The holes in the 4runner frame are right at 7mm in diameter, so you can probably use 7mm ones and be fine.
Click to expand...

Edit: I figured it out. The key to these is I screwed them in until they got tight. Some wouldn't go in all the way. I tapped them gently with a small rubber mallet and they aren't going anywhere!

They are a dollar a pack, or about $.50 a piece.

Or you can just go to to the dealer and get OEM clips, but that's no fun!!

I updated the pics above, PM me any questions.

Last edited:
theladyviola said:
Fan-freakin-tastic! Getting ready to order some material. For those who've done this, opinions on using 1/16 or 1/8 material?


Sent from my iPhone using Tapatalk
Click to expand...

If you use the 1/16, the original fasteners will fit. This will save you the extra money ($20-$25) for the cost of new ones. And if you do go with new ones, you'll have to try them out first to make sure they'll work. Autozone let me do that because theirs come in packages that can be re-sealed.

Last edited:
Enigma 4 said:
If you use the 1/16, the original fasteners will fit. This will save you the extra money ($20-$25) for the cost of new ones. And if you do go with new ones, you'll have to try them out first to make sure they'll work. Autozone let me do that because theirs come in resealable packages.
Click to expand...

At this point I would second the 1/16 thickness. I'd go with that if I had to do it over again. After a tough winter, the thicker 1/8 ones I have are pretty rigid and stiff. No issues going with the thinner ones!!

I didn't have any issues using my original fasteners with the 1/8". However it's a EPDM/neoprene mix so it's not super rigid.


Sent from my iPhone using Tapatalk

Sounds like your material may be the best of both worlds. I like the thickness of mine, but I would have preferred to use the original fasteners. I'm not sure the ones I bought will hold up over time.

Might be doing this soon since i have 3 slash shield missing..Thanks for the PDF. Definitely be using 1/8 and some fastener I have laying around. I'm probably going to a printing store near me and getting the PDF printed since I don't have a printer that can print 11x17.

Sent from my ONEPLUS A3000 using Tapatalk
