Removing X-REAS from a Limited

[RiDE]

I've done a bunch of reading on removing the X-reas system and I think I'm ready for my ICON install . The only thing I want to be sure on are the disconnect points on the x-reas system so the system does not leak any of its fluid. I know there are 4 disconnect points, 1 at each corner, and it takes 2 wrenches to disconnect.

Are these the correct disconnect points?
Front

Rear

Is this the Xreas canister I should be removing? 1 on each side?

Thanks guys.



[harper7]

I've done a bunch of reading on removing the X-reas system and I think I'm ready for my ICON install . The only thing I want to be sure on are the disconnect points on the x-reas system so the system does not leak any of its fluid. I know there are 4 disconnect points, 1 at each corner, and it takes 2 wrenches to disconnect.



Thanks guys.

Yes and yes
The rear check valves are at the rear of the canisters if I remember right.

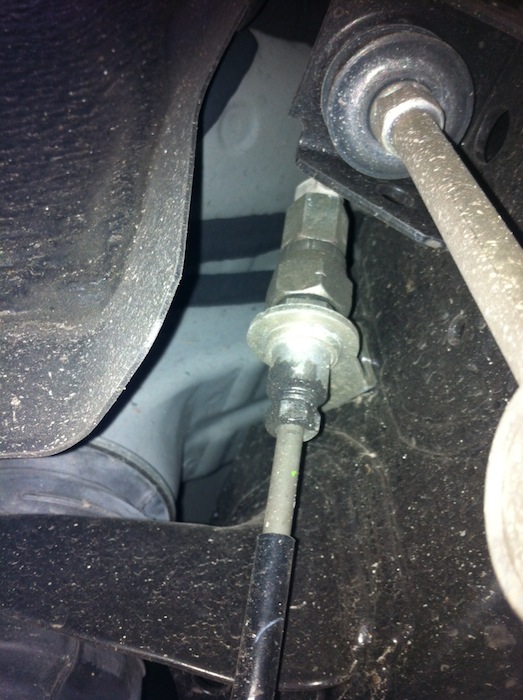

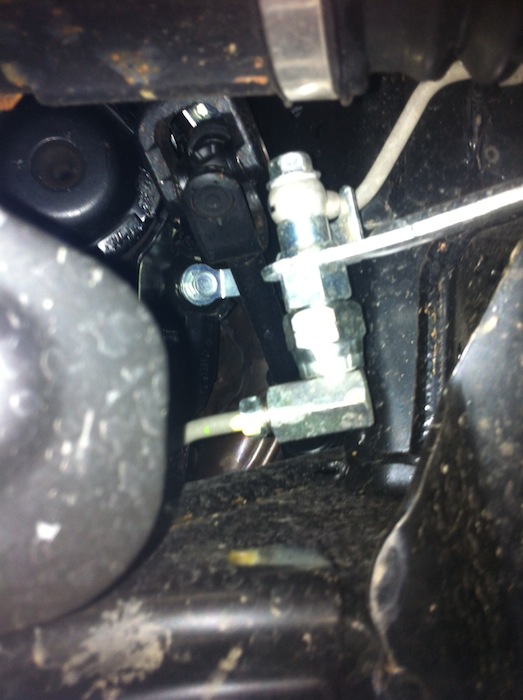

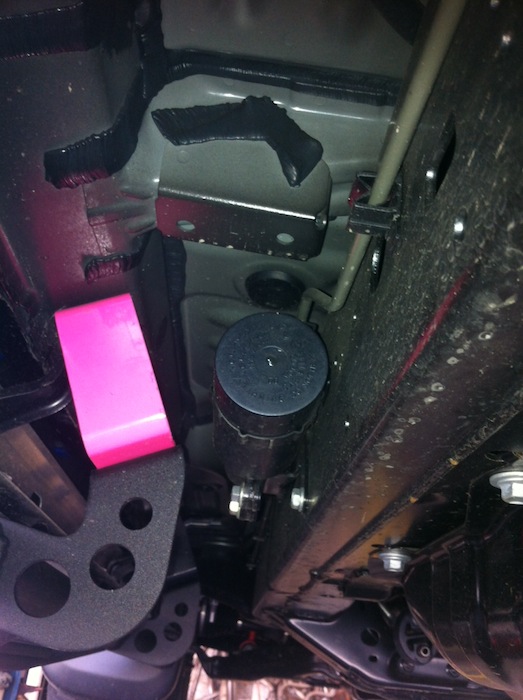

Here are pics of the xreas off my truck and a close up of one of the 4 check valves.It 's kind of a pain to fish the hard lines thru the front where the body mount is.... http://www.toyota-4runner.org/5th-gen-t4rs/75431-xreas-retrofit-sr5.html#post644470

Every detail is in the factory repair manual online here also and where I actually read and learned how to remove it.



[phillyd2]

From the 120 boys:

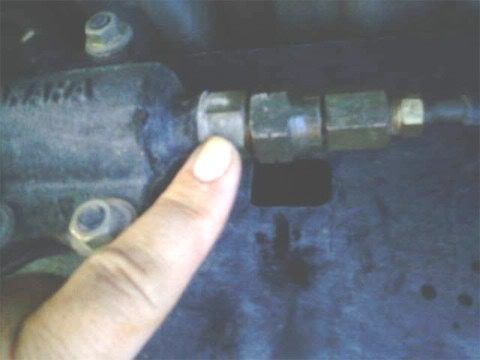

Hold the one which has the finger on it and turn the one just right of it.

So, hold 1 and turn 2. Don't mess with 3 or 4.



[RiDE]

Perfect! Thanks guys! Just wanted to be 100% sure. I will be using the factory repair manual. I'll be sure to get a ton of pics of my ICON install. Thanks again!



[youkefei]

Looking forward to them! Good Luck!

Perfect! Thanks guys! Just wanted to be 100% sure. I will be using the factory repair manual. I'll be sure to get a ton of pics of my ICON install. Thanks again!



[harper7]

One other really important thing I forgot to mention .....all 4 wheels have to be in the air so the shocks are fully extended to relieve pressure before you take any of the check valves loose.

You'll feel like it's a whole other beast with the Icons on!
Almost 2 years and 35k miles and my Icon Remotes still feel like the day I put them on.



[zidaro]

anyone have any other tips for XREAS removal?

Looks like - put it on a lift (floor jacks in my case), hold the nut closest to the cylinder- spin the next in line. Dont lose any fluid= pressure maintained.

Does this maintain the integrity of the XREAS system and allow for reuse? Or are these dead soldiers once i take them off?

Going to get this pile of ICON, BudBuilt, and Metal Tech boxes out of my garage finally, and this will have to be the first step!
I'll post my progress in my little build thread. Game On!



[ThirdToy]

Hey [MENTION=49651]zidaro[/MENTION] I'm in the same boat! Installing my Icon stuff next weekend, and can't wait!! Icon extended travel w/ remote resi's!! :guitar3:



[chester.mtb]

I am looking into removing my XREAS can you tell me how your projected turned out.



[///AIRDAM]

i just found out that my right front shock is either about to blow or already blown. the Xreas on the 2012 limited we have, the other day i was riding down a gravel road with some wash-board bumps on it and the right front started sounding like it was coming loose like the bolts were loose. you could hear a hard sound similar to the shock shaking in the shock tower and you could feel it in the passengers floorboard. i got out and all i can tell is the shock is oily and dusty from the road. i assume the shock has lost a seal and bottoming out easily.

we already have a small lift kit installed and it retained a great ride, or as good as a 2" lifted 4runner could i suppose but i want to take the Xreas off and i see so much about all the aftermarket coil-over systems but it appears that everyone claims the ICON rides the best. taking the busted Xreas shocks off and replacing the suspension with the ICON stuff would be the best option from what i read. how have you guys in this thread enjoyed yours? this is a 99% on road vehicle just looking to help dampen the jarring from pot holes and occasional bumps in the highway. rarely and i mean like .5% of its life will be running down a gravel road or gravel driveway. will the ICON help smooth the ride out and make the small road bumps feel less noticable?
