sr5 factory rear view camera with aftermarket head unit

[rnb754]

After countless hours of searching, all I got was info on factory head units for the traul edition and the limited edition with navigation. So I decided to figure it out myself.

If you are looking to hook up your factory rear view camera to a aftermarket head unit, thus is for you...

Old RCA cable: you will need to cut it and and extended it to tap into the mirror wiring clip.

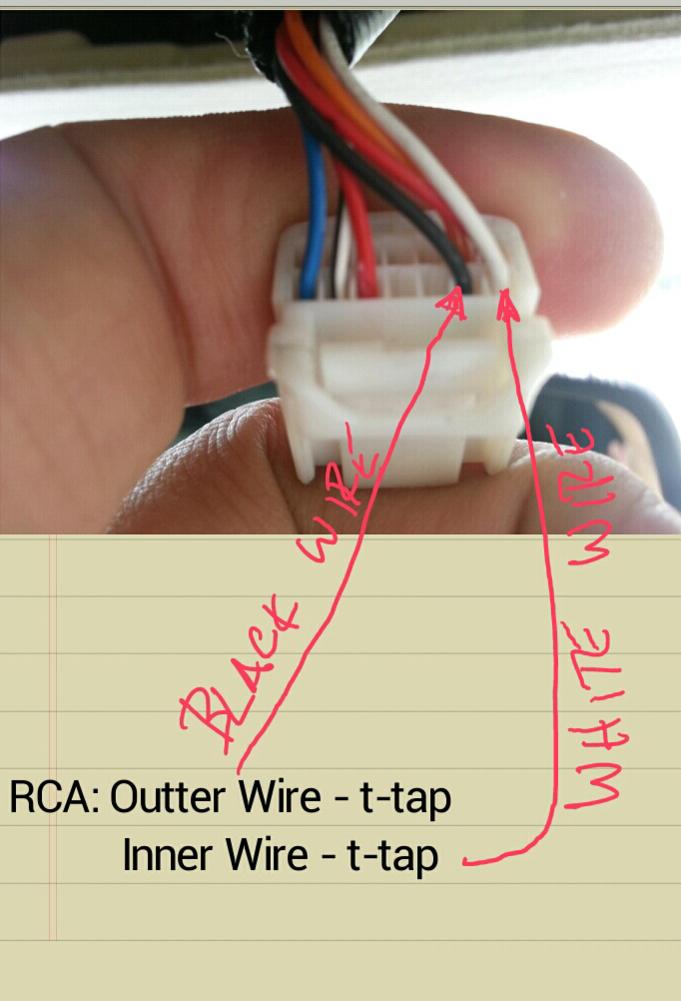

Attach is a pic and a quick diagram



[eddiebx]

I do not mean to intrude on your how to thread but what is the difference between what you have diagrammed and what [MENTION=66123]Johnny Utah[/MENTION] already posted for you in this thread: http://www.toyota-4runner.org/5th-gen-t4rs/61082-aftermarket-stereo-27.html#post1322905

It seems to be the same exact thing minus the black wire?



[rnb754]

Wow I totally missed it....haha.... [MENTION=66123]Johnny Utah[/MENTION] used the red wire for feed.... He has a 2011... Mine is a 2013 and I used the white wire for feed and black for ground.

Thanks for the look out!



[eddiebx]

How did you miss it though, you seemed to have posted right after him in that exact thread :lmao:

Just messing with you, good luck on the rest of the install!



[rnb754]

How did you miss it though, you seemed to have posted right after him in that exact thread :lmao:

Just messing with you, good luck on the rest of the install!

I thought I saw it before but couldn't find it... Been looking for a few months now...lolz.. Thanks [MENTION=85512]eddiebx[/MENTION]



[Johnny Utah]

I do not mean to intrude on your how to thread but what is the difference between what you have diagrammed and what [MENTION=66123]Johnny Utah[/MENTION] already posted for you in this thread: http://www.toyota-4runner.org/5th-gen-t4rs/61082-aftermarket-stereo-27.html#post1322905

It seems to be the same exact thing minus the black wire?

Wow I totally missed it....haha.... [MENTION=66123]Johnny Utah[/MENTION] used the red wire for feed.... He has a 2011... Mine is a 2013 and I used the white wire for feed and black for ground.

Thanks for the look out!

the white wire that we both used is the video feed. We used the same wire for that. I used the red wire on the other side of the plug too. The red wire is the reverse sensing wire. You need that one too, so that when you put the truck into reverse, the headunit knows to switch to that input, so that it can display the camera feed. How else would it know to switch to that input unless something tells it too.



[gibburnz]

You guys rock!

I just followed the 700 pictures showing the wiring recommendations for my 2011 Trail and it worked perfectly. Thanks as always for posting this stuff on here!



[blizz86]

I just followed the 700 pictures showing the wiring recommendations for my 2011 Trail and it worked perfectly. Thanks as always for posting this stuff on here!

[MENTION=147513]gibburnz[/MENTION] i tried this back in 2013 and got either no video or black and white static on the stereo.. did you use all three wires as [MENTION=66123]Johnny Utah[/MENTION] said? or just the two wires indicated by [MENTION=81350]rnb754[/MENTION]



[blizz86]

the white wire that we both used is the video feed. We used the same wire for that. I used the red wire on the other side of the plug too. The red wire is the reverse sensing wire. You need that one too, so that when you put the truck into reverse, the headunit knows to switch to that input, so that it can display the camera feed. How else would it know to switch to that input unless something tells it too.

i feel like this has been answered somewhere but ive read countless threads trying to figure this out lol.

I read this from your post:
"Note, my RCA cable actually had 2 wires inside of it. A red and a white wire. The white didn't do anything, and when i tried to ground it, it made the signal go away. So i just taped off the white wire, and used the red for the feed."

so for your setup its white truck side wire goes to the rca inner wire, and the red reverse sensing went to the purple reverse signal ... im going to have to try this again but i recall trying this years ago to no avail :L

did you use a 12v to 6v step down for the camera feed ?



[rihavens]

Did you have that small rear view camera in your mirror? I am wondering what the video quality is like on a larger display.



[gibburnz]

RCA Cable

[MENTION=81738]blizz86[/MENTION] - let me tell you, I read everything on this forum related to tapping into the back-up camera and I think I gave it two tries before it finally worked. I ran a separate wire for the reverse sensor, but followed the recommendation of [MENTION=81350]rnb754[/MENTION] for tapping into the far red and white. I bought a 12ft RCA cable from Amazon for $6 and it worked just fine. At first the signal was shitty but it was because I loosely wired it just to see if I could get a signal. Once I tightened it up, it worked just fine and hasn't failed me since.



[gibburnz]

Did you have that small rear view camera in your mirror? I am wondering what the video quality is like on a larger display.

Surprisingly, not bad. It's not 4K quality, but it does the trick!



[gibburnz]

Back-Up Pic

This was me making a stupid face out of excitement when I got it all working!



[blizz86]

[MENTION=81738]blizz86[/MENTION] - let me tell you, I read everything on this forum related to tapping into the back-up camera and I think I gave it two tries before it finally worked. I ran a separate wire for the reverse sensor, but followed the recommendation of [MENTION=81350]rnb754[/MENTION] for tapping into the far red and white. I bought a 12ft RCA cable from Amazon for $6 and it worked just fine. At first the signal was shitty but it was because I loosely wired it just to see if I could get a signal. Once I tightened it up, it worked just fine and hasn't failed me since.

gonna try that this weekend! thanks!



[rihavens]

This was me making a stupid face out of excitement when I got it all working!

Oh. That is pretty good. I will get this going soon!



[blizz86]

[MENTION=81738]blizz86[/MENTION] - let me tell you, I read everything on this forum related to tapping into the back-up camera and I think I gave it two tries before it finally worked. I ran a separate wire for the reverse sensor, but followed the recommendation of [MENTION=81350]rnb754[/MENTION] for tapping into the far red and white. I bought a 12ft RCA cable from Amazon for $6 and it worked just fine. At first the signal was shitty but it was because I loosely wired it just to see if I could get a signal. Once I tightened it up, it worked just fine and hasn't failed me since.

it works! thanks a lot man. the original RCA cable i had used weird methods of wire insulation and grounding so i couldnt figure out which cable should go to which. bought a basic rca 12ft and it worked perfectly



[caparrish1108]

it works! thanks a lot man. the original RCA cable i had used weird methods of wire insulation and grounding so i couldnt figure out which cable should go to which. bought a basic rca 12ft and it worked perfectly

Was this a basic Red/White RCA cable or did you use the yellow ended video cable? Also I'm assuming we are talking about the thinner RCA cables like you would see for the old audio/video hookups from VCRs and DVD players to TV's. Am I correct in assuming all of this? Thanks!



[blizz86]

Was this a basic Red/White RCA cable or did you use the yellow ended video cable? Also I'm assuming we are talking about the thinner RCA cables like you would see for the old audio/video hookups from VCRs and DVD players to TV's. Am I correct in assuming all of this? Thanks!

Yellow for the entire length



[Blu42]

I used a DIY RCA male plug for my last 4runner. Super easy and really nice way to avoid splicing into thin RCA wires. it allowed me make it my setup a bit more durable.

There are several types out there but quick amazon exmaples at this link:
https://www.amazon.com/s?k=rca+male+plug&ref=nb_sb_noss_2



[Johnny Utah]

Was this a basic Red/White RCA cable or did you use the yellow ended video cable? Also I'm assuming we are talking about the thinner RCA cables like you would see for the old audio/video hookups from VCRs and DVD players to TV's. Am I correct in assuming all of this? Thanks!

you sent me a DM, but it wont let me reply. so i and copying my reply below..hope it helps man

Hey man, I'm pretty new to this site and had a question regarding the RCA cable you used to splice your video feed down to your aftermarket head unit. Was this a normal yellow ended video cable that you stripped or was it something different? Also what type of wire did you use to connect your backup sensing from the red wire down to the back of the head unit? ANY help you can provide would be amazing! Thanks!!

Cameron

Sorry bro, just saw your message...You ever get your issue figured out? I think i just used an like a regular rca cable...the ones that come in a 3, like red, yellow and white, i pulled off the white one and cut the ends off...that was years ago. lol.

I think i had a solid wire, dont recall the gauge, but i doubt it was one of those braided wires that went from the backup sensing wire..probably a wire spool or a spare wire from radio shack...back when they existed!
