Stereo Install Help!

[Kurt_Knight]

Guys,

I purchased this Pioneer from Crutchfield:-

Pioneer FH-P8000BT CD receiver at Crutchfield.com

It came with this so I can keep my JBL amp:-

PAC Toyota Factory Integration Adapter Install a new receiver while retaining your JBL amplifier in select 2003-up Toyota vehicles (Model TATO) at Crutchfield.com

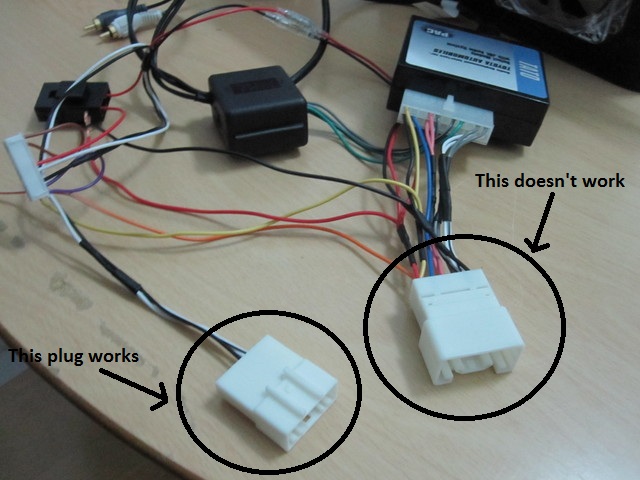

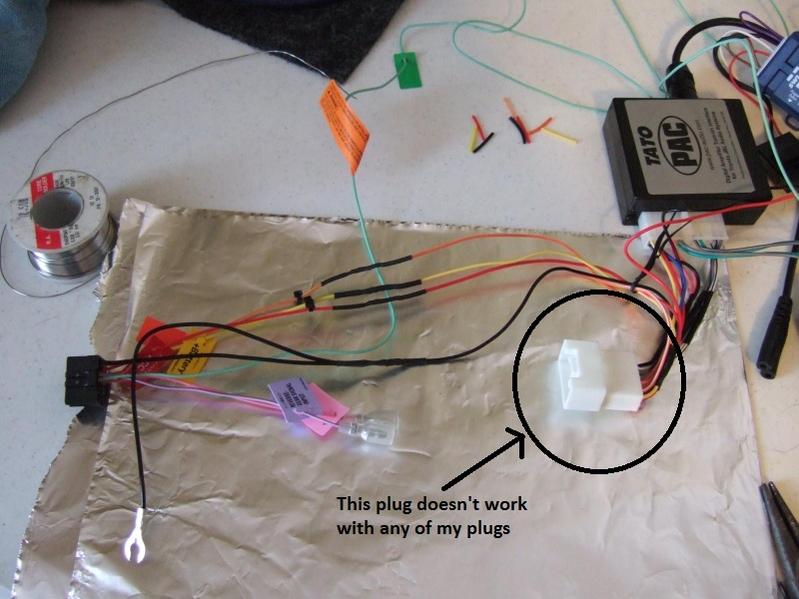

Only 1 of my plugs plug into PAC's harness but the main PAC plug doesn't work with any of my OEM head unit plugs. Can someone give me a hand with this???



[gaterose]

can you post pics of what you're talking about?

Doesn't the white plug go into the factory harness, the little round black one to the PAC box, and the wires connect to the pioneer wiring?



[Kurt_Knight]

Thanks for the reply!

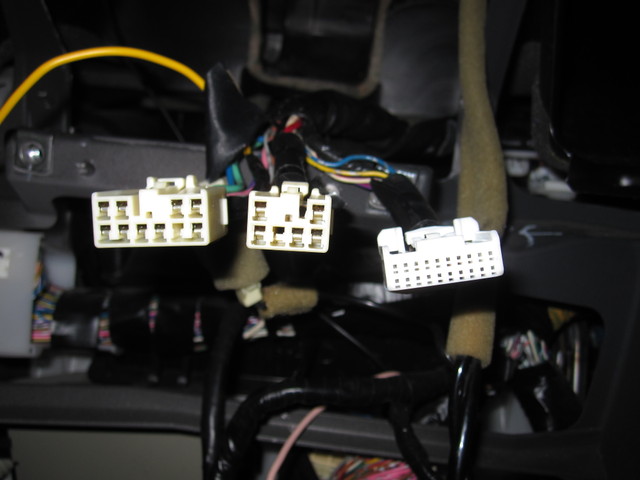

These are the oem plugs, the only one that works on the PAC is the plug on the far right, the other 2 plugs don't fit the PAC main plug.



[galactic_04]

I'd double-check that you got the right plugs. You may have got the plugs for the non-jbl system



[Kurt_Knight]

I selected JBL with no RDS on Crutchfield when I placed my order.



[gaterose]

I selected JBL with no RDS on Crutchfield when I placed my order.

I have the far left plug and the RCAs (well actually not since I have an aftermarket amp, but you should) connected on my 4R. I have a different adapter. I only have 5 wires connected from my HU to the JBL system on mine. I think it is just 12v+ (yellow), 12V acc (red), ground (black), remote (blue), and power antenna.


I also have the orange dimmer wire on the HU connected to my illumination circuit but that doesn't just plug in, you have to tap into that from a switch.

btw all those wires come from the far left 20 pin plug

edit: sorry I got that wrong the first time (changed it) the steering adapter is that 20 pin plug.
all the power comes the far left one.



[12guns]

I'm not sure about this but I'll throw it out there anyway...most of these aftermarket systems are plug and play, right? So if you were sent the wrong plugs, you might find the right ones locally at a stereo store. Walmart even sells different kits for different cars. Hope you get it figured out! Sorry I don't know more about it!



[Kurt_Knight]

Guys,

Is this a JBL stereo? This is the stereo in my truck and on my doors I have JBL system logos.



[riceandpho]

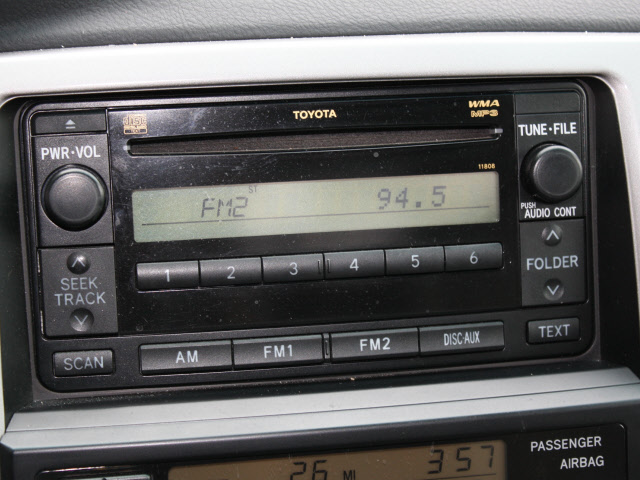

check the cargo if u have a sub then itll tell u if u have jbl or not, i thought the jbl is more biiger of a head unit. looks like a base head unit



[mndanielsncsu]

Looks like the non-JBL head unit to me too.



[Kurt_Knight]

Looks like the non-JBL head unit to me too.

Yup, no JBL I'm actually happy I don't have the JBL because this just makes the Pioneer install easier.



[santana]

hey with that pioneer stereo you purchased

do your steering wheel controls work? or did you have to get anything additional?



[Arizonagurl56]

pioneer stereo doesn't fit!

after spending 2 days fighting with the wiring after the power/ antenna wire fell out, finally figured out where it needed to go and got it all hooked up discovered the pioneer stereo I got doesn't fit the plastic install kit I got or my original plastics. Now it's just sitting there, wires exposed and not looking so good. Any ideas on what I'd need to get to finish my project?



[I-1100]

http://www.toyota-4runner.org/engin...60174-urban-runner-radio-trim-ring-found.html

Not sure if this will fit your truck, but worth looking into. It just snaps on after the radio is installed without a kit.
