Transmission vibration

[Spunk]

Good morning!

A Huge driveline vibration just presented itself this morning.

The driveleline vibration is continuous during acceleration, 4wheel drive or two wheel drive.

The vibration is coming from mid or front-vehicle. No vibration in neutral, coasting at speed.

Trainsmission seems to be pinned, as in shoved to the left side of its mount and does not rest back to center. The manual transfer case shifter is also shoved to the left, to the point where it's rubbing on the lower-console-tray.

It appears that my transmission (and perhaps engine) are out of center or angled slightly. Any thoughts on resolutions?

Some things that come to mind during brain storming:
-Check double cardan
-Check engine mounts,
-Check for debris
-Check the mating between transmission
-Check fluid level/quality in transmission

Any and all suggestions are welcome!



[Spunk]

A brief update!

The drive-line vibration was due to a failed u-joint at the rear diff. I was wrong about where the vibration was coming from. I pulled the rear driveshaft and drove home as a front wheeled 4Runner (that was a weird sensation).

That being said, the transmission is still leaning more left than a member of parliament, so I am still searching as to a probable cause.



[Black798]

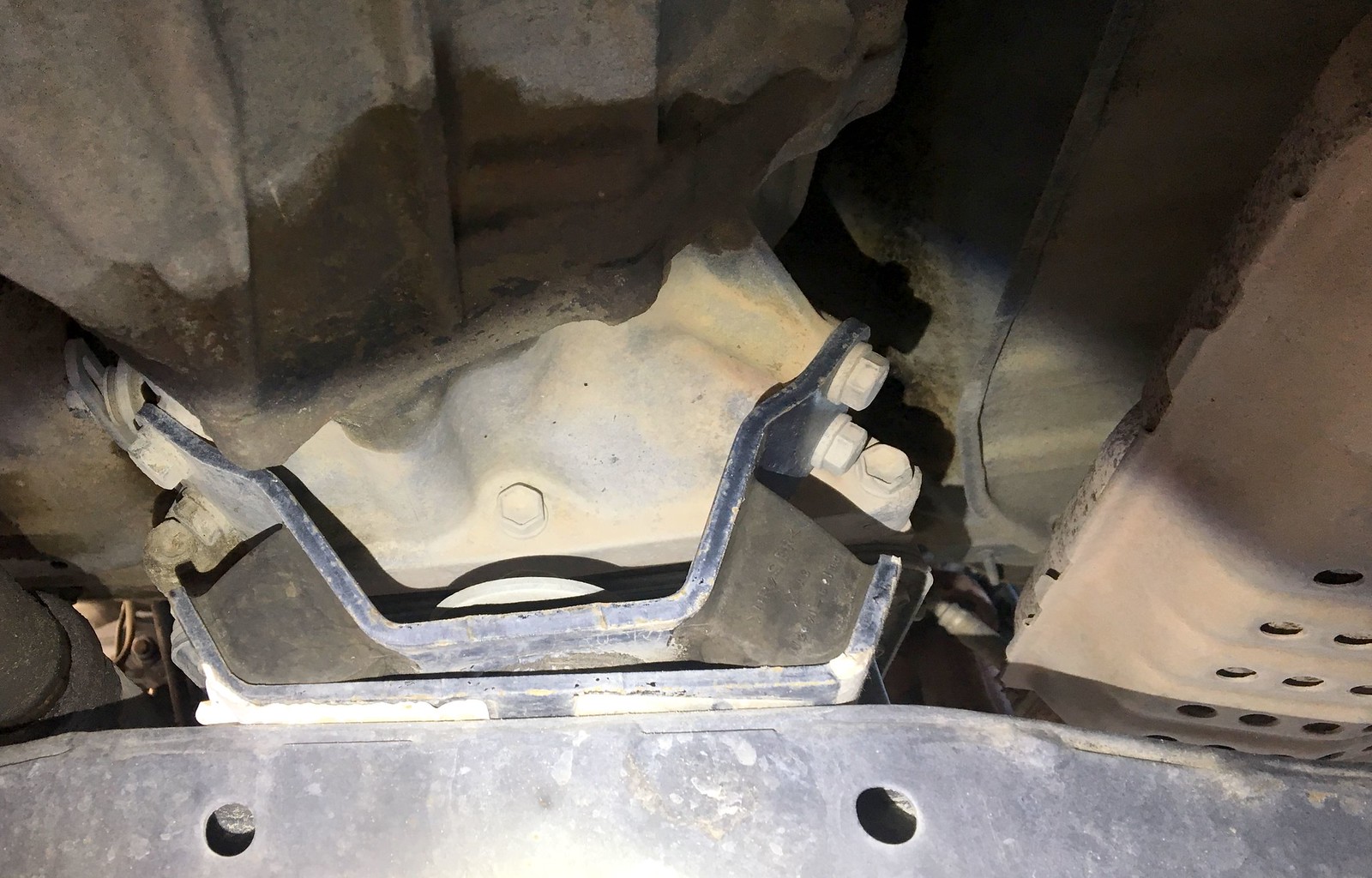

Check your motor mounts. If one of those failed, specifically the driver's side, it could be causing that transmission mount to bear the load. You could also swap to a poly transmission mount. If you have a manual, 4xinnovations makes a mount. If it's an auto, I make a mount very similar to the 4xinnovations that I have been selling. There's a few pictures of it on my build thread



[diverscale]

That being said, the transmission is still leaning more left than a member of parliament, so I am still searching as to a probable cause.

Good one

The transmission mount seems intact and would not cause your engine to be sideways like we see here. I'd look at the left engine mount first. You can get a glance to it if your go under the truck and look forward over the steering rack. Compare it to your right engine mount.



[Spunk]

Thanks guys! Y'all were right! My left motor mount clean failed, both the rubber and the steel mount on the frame. I have since fabricated a new plate on the frame side and replaced both of the engine isolators. I'll post up photos at some point.
