4th and 5th Gen ULTIMATE CAMPING MOD!
Several years ago I got sick of having to crawl up to the front, put the key in the ignition and roll the rear window up or down to regulate heat while camping in my 4R, so I developed a kit that allows you to roll the rear window up and down with the ignition off as well as pop the rear hatch while camping. The newest wireless kits offer two safety features: 1) they require you press button D along with the intended actuation button. In other words, If I want the window to go up, I hold button D and button A. This is a safety lock to prevent mis actuation and 2) I now have an on / off switch that is included. This turns the kit on / off and can either be installed by drilling a hole in your back panel (no wires to run) or just tuck it behind the rear hatch access panel.
Style 1- Wireless - $200 shipped

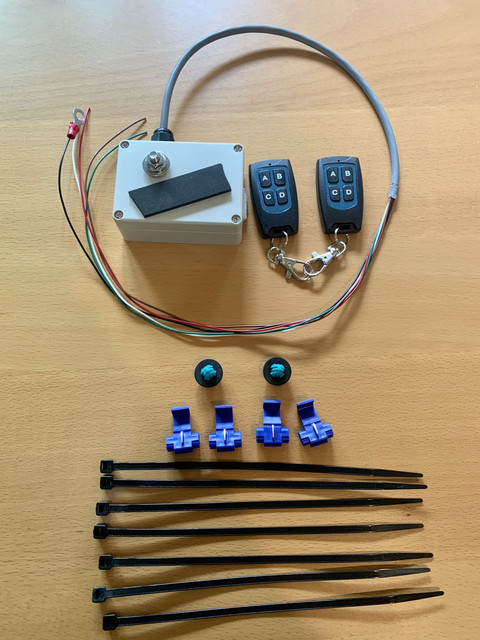

The wireless kit is the easiest to install- most likely you will finish in half an hour. Includes weatherproof electronics enclosure, 2 remote fobs, zip ties, taps, a few extra panel clips in case you damage yours taking the back panel off and very detailed instructions
<iframe width="560" height="315" src="https://www.youtube.com/embed/dR3UNi0xS0M" frameborder="0" allow="accelerometer; autoplay; encrypted-media; gyroscope; picture-in-picture" allowfullscreen></iframe>
Style 2- Wired hard mounted switches – $100 shipped

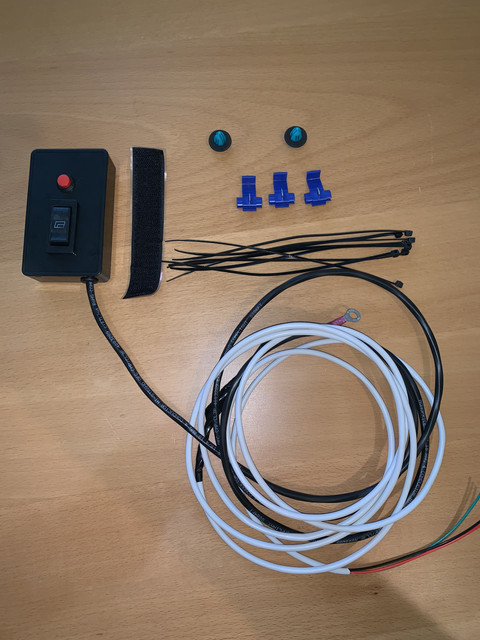

The wired hard mounted switch kits allow you to install the switch / button where you want. Install is an hour or two. Includes everything required to install (harnesses, switches, taps, zip ties, spare clips and full detailed instructions).
*Note, kits supplied with a slightly different wire than shown. I switched to a smaller wire for easier installation*

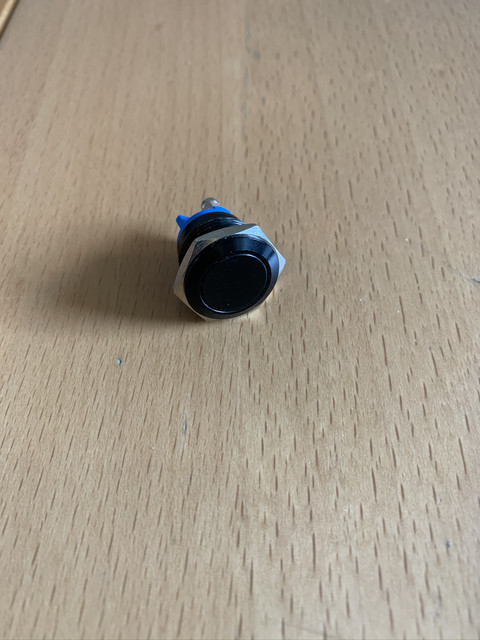

Note the red button shown in picture is no longer included. I now ship with a black flush mount (below). I have also done kits where the install is 3 of these - one for up, one for down and one for pop. This is a great solution for mounting all switches on the rear door panel.
<iframe width="560" height="315" src="https://www.youtube.com/embed/5pwda4-dfDk" frameborder="0" allow="accelerometer; autoplay; encrypted-media; gyroscope; picture-in-picture" allowfullscreen></iframe>
Style 3- Hobby box - $150-200 shipped

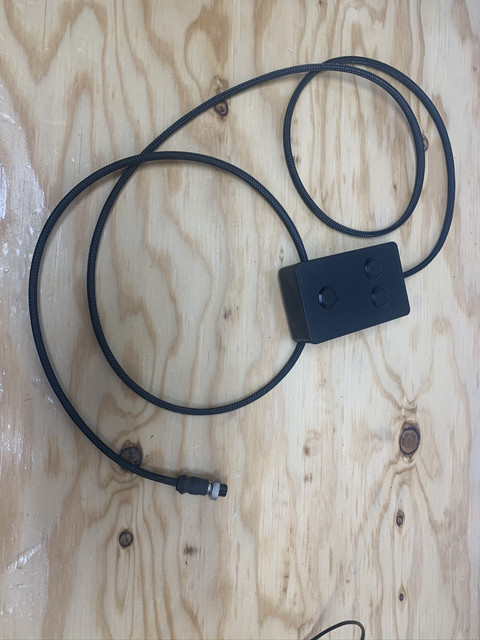

If you’d like a physical button but don’t want to drill into your panels or have switches exposed, I offer hobby boxes with the switches installed. These vary in price depending on what you want, and can be anywhere from $100-$150 shipped. Below are a few examples, but message for more details.
FAQ
1. What years is this designed for?

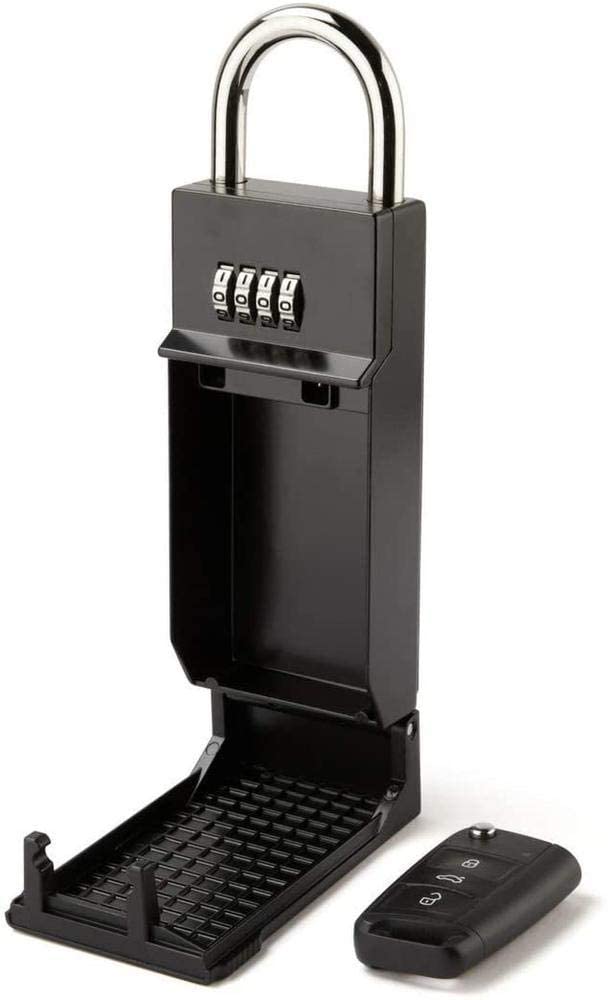

All 4th and 5th gen 4runners. Note for 2010+ limited along with 2020+ with smart key, I have two different wiring options in the instructions (same kit covers both). You can either A) have a full functionality system but keys need to be outside vehicle (typically in a lock box below) OR partial functionality where you can keep keys inside and operate window up / down as well as pop the hatch BUT the kit will not lock / unlock - instead you'd have to use your key fob.
2. What does each button do?
Tapping the two way switch down unlocks the vehicle, holding it down for 2 seconds begins to roll the rear window down. Tapping up locks, and holding up starts to bring the window up.
The red button pops the rear hatch when the vehicle is unlocked.
3. I have a dog and am worried about him opening the back while driving. What can be done?
Luckily the system only works when the vehicle is locked. Once you start moving, the vehicle will lock, and the button will become useless. Luckily as noted above, while camping in the back you are able to lock and unlock the vehicle.
4. What is the install like?
Installation should be about an hour and requires no soldering or wire crimping. You have to remove some panels (I include instructions on how to do so), tap into 3 wires (I include 3M vampire taps and full schematics) as well as install the switches. I’d guess 5% of customers ask questions on the installation, but I have never had anyone say they couldn’t do it.
5. I want something custom, do you do that?
Yes, happy to do custom jobs. Just let me know what you are thinking
6. How do I pay?
a. Please email me at [email protected] for ordering information[/U][/I].
7. Further Questions?
Email me at [email protected] – I will usually respond within a day or less.
