Wiring diagram help

[pearlj10]

Happy 2016. I'm finally getting ready to install 2006 XSP power seats into my 03 SR5. I've got the power wiring and all other seat wires for the 03 (seat belt, airbag, occupant sensor, etc.) all figured out. What I don't have a handle on is which wires I need to connect the 03 wires to on the XSP seat connectors (I don't have pigtails for the 06 connectors). I've reviewed the 06 FSM stickied on page 1 of this post and cannot find wiring diagrams. I found all of the seat wiring diagrams for the power components on the 06, just not all of the other wiring (seat belt, airbag, occupant sensor, etc.). Am I missing that info in the 06 FSM? Or can someone please post the wiring diagrams for those particular items? I would be much obliged.

I will be creating a post on the install when I am done, as I have had a hell of a time finding the right info to do this swap.

Thanks!



[pearlj10]

Anyone? Please?



[ADeFazio]

Can you post pics of the factory harnesses and the plugs on your new seat?



[ADeFazio]

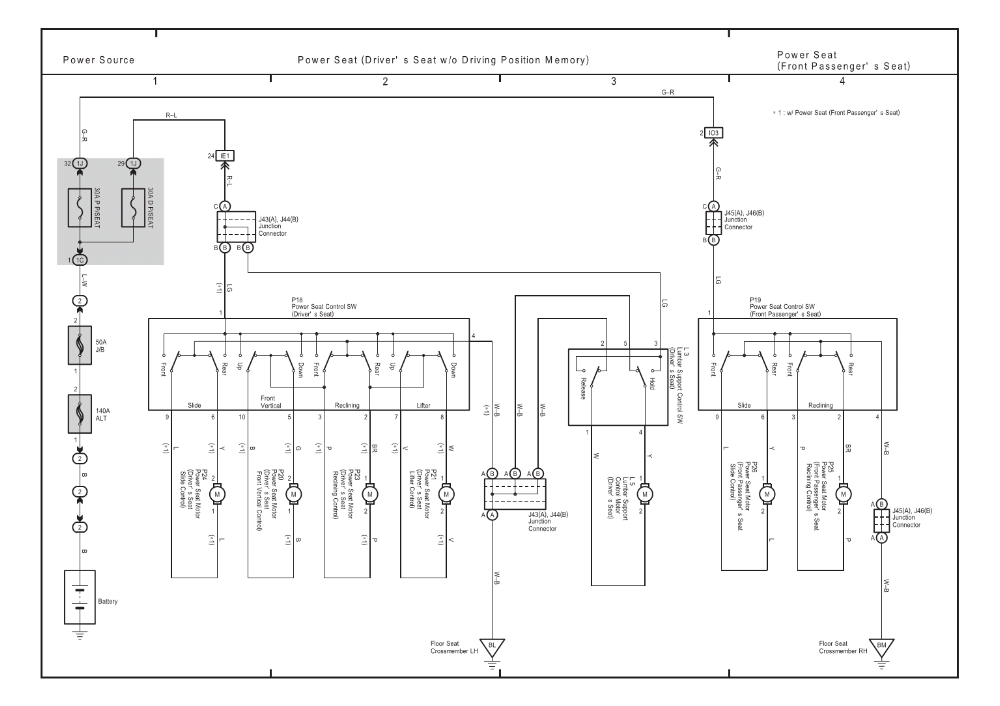

Not the greatest quality but might help:



[morganashley0524]

Helppppppp!!!! Pleasee!!!!

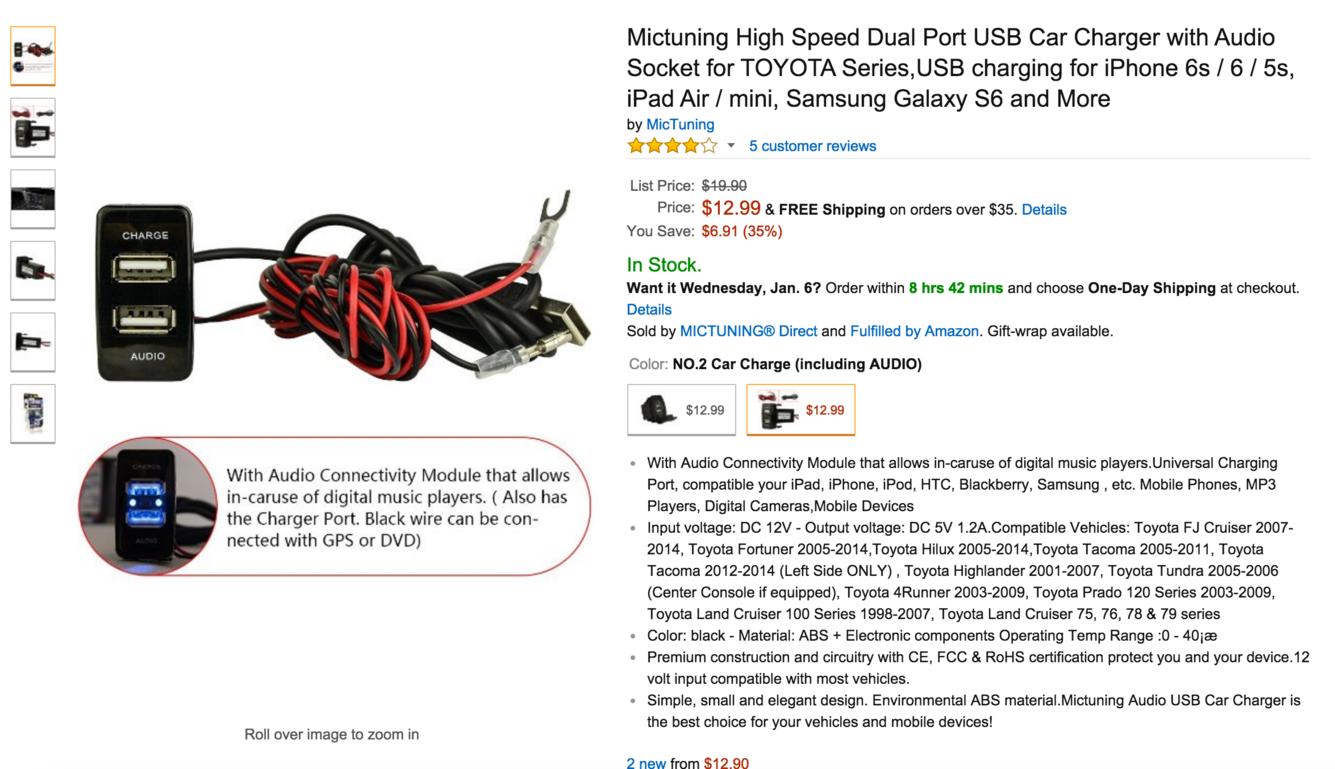

Does anyone know how to install this? I have a 2005 toyota 4runner and I was hoping to install it in the center console in the blanks



[morphious]

[MENTION=18304]pearlj10[/MENTION] 2 Things that are brought to my mind which could be completely wrong but 1) I thought XSP was a port option so not sure if seats are standard wired though I think they are just covers over stock seats but not sure 2) I don't think 03-05 SR5 or Sports have the body wiring harness for power seats, I believe only Limiteds came with the 2 front to back body wiring harnesses that have the ability to plug in power seats. These are the 2 things I thought about, but could be off base, good luck.



[ADeFazio]

whoa thread jack. That thing is incredibly easy to install. Search.

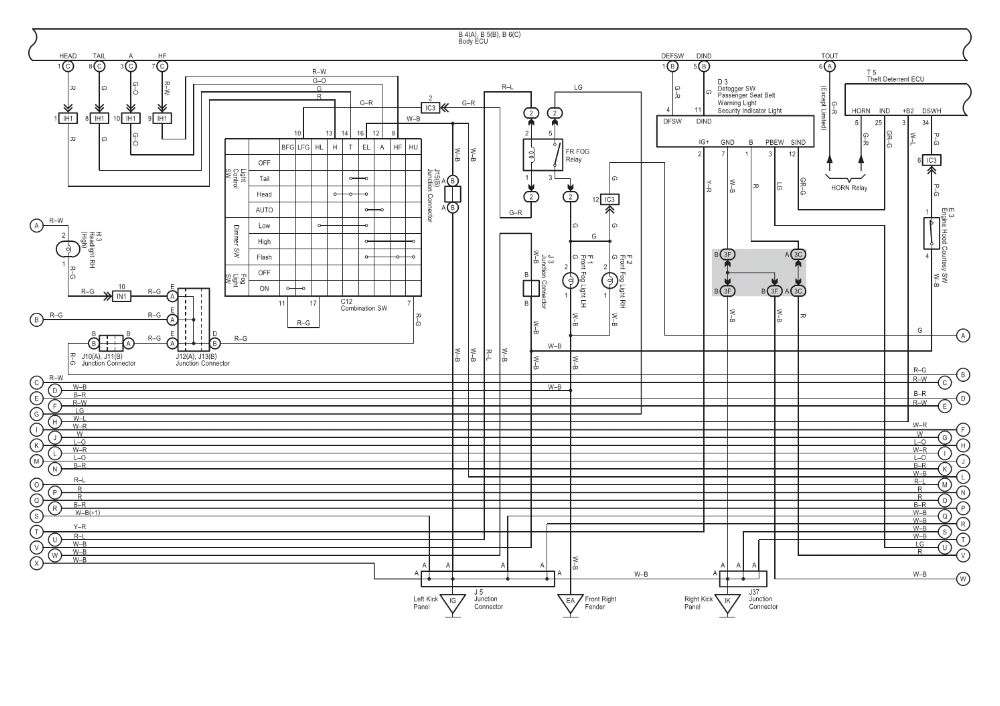

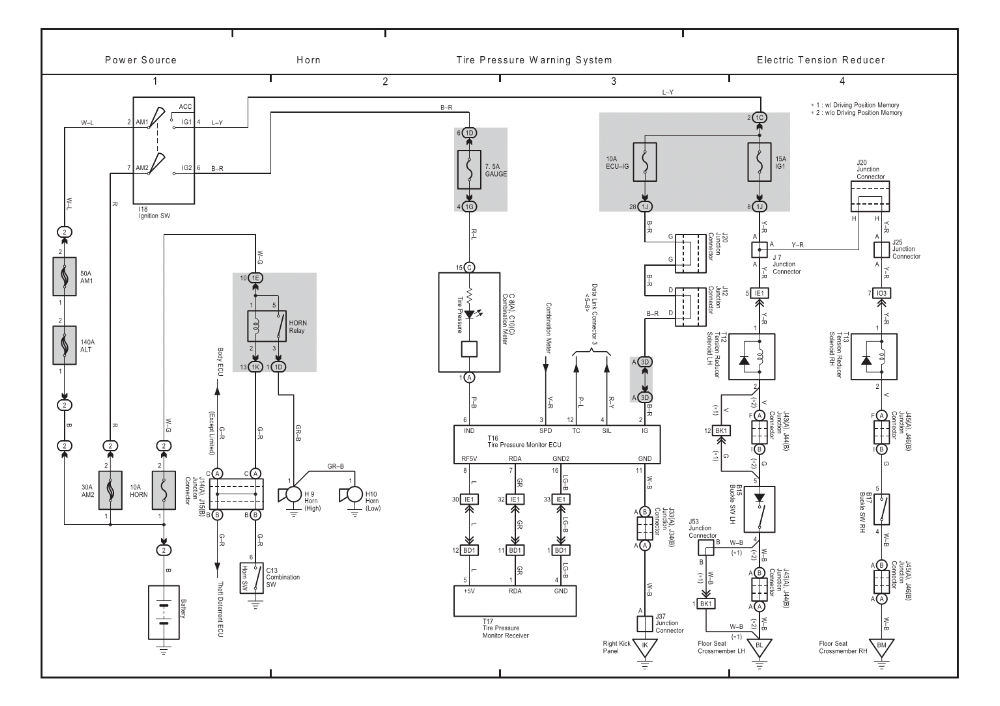

The following two diagrams include seatbelt harnesses and passenger seat occupancy sensor wiring:



[morganashley0524]

How do I get it into the radio for the audio



[ADeFazio]

you don't. You will also need to add a USB interface GROM Audio TOYNU2P Android and iPhone Compatable USB Interface



[pearlj10]

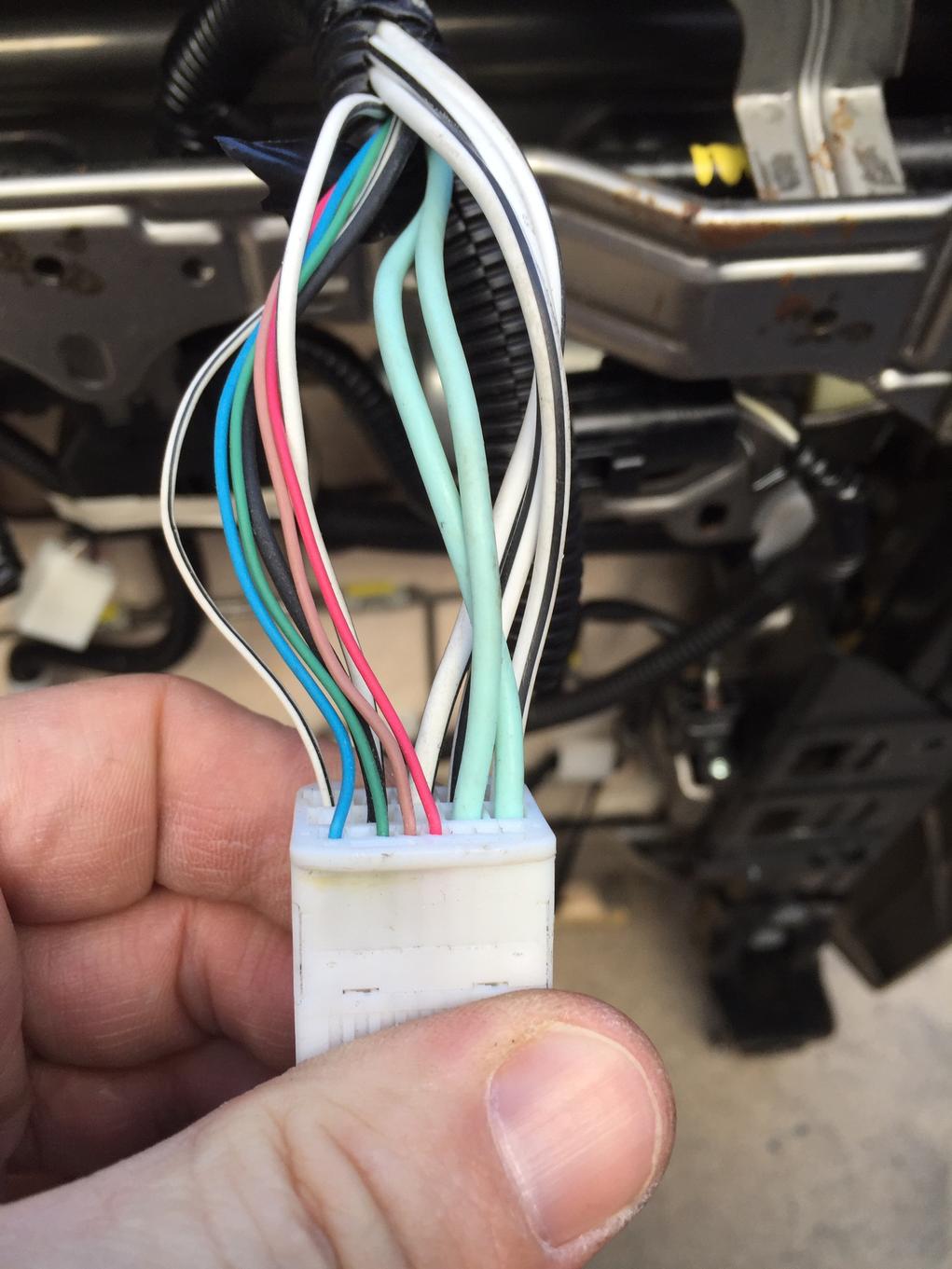

Thanks for the diagrams ADeFazio. I had skipped over the diagrams for the seat occupancy sensor and buckles. Those are from the 03 FSM, I'm guessing? Here's a photo of the main connection on the XSP SEAT. I'm thinking that I only need to supply power to the two light green wires at top right, and ground to the narrow white/black wire at bottom left, according to the diagrams.



[pearlj10]

Another shot of the main harness on driver's XSP seat. The two green wires at right are the ones that need power, which is included with my 03 SR5 harness. The ground wiring, I believe, is the narrow white and black wire at left.



[pearlj10]

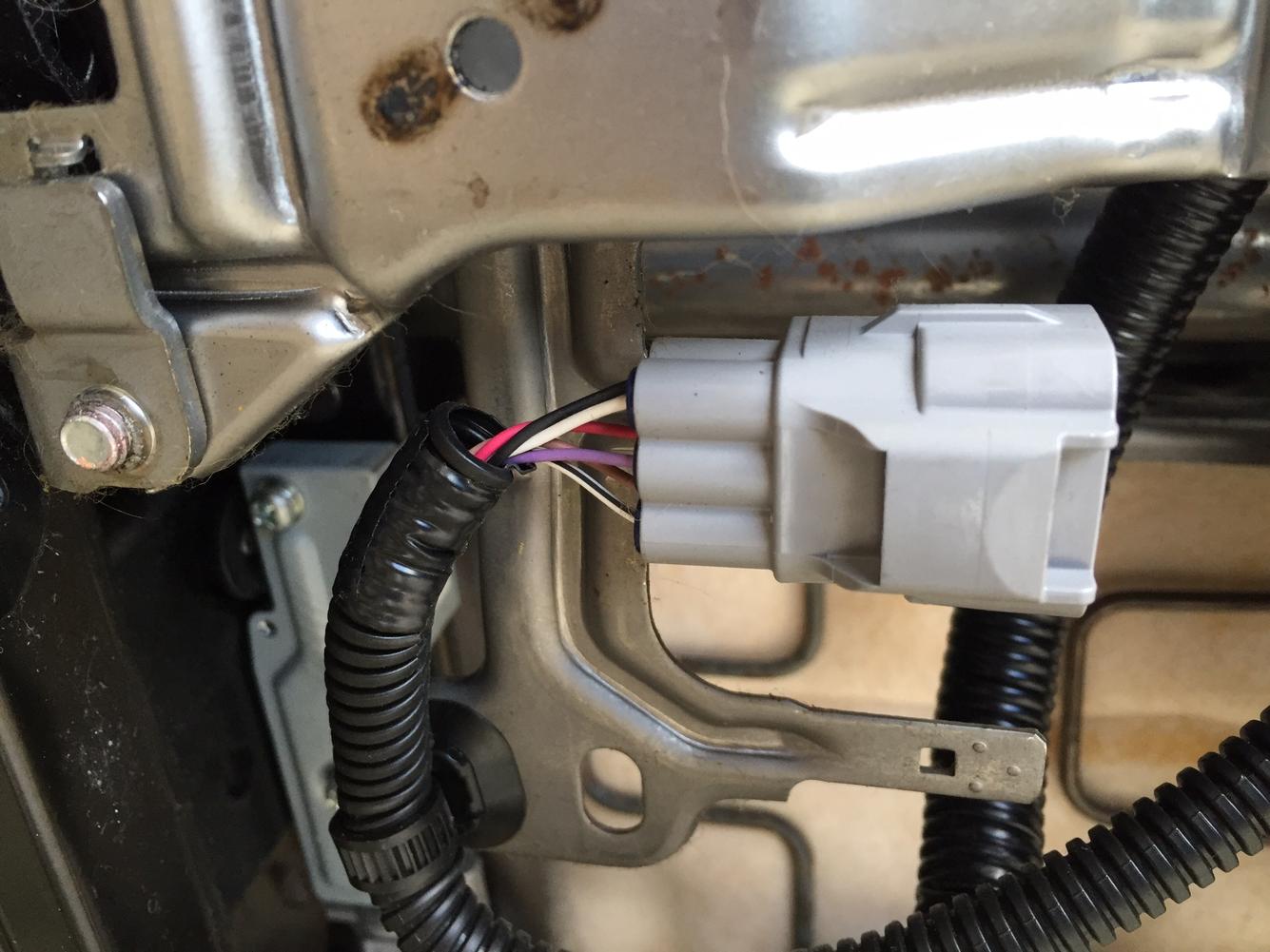

This is the other main connector on the XSP seat. The gray and white wires go to the air bag/seat position sensor and I know which two wires from my SR5 harness I need to connect to those. The black and the black with white stripe wire on the XSP connector are for the seat belt buckle sensor, I have no idea which two wires from my SR5 harness need to connect to these.



[pearlj10]

This is the main passenger connector on the XSP seat. I know I need to run power from the 30 amp fuse in drivers kick panel to the light green wire on XSP harness, and a ground to the narrow white with black strip wire.



[pearlj10]

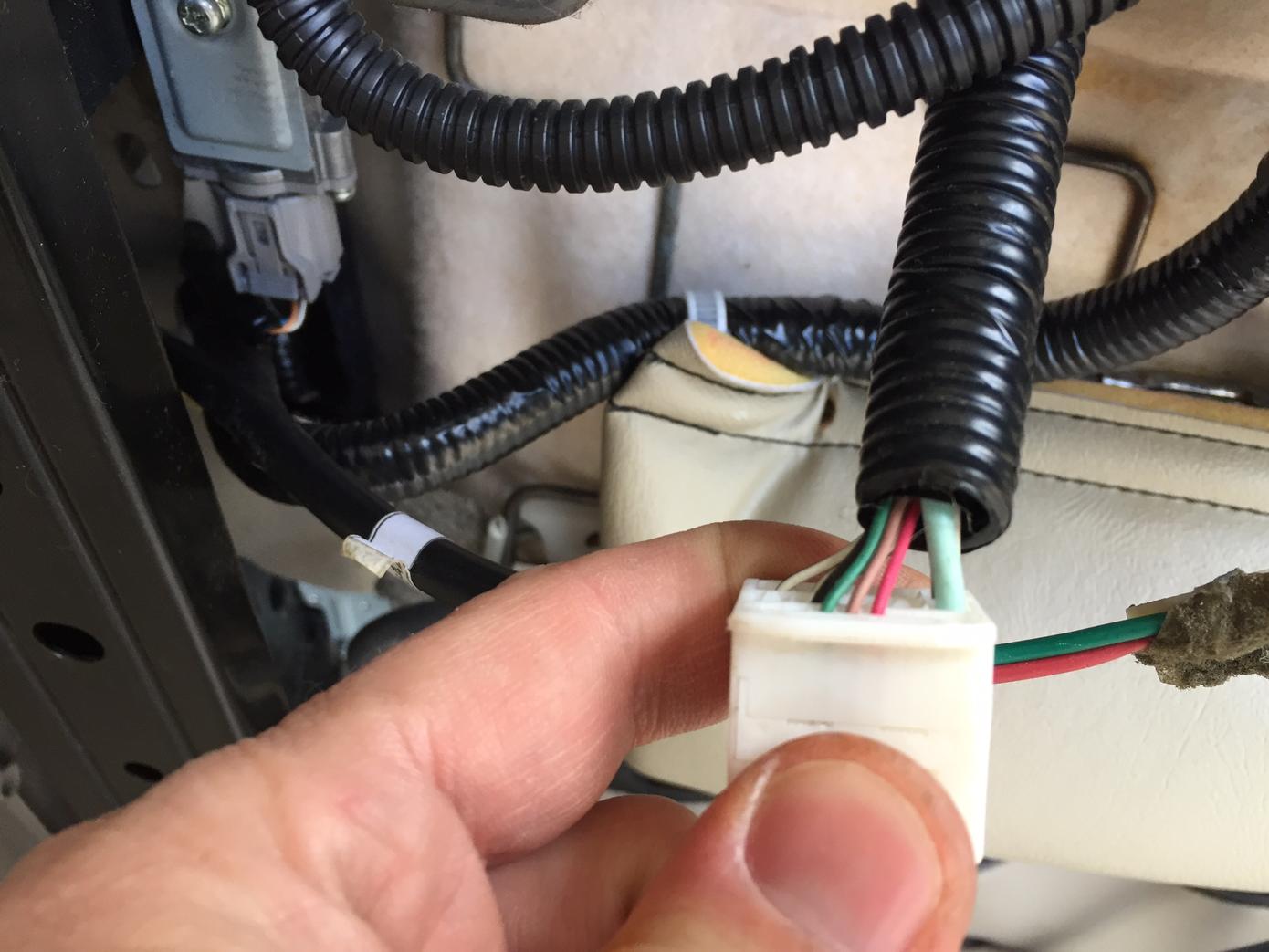

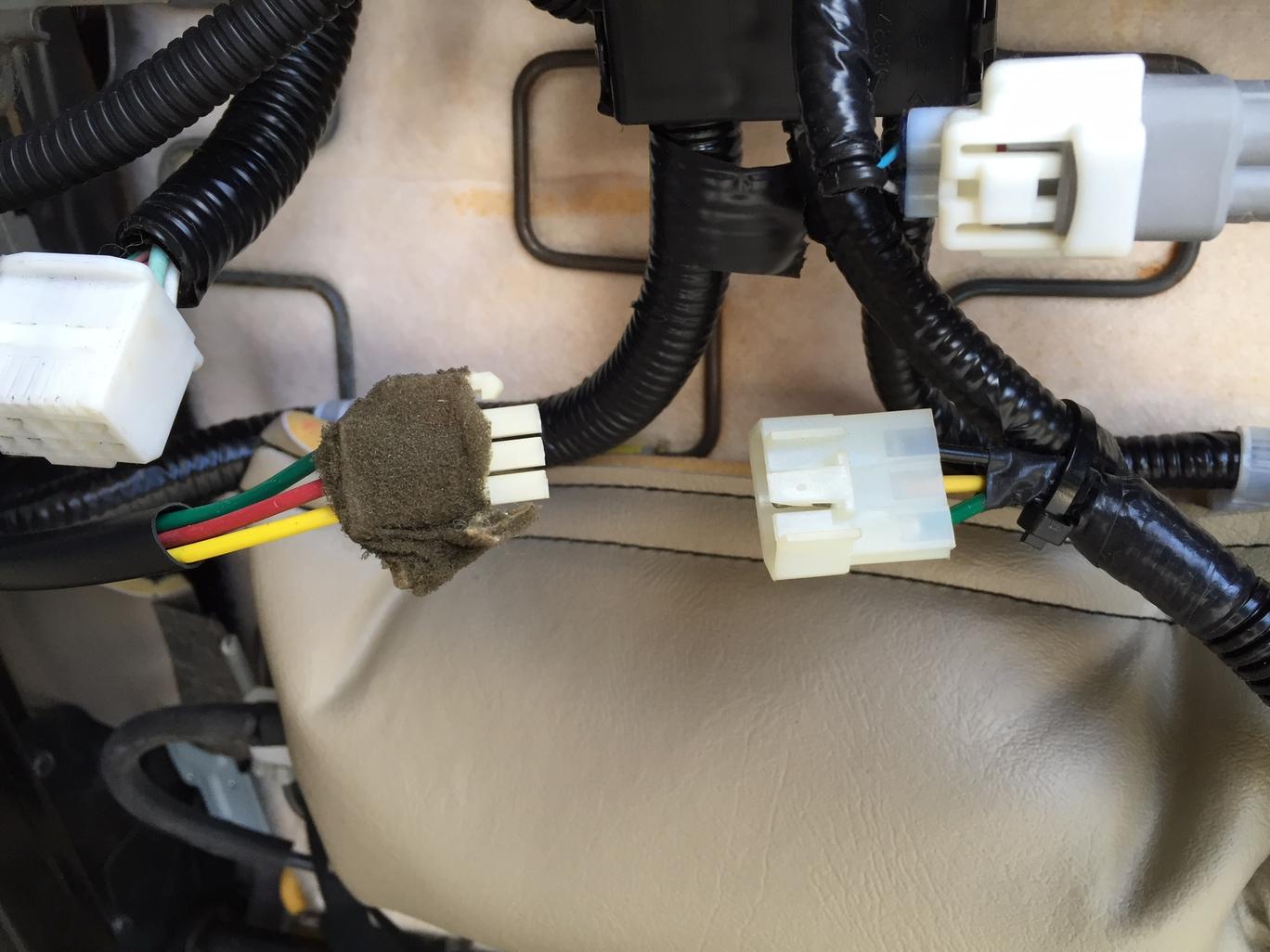

Other than running power and ground to the main passenger XSP harness, I am totally lost on how to wire this seat. The green, red, and yellow wires at connector at left in this image go to the lumbar support. This connector looks like it might connect to the connector with the black, yellow, and green wires at right but they certainly do not connect. I'm not even sure what the connector at right with the black, yellow, and green wires is used for. Nor do I have any clue what I need to connect to these two connectors to make the seat work. I would guess that only a power and ground would be needed for the lumbar switch, but why there are three wires in the connector escapes me. Perhaps the connector at right with black, yellow, and green wires is for the passenger seat belt buckle sensor? Again, these XSP seats are from an 06. Any help at all is GREATLY appreciated.
Thanks



[pearlj10]

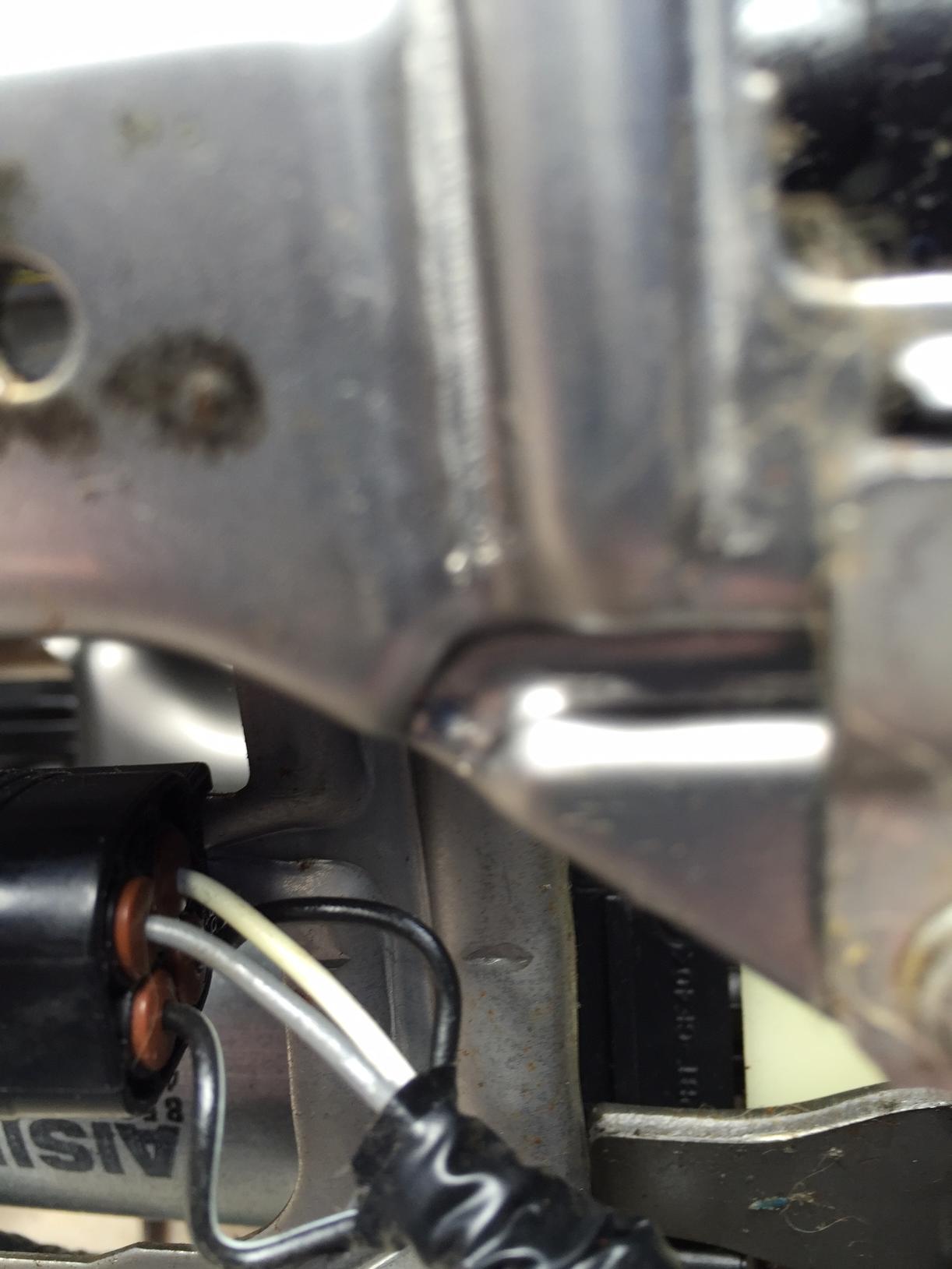

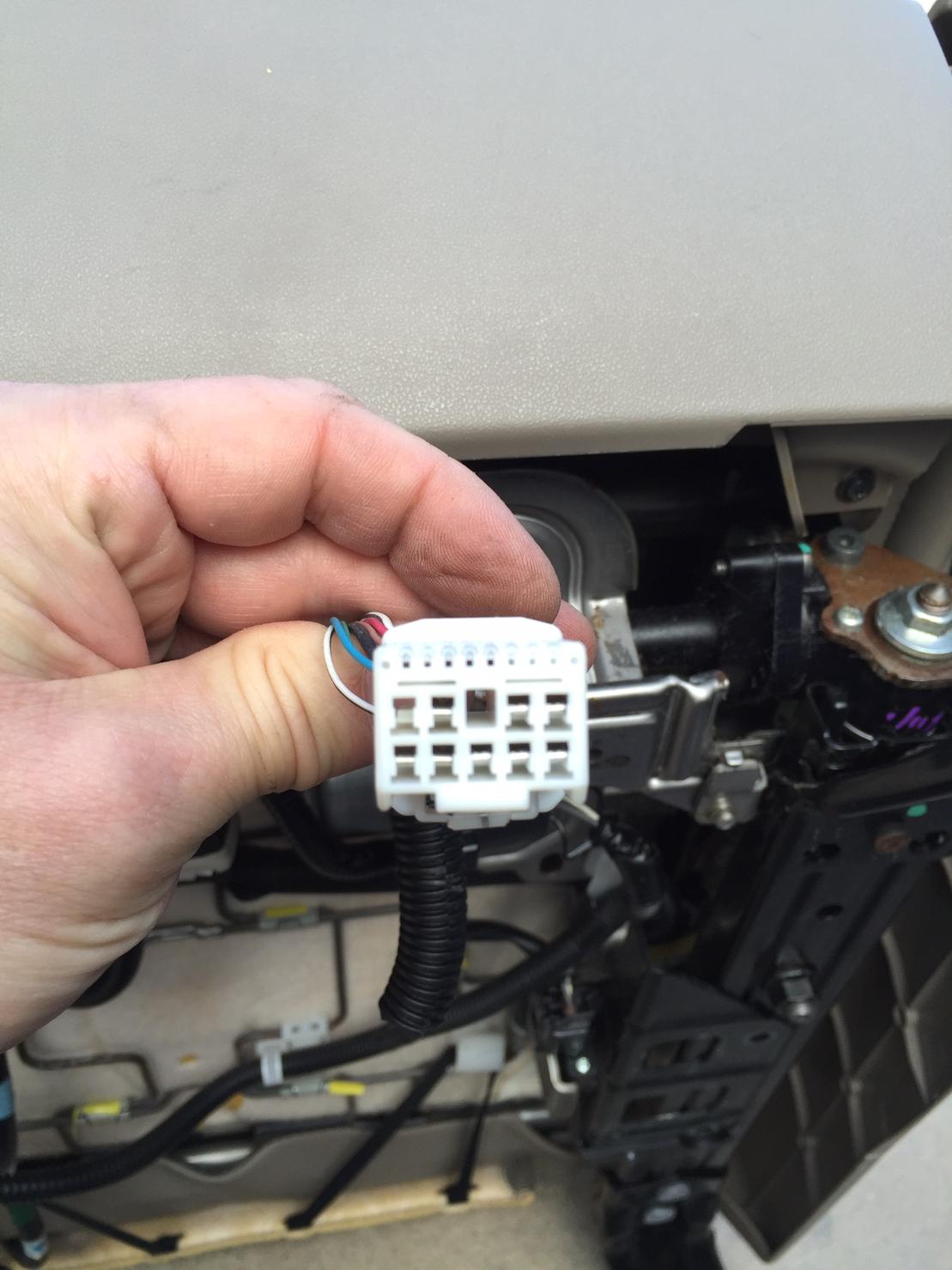

I almost forget t this connector on the passenger XSP seat. This one is my guess for the seat belt buckle sensor. Again, no idea what to hook up to this.



[pearlj10]

Bump.



[juniortuzon]

Did you find out how to install the seats? I'm trying to put a pair of power seats too but I have no clue on the wiring? my 04 4runner has manual seats and I have a pair of 06 4runner power seats I want to install.thanks



[BostonJon]

Did you find out how to install the seats? I'm trying to put a pair of power seats too but I have no clue on the wiring? my 04 4runner has manual seats and I have a pair of 06 4runner power seats I want to install.thanks

i know this is an old thread, but I have an 05 Sport with the cloth seats. I just picked up a set of power/leather seats from an 06. Both have side airbags. I'm working through the wiring now. From what I can tell so far, the donor seats from the 06 had wiring for both position memory AND seat heaters. It's going to take me some time so sort through the wiring by comparing the 05 diagrams and wiring to the 06 diagrams and wiring.

did you have any luck with your swap?



[pearlj10]

I did succeed, once I quit overthinking it. The seats only need a power and ground wire, in addition to the seat belt wire and whatever else you already have (it’s been too long to remember). If you can track down the wiring diagram, figure out which pin on the power seat connector is power and run a 12 v wire of your liking to it. Same for ground. That’s all they need to fully function! Sorry, I can’t find a picture of the pins after all these years. Good luck.



[88Center]

In case anyone else needs these.

Electrical Wiring Diagram (EWD) for 4th Gen 4Runner Seats

• Power Seat for Driver’s Seat with Memory
• Power Seat for Driver’s Seat without Memory
• Power Seat for Front Passenger’s Seat
• Seat Heater
• Electric Tension Reducer
• Seat Belt Warning

For the airbags, there are a ton of pages in the service manual, so I would need to know which specific pages you need.

https://i.imgur.com/CrRTrVP.jpeg
