96-98 Front Bumper Valence Question

[Kirk_B]

I am finishing up converting my 99 front bumper to the 96-98 style.

Is the front bumper attached to the lower valence by bolts or by special clips?

I have been unable to find any diagram showing what attaches them.

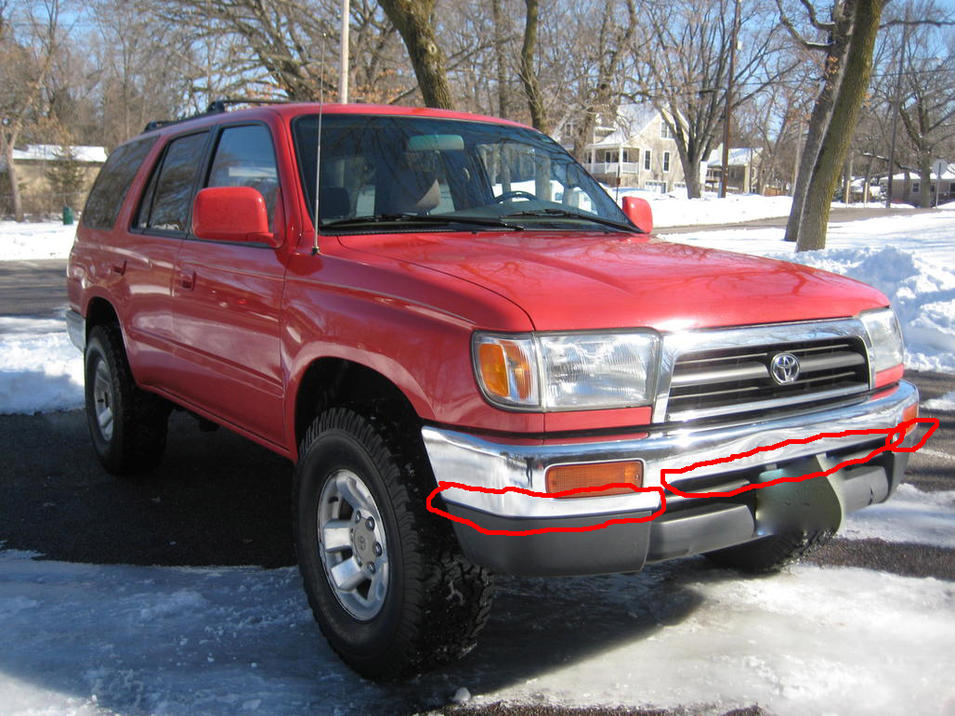

I have attached an image showing where I am talking about.

Thanks!



[gamefreakgc]

Yes, the plastic valance is attached by screws that go through metal mounting clips. I think there's 5-6 total.

There's two in the corners of the bumper I CANNOT figure out how to get to. Was mounting a light bar and wanted to just take the valance off but for the life of me I couldn't get the darn thing off. Only way I saw was to remove the liner from both wheel wells but that would mean buying a dozen or so plastic clips since they always break when removed. I just skipped it and contorted my arms and got the light bar on that way.



[Mark_BC]

I'm replacing the rusty front bumper on my '97 Limited and I'm having a hard time finding part numbers for the little clips that hold the plastic lower valance on the metal bumper. They clip on, then a bolt goes through. They are rusted beyond salvage so I'll need new ones. The best I have found is this diagram from Olathe Toyota.

Genuine OEM Bumper & Components - Front Parts for 1997 Toyota 4Runner Limited - Olathe Toyota Parts Center

I'm thinking it's maybe 13 and 14? (90179-06322 and 90119-10560). Does anyone know?



[IBallEngineer]

I'm replacing the rusty front bumper on my '97 Limited and I'm having a hard time finding part numbers for the little clips that hold the plastic lower valance on the metal bumper. They clip on, then a bolt goes through. They are rusted beyond salvage so I'll need new ones. The best I have found is this diagram from Olathe Toyota.

Genuine OEM Bumper & Components - Front Parts for 1997 Toyota 4Runner Limited - Olathe Toyota Parts Center

I'm thinking it's maybe 13 and 14? (90179-06322 and 90119-10560). Does anyone know?

Nope, neither one of those. You can buy generic U-nuts like this:
EXTRUDED "U" NUTS-KIT

I think they are 6MMx1.0 the offset varies but they should be readily available.
Or maybe a good industrial hardware store. I used to buy from a supplier when I had the shop, not much help now but I feel your pain.



[TheDurk]

Nope, neither one of those. You can buy generic U-nuts like this:
EXTRUDED "U" NUTS-KIT

I think they are 6MMx1.0 the offset varies but they should be readily available.
Or maybe a good industrial hardware store. I used to buy from a supplier when I had the shop, not much help now but I feel your pain.

I used these from Amazon on my 1999 bumper. M6x1.0.

Steel Tapped-Hole U-Style Clip-On Nut, Plain Finish, Metric, M6-1 Thread Size, For 0.8 mm-4 mm Material Thickness, 12 mm Edge Distance (Pack of 25): Amazon.com: Industrial & Scientific

Amazon.com: Clipsandfasteners Inc 25 6-1.0 X 25mm Metric Hex Head Sems Bolts - Type CA: Home Improvement

Not that cheap, but you get 25 of them, and they are all the right size.
