So, I am getting very tired of having to hunt down the part numbers for the NeoWedge Lamps that are used in the 4th Gen A/C Control module backlighting every time one goes out.
The last couple years I randomly have a bulb go out.. The dealership has trouble finding a diagram.. They order the wrong one..Sometimes twice.. Repeat process a couple months later..
So I FINALLY get a copy of the diagram from a parts dept guy who found it. I have a 2003 Limited , but the lower diagram shows the SR5 and Sport model layout. The only diffference between the two is the Limited has 2 extra bulbs for the dual climate controls.

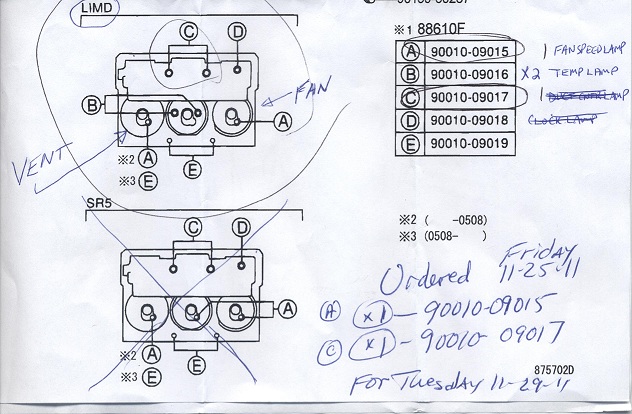

These diagrams are FROM THE BACK of the control panel!! So if the right side backlight of the clock display is out, you need lamp 90010-09017 . If the backlight lamp for fan speed control is out, you need "A" 90010-09015 .
The last couple years I randomly have a bulb go out.. The dealership has trouble finding a diagram.. They order the wrong one..Sometimes twice.. Repeat process a couple months later..
So I FINALLY get a copy of the diagram from a parts dept guy who found it. I have a 2003 Limited , but the lower diagram shows the SR5 and Sport model layout. The only diffference between the two is the Limited has 2 extra bulbs for the dual climate controls.
These diagrams are FROM THE BACK of the control panel!! So if the right side backlight of the clock display is out, you need lamp 90010-09017 . If the backlight lamp for fan speed control is out, you need "A" 90010-09015 .
