Rushthezeppelin
New member
Is this what I think it is?
Sent from my moto g stylus 5G using Tapatalk
Sent from my moto g stylus 5G using Tapatalk
Axle seal going bad?
- Thread starter Rushthezeppelin
- Start date
Register to hide this ad
Rushthezeppelin
New member
Sorry apparently uploaded one that was too compressed
Sent from my moto g stylus 5G using Tapatalk
Sent from my moto g stylus 5G using Tapatalk
Photo is too grainy for me to tell anything. If it's gear oil then you have a bad axle seal. Replace the axle seal, retainer, and wheel bearing on at least that side, but I would do both sides.Sorry apparently uploaded one that was too compressed
Sent from my moto g stylus 5G using Tapatalk
Rushthezeppelin
New member
Diff breather is corroded but not stuck shut. I'm about to do the diff breather extension mod anyway.I would check your diff breather as well...
Sent from my SM-A536V using Tapatalk
Sent from my moto g stylus 5G using Tapatalk
Rushthezeppelin
New member
Should be a better photo here. I did smell it and it didn't smell like gear oil from what I remember in my lube tech days but that was GL5 and I know not all gear oil has the smelly additives. It's on the outside of my brake drum a little bit (looking at it through my wheel spokes).
Rushthezeppelin
New member
I would say that axle seal is leaking. That's what it looks like..
Yay >< Here I was thinking none of my needed repairs were too pressing but I guess this one is (pardon the pun lol). Now to find someone with a bearing press and ply them with copious amounts of alcohol lol.
Now to get all the parts together I need the bearing, one spacer (the one that mates with the seal), probably a C clip and the inner and outer seals? Is this one of those times when you really really want to go OEM at least for the seals or do kits like this work as well Low Range Offroad Ultimate Rear Wheel Bearing Kit Wheel Bearing- Toyota 4Runner, T100 & Tacoma (Japanese) Rear Axle Bearing Service Kit with ABS (1990-2000) Kit-1001. Also if I go OEM I want the seals from 01 and 02 4runners and not before because that is when they reworked them correct?
Last edited:
Malcolm99
Member

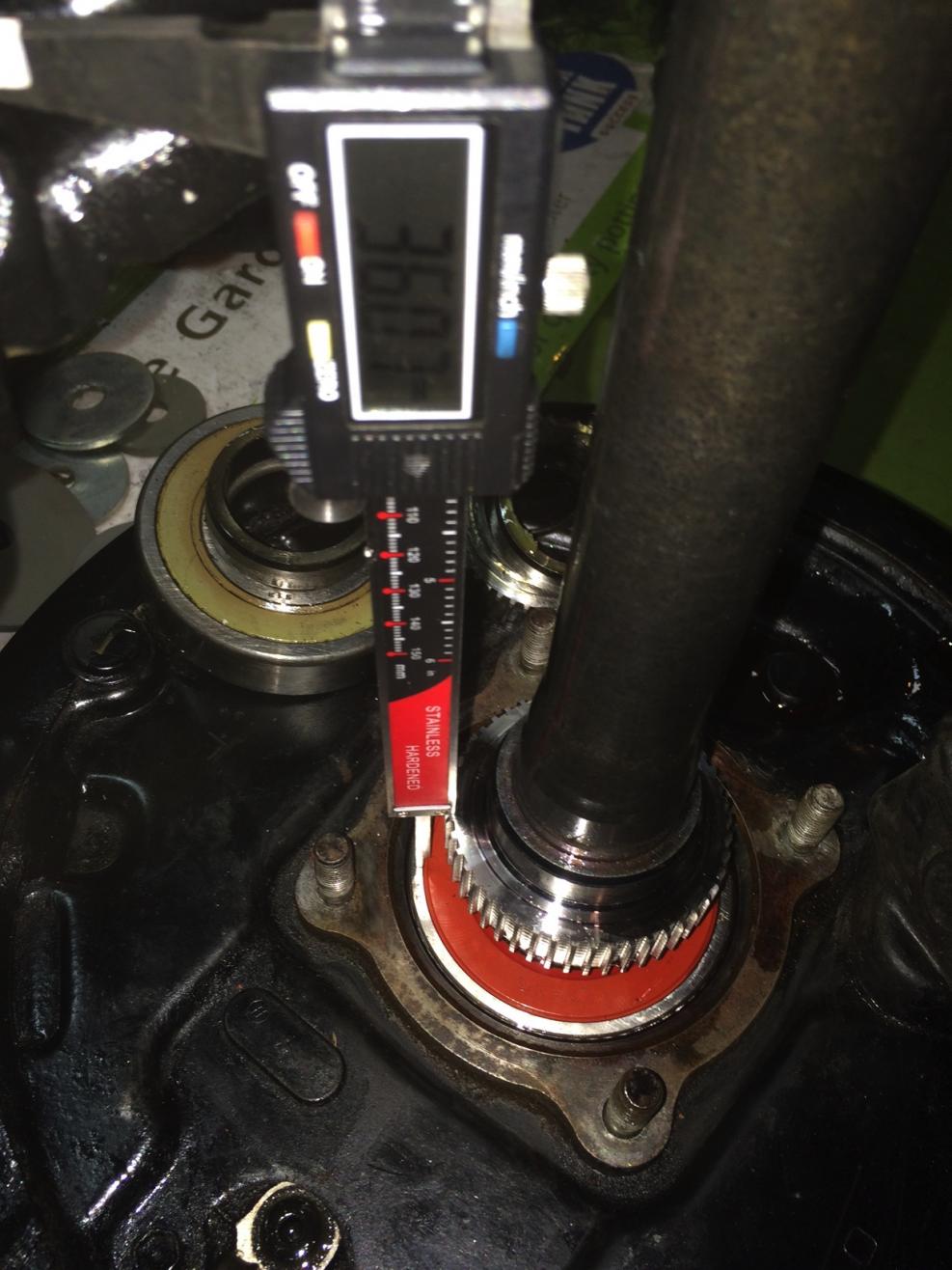

The seal was updated, I don't think they are different if I recall, the bearing is different for 01-02 3rd gen 4R's. You don't technically need to do both seals and both bearings unless the bearing is actually bad which can cause the seal to prematurely wear and leak, seals can leak from age and wear aswell before you decide everything must be changed. Use the recommended tool and press it apart if you change the bearing so you can reuse 1 retainer and the ABS tone ring, measure everything twice before disassembly and put everything back in the same location within +/- 1mm if it hasn't been messed with before. Here is a pic of the best method for measuring it, I've done this job 8 times for locals without issues, never bothered with flipping retainers, just put it all back exactly as you found it. Could be a wheel cylinder aswell, but you would be losing brake fluid, you will also need new brake shoes either way.
Attachments
Last edited:
Rushthezeppelin
New member
I don't think I'm loosing any brake fluid but to be fair this does seem to be a pretty small slow leak and I did do a bit of a flush the other day on that and didn't pay attention to the reservoir levels. Hopefully it is that as that' something I can tackle much more easily. Either way, brake cylinder or or axle seal, I now know why my ebrake is kinda wimpy and I have to crank the crap out of it lol. Only one side is currently holding my truck it seems.
Rushthezeppelin
New member
Little bit more investigation. Got the truck on flat ground and checked the diff fluid level. It's right at the threads, once again I don't know how much fluid has already been lost w/e fluid it is so that might not tell me much although I have a feeling this has been an issue since I bought the truck about a month and a half ago as I noticed the ebrake issue way back then. Rubbed a bunch of the leaked fluid on a shop towel and definitely did not notice that nasty gear oil smell which I did confirm the diff fluid does have. At this point I need to bug my buddy who has a jack and we need to pull off the drum. If the entire inside of the drum is covered in w/e it is though I'm not entirely sure how to determine if it's the brake cylinder or the seal though.
brillo_76
Elite Member
Might be brake fluid then. As it can only be gear grease or brake fluid.
Wheel cylinders can start leaking granted your fluid level would have to be dropping as well.
Sent from my SM-A536V using Tapatalk
Pull the wheel speed sensor from that side and turn the wheel while looking at the tone ring. If the tone ring is wet then it's the inner axle seal leaking and not brake fluid. At a minimum you need a wheel bearing, one retainer, and an inner axle seal. I would recommend buying an extra inner axle seal because you will most likely install it incorrectly the first time. Almost everyone does for some reason. Do a grease test/sharpie test to verify that the inner axle seal is riding in the center of the retainer. I recommend using gear oil rated rtv between the inner axle seal and axle housing and the retainer and axle shaft. I'll list all the part numbers for you. Pick from them what you need.
Rear wheel bearing 90363-40020-77 or Nachi 6308-2NSE (96-00) / 90363-40068 or NSK 40BW06CG50 (01-02)
Rear axle retainer 42423-20010 (2 per side)
Snap ring 90520-36045
Outer seal 90313-48001 (96-00) or 90313-54001 (01-02)
Inner seal 90310-50006
O Ring 90301-88077
Rushthezeppelin
New member
Whelp pulled the wheel speed sensor and there is definitely gear oil in there... I have seen all the reports of people screwing up the seal the first time, any tips on avoiding this fate?
Rushthezeppelin
New member
Drat pulled the other abs sensor and it's both sides which means bad breather likely. I've already got stuff to do the breather mod. Parts price just doubled :*(
Sent from my moto g stylus 5G using Tapatalk
Sent from my moto g stylus 5G using Tapatalk
gamefreakgc
Elite Member
Buy an extra seal. Put the seal in the freezer so it shrinks a little and then pull it out and press the seal right in, don't wait for it to thaw. A lot of us ruin the seal on the first time doing this repair. Since you are doing both sides, 3 seals should be fine as you'll get the hang of it the second time.
Rushthezeppelin
New member
Anyone have an explanation for why this is so common? Is this even with the proper tool? I mean I will likely get three regardless but would love to know even more why it happens.
Sent from my moto g stylus 5G using Tapatalk
It's a tight fit so most people don't get it in square and then mess it up trying to get it square in there. Take the seal to lowe's/home depot/etc and find a pvc pipe or fitting that is the correct size to use as an install tool to hammer on.
gamefreakgc
Elite Member
Along with not having the right sized driver, the seal itself is very thin. The metal ring is very easy to bend so one wrong tap with a hammer and it's deformed and doesn't seal properly. On top of that the rubber ring is also thin and when removing the rear axle if the splines are dragged across the rubber it can rip. A very fragile part considering the amount of force needed to install it.
mtbtim
Elite Member
It's due to operator error when the person is using the correct seal driver tool. Unless you're incredibly lucky, your first hammer strike against your seal driver isn't going to be pushing the seal in perfectly square to the axle housing. When this happens, a common error people make is lifting the seal driver puck away from being perfectly flat against the seal face and striking the seal at an angle to try to straighten the seal driving in the axle housing. When the person does this, they are now applying force to the seal with one edge of the driver puck. This allows the force being applied with the hammer strike to dent the seal and you've officially screwed up.
The key to driving in the seal without damage is not paying too much attention to how squarely the seal is driving in. If you keep the driver puck flat against the seal while delivering hammer strikes, the seal will eventually straighten out and you'll get it fully seated without damaging it.
The reason I know this is I've damaged more than one seal. Every time it happened, I wasn't being conscientious enough to keep the driver puck square to the seal.
