Chuckles' 98 Manual SR5 4Runner

Chuckles89 · Oct 2, 2014

General information:

1998 Toyota 4Runner SR5 4x4
3.4L 5VZ-FE V6
R150F 5-Speed Manual Transmission
Standard 2 Speed J-Shifter Transfer Case
4.10 Diff Gears
285,550+ Original Miles

Modification/ Repair List from 2013 and up

ENGINE

Original- Not Rebuilt
PCV Valve and Grommet
Silicone Vacuum Hoses
Toyota Oil Filter
Denso Spark Plug Wires
Valve Cover Gaskets
Tube Seals
Half Moons
Camshaft Seals
OEM Battery Tie-down
Battery Area Rust Removal + Paint
Denso Copper Spark Plugs
Throttle Body + Intake Plenum
Castrol GTX 10W-30 Motor Oil
Mitsuboshi Timing Belt
Aisin Water Pump
OEM Oil Cooler Line
Toyota Thermostat
Koyo/ NSK TB Rollers
Radiator Flush
Toyota/ Mitsuboshi Acc. Belts
PCV and Engine Breather Filters
OSC Tacoma #1985 Dual Core Radiator
Motorad Radiator Cap
Gates Radiator Hoses
Denso 80 amp alternator

INTAKE

Deckplate mod
High Engine Bay Snorkel
ISR Mod
MAF Sensor Cleaned

EXHAUST

Dynomax Super Turbo w/ stock 2.25" piping
Past- Thrush Welded, Walker Quietflow, and Straight Piped

DRIVETRAIN

Synthetic Valvoline 75W-90 Transfer Case
Valvoline Conventional 80-W90 in Front Diff, and Rear Diff
Redline MT-90 in Transmission
Transmission and Transfer Case Shifter Boots, Gaskets, and Grease
Rear Driveshaft Grease Zerk replaced
ADD 2 Low Mod- removed
Aisin Manual Locking Hubs
Manual Front Diff. Conversion (ADD Delete)
OEM Used Taco CV Axles
Aussie Locker in rear- removed
Cable Actuated Toyota E-Locker
Transmission/ T-Case Extended Free-Flow Breathers
Free-Flow Rear Diff Breather Extension to tail light
Aisin Clutch master and slave cylinders- 2016
Marlin Crawler clutch- 2016
OEM Toyota Front Wheel Bearings
National front axle seals
Timken rear wheel bearings
Doorman rear ABS rings
OEM Rear axle seals (inner and outer)
Doorman USA Made Lug Studs- rear

BRAKES

All Stock Sized
Red Front Calipers
Red OEM Drums
Toyota Pads- removed
Front Soft Lines- Napa
Driver’s Side Hard Line- Custom
Red parking brake cable
OEM Rotors
Wheeler's Rear SS Line
Wagner shoes
Doorman wheel cylinders
Akebono Pads- best pads I've ever used. I'm sold on them for life!

SUSPENSION

Duralast Front Sway Bar End Links
Toyota ’99 Tall Coils- rear removed
KYB Monomax Struts
KYB Front Spring Isolators
Rear sway bar removed
AirLift 1000 in Rear- removed
Front LBJs- and passenger again in 2016
LBJ Bolts
Tie Rod End Boots- Polyurethane
PolyTuff Rear Suspension Bushings
Prothane Sway Bar Bushings F&R
Energy Poly Steering Bushings
LC Tokico Rear Shocks (free blown ones lol)
Used OME 890 Rear Coils

WHEEL + TIRE

Street Tires: (set of 5)
4Runner 16” Split Spoke Wheels- Painted Black
BF Goodrich All Terrain T/A 235/85/16- lots of chunking
OEM Chrome Lug Nuts

Trail Tires: 235/85R16 Cooper STT Pro on 16" split 3 wheels painted gray

ARMOR

Stock gas tank and t-case Skid Plates haha
Doubled up gas tank skid coming soon
Lotus Rear LCA mount skids- red!
Savage Offroad Front Plates!

EXTERIOR LIGHTING

'99 Headlights- removed
Stock Tail Lights
Switchback LEDs Up Front
Depo Clear Front Turn Signals
LED Marker Lights
LED Flasher
Hi- Mount Stop Light- New Bulb + Cleaned + LED
Morimoto Mini H1 HID Projector Retrofits
LED Fog Lights
LED Brake Lights
LED Turn Signals
LED Reverse lights
LED 18W Pods in front x4
2x 18W Rear LED Pods

ELECTRICAL

OEM Towing Package
Red Horns
3 Gauge Ground Wire
Aftermarket Battery Terminals
OEM Fuse Box Cover
Driver’s Door Sensor Cutoff Switch
Fuel Pump Kill Switch
Seatbelt Sensor Delete
ABS Disable Switch
Airbag Disable Switch
CB Radio
Firestik Antenna
Ford Fiamm Horns- removed
Baofeng HAM Radio
Harbor Freight Air Horns- one of my favorite cheap mods- only $12 and they make me smile

TNcaveman · Oct 2, 2014

Diamond in the Rough

That's my boy! I called her "a diamond in the rough" last night. Luckily, looks like mostly lots of little parts. Not one dent on the skids, almost no rust (two quarter sized spots where no one sees), and straight. This will be my 3rd 4Runner project. I sure miss "Old Blue" (what the guys at work call my old 4Runner).

Stephen :hug: hug from Chuckles

PS - long time no post

SR5Runner97 · Oct 2, 2014

chuckles, i see you posting all the time in the classics section because of your dads runner. Glad to see you joined the 3rd gens. Goodluck with your runner. What kind of work is needed?

68dave · Oct 2, 2014

Good find! I wish my runner was a manual.

ChildrenOfBodom · Oct 2, 2014

Alright!! Can't wait to see the progression!

Chuckles89 · Oct 3, 2014

Thanks guys! The most important work is sway bar end links (I did one last night), shocks and springs, valve cover gaskets, headlights, taillights, and a battery tie down. I have a more complete list and will post it when I get on my desktop computer- I will also post some pics. I also need to degrease the engine, front diff, and transmission to see where oil is leaking from.

TNcaveman · Oct 3, 2014

Chuckles busted his first knuckle last night. He's now part of the club! :lmao:

And he found out how hard it is to remove a single nut. I have never removed an 18 mm nut on Toyota until last night. I have a socket that size but no wrenches. I guess that will change soon. I'll let junior fill y'all in. But it is amazing what a sway bar end link does.

Stephen. :snacker:

KidVermicious · Oct 3, 2014

Nice find Chuckles. I see the top doesn't come off, but I guess you can't have everything right?

I can't wait until my boy is old enough that we can start on his first truck.

Chuckles89 · Oct 3, 2014

I'm still in the process of making a list of things to do, so that will come in a little bit, but here are some pictures:

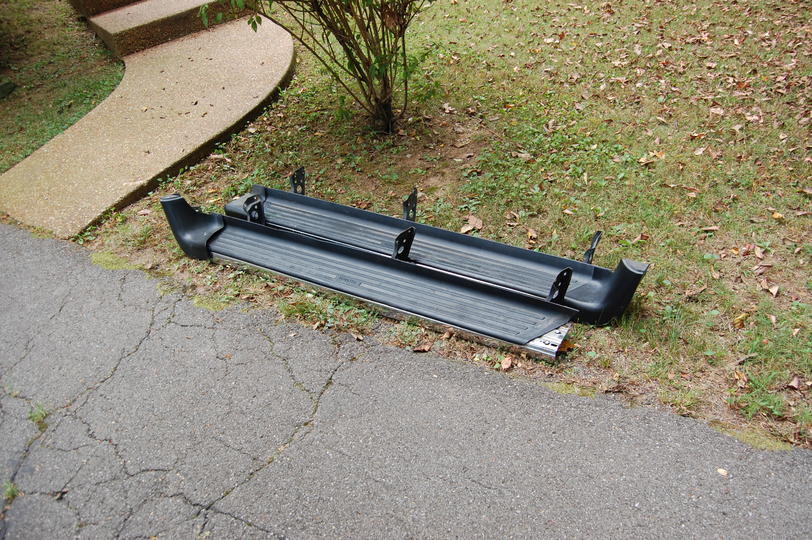

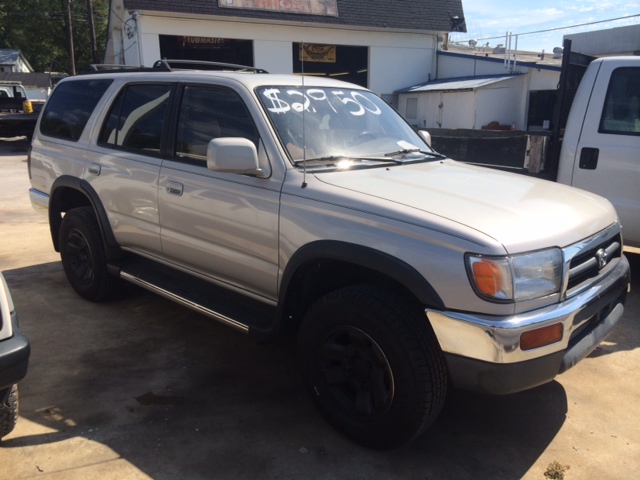

Bye, bye broken running boards!

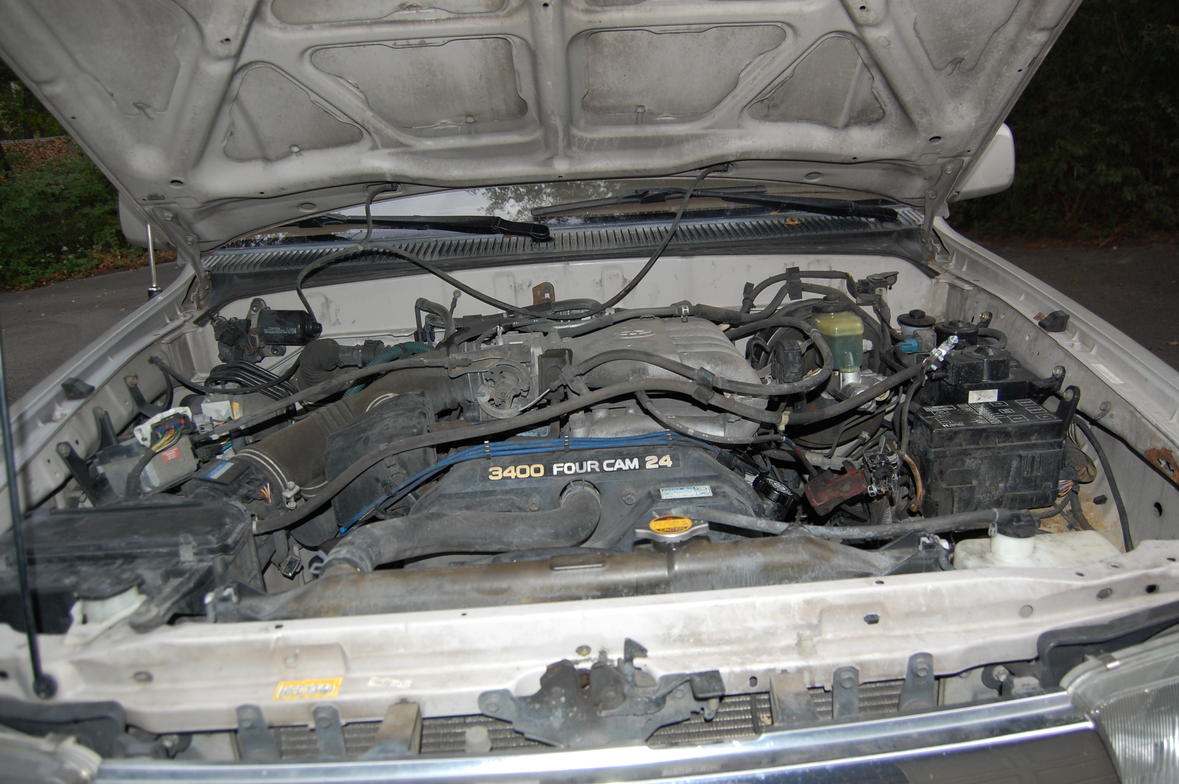

Dirty engine runs great, just needs valve cover gaskets to stop the oil leak

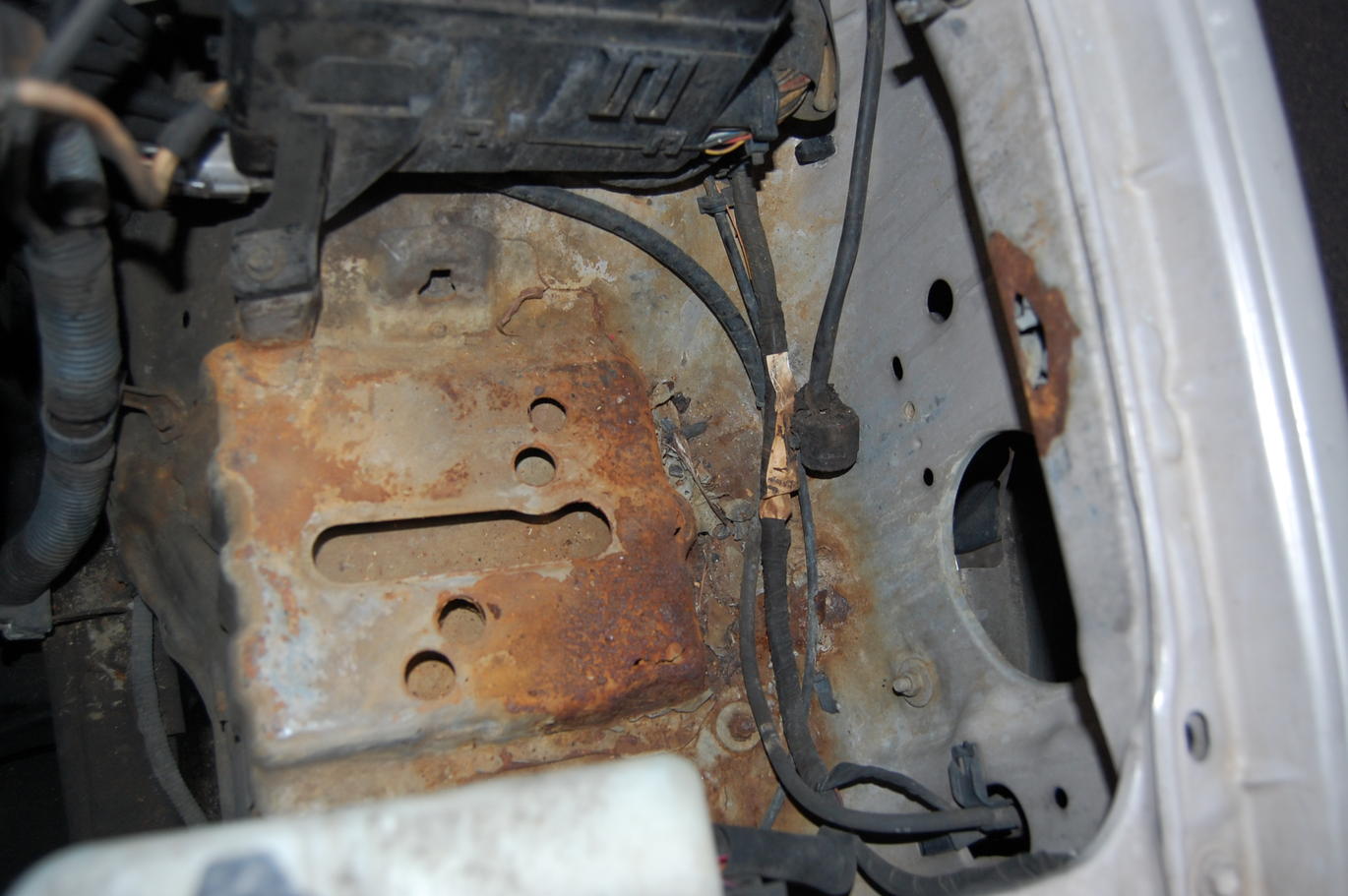

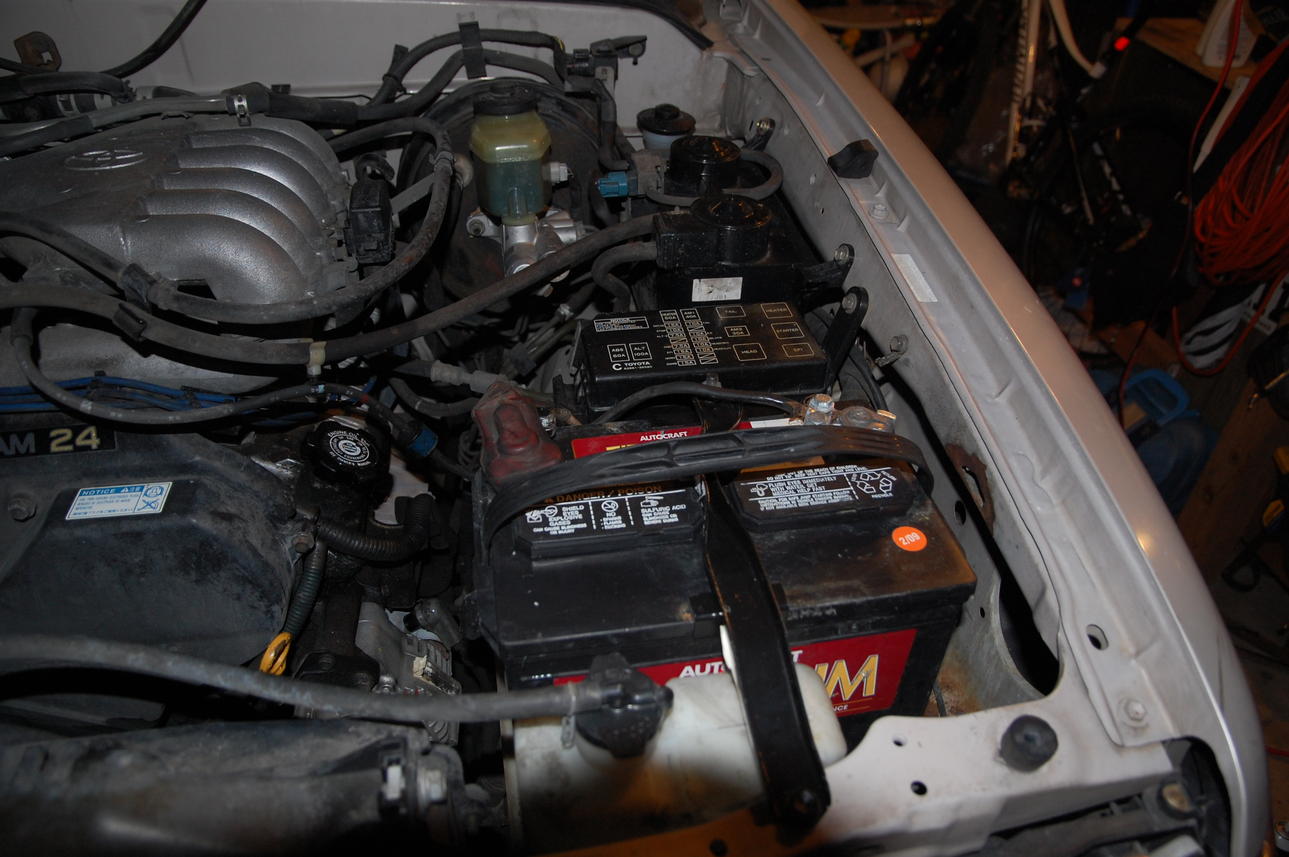

Bad spot under the battery

Chuckles89 · Oct 3, 2014

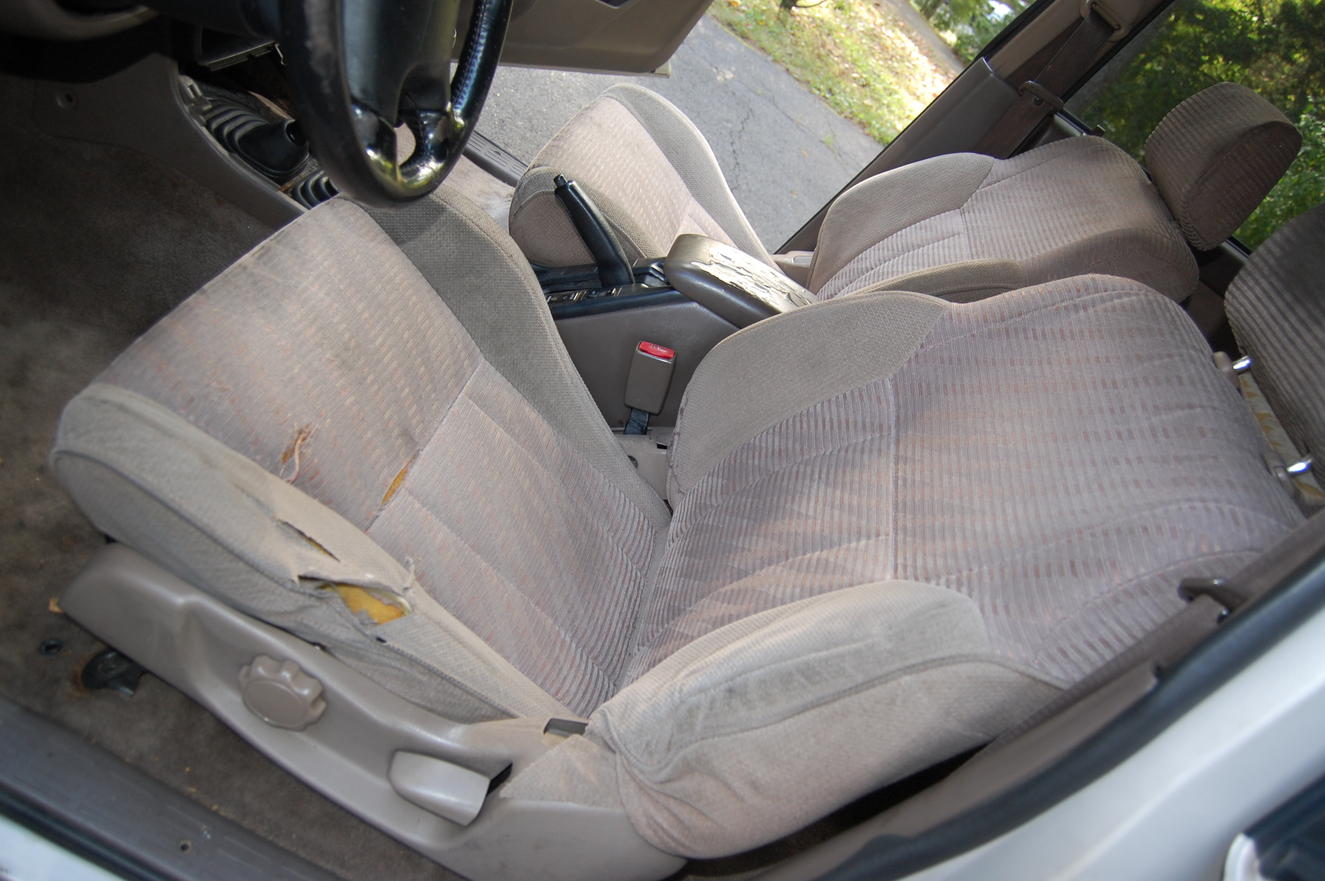

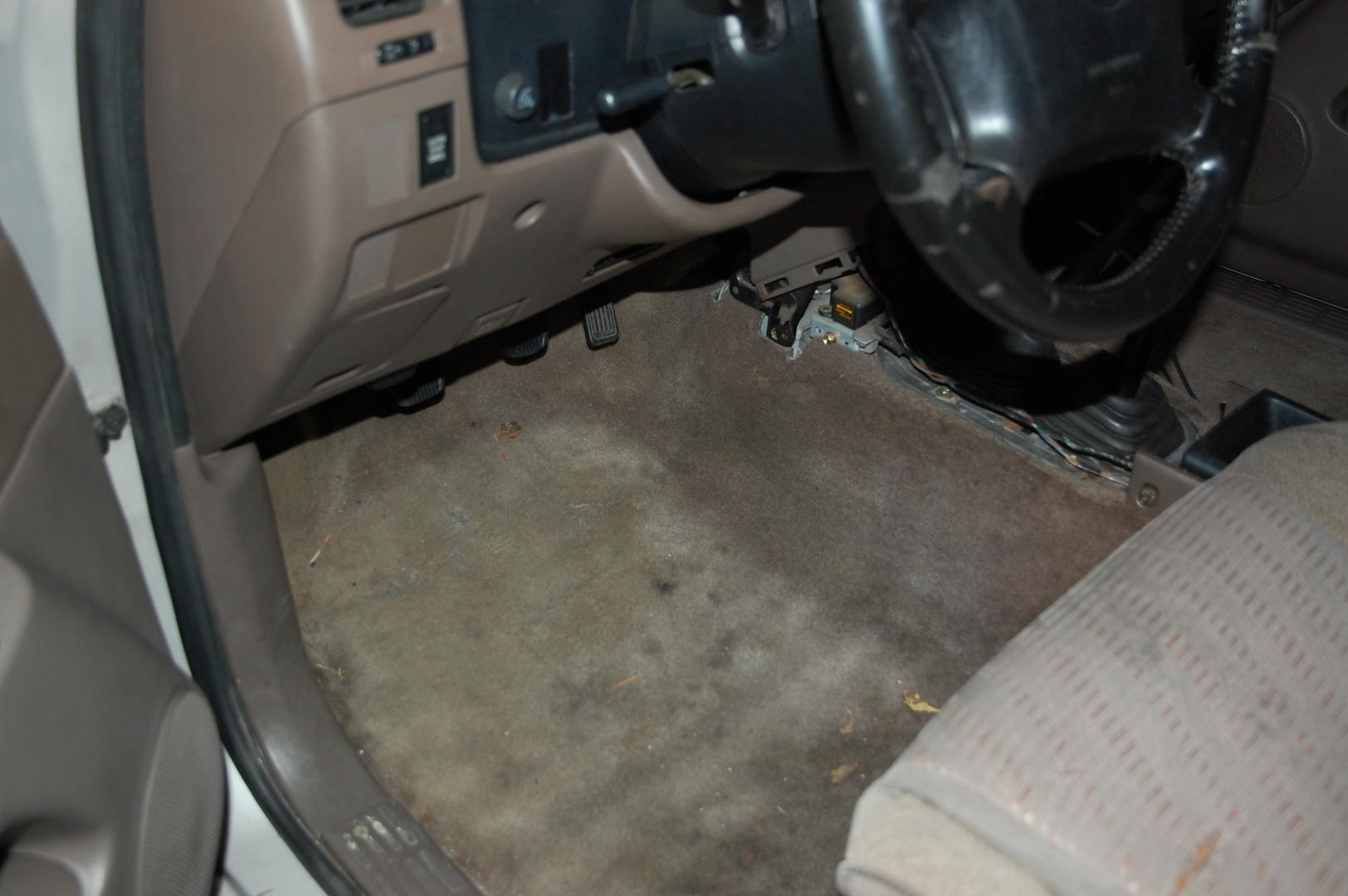

Broken driver's seat... the front left bolt was ripped out of the floor, so we drilled through to the bottom and put a regular grade 8 bolt in. It needs replacing badly

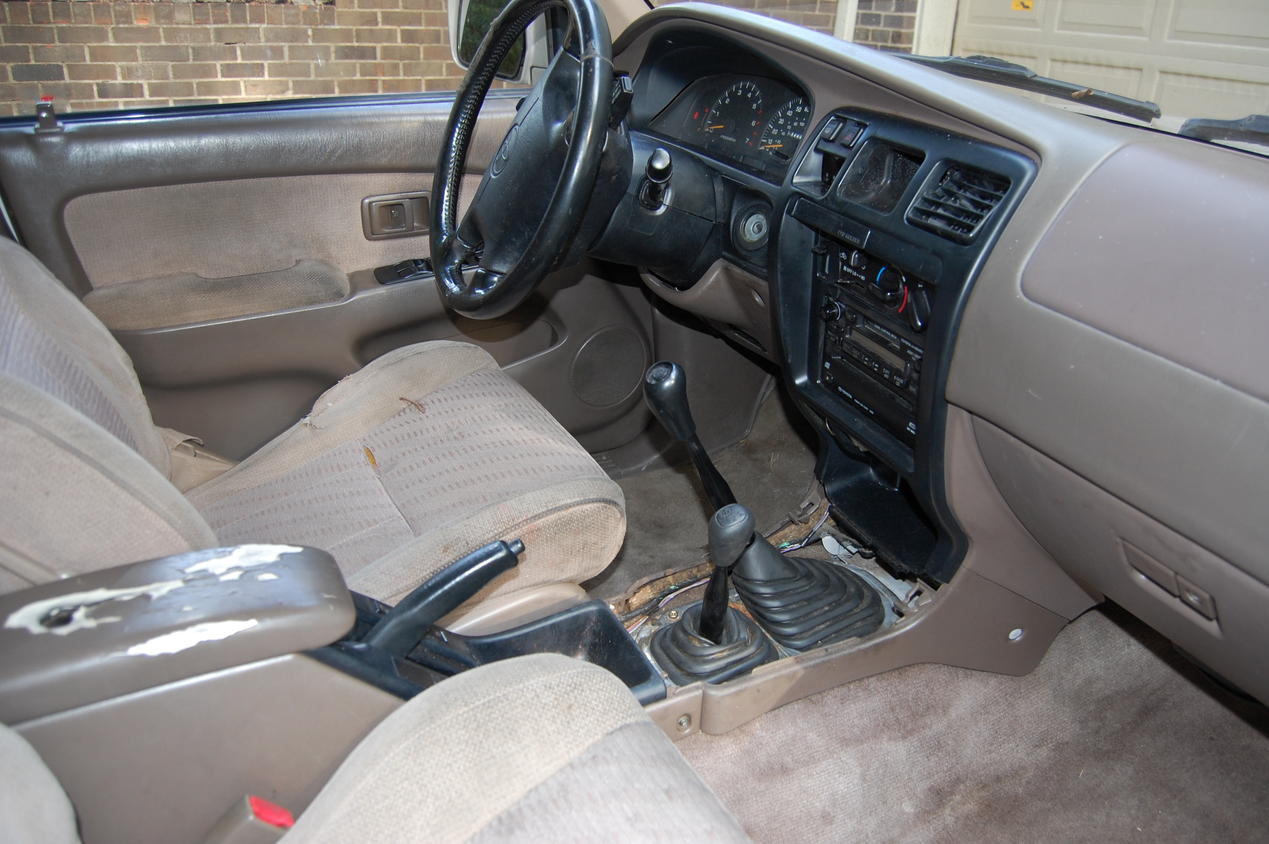

Needs a center console- I want to find one out of a '99+ to have cup holders

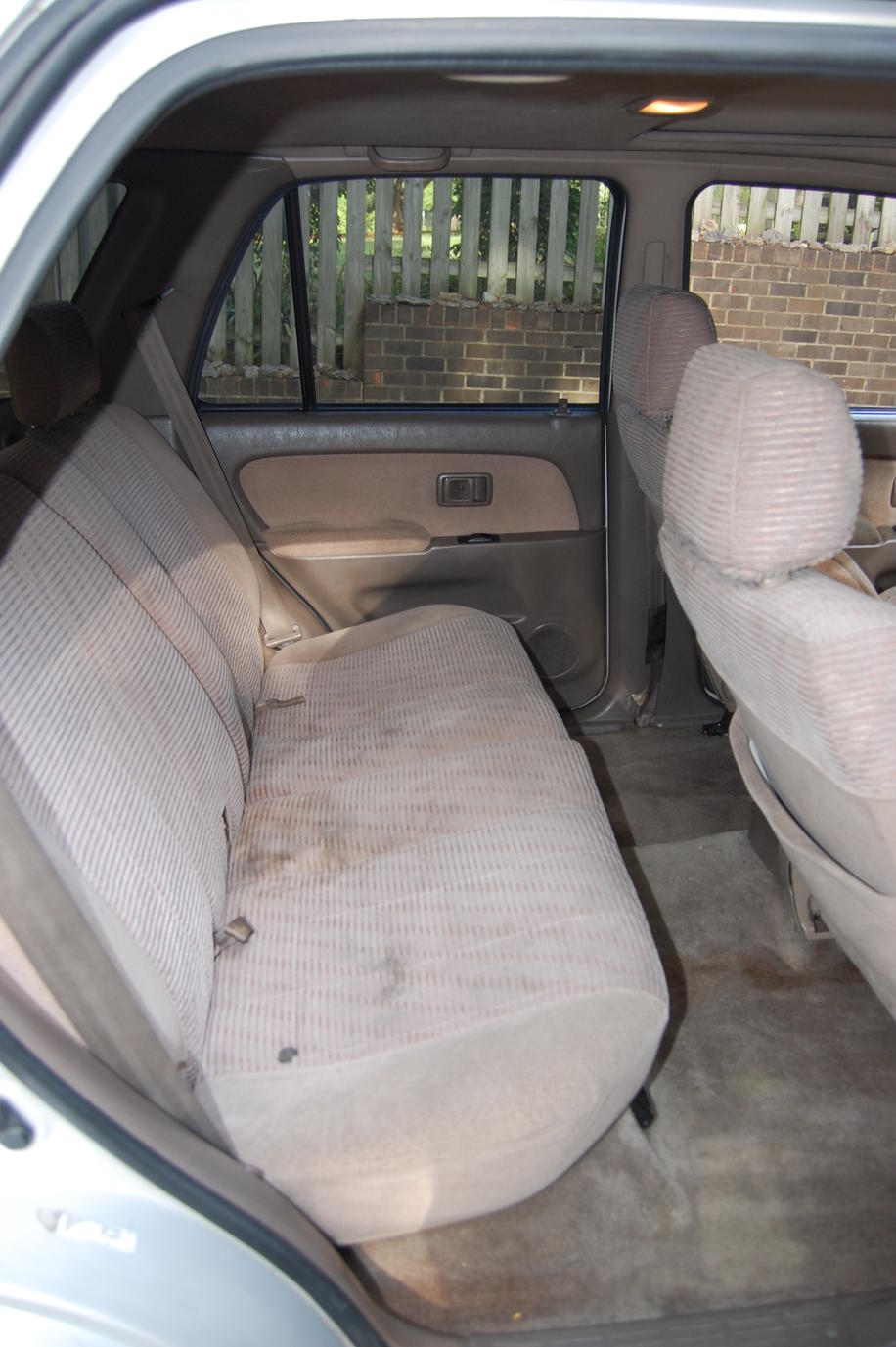

Dirty back seats

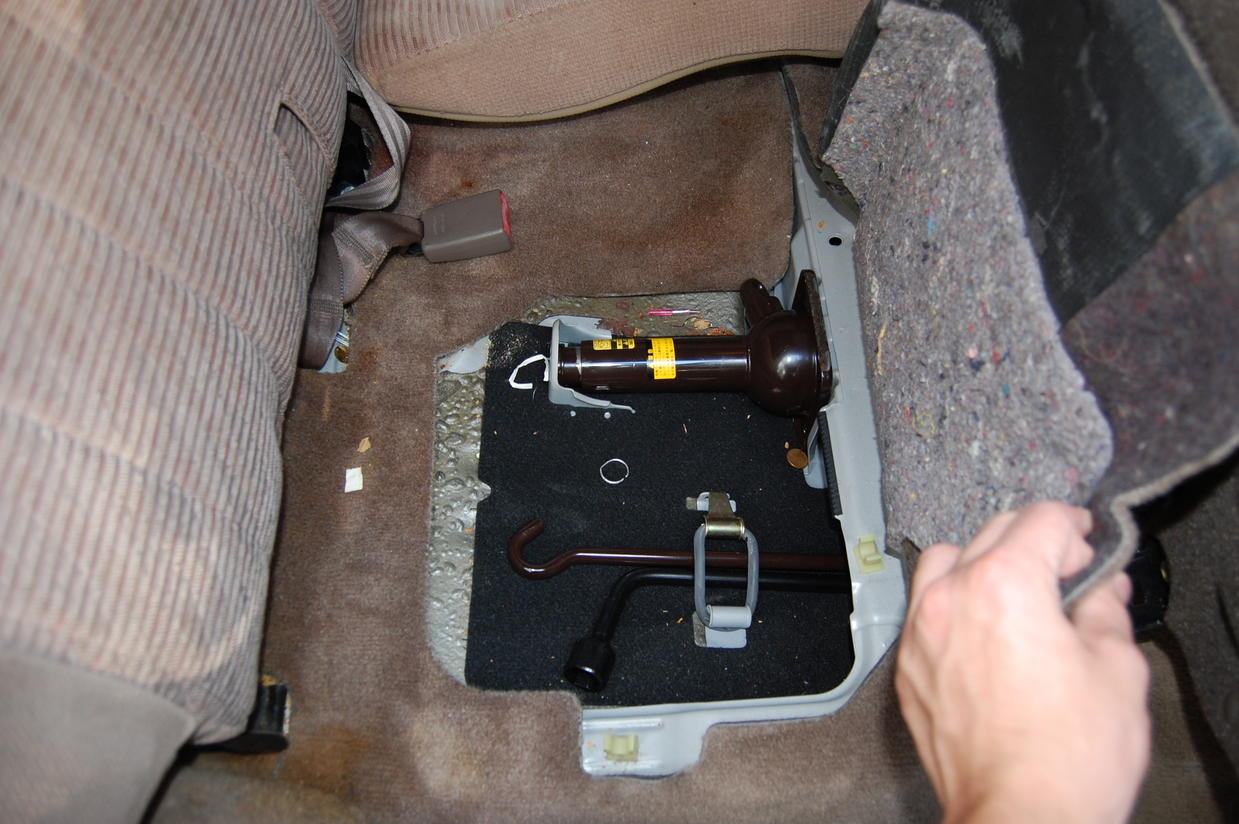

Unused jack

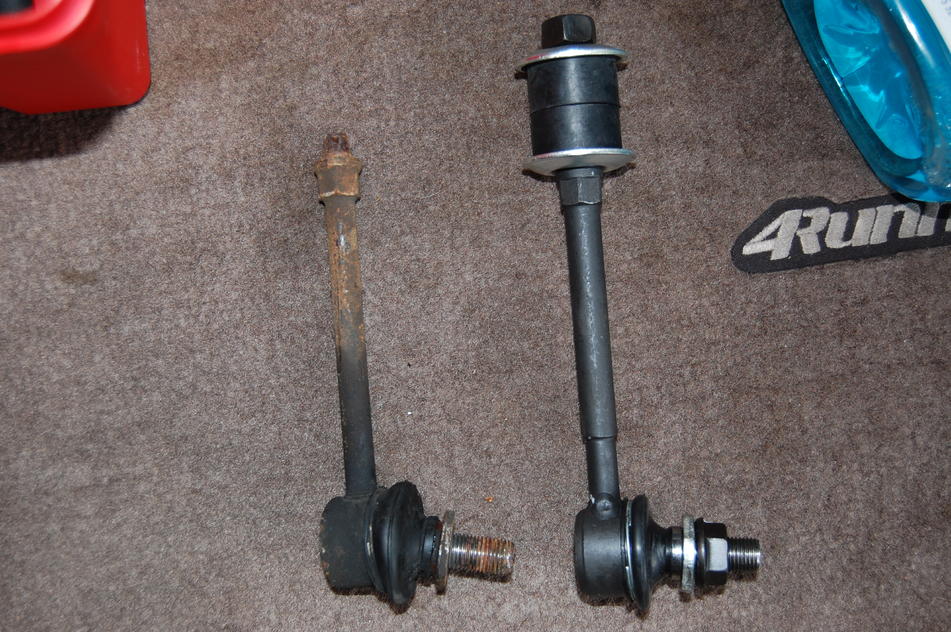

Sway bar end links- broken one and a new one from autozone

Chuckles89 · Oct 6, 2014

I have a couple of questions:
Will 4 spoke 15" alloys from late 1st gens, 2nd gens, and t100s fit on the 3rd gens? Also, has anyone rigged up some rubber mud flaps that say "4WD" from a 1st Gen 4Runner or a 4wd pickup for the front and rears in place of the SR5 flares and running boards?

ChildrenOfBodom · Oct 6, 2014

Chuckles89 said:
I have a couple of questions:
Will 4 spoke 15" alloys from late 1st gens, 2nd gens, and t100s fit on the 3rd gens? Also, has anyone rigged up some rubber mud flaps that say "4WD" from a 1st Gen 4Runner or a 4wd pickup for the front and rears in place of the SR5 flares and running boards?

4 spokes will only fit if your truck came with 15" wheels from the factory (the door jamb sticker is a damn liar, check your wheels.)

The 15" models came with smaller front brake calipers. The 16" wheel models (standard only on Limited, both base and SR5 can have 15") came with larger calipers (S13WM casting) that will not suit a 15" rim.

It should be noted that all 3rd gen 4Runners can be upgraded to the Tundra brakes, 231 or 199mm. Of the two 3rd gen 4Runners I have, both have 231mm Tundra brakes (13WL casting). For this you should run at least a 16" rim, although the original 4Runner 6 spokes will not work for this.

Mudflaps can be done, it's all screws after all.

Chuckles89 · Oct 6, 2014

ChildrenOfBodom said:
4 spokes will only fit if your truck came with 15" wheels from the factory (the door jamb sticker is a damn liar, check your wheels.)

The 15" models came with smaller front brake calipers. The V6 model came with larger calipers (S13WM casting) that will not suit a 15" rim.

It should be noted that all 3rd gen 4Runners can be upgraded to the Tundra brakes, 231 or 199mm. Of the two 3rd gen 4Runners I have, both have 231mm Tundra brakes (13WL casting). For this you should run at least a 16" rim, although the original 4Runner 6 spokes will not work for this.

Mudflaps can be done, it's all screws after all.

Thanks for the quick reply! That's a bummer about the wheels though because the tires for 16s are so expensive.

Chuckles89 · Oct 13, 2014

Been working on it all weekend…

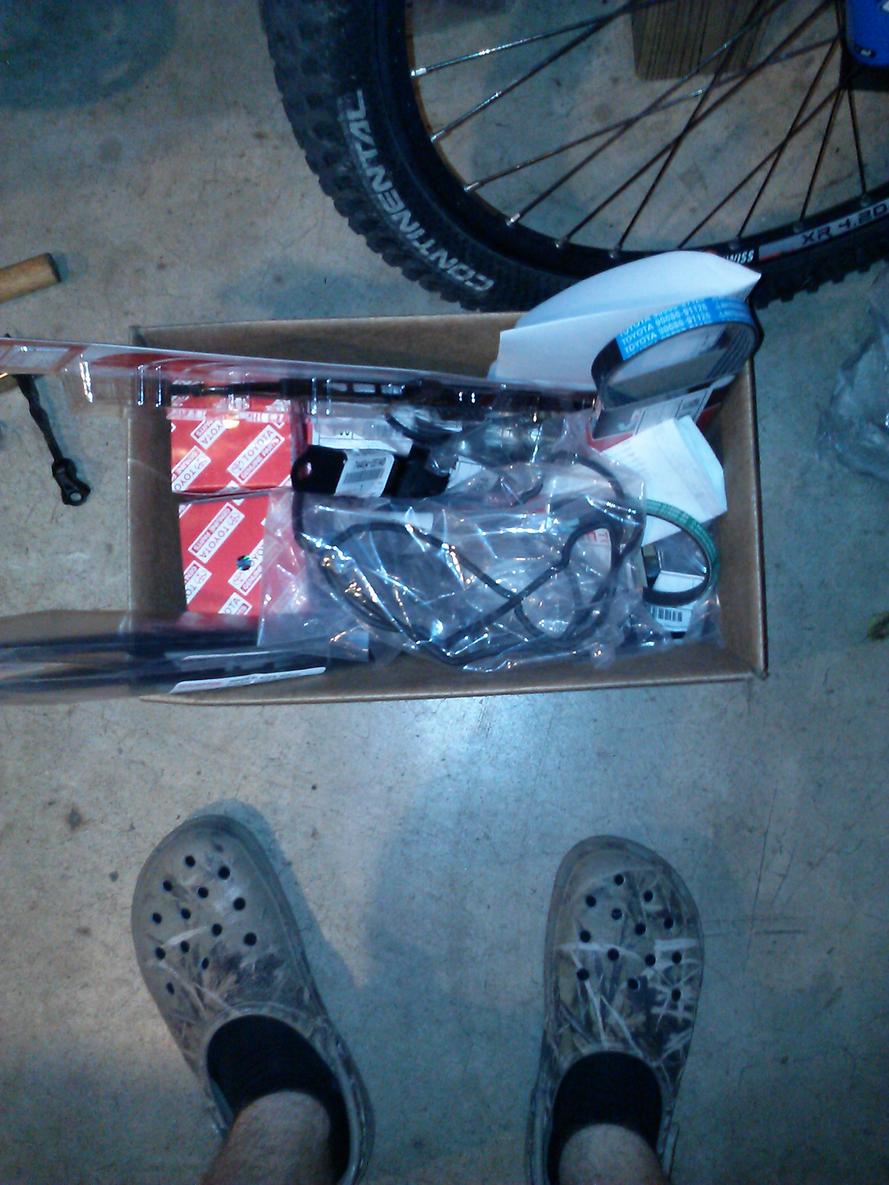

Box of Parts!

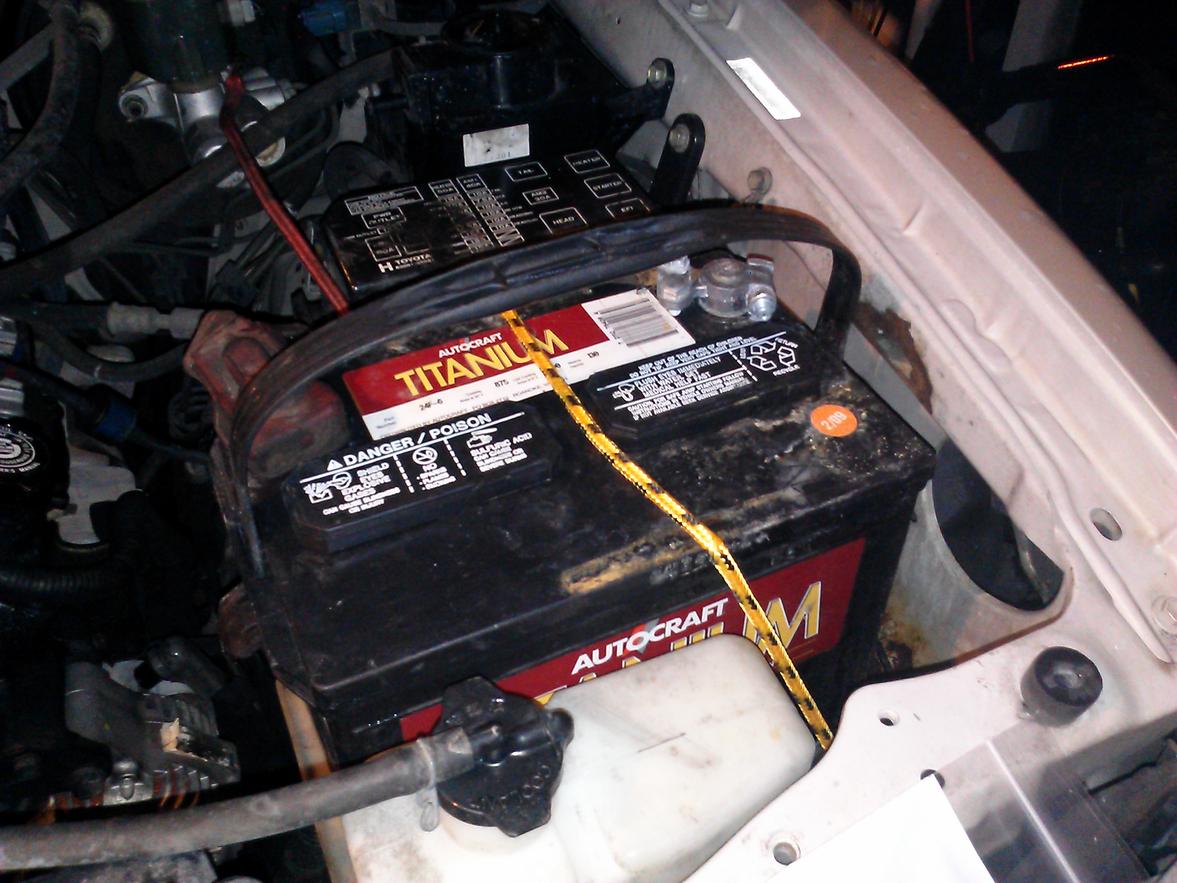

First was the battery tiedown. When I got it, it had a bungee cord and it broke, so I added some rope. Now it has a real one.

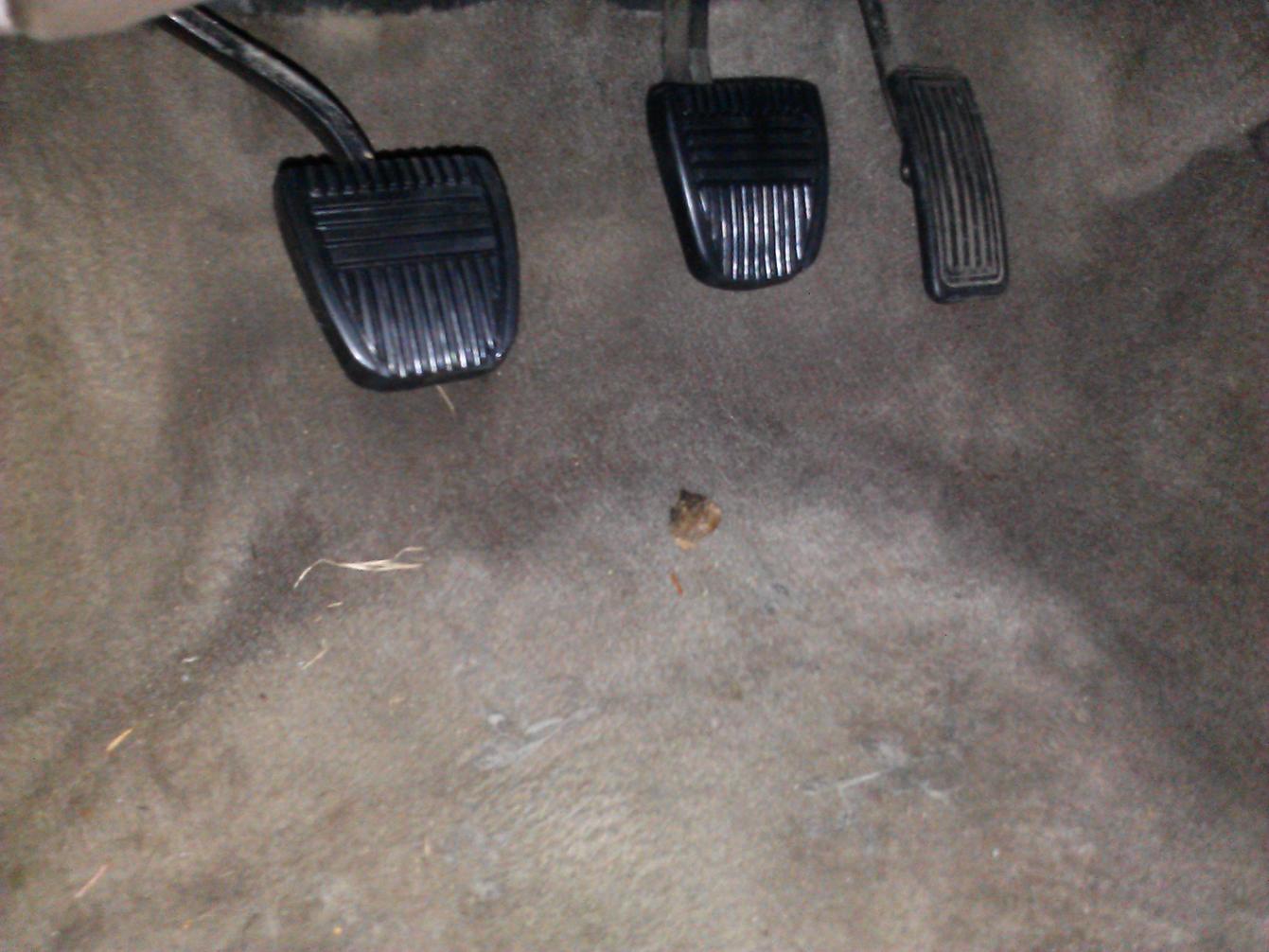

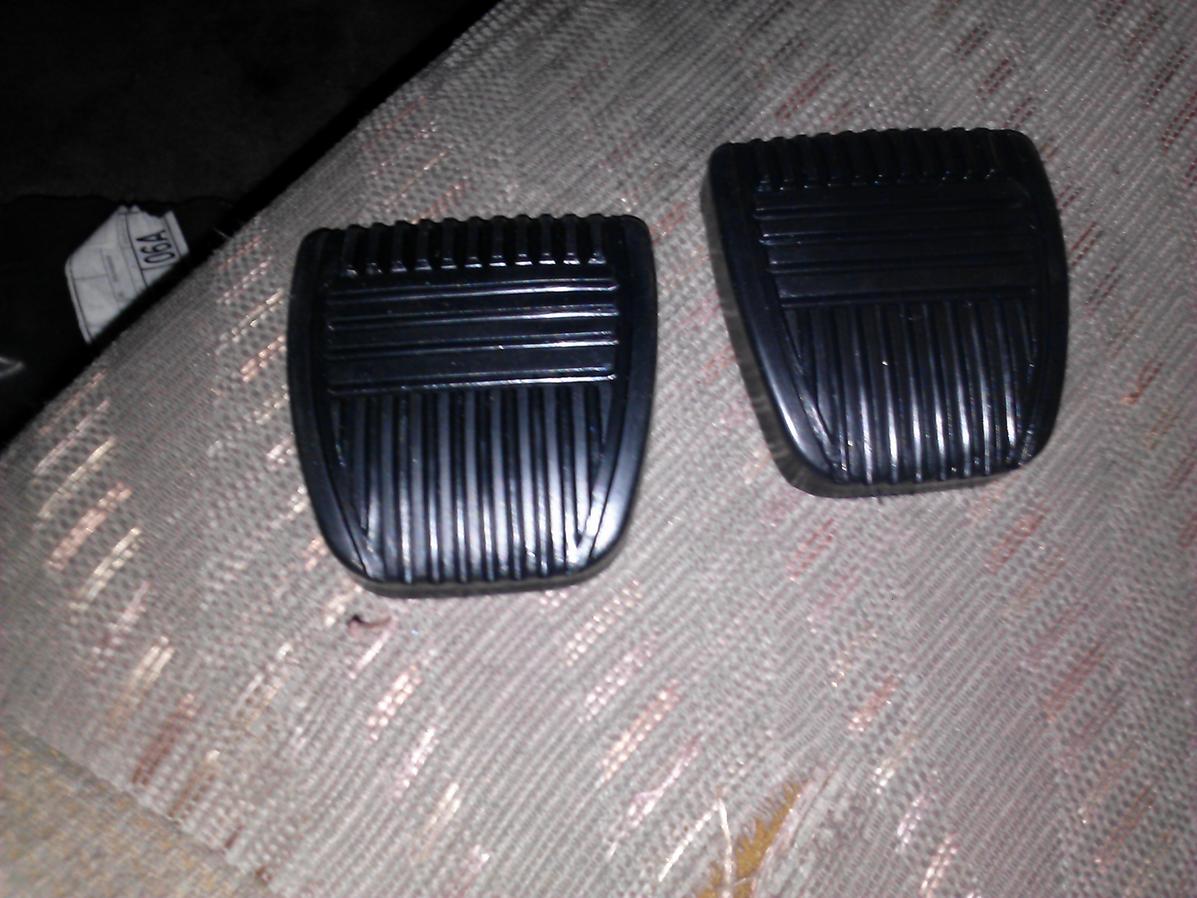

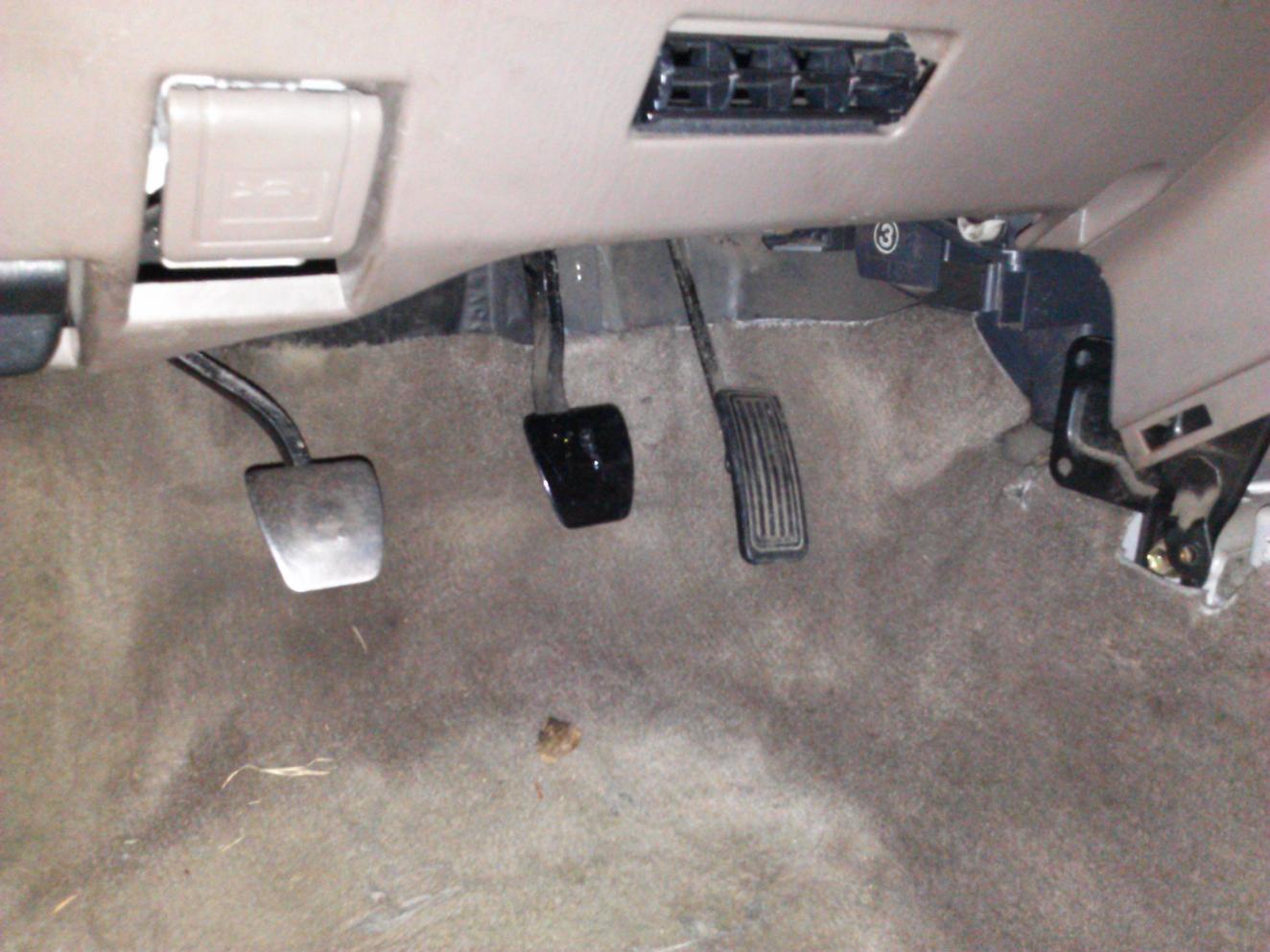

Pedal Covers

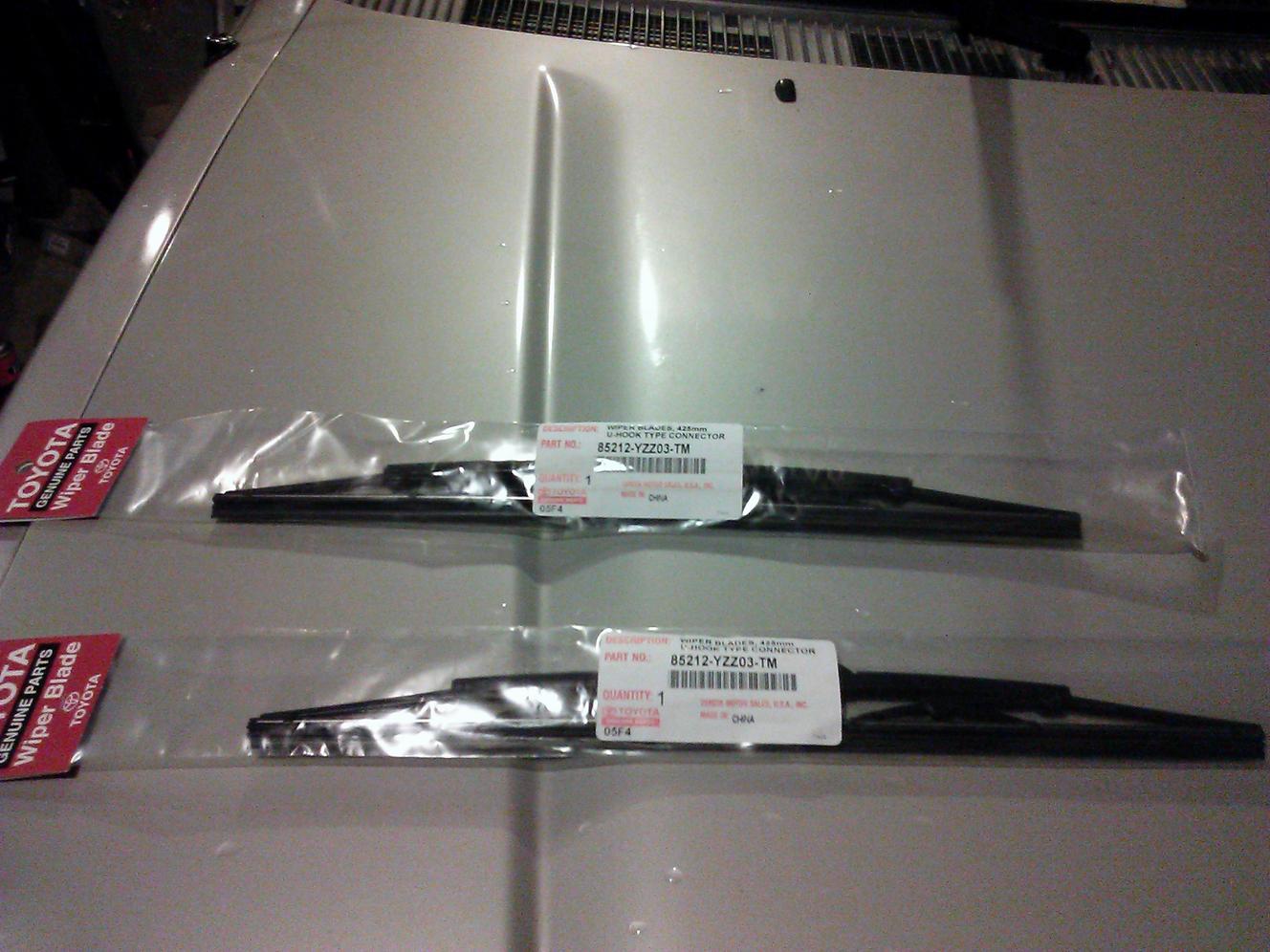

Windshield wipers

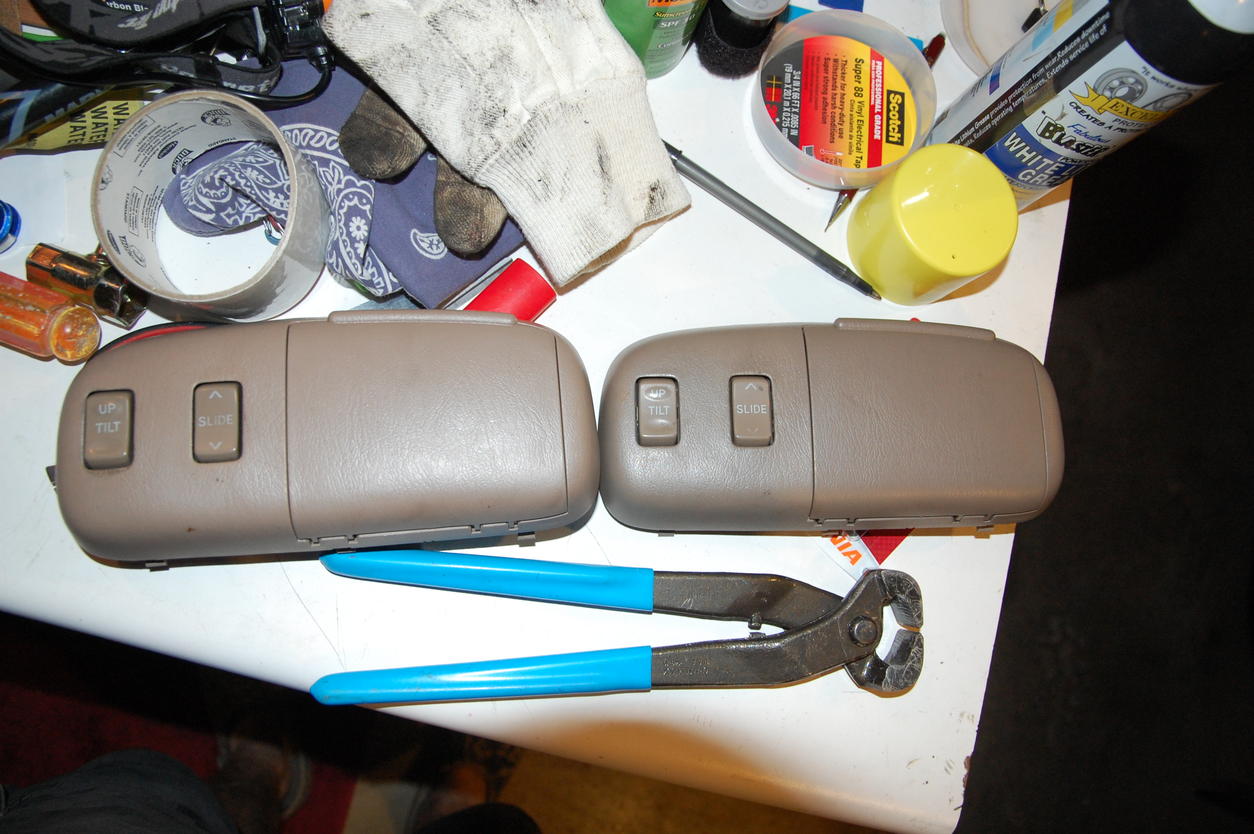

Sunroof switch worked for sliding forward, back, and tilt up. The tilt down didn't work, so we got one from the junkyard

Chuckles89 · Oct 13, 2014

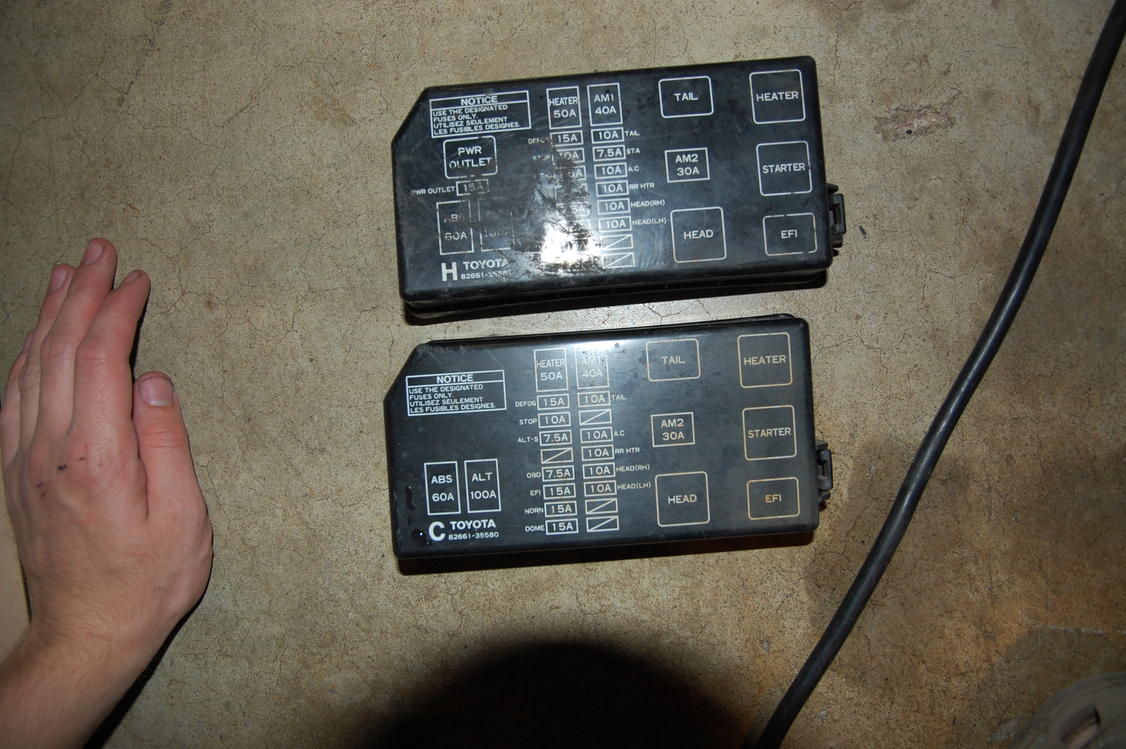

Also got a fuse box cover that can be read from the junkyard

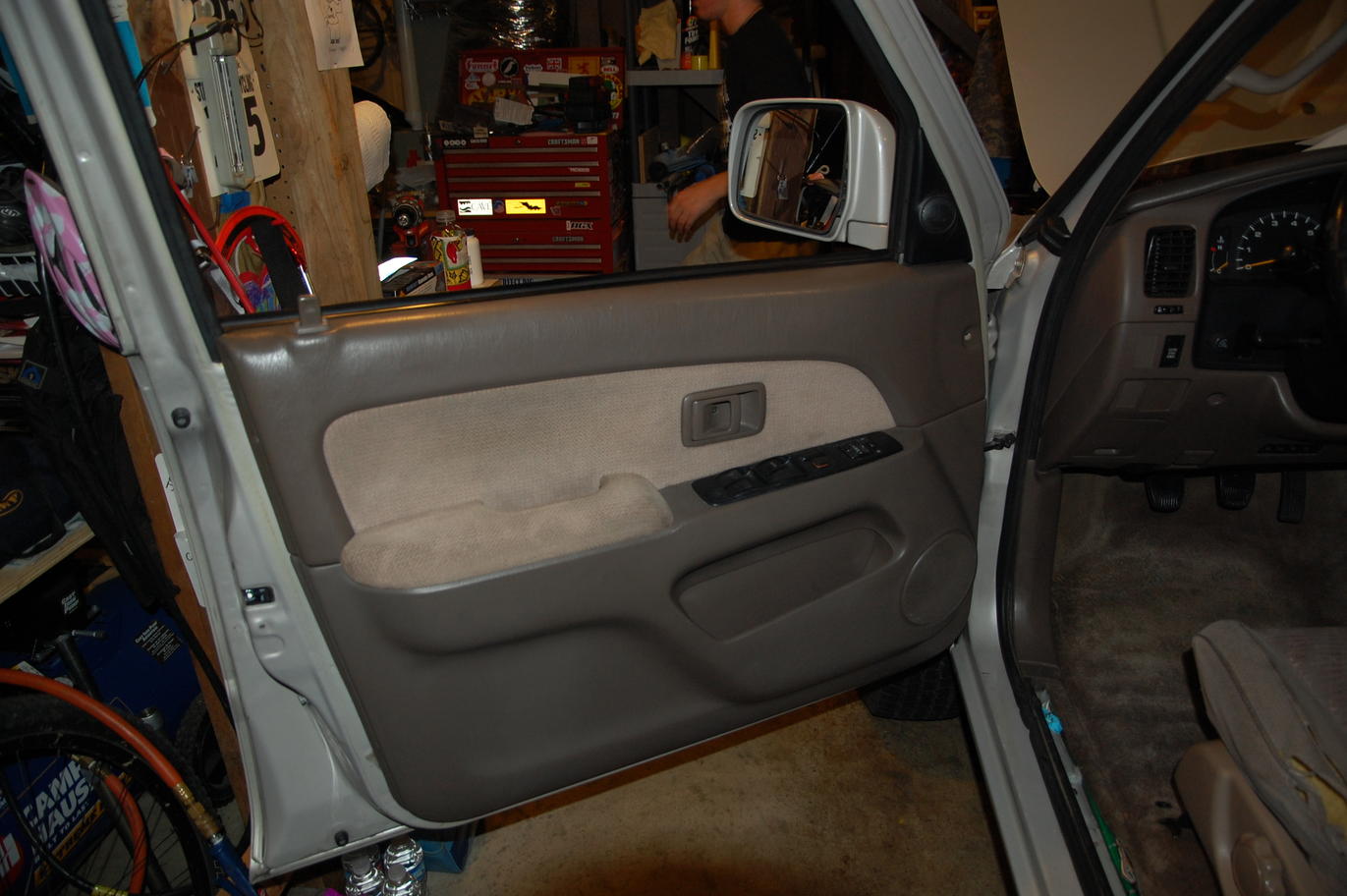

Then the cleaning started:

Before

After

Before

After

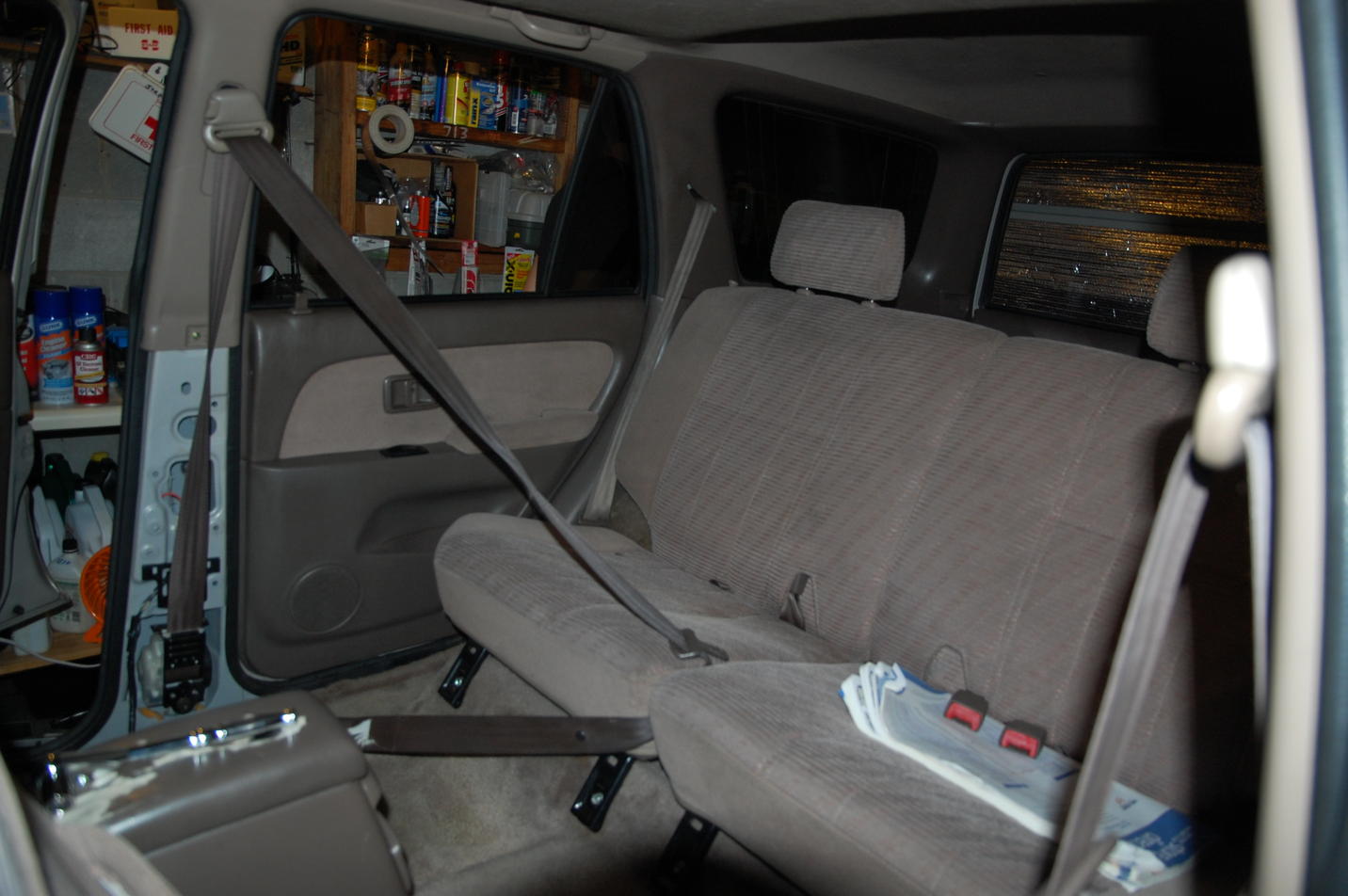

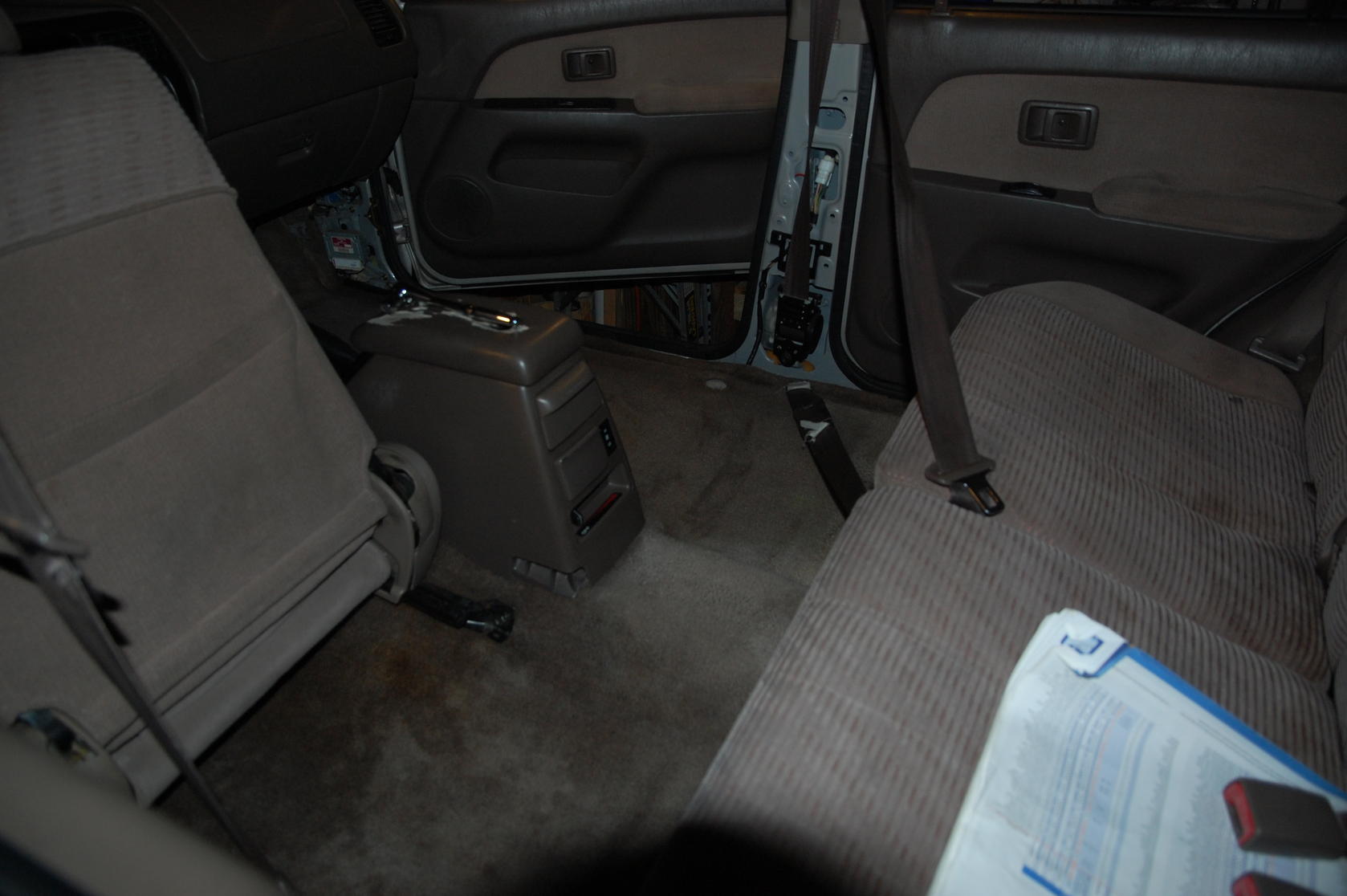

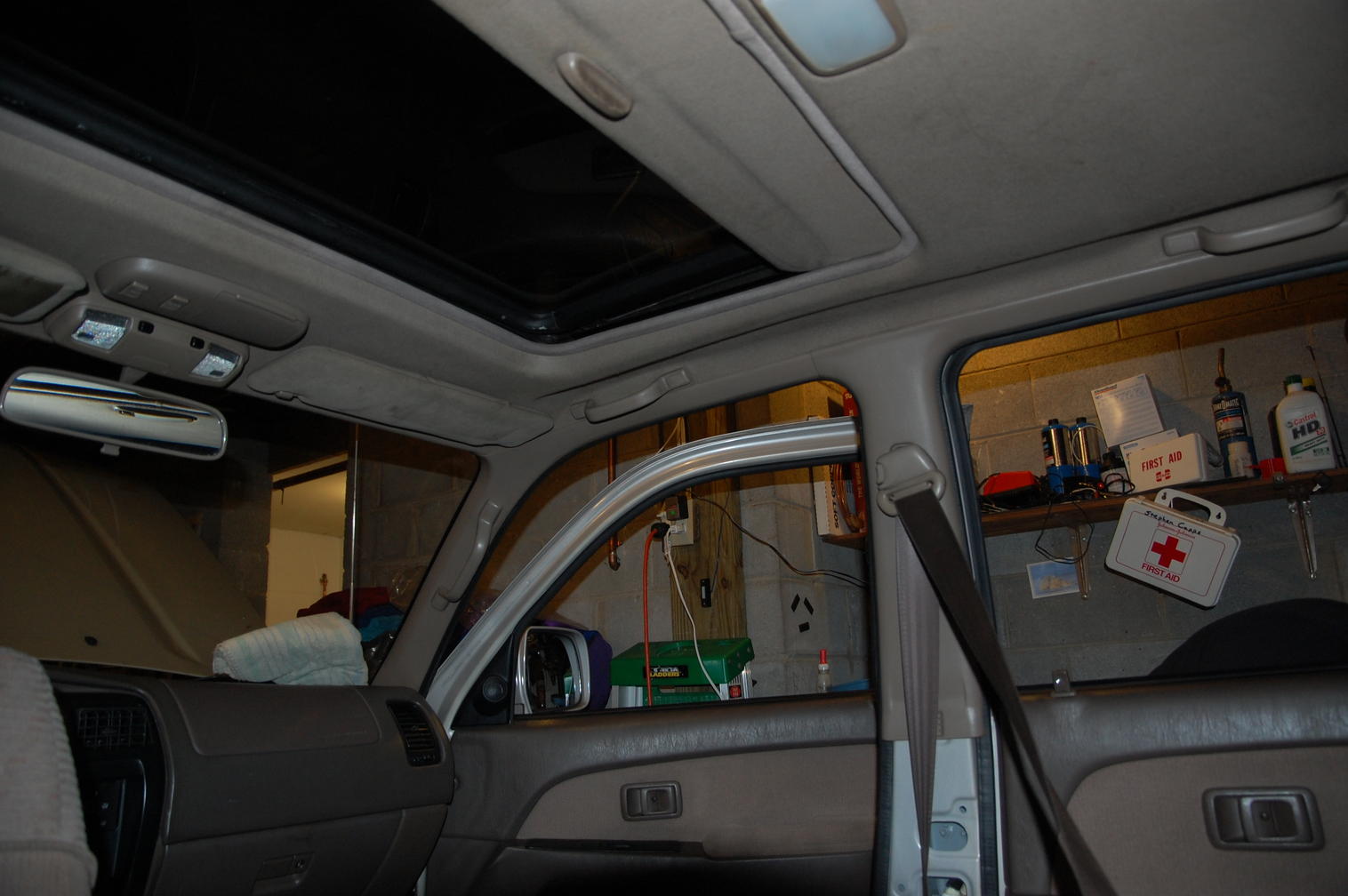

Cleaned the back seats and the seatbelt

Chuckles89 · Oct 13, 2014

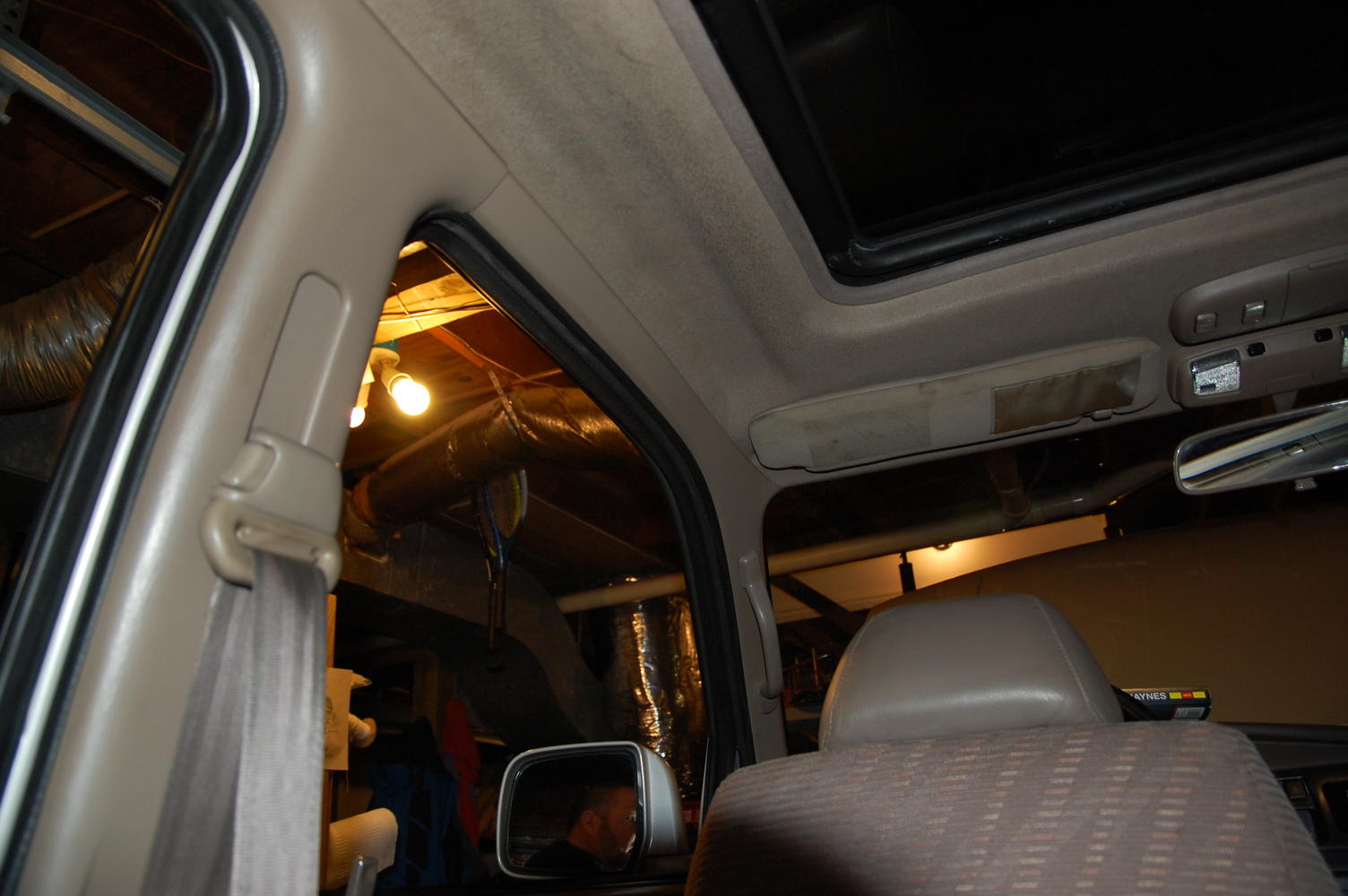

After cleaning all the plastics, the headliner looks dirty lol

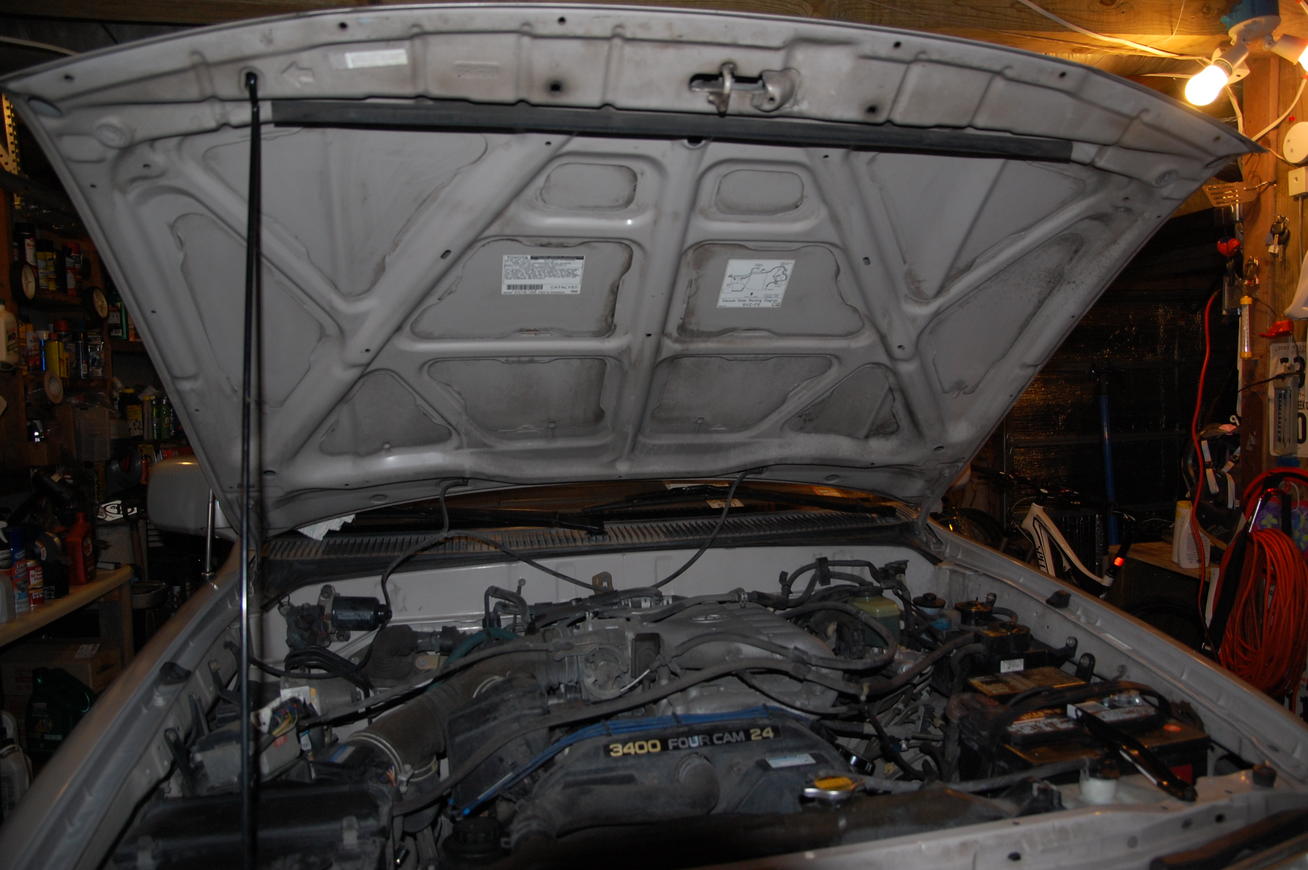

Started cleaning the hood

More pics to come…

Chuckles89 · Oct 13, 2014

Also, at the junkyard, we got some leather headrests for the front seats

Some of the dumb things we have found are:
1. The clutch pedal could have fallen off at any time due to the pin holding it to the clutch pedal bracket was put on wrong and was missing a cotter pin
2. The slave cylinder was held on by mismatched bolts, which were loose
3. The front skidplate was held on by one bolt and two zip ties
4. Vacuum hose not connected on the VSV

I'm about to go and scrape off the 1/4" oil/ grease junk that is built up on the front of the truck under the engine. I'm also going to change the rear diff fluid today.

SR5Runner97 · Oct 13, 2014

Chuckles89 said:
I'm also going to change the rear diff fluid today.

What are you using? remember to unbolt the fill plug before the drain plug. If you unbolt the drain then the fill won't come out then.... yeah. no bueno.

Chuckles89 · Oct 13, 2014

SR5Runner97 said:
What are you using? remember to unbolt the fill plug before the drain plug. If you unbolt the drain then the fill won't come out then.... yeah. no bueno.

I did check the fill plug before doing it (thanks to nervo19's story of finding out that the fill plug was JB Welded after he drained it). I used Valvoline conventional 80W-90 GL-5. The old fluid was black, brown, and green.

Chuckles89 · Oct 14, 2014

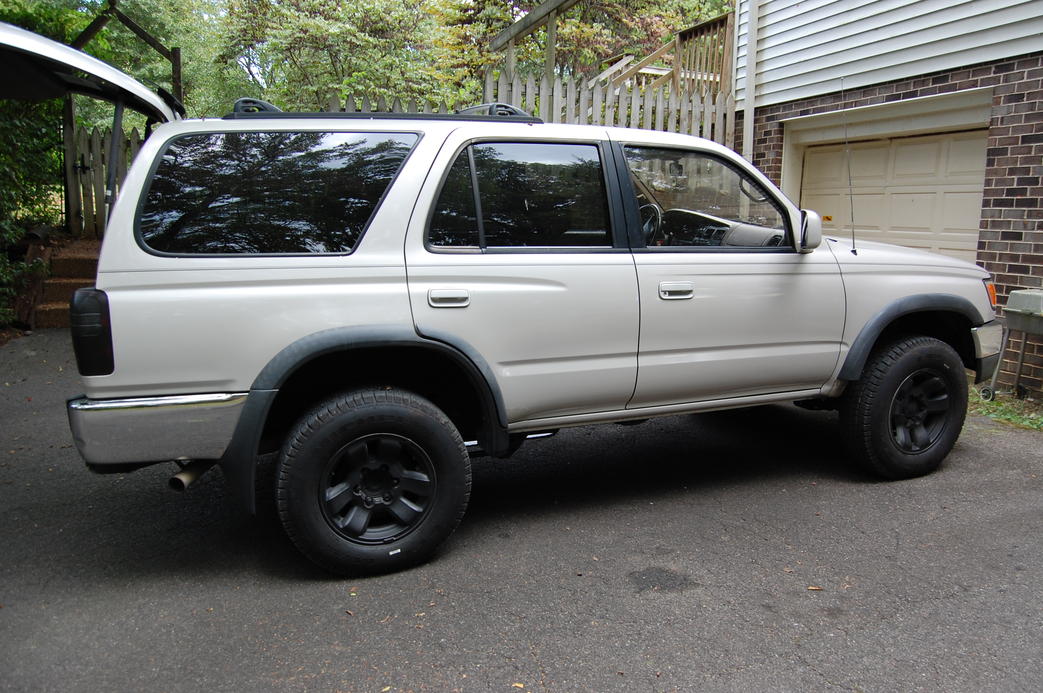

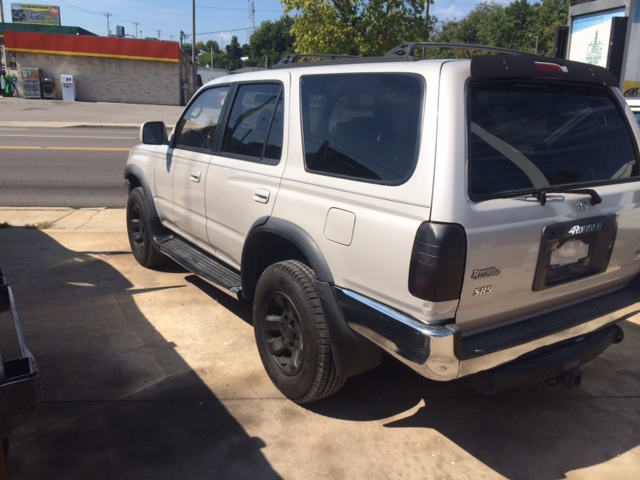

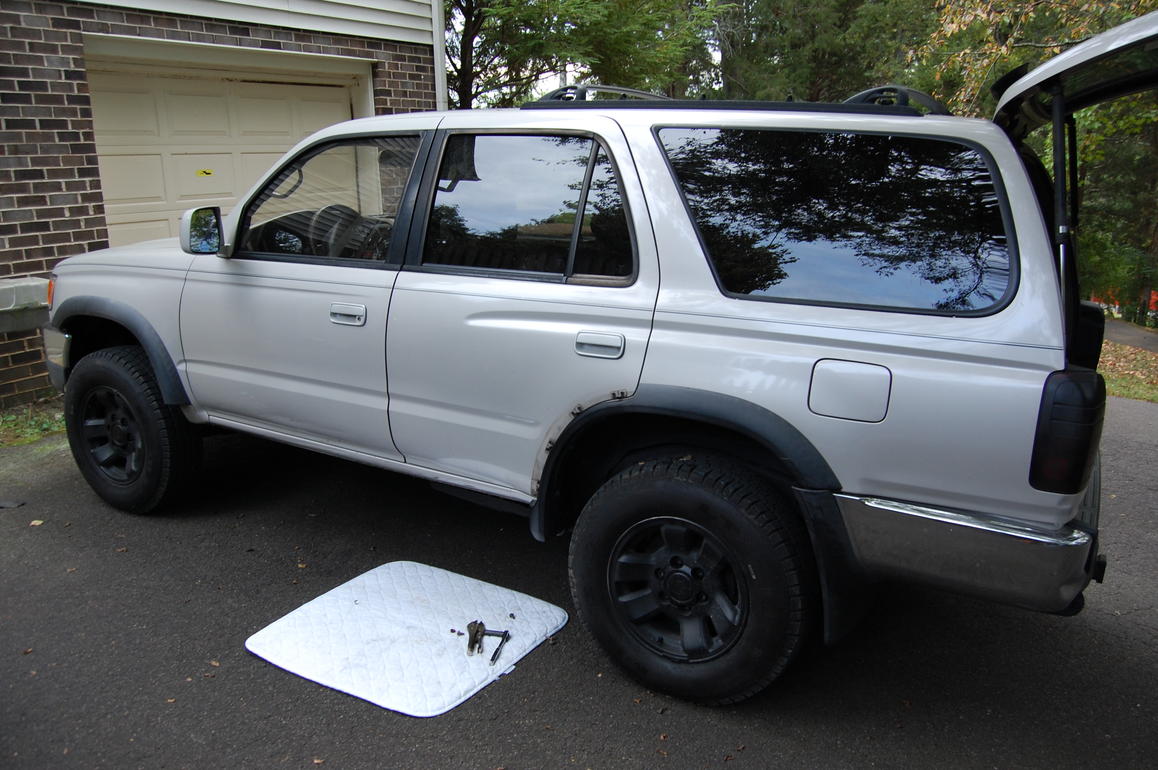

Took off the fender flares. Just need to polish the paint and get some mud flaps. My dad cleaned off the nite shades with goof off!
