Designing a PCK for the 5th Gen, need some input..

[Dave 41079]

Dave, if you could get a shot of the distance between the control box and the crossmember (viewing perpendicular to the centerline of the truck from the driver’s side) that would be helpful!

If you have a measuring tape, that’d be great also



Sent from my iPhone using Tapatalk Pro

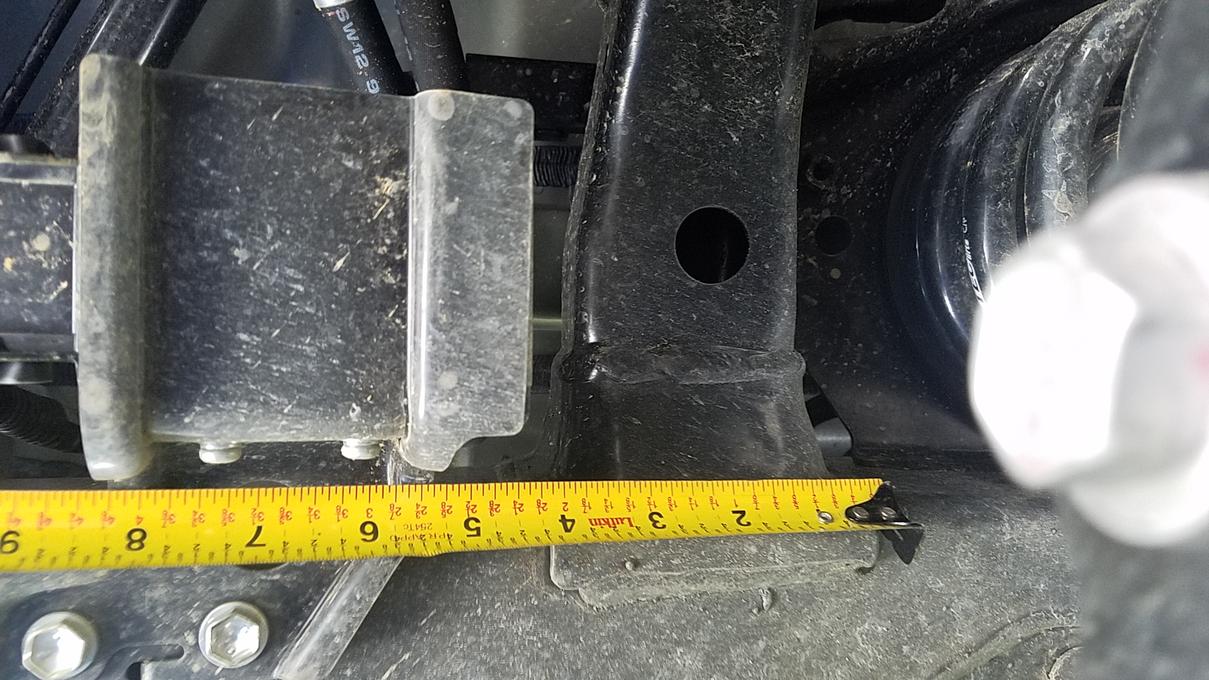

Couldn't get a shot from the side, but here is from below looking straight up. Looks to be about an inch and a quarter distance from the rear edge of the crossmember to the front edge of the control box.



[jkeith.w]

Couldn't get a shot from the side, but here is from below looking straight up. Looks to be about an inch and a quarter distance from the rear edge of the crossmember to the front edge of the control box.

oh - that's an easy fit! terrific.



[jkeith.w]

So - ready to sell these yet??

Just waiting on my quotes to come back!



[jkeith.w]

So, heard back from the shop, and I’m having to do a slight revision to make these bendable on my guy’s equipment; hang tight, will try to knock the redraw out during the work week.

In the interim, here’s a photo that shows how far off the factory bar is without a correction kit:

Significant!


Sent from my iPhone using Tapatalk Pro



[jkeith.w]

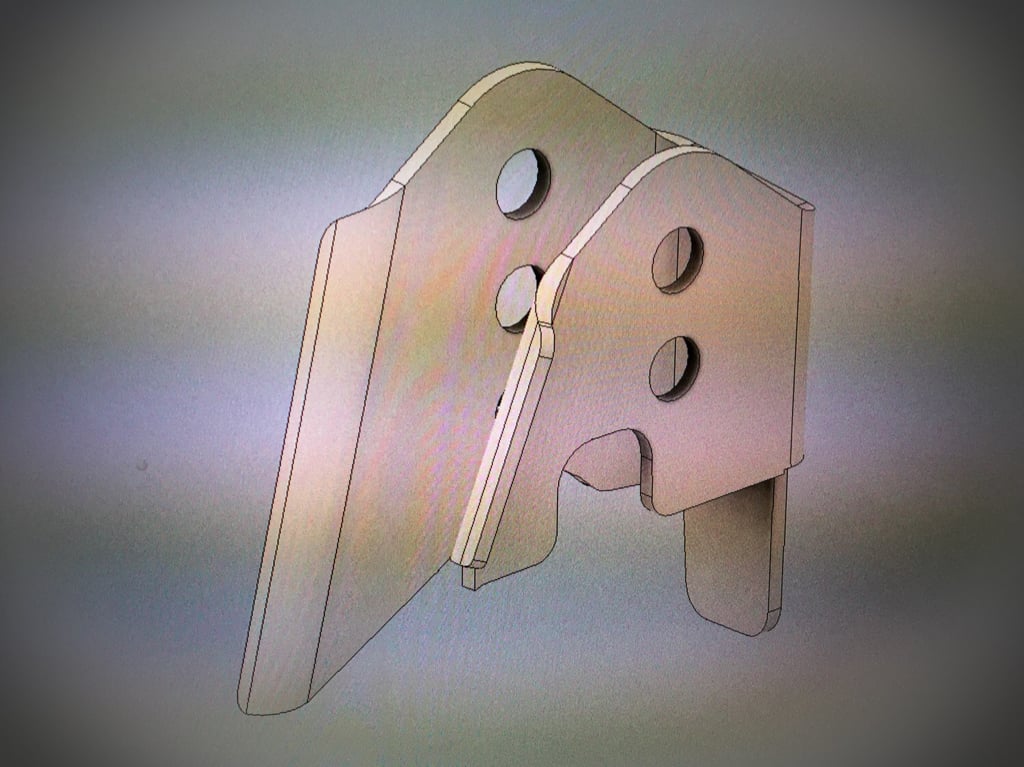

Revised part:

Sent from my iPhone using Tapatalk Pro



[Jdholder]

Ready??? GOOOOOOO!!!!



[Jdholder]

Did this ever go on sale??



[Phil Frames]

This seems like such a great solution. Noob question... Other than the obvious of welding the PCK into place, what is involved to re-center the rear end so the bar lines up with the new mount?



[trailstandardoffroad]

Did this ever go on sale??

Same question?



[jkeith.w]

These are a go!

Sorry about that guys - I'm not getting notifications from T4R for some reason, and since I'm usually over on the 3rd Gen board, I didn't realize there were posts on the thread!

Anyway, I just got the A-OK from my bend shop that the revision is bendable, so we're going to make these! They're going to come in at $93.50 shipped. (that's CONUS - there'll be additional shipping for Canada and UK)

Also, I'll be including an appropriate (very nice, very $) nut with the kit (the factory nut is captive in the mount, so we need another one to go on the factory bolt.)

Just waiting for the completion ETA - I'm doing a run of 10, initially (the first one going to the kind woman who loaned me her truck for the development work.)



I'm pretty excited about this one - it's nicer than the 3rd Gen (don't tell anyone.)



[jkeith.w]

Did this ever go on sale??

Same question?

Just waiting on a delivery ETA from the bend shop, but I'll take your money whenever you want to give it to me! :eyebrows:



[jkeith.w]

This seems like such a great solution. Noob question... Other than the obvious of welding the PCK into place, what is involved to re-center the rear end so the bar lines up with the new mount?

Just removing the bolt from one end of the panhard bar allows the body to move back into alignment - the springs are under some tension on a lifted truck with a stock panhard bar.

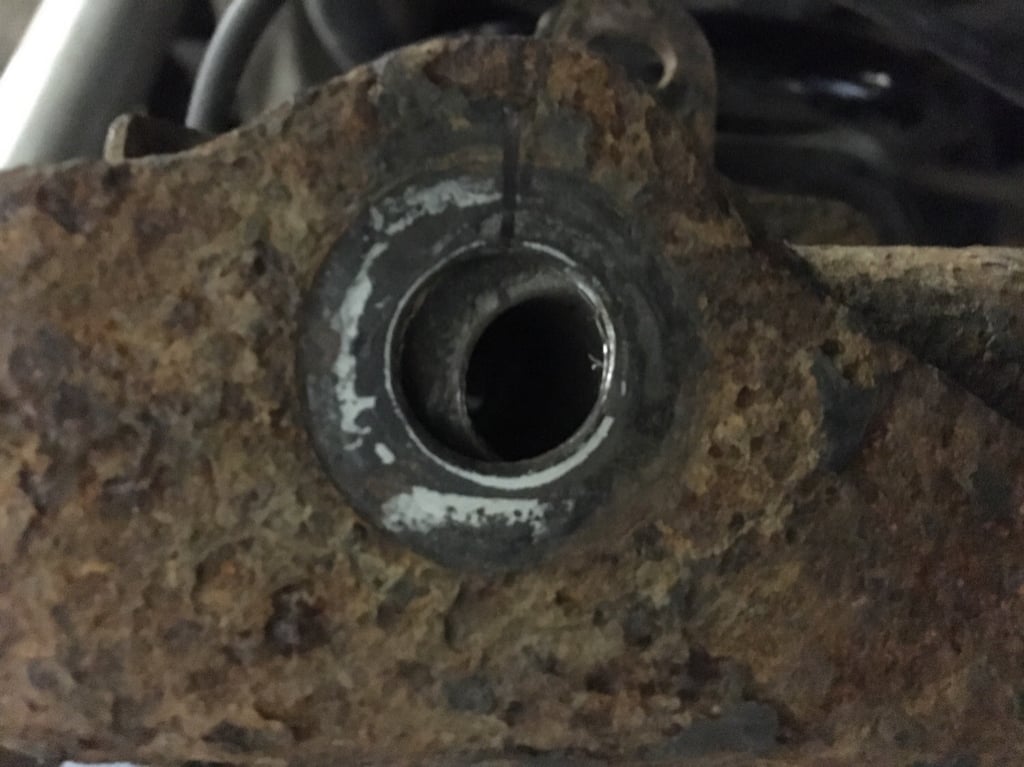

In this photo, I'd just pulled the bolt out and the body moved over this much:

Then when I put the printed PCK in position, the bolt hole in the panhard was aligned perfectly, so I could slip the bolt in by hand.

This PCK should self-align better than my 3rd gen kit, because the factory mount on the 5th gen has more contours and is larger. Shouldn't require more than minor fitting, if any at all.



[hounddogman]

I'm pretty excited about this one - it's nicer than the 3rd Gen (don't tell anyone.)

I heard that ! Now I have to go and buy a 5th gen . Good luck with your new kit . And for any one not familiar with eimkeith and his 3rd gen kit , have no worries . He is a pleasure to do business with .



[Jdholder]

Just waiting on a delivery ETA from the bend shop, but I'll take your money whenever you want to give it to me! :eyebrows:

i'll give you my money as soon as you want it!!



[jkeith.w]

i'll give you my money as soon as you want it!!

the link is in my signature! :happy:



[Jdholder]

the link is in my signature! :happy:

DOOOOH - Reading - I'll try harder!



[jkeith.w]

hahaha



[jkeith.w]

I heard that ! Now I have to go and buy a 5th gen . Good luck with your new kit . And for any one not familiar with eimkeith and his 3rd gen kit , have no worries . He is a pleasure to do business with .

aw shucks.



[raptore]

5th gen kit ordered. Is it ready yet?


Thanks for helping us out.



[Stanman]

Why not! Paid. 2013 Trail with KDSS
