Fishwerks' Photo/Build Thread

[Fishwerks]

DSC_1634-1 by Fishwerks., on Flickr

IMG_9255 by Hayden Deatherage, on Flickr

DSC_6291-1 by Fishwerks., on Flickr

4Runner: 2000 SR5 3.4L 4x4
Mileage: 215,000+

Engine and Performance:
TRD S/C - 2nd gen (black) blower installed at 145,000 miles
Denso IK22 Spark Plugs
TRD O-shaped throttle body gasket
Koyo Radiator
Stant 170* Thermostat

Drivetrain:
Stock 4.10 gears
Lockrite rear locker

Suspension:
Toytec Boss Coilovers - 600# Springs
SPC/Light Racing UCAs

OME 861 rear springs
Icon 2.0s w/ Remote Resi - p/n 56505R
"junkyard" extended bumpstops cut down and mounted on 2" extensions
extended swaybar endlinks

1/2" body lift

<strike>LX 8-wrap rear springs</strike>
<strike>Toytec Coilovers - 600# springs</strike>
<strike>Bilstein 5100s</strike>
<strike>OME 890</strike>
<strike>Bilstein 5125s</strike>

Wheels and Tires:
SCS F-5s - Gloss White, 16" x 8", 4.5" backspacing
Yokohama Geolandar MT G003 - 315/75/16

<strike> 285/75/16 Cooper STT Pro </strike>
<strike>MB352 Wheels 16x8.5 -6mm - the brodozer specials</strike>
<strike>FZJ80 16x8 Wheels with matte black powdercoat</strike>
<strike>285/75/16 Duratracs</strike>
<strike>265/75/16 Duratracs</strike>

Spare:
BFG KM2 - 255/85/16
Mickey Thompson Classic III - 16" x 7", 3.5" backspacing

<strike>FJ80 Wheel - 16" x 8", 4.5" backspacing</strike>
<strike>Goodyear Wrangler Duratrac 285/75/16</strike>


Armor:
Outdoor Logic front bumper
CBI Hybrid rear bumper w/ modified swingout by 52Eighty Fab
Addicted Offroad rock sliders
Rear lower control arm mount skids - made by TCMach
Total Chaos Cam Tab Gussets
Total Chaos Spindle Gussets
Budbuilt skid plates

Recovery Gear:
Front frame mounted shackle hangers - made by Leckogen
Rear shackle mount for hitch receiver
7/8" x 20' Master Pull snatch strap
30' Tow strap

Electronics & Interior:
Uniden Pro 510XL CB Radio, 4' Firestik Firefly antenna on Outdoor Logic Mount
Kenwood head unit
Boston speakers
JL 10W1v2 subwoofer
Custom sub box in place of rear storage compartment
Alpine PDX-5 amp
Weathertech digital fit floor liners
German Shorthaired Pointer
Custom built storage drawers
Viair 400p compressor

Exterior:
20% tint on front windows
spray-bombed grill
De-badged
Tub and fender trim for 35s

Lighting:
Headlights - Sylvania silverstar ultra bulbs
Corner lights - Amber LEDs
Front turn signals - Amber LEDs
<strike>Hella 700FF - 135w Hella bulbs</strike>

Brakes:
Toytec extended rear brakeline

In the pipeline:
New doors

What I think it needs:
Gas tank skid
Better rear links
More lights
Gears and another locker

<b>Links to wheeling photos:</b>

<a href=http://www.toyota-4runner.org/3rd-gen-t4rs/127250-fr4rs-photo-build-thread-2.html#post1299066>CO - Sevenmile Creek</a>

<a href=http://www.toyota-4runner.org/3rd-gen-t4rs/127250-fr4rs-photo-build-thread-3.html#post1337364>Moab, UT - Top of the World, Hell's Revenge & Fins n Things</a>

<a href=http://www.toyota-4runner.org/3rd-gen-t4rs/127250-fr4rs-photo-build-thread-5.html#post1443371>CO - Kelly Flats - LX 8-wraps and junkyard bumpstops shakedown run</a>

<a href=http://www.toyota-4runner.org/3rd-gen-t4rs/127250-fr4rs-photo-build-thread-5.html#post1445136>CO - Bill Moore Lake</a>

<a href=http://www.toyota-4runner.org/3rd-gen-t4rs/127250-fr4rs-photo-build-thread-5.html#post1447195>CO - Spring Creek Trail</a>

<a href=http://www.toyota-4runner.org/3rd-gen-t4rs/127250-fr4rs-photo-build-thread-5.html#post1462880>CO - Moody Hill and Crystal Mountain</a>

<a href=http://www.toyota-4runner.org/3rd-gen-t4rs/127250-fr4rs-photo-build-thread-6.html#post1468819>CO - Kelly Flats</a>

<a href=http://www.toyota-4runner.org/3rd-gen-t4rs/127250-fishwerks-photo-build-thread-8.html#post1663758>Moab, UT Round 2 - Hell's Revenge, Trifecta (Poison Spider Mesa, Golden Spike, Gold Bar Rim), Sovereign Loop, Top of the World</a>

<a href=http://www.toyota-4runner.org/off-roading/154653-moab-march-5.html>Moab, UT Round 2 - Spring Break on the Slickrock Thread</a>

<a href=https://vimeo.com/91182943>Moab, UT Round 2 Video - 'Springbreak on the Slickrock'</a>

<a href=http://hwcdn.libsyn.com/p/9/1/2/912962a5b6096d8e/July2014TCTMagazine.pdf?c_id=7364053&expiration=1432249945&hwt=66ce1c68c5410be630a7783ad0e845be>Toyota Cruisers and Trucks (TCT) Magazine Article 'Spring Break on the Slickrock - July 2014 Page 30</a>

<a href=https://farm4.staticflickr.com/3851/14883714614_e2a7d7f4ef_k.jpg>Toyota Cruisers and Trucks (TCT) Framed Feature Image - July 2014</a>

<a href=http://www.toyota-4runner.org/off-roading/191995-spring-break-2015-moab.html#post1957173>Moab, UT Round 3 - Spring Break 2015 Thread</a>

<a href=http://www.toyota-4runner.org/3rd-gen-t4rs/127250-fishwerks-photo-build-thread-11.html#post1962488>Moab, UT Round 3 - Metal Masher, Kane Creek, Sevenmile Rim & Wipeout Hill obstacle</a>

<a href=https://vimeo.com/126998391>Moab, UT Round 3 Video - 'Wheels Pointed West'</a>

<a href=http://www.toyota-4runner.org/3rd-gen-t4rs/127250-fishwerks-photo-build-thread-14.html#post2076690>NM - Pre-Jambo Shakedown Run</a>

<a href=http://www.toyota-4runner.org/off-roading/193861-colorado-toyota-jamboree-august-7-9-2015-a-10.html#post2091635>CO - Colorado Toyota Jamboree Full Thread</a>

<a href=http://www.toyota-4runner.org/3rd-gen-t4rs/127250-fishwerks-photo-build-thread-15.html#post2091674>CO - Colorado Toyota Jamboree</a>

<a href=http://www.toyota-4runner.org/3rd-gen-t4rs/127250-fishwerks-photo-build-thread-15.html#post2171681>CO - Kelly Flats</a>

<a href=http://www.toyota-4runner.org/off-roading/216568-trip-report-spring-break-2016-moab.html#post2305756>Moab, UT Round 4 - Trip Report Thread</a>

<a href=http://www.toyota-4runner.org/3rd-gen-t4rs/127250-fishwerks-photo-build-thread-16.html#post2306170>Moab, UT Round 4 - Steel Bender, Flat Iron Mesa and more</a>

<a href=https://vimeo.com/207586054>Moab, UT Round 4 Video - 'Moab in March 2016'</a>



[Fishwerks]

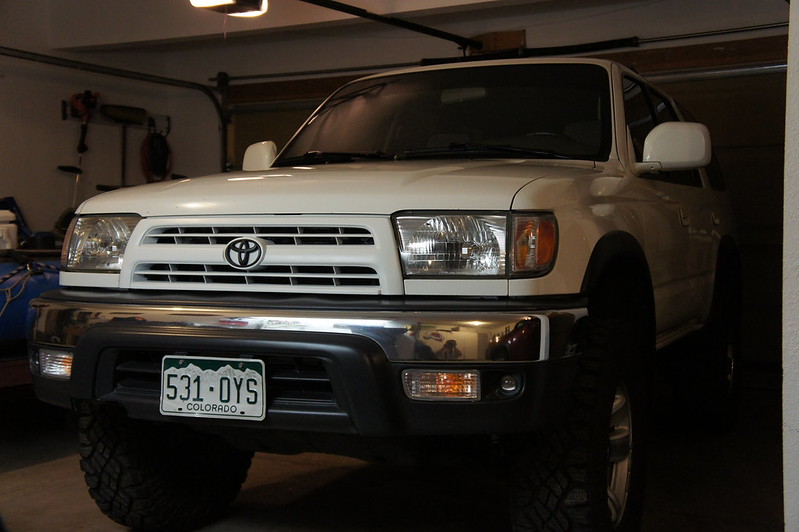

Here it is day one, been driving this since I was 16. Aside from 2 12" subwoofers in the back, I drove it stock for about 3 years.

stock by FR4R, on Flickr

Onto the good stuff...

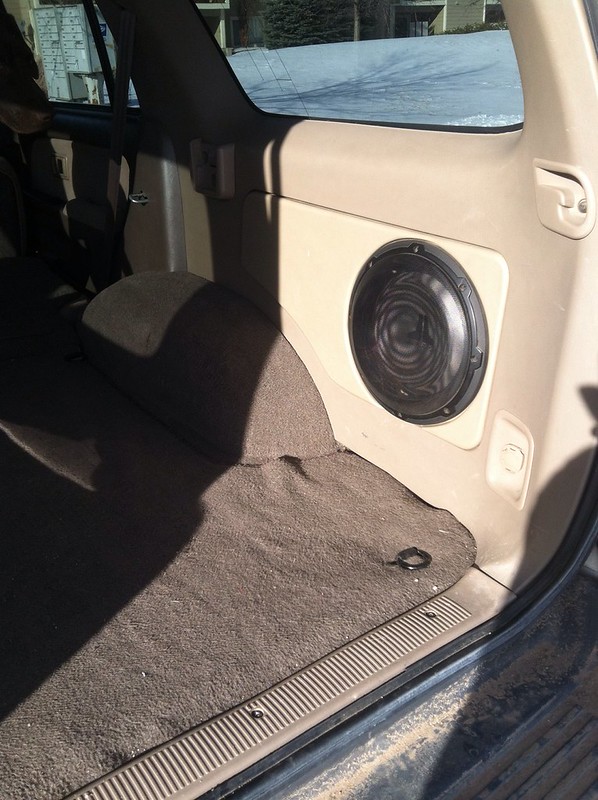

I got sick of having 2 12" subs, so 1 10" subwoofer was installed in the rear storage compartment:

subwoofer by FR4R, on Flickr

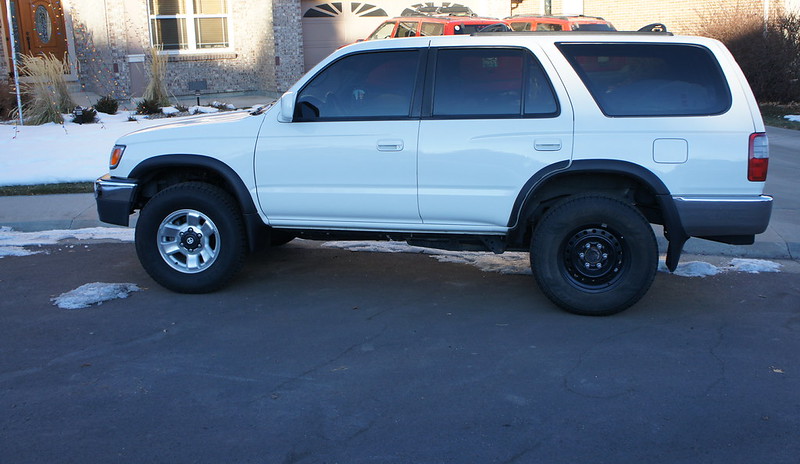

Staple ended up too near the sidewall to patch…just the excuse I needed to lift it. This picture was after dropping the running boards and adding SR5 front mud flaps too:

No Lift by FR4R, on Flickr

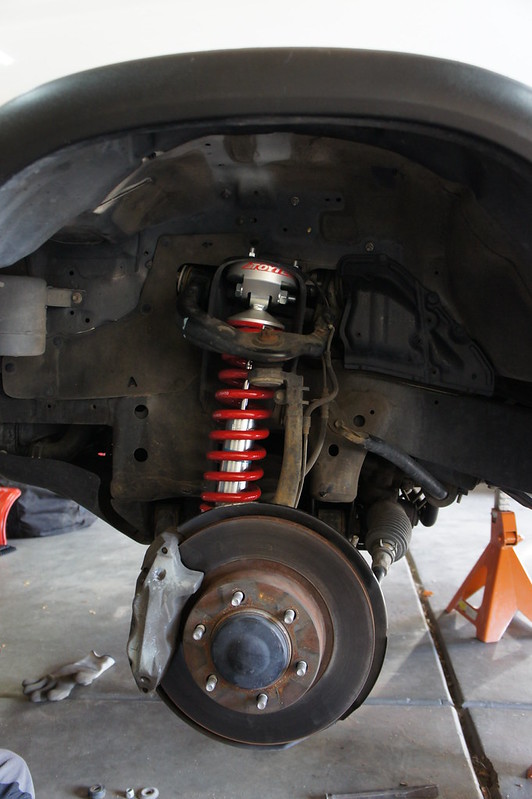

Toytec Coilovers:

Toytec coilovers by FR4R, on Flickr

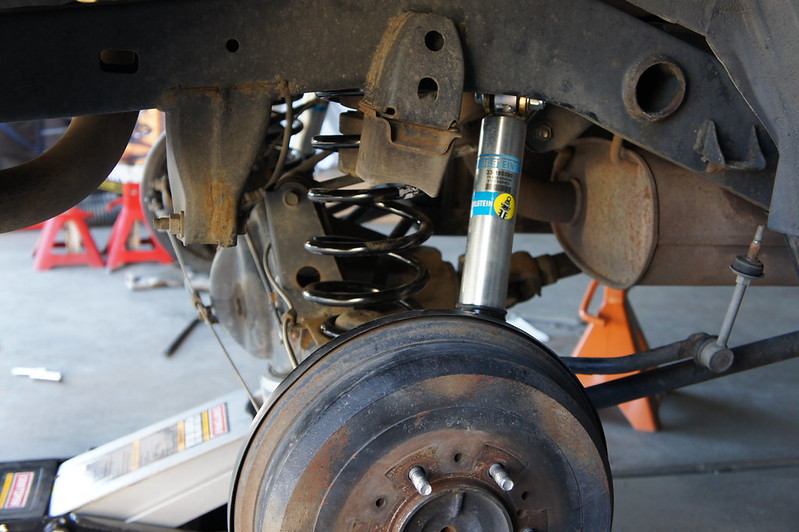

OME 890s and Bilstein 5125s:

OME 890s, 5125s by FR4R, on Flickr

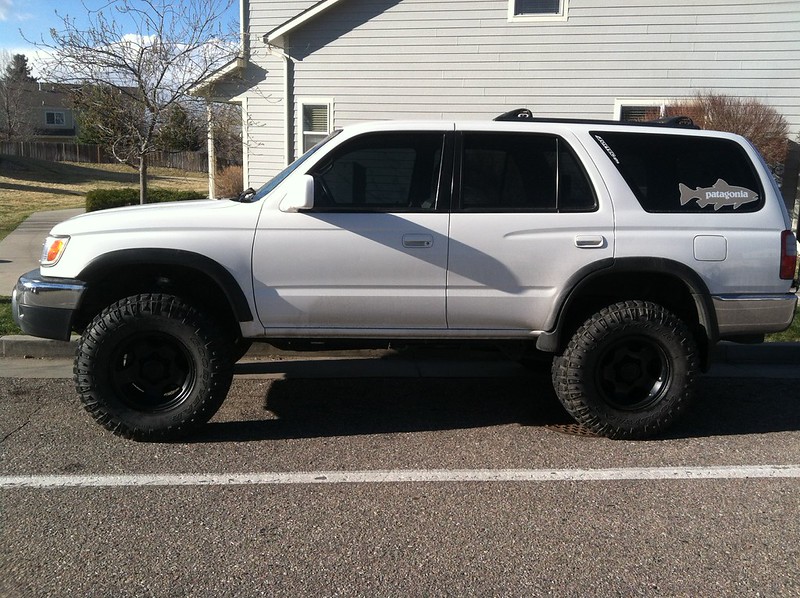

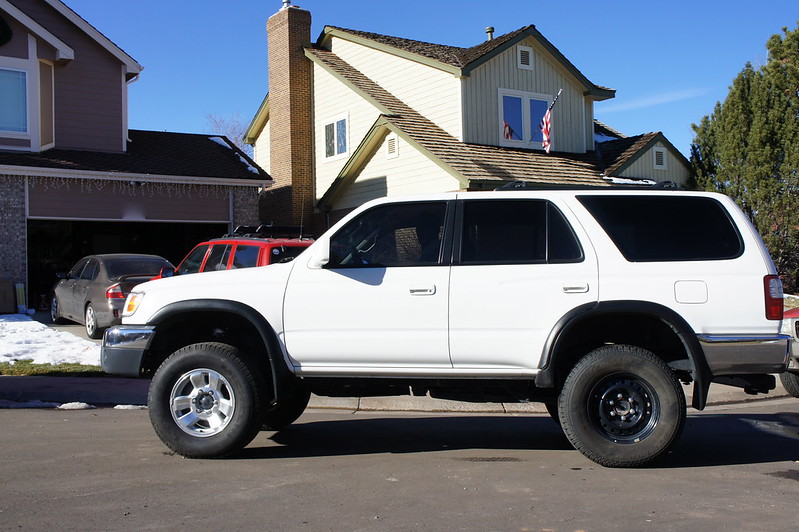

Lifted:

Lifted by FR4R, on Flickr

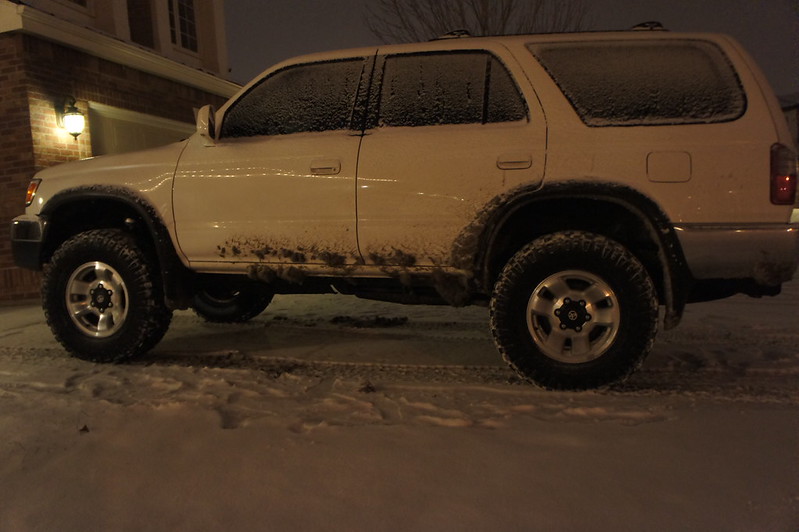

New Tires (265/75/16):

265/75/16 Duratracs by FR4R, on Flickr

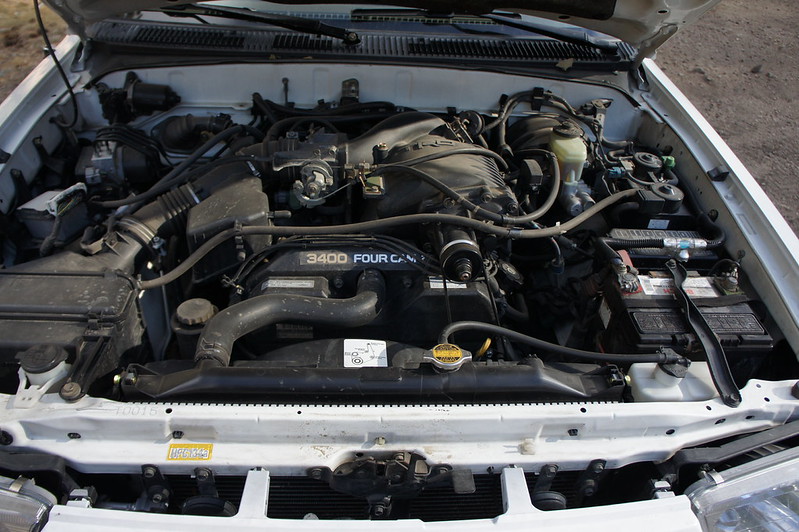

Supercharged it:

TRD Blower by FR4R, on Flickr

The original CV boots tore pretty quickly. In went new remanufactured OEM axles with longer silicone inner boots from CVJ Axles in Denver. No pictures of that.

More in the next post.



[Fishwerks]

A few more pictures along the way

Untitled by FR4R, on Flickr

Color-matched grill

Grill color match by FR4R, on Flickr

FZJ-80 wheels. Bead-blasted and powder-coated. Shouldn't have sold my SR5 mud flaps...

Untitled by FR4R, on Flickr

Found a good deal on some 285s

285s by FR4R, on Flickr

Swapped the OME 890s and 5125s to LX 8-wraps and 5100s with more travel

Untitled by FR4R, on Flickr

The color match on the grill flaked badly, so I stripped it and painted it black.

DSC01671 by FR4R, on Flickr



[PhdNPrerunners]

Great build! I am really considering supercharging mine soon. The white with the black LC wheels looks really good :thumb3:



[GSPRunner]

Wish I could find LC wheels



[Fishwerks]

Great build! I am really considering supercharging mine soon. The white with the black LC wheels looks really good :thumb3:

Thanks Phd. I'll be watching your build thread for the supercharger. It's so much more fun to drive now. Plus knowing there is more in the skinny pedal if needed is nice.

Wish I could find LC wheels

I scanned craigslist for a while and ended up finding a good deal on these, then had them bead blasted and powdercoated. They would look great on your rig, I hope you find a set.



[TCMach]

Looks great. Can't wait to go wheelin!



[TRDteen]

Beautiful rig you got there! Any more mods in the future?



[Fishwerks]

Looks great. Can't wait to go wheelin!

Maybe tomorrow??

Beautiful rig you got there! Any more mods in the future?

Thanks! Around Thanksgiving the URD 7th injector and 2.2" pulley for the s/c will be going on. Then I need to do some maintenance.

After that the list goes on...as I'm sure you know.



[4ever4running]

Looking good dude! I like the white and black theme you've got going



[TCMach]

I should be free. Just let me know!



[Fishwerks]

Looking good dude! I like the white and black theme you've got going

Thank you! The chrome bumpers kind of throw it off, but I don't want to paint them. I would go crazy when it chipped.



[TCMach]

If you didn't want them to chip you could always Bedliner them. It's a look you have to like but it would solve the chipping problem.



[Fishwerks]

If you didn't want them to chip you could always Bedliner them. It's a look you have to like but it would solve the chipping problem.

Hmm that's a good idea....I'll have to think about that! I know BigFish's '01 had bedlinered bumpers before he replaced them...time to click around...



[Hepar]

Great build. I really dig a clean white runner.



[TCMach]

Ya his were color matched. I think xskydivingdudex did Bedliner on his fender flares and lower doors, not sure about the bumper though



[Fishwerks]

Great build. I really dig a clean white runner.

Thanks Hepar! I'm happy with it so far. I looked at your rig a bunch when I was lurking on here prior to the lift...I'm jealous of the skewp

Ya his were color matched. I think xskydivingdudex did Bedliner on his fender flares and lower doors, not sure about the bumper though

Yeah good call, I'll check his out too.

I really just want some actual bumpers, but I can't figure out if I want tube or plate because I like both. And then swingout comes into question. Plus I shouldn't spend more money on fun stuff after the s/c. It should be maintenance time.



[4ever4running]

I beadlined my hood and rocker panels and it wasn't too bad at all. The thing that took the longest was taping off the rocker panels and prepping them for the bedliner. I'm sure it would be a lot easier if you are just doing the bumpers because they don't have any clear coat to sand off. Check out my build thread for some more info: http://www.toyota-4runner.org/3rd-gen-t4rs/114425-4ever4runnings-2002-4runner-build.html#post1056542

The only reason that I didn't end up doing the bumpers is because I am going to get aftermarket front and rear bumpers and I want to try to sell the stock ones.



[Fishwerks]

I beadlined my hood and rocker panels and it wasn't too bad at all.

Looks like you did a good job with it! How do you like it? Does it clean up alright?

And good point on trying to sell the old ones. Not an easy task even if they are stock I'm sure....steel bumpers are somewhere in my future too.



[4ever4running]

Looks like you did a good job with it! How do you like it? Does it clean up alright?

And good point on trying to sell the old ones. Not an easy task even if they are stock I'm sure....steel bumpers are somewhere in my future too.

Thanks man! So far I really like it. My rocker panels were pretty beat up and had some pretty good paint chips that were starting to rust so the bed liner was the perfect solution. It wasn't terribly expensive and now I don't have to worry about rocks, dirt, branches, etc. scratching them up on the trails. It takes a little extra effort to get the bed lined parts cleaned up because the dirt likes to stick to it, but you really just have to hit it with a scrub brush and some elbow grease.

Yeah my thoughts exactly, I'm really hoping someone can use it but I guess we'll see.
