Front Runner 5th Gen Drawer Kit

[TotalAutomotiveLV]

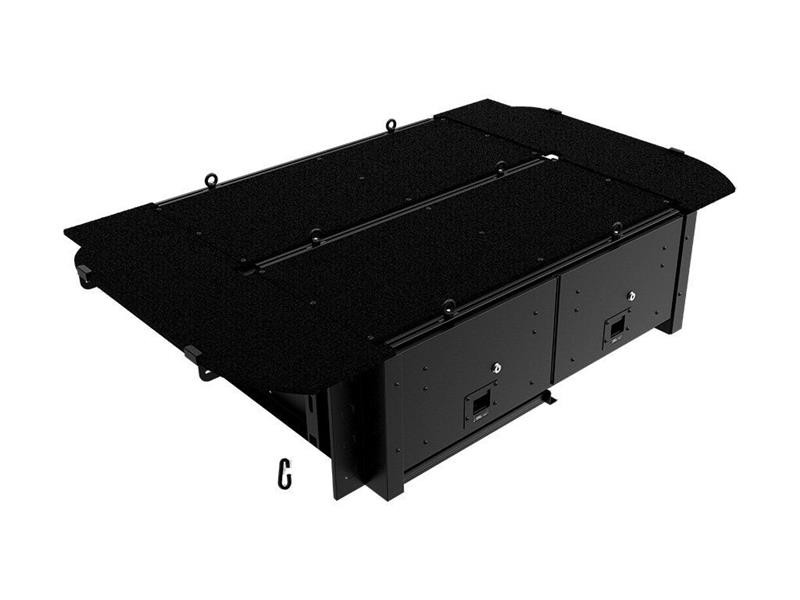

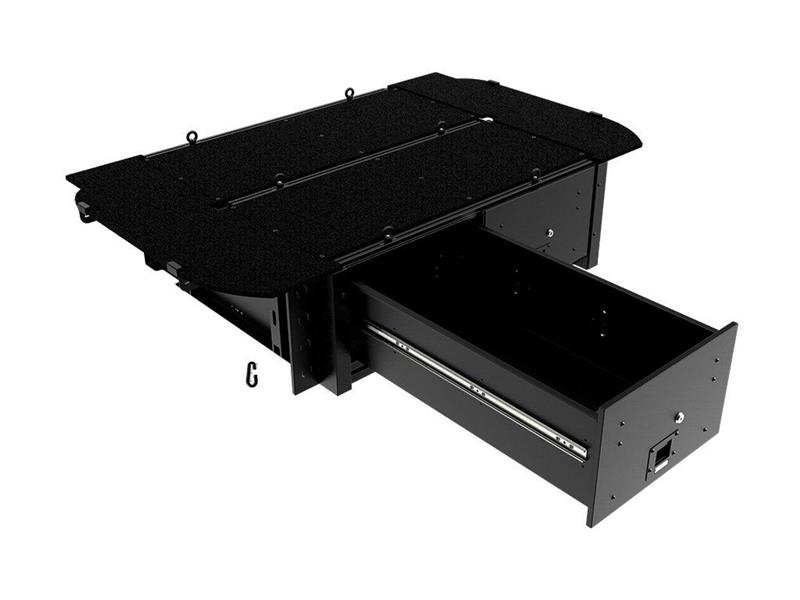

TOYOTA 4RUNNER (5TH GEN) DRAWER KIT - BY FRONT RUNNER

Part #SSTF005 - Click Here

These 2 lockable drawers with fitted deck and faceplates have been
designed specifically for the countours of the Toyota 4Runner 5th Gen.

Engineered tough for both on and off-road travel.

Hide contents from prying eyes while creating more usable and easily
accessible storage space in your vehicle.

This drawer kit has 2 lockable drawers, 2 keys per lock, 3 tie down rails,
6 tie down rings, deck completion set, face completion set, brackets, all
necessary installation hardware, and detailed fitment instructions.

Make storing and organizing gear and valuables a no-brainer.

Consists of:
1 x Drawer Base unit (SSDR005)
1 x Toyota 4Runner Deck Completion Set (SSDS114)
2 x Push to close latches with 2 keys per lock
3 x Accessory channels
6 x Eye Nuts for accessory channels
Installation Hardware
Fitting Instructions

Materials used:
Aluminum - Accessory Channels & Sub Frame
Black powder coated steel - Drawer Bins & Frame
UV resistant Nylon Carpet & Laminated plywood - Top Deck & Deck Set

Product Dimensions:
915mm (36") L x 1452mm (57.2") W x 340mm (13.4") H

Internal Drawer Dimensions:
Left Hand Side:
817mm (32.2") L x 386mm (15.2") W x 213mm (8.4") H

Right Hand Side:
817mm (32.2") L x 386mm (15.2") W x 213mm (8.4") H

Weight:
64.7kg (142.6lbs)

Load Rating:
113Kg (250lbs) per Drawer

Special Notes:
4 Drawer dividers can fit each drawer

_



[MRG_TRD]

Would love to see the fit and finish on one of these fully installed. Hopefully you guys will be able to add some installed photos soon or maybe front runner.



[Narbeh]

has anyone installed a frontrunner drawer system in the T4r? I'd like to see photos as well as hear feedback.



[dell]

This guy had the prototype installed in his T4R

FrontRunner Outfitters Prototype Drawer System for 5th Gen



[TotalAutomotiveLV]

Would love to see the fit and finish on one of these fully installed. Hopefully you guys will be able to add some installed photos soon or maybe front runner.

We did ask Front Runner for some pics installed in a 4Runner, but they did not yet have any available.

Our Fulfillment Team is reaching out again - fingers crossed!

_



[rswimmer01]

Front Runner vs Truck Vault

We did ask Front Runner for some pics installed in a 4Runner, but they did not yet have any available.

Our Fulfillment Team is reaching out again - fingers crossed!

_

Did you guys ever get any response?
I am batting this system vs the Truck Vault system. For work we need top end security, and TV is mostly MDF construction. I was interested to see if this is quality built, or just filing cabinet pressed steel...
Thnx, J.



[TotalAutomotiveLV]

We have not yet received any pics from Front Runner and from customer orders.

Our Fulfillment Team has requested some pics, so hopefully we can share some in the next day or so.

_



[Bronc]

Any update on this? Would like to se a review with pics of final production installed.

Sent from my SM-T813 using Tapatalk



[TotalAutomotiveLV]

We are still waiting on official pics from Front Runner.

We have also requested pics from a couple customers
that are extremely happy with their install.

Our Fulfillment Team is constantly requesting pics, but
Front Runner has not yet done an install themselves
in-house.

They were working on scheduling an install for pics with
an store manager, but that has been put on hold.

We will continue to work on getting real install pics ASAP.

_



[IL4runner]

Any update on this? Would like to se a review with pics of final production installed.

Sent from my SM-T813 using Tapatalk

Good luck lol. I even emailed FrontRunner support and they said they would have some pics on the site soon and that was last July lol.



[sn_85]

Any update on this? Would like to se a review with pics of final production installed.

Sent from my SM-T813 using Tapatalk

You can google some of the pics. To date I don't think I've seen full production photos of the drawers. That being said I think they they're a terrible option. The drawers are 14" high which looks ridiculous in the back of a 4Runner. 12" tall drawers are the max I'd consider with 8"-10" being optimal.
