Heated seat wire harness part number?

[Ezekiel2222]

As a new user, let me start off by saying hello! I just purchased a new 2015 4Runner Trail after driving a 1997 Jeep Grand Cherokee for the last 10 years. As much as I wanted to get a new Jeep, it just can't match the off-road performance of a 4Runner, and not without costing at least 3K more! I'm really enjoying the 4Runner so far, and I'm glad I bought the model that I did.

With that introduction out of the way, on to my question! I really wanted to get heated seats in my Trail, but I can't stand sun roofs (I'm 6'4"), and I didn't really want the faux-leather either. Since the Trail Premium is an all-or-nothing kind of deal, I decided to pass and go for the standard Trail. My dealer assured me I could get the heated seats installed afterwards, which sounded good to me.

After realizing that the heated seats would be aftermarket and not OEM, I started doing a little research. After reading numerous posts on this forum and others, I discovered that you can order the real OEM seat heaters, switches, and related parts, and install them in the proper locations in the vehicle. I've located almost all the parts including the heating pads (both seat bottom and back), control modules, control module connectors, switches (left and right), and the wiring harness for the center console. The only part I think I am missing is the wiring harness that would go underneath each seat.

So my question is, can anyone who has a 2014 or 2015 Trail Premium or Limited with heated seats take a quick look and see what the part number is on those wiring harnesses? Also, if you think there are any other parts I'm missing I'd love to know. Thanks!



[Ezekiel2222]

Anyone with a 5th gen T4R with stock heated seats able to look under their front seat for the part number? Even if its a few years old it should still help lead me in the right direction!

Edit: I found this site: http://www.toyodiy.com/parts/p_U_201310_TOYOTA_4RUNNER_GRN285L-GKAGKA_8202.8.html
Looks like my choices are wiring it up like an SR5 with synthetic leather, or wiring it up like a Limited? Isn't the Trail wiring more similar to that of the Limited?



[rigtec]

Anyone with a 5th gen T4R with stock heated seats able to look under their front seat for the part number? Even if its a few years old it should still help lead me in the right direction!

Hi Ezekiel,

I'm not 1000% sure but a lot of "stock wire harnesses" are built to include the accessory options of the higher trim level vehicles. This helps the manufacturer cut the cost of stocking two or more different wiring parts for essentially the very same truck. I think the first time I looked inside of 'what is known as' the... "Lower knee-bolster panel"; just below the steering wheel, I noticed a white, unattached male harness plug. I was installing the new PIAA fog-light kit and switch. When it came time for me to reconnect all of the wiring to the knee air-bag panel, I noticed a small white plastic plug and didn't know where it came from.

After searching for an empty female connector space, I remembered seeing this plug just 'hanging there' when I first removed the panel. Then I became aware that this was a pattern or normal toyota procedure! It's actually cheaper for the manufacturer to include a multi-function harness, then it is to construct a precisely matched cable for every specific vehicle PS: The small white plastic plug, is for the 4Runner's "Motorized Automatic Running Boards"; an option that I did not select when I ordered the truck!

If you haven't already done so, take a look at your power seat wiring harnesses that are there. I'll bet you're already equipt with these upgrade harnesses! Good luck, and let us know what you find!

rigtec, cheers



[narow37]

Hi Ezekiel,

The Limiteds have perforated air blower seats and the SR5/Trail have heat pad seats, so you want to do your wiring the way of the SR5. I'm new the this forum but not forums all together. I just purchased a 14' Magnetic Grey Limited.



[sandcrawler]

As a new user, let me start off by saying hello! I just purchased a new 2015 4Runner Trail after driving a 1997 Jeep Grand Cherokee for the last 10 years. As much as I wanted to get a new Jeep, it just can't match the off-road performance of a 4Runner, and not without costing at least 3K more! I'm really enjoying the 4Runner so far, and I'm glad I bought the model that I did.

With that introduction out of the way, on to my question! I really wanted to get heated seats in my Trail, but I can't stand sun roofs (I'm 6'4"), and I didn't really want the faux-leather either. Since the Trail Premium is an all-or-nothing kind of deal, I decided to pass and go for the standard Trail. My dealer assured me I could get the heated seats installed afterwards, which sounded good to me.

After realizing that the heated seats would be aftermarket and not OEM, I started doing a little research. After reading numerous posts on this forum and others, I discovered that you can order the real OEM seat heaters, switches, and related parts, and install them in the proper locations in the vehicle. I've located almost all the parts including the heating pads (both seat bottom and back), control modules, control module connectors, switches (left and right), and the wiring harness for the center console. The only part I think I am missing is the wiring harness that would go underneath each seat.

So my question is, can anyone who has a 2014 or 2015 Trail Premium or Limited with heated seats take a quick look and see what the part number is on those wiring harnesses? Also, if you think there are any other parts I'm missing I'd love to know. Thanks!

it'd be a great contribution if you would post all the part numbers for all the pieces for your OEM seat heater retrofit. i don't believe anyone has done that before. (only aftermarket kits.)



[Antman]

I would bet my retirement money that those wires aren't there under your seat. I have worked on several different 5th Gens and the harnesses are different for each specific truck for the most part.
Toyota is super tight when it comes to copper, Lol.



[1engineer]

I would bet my retirement money that those wires aren't there under your seat. I have worked on several different 5th Gens and the harnesses are different for each specific truck for the most part.
Toyota is super tight when it comes to copper, Lol.

I concur. Pretty sure any plugs not plugged in in your existing harness are for possible port installed options only. Harnesses for Toyota are built exactly for the vehicle and that vehicle's options. Nothing more, nothing less. Is it a good way? It's Toyota's way.



[adam2562]

yea, i feel like there was a topic on this awhile ago and someone said that there weren't any extra plugs/harnesses.



[Ezekiel2222]

Thanks for all the replies! I'll take a look under my seats and see if there are any spare connectors.

I find in interesting that all the seat wiring harness on that ToyoDIY site are either listed as "SR5" or "Limited"; there's no mention of Trail at all. The same goes for all the other parts I'm looking at. It's almost like from a parts perspective, the Trail doesn't exist (or just uses all the same parts as one of the others).

In the mean time, does anyone know what the difference is between "seat No.1 and 2" and "front seat RH and LH"? Are 1 and 2 the back seats, or different nomenclature for the front seats?

Once I've got everything ordered and installed successfully I'll gladly post the full list of parts for those looking to do the same upgrade. I'll hold off for now, just to avoid any confusion.



[Antman]

Thanks for all the replies! I'll take a look under my seats and see if there are any spare connectors.

I find in interesting that all the seat wiring harness on that ToyoDIY site are either listed as "SR5" or "Limited"; there's no mention of Trail at all. The same goes for all the other parts I'm looking at. It's almost like from a parts perspective, the Trail doesn't exist (or just uses all the same parts as one of the others).

In the mean time, does anyone know what the difference is between "seat No.1 and 2" and "front seat RH and LH"? Are 1 and 2 the back seats, or different nomenclature for the front seats?

Once I've got everything ordered and installed successfully I'll gladly post the full list of parts for those looking to do the same upgrade. I'll hold off for now, just to avoid any confusion.

I just remembered this thread which may contain your info in this post...?

http://www.toyota-4runner.org/5th-g...ork-toyota-factory-switches-2.html#post827354

If not maybe elsewhere in the thread...Good Luck!



[1engineer]

The Trail did not have heated seats up until '14.



[rigtec]

I would bet my retirement money that those wires aren't there under your seat. I have worked on several different 5th Gens and the harnesses are different for each specific truck for the most part.
Toyota is super tight when it comes to copper, Lol.

I concur. Pretty sure any plugs not plugged in in your existing harness are for possible port installed options only. Harnesses for Toyota are built exactly for the vehicle and that vehicle's options. Nothing more, nothing less. Is it a good way? It's Toyota's way.

"Well DAM"... there goes that theory; and an 'otherwise' perfect day!

So glad you's chimed in :thanks:

rigtec, ( :lie: )



[Ezekiel2222]

Well I looked under my seats, and I couldn't see any extra connectors. So now the question is which ones do I order? Looking at ToyoDIY.com again, I'm leaning towards parts 82191-35030 and 82192-35020. Anyone agree or disagree?



[RCFJ]

Maybe try this:

2X Heated Seat Heater Pad Switch Kit Toyota Camry Echo Land Cruiser Prius Sienna | eBay



[Nervo19]

I book marked these a while back. The switches fit the OEM spots in the 4Runner and they are lighted. Slightly cheaper than the ones above. I'm still hoping someone who has installed these will indicate what wires they tapped in to.

5 Gear Single Dial Switch Carbon Fiber Seat Heater Heated Seat Car Cushion | eBay



[Ezekiel2222]

Well, the parts are ordered and on their way. Here's hoping I got the right ones! I'll let you guys know how it turns out.



[alexb]

sub'd. Interested to see how this turns out. Hoping for a full write up and DIY if it all works.



[Ezekiel2222]

Good news! The parts arrived and have been installed successfully. As requested, I'm going to post a short guide for those looking to duplicate the process. Note that I chose not to do the final install myself, and instead had a local auto-sound shop do it, so there won't be any detailed instillation pictures, but you can find guides on how to take the seats apart yourself if you so choose.

As a reminder, this guide is for adding OEM Toyota heated seats to a stock 2015 4Runner trail. If you have a different vehicle this guide may or may not work for you.

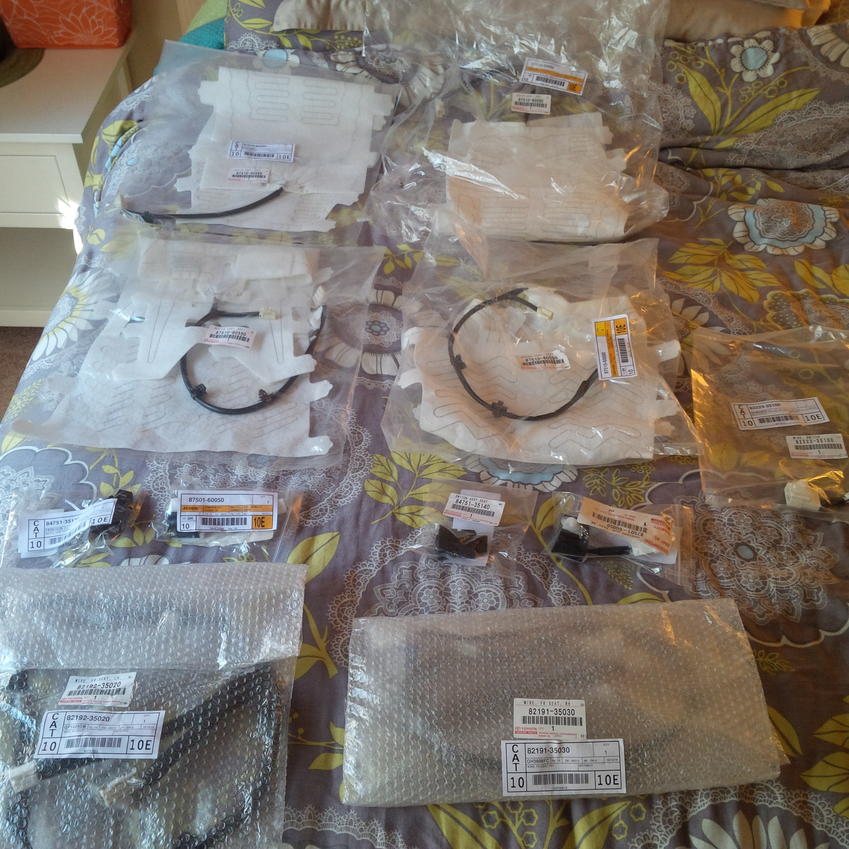

Lets start with the list of parts. I ended up ordering and using the following:

PART NUMBER PART NAME DESCRIPTION
87510-60550 x2 - Seat Heater Pad (the thing your butt sits on)
87510-60560 x2 - Seat Back Frame (confusing name, it's the back heater pad)
87501-60050 x2 - Seat Heater Control Module (required to hook up the pads)
82192-35020 - WIRE, FR SEAT, LH (drivers side seat wire harness)
82191-35030 - WIRE, FR SEAT, RH (passenger side seat wire harness)
82223-35100 - WIRE, SWITCH (center console wire harness)
84751-35130 - Seat Heater Switch (left-hand switch)
84751-35140 - Seat Heater Switch (right hand switch)



Now lets take a closer look at each part:

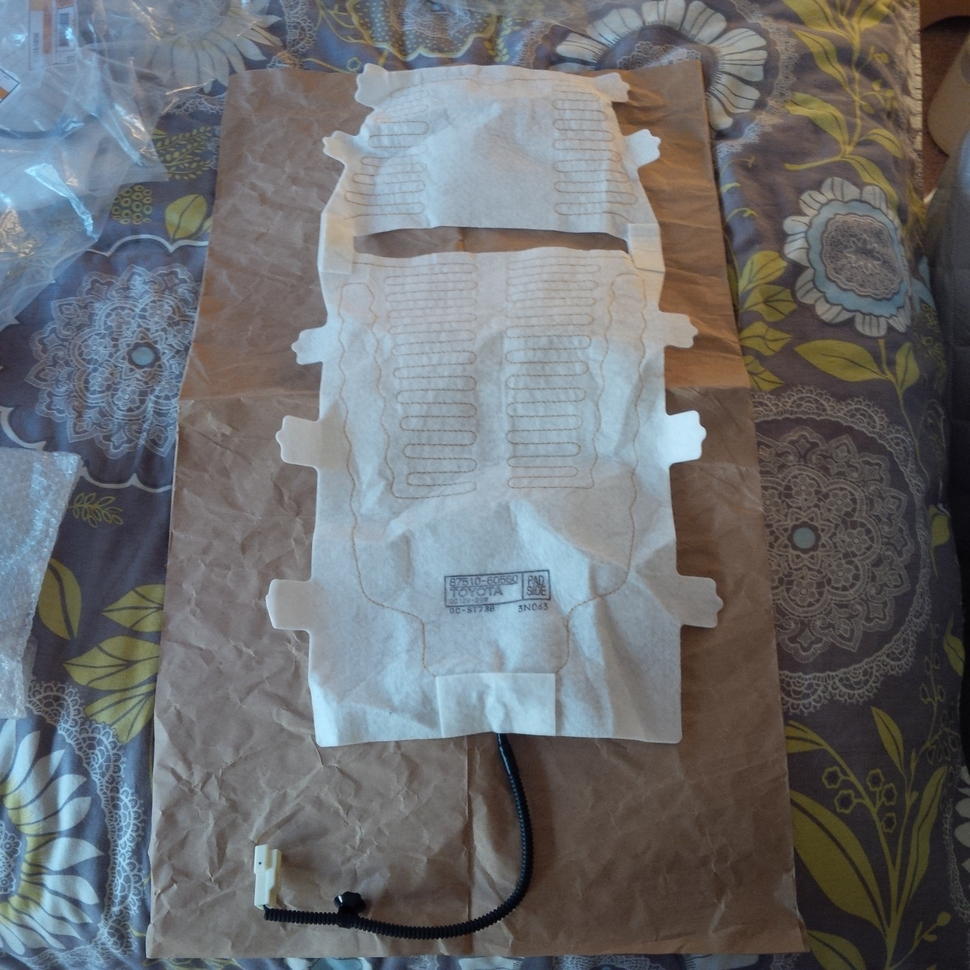

Seat Back Pad. This is the pad that goes on the back of the seat. The wire at the bottom connects to the Seat Bottom Pad.

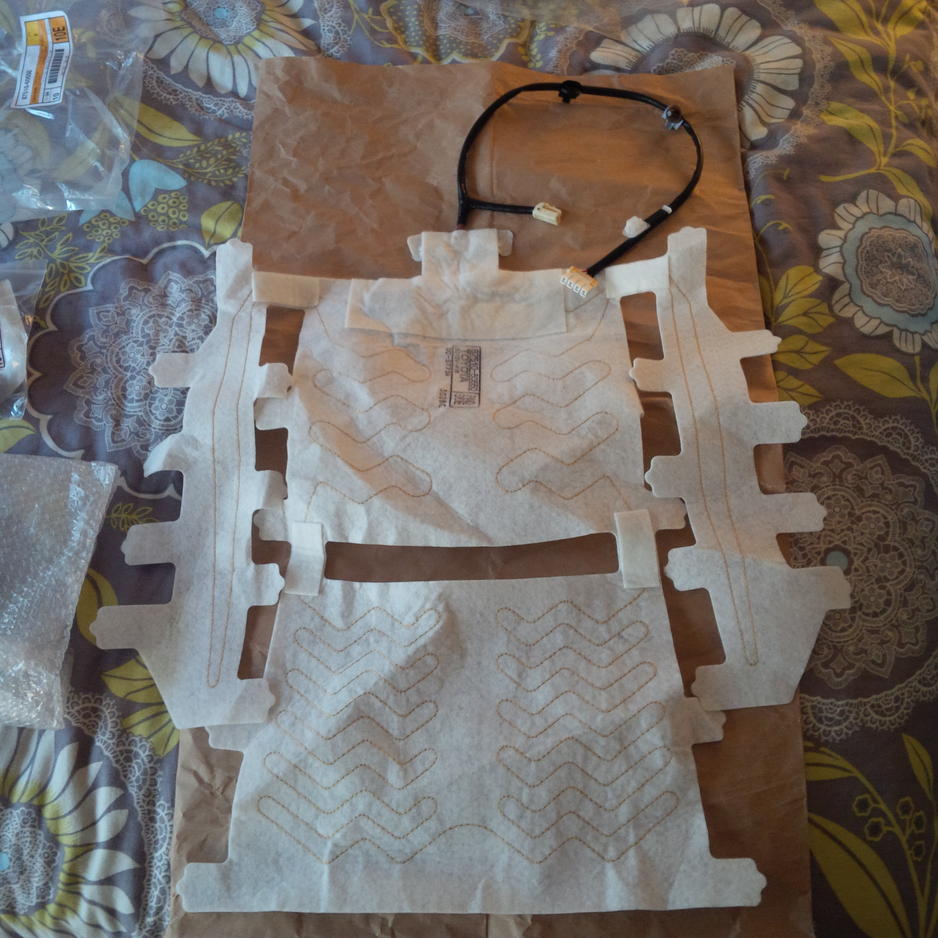

Seat Bottom Pad. This is the pad that goes in the bottom of the seat. The Seat Back Pad connects to the small 2-prong connector closest to the pad, and then the larger 4-prong connector connects to the control module.

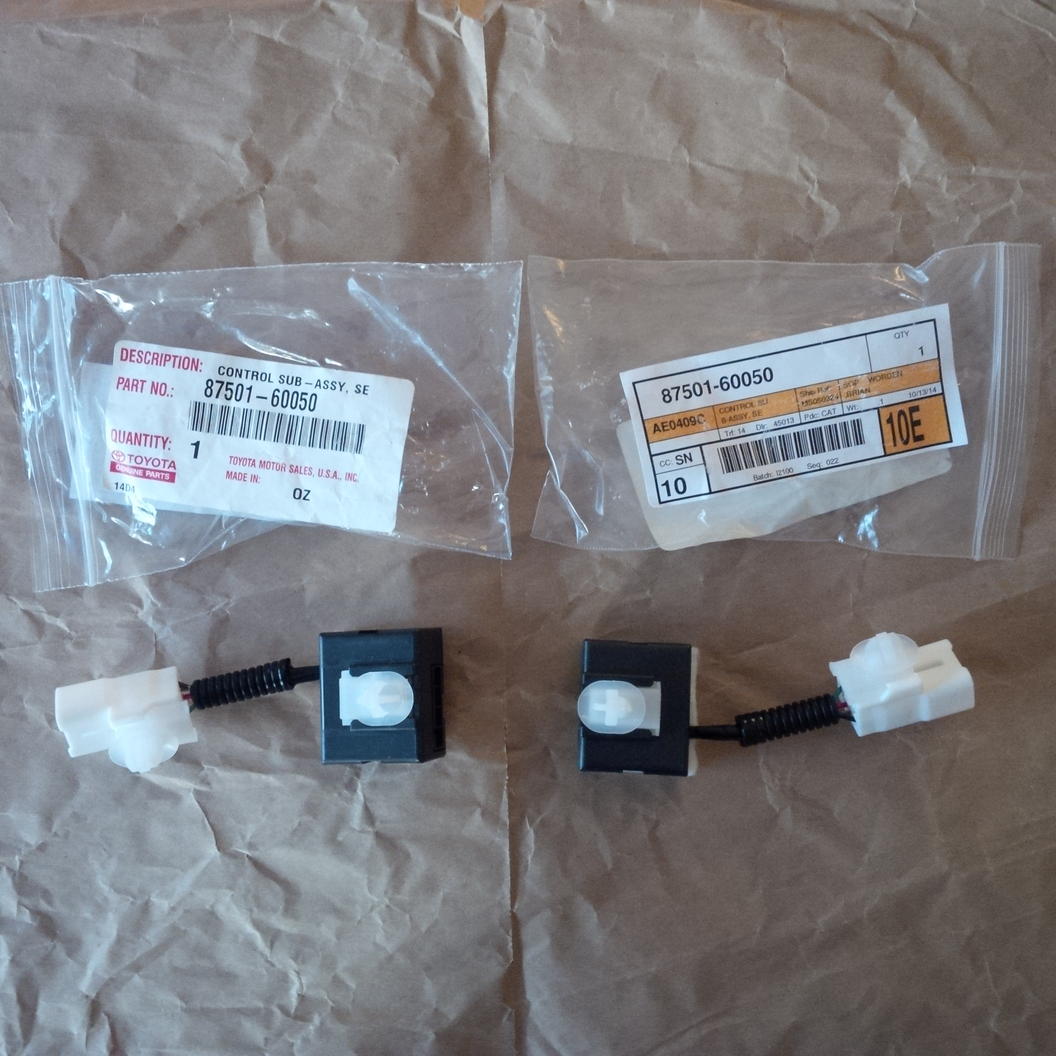

Control Modules. Theses get mounted under each seat. The Seat Bottom pad plugs directly into the module itself, and then small wire coming off the control module connects to the seat wiring harness.

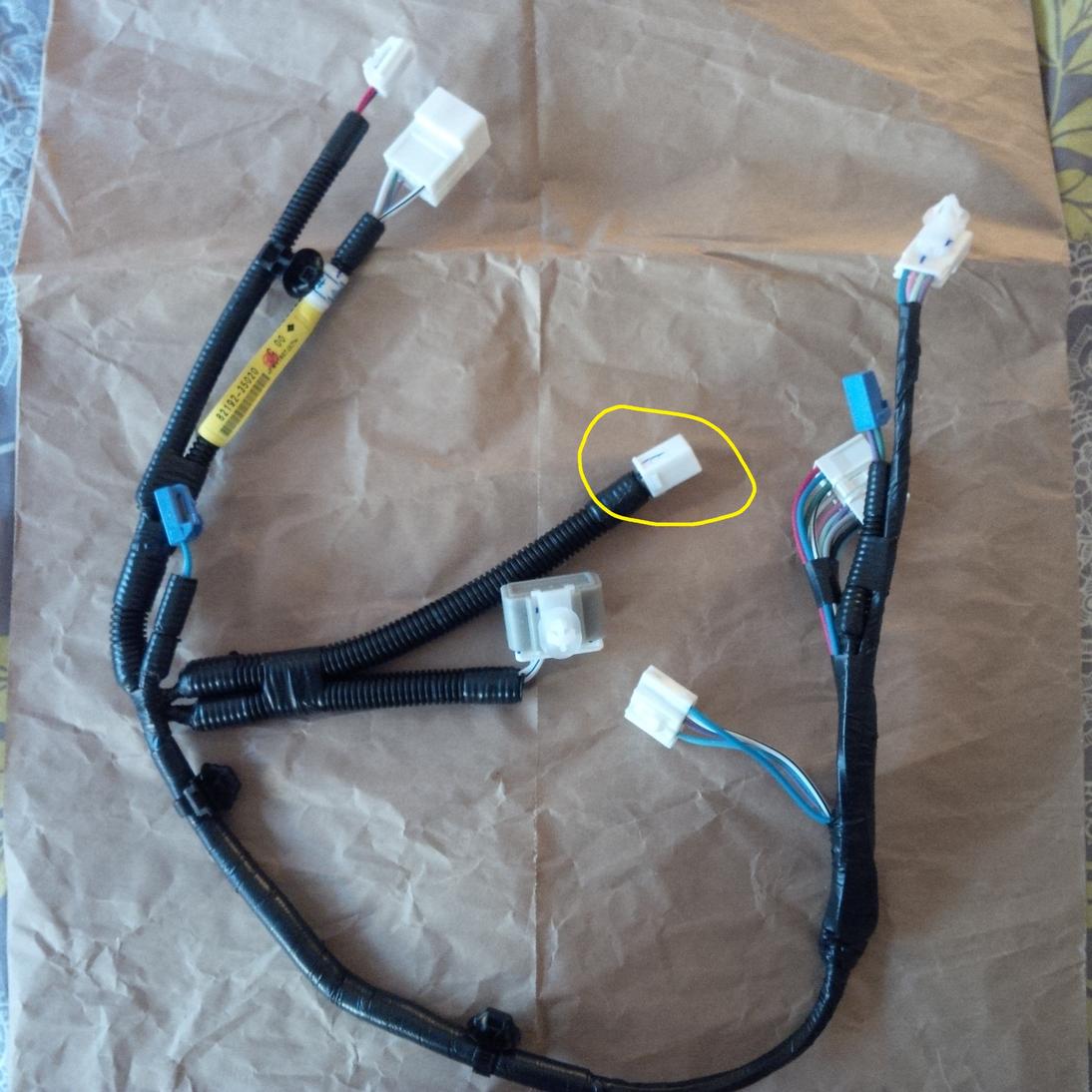

Driver Wire Harness. Replaces the stock harness. As you can see, there is a lot going on. I circled the small white connector in the center which connects to the Control Module.

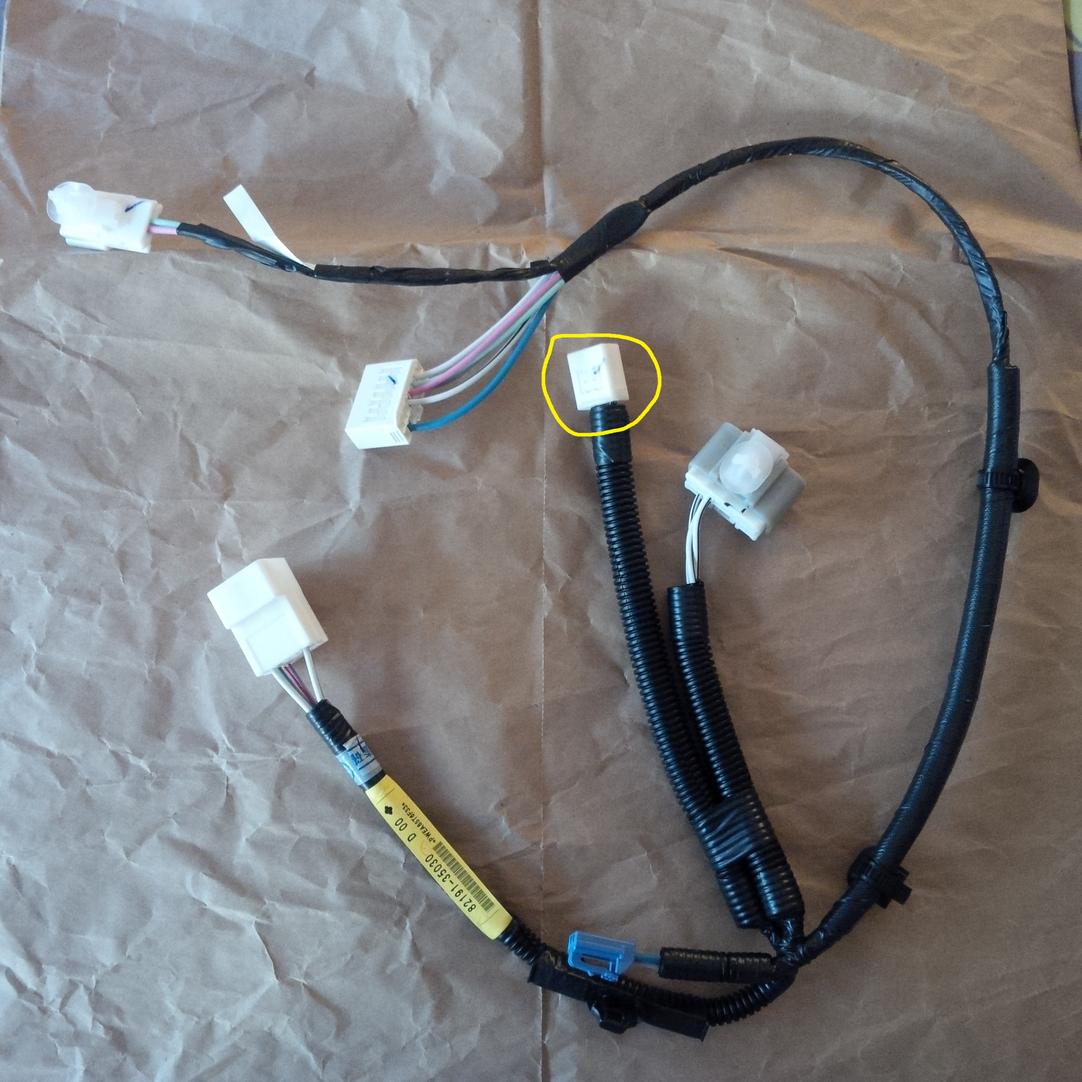

Passenger Wire Harness. Replaces the stock harness. This one is slightly less complex than the drivers side. Again, I circled the small white connector in the center which connects to the Control Module.

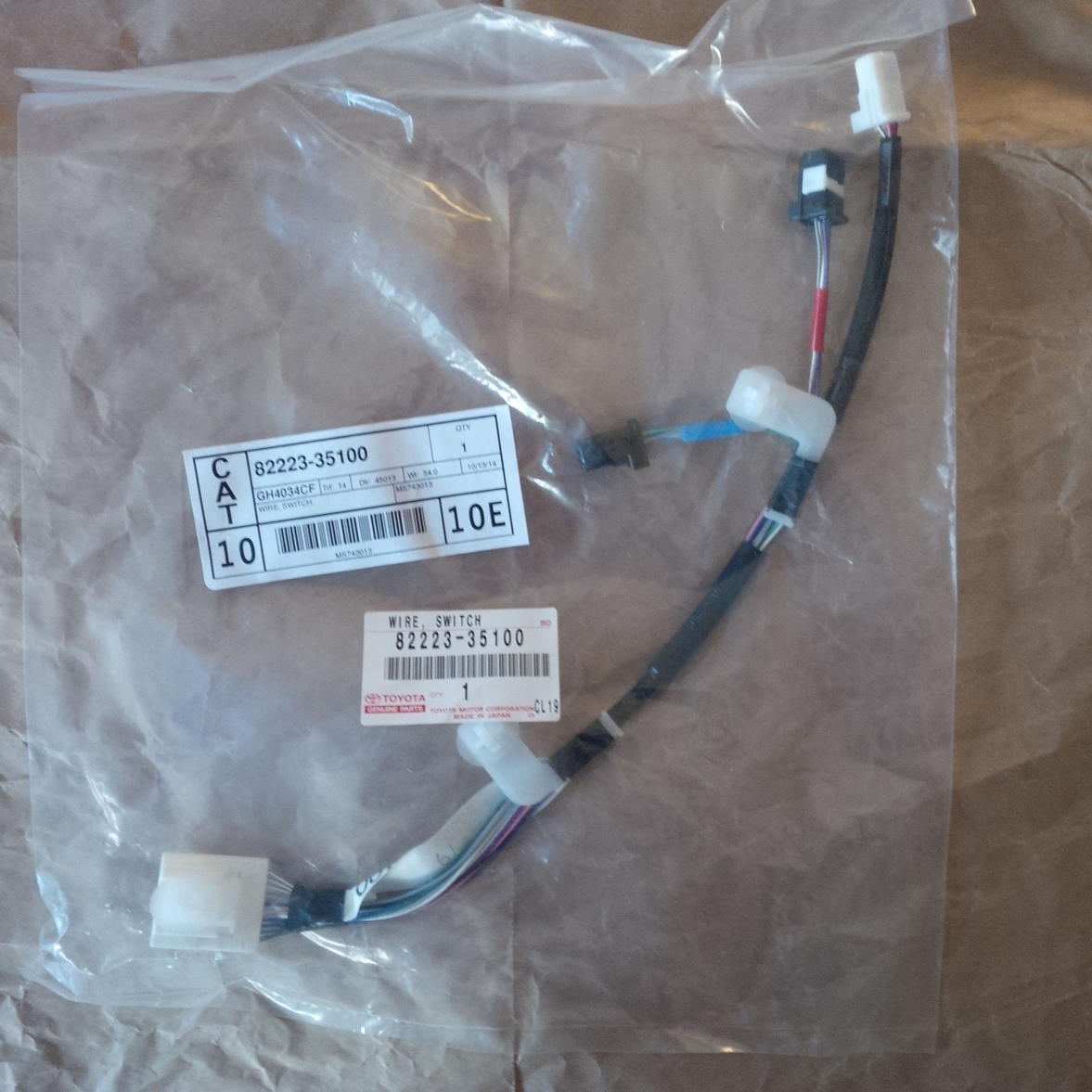

Center Console Wire Harness. Replaces the stock harness. The two black connectors connect to the two switches.

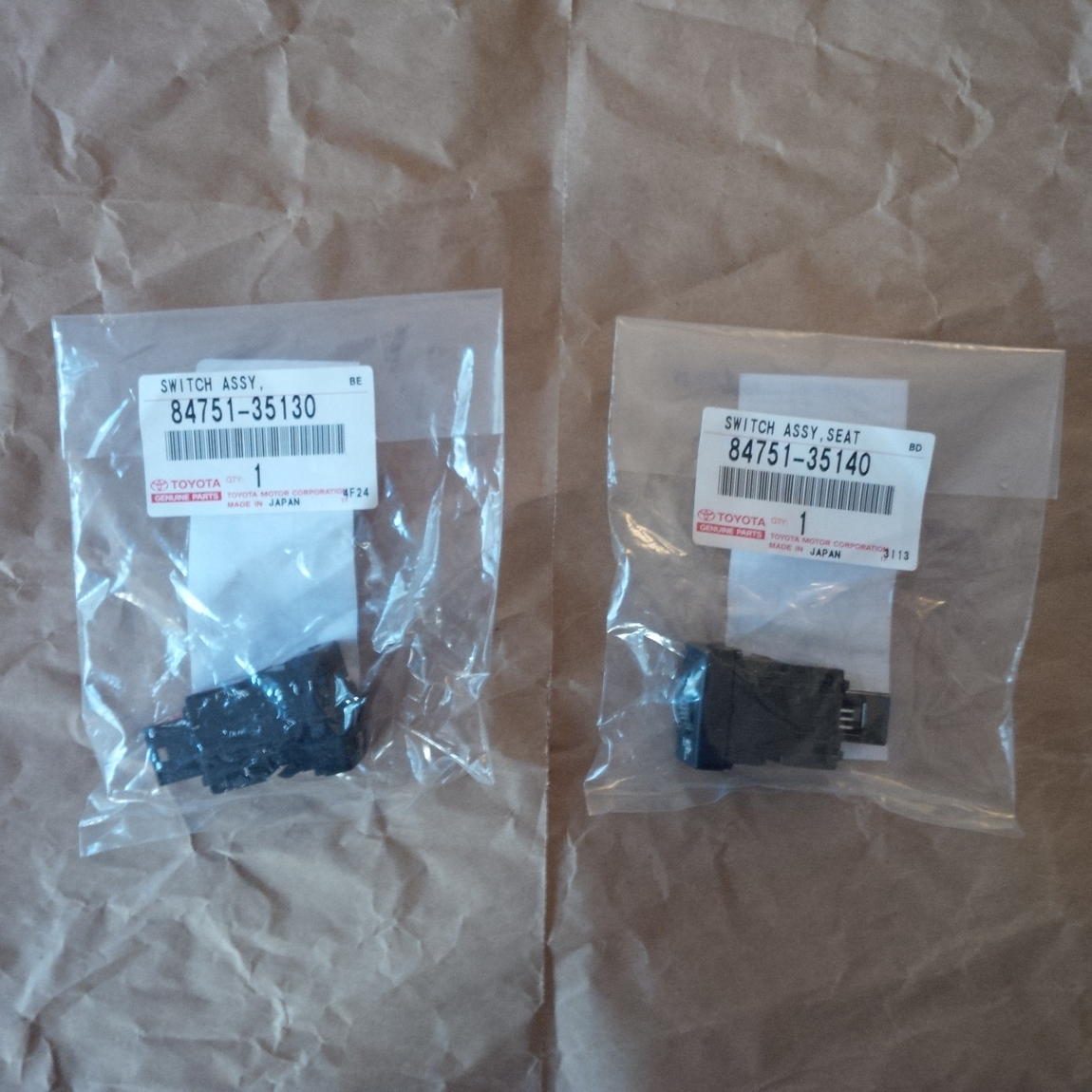

Switches. One printed "L", the other printed "R". Not much else to say.


Next post will show the end results!



[Ezekiel2222]

And here are the results!

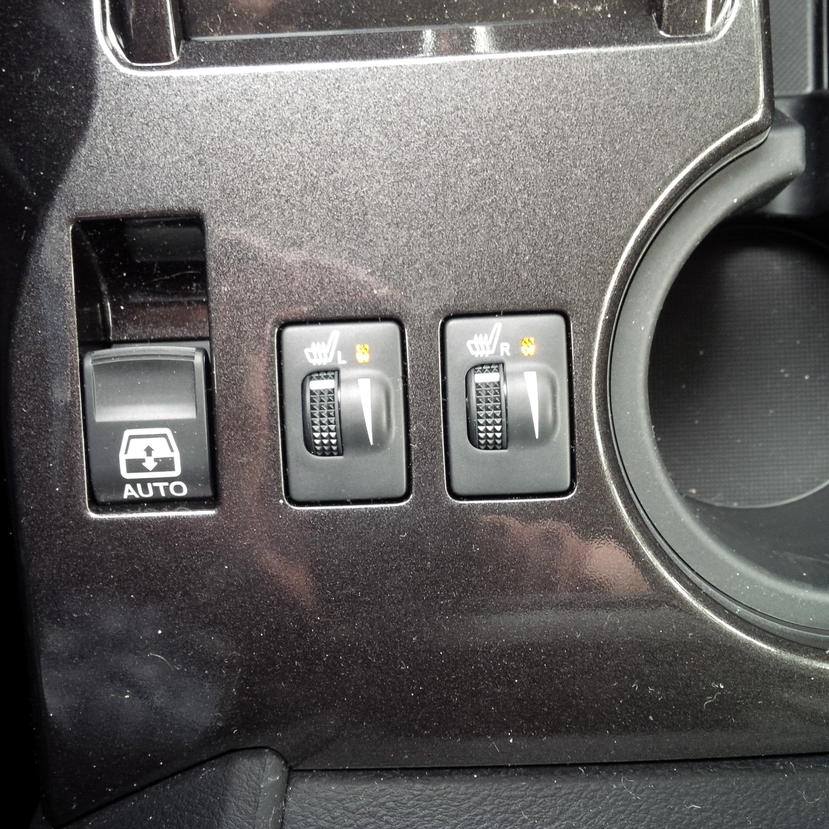

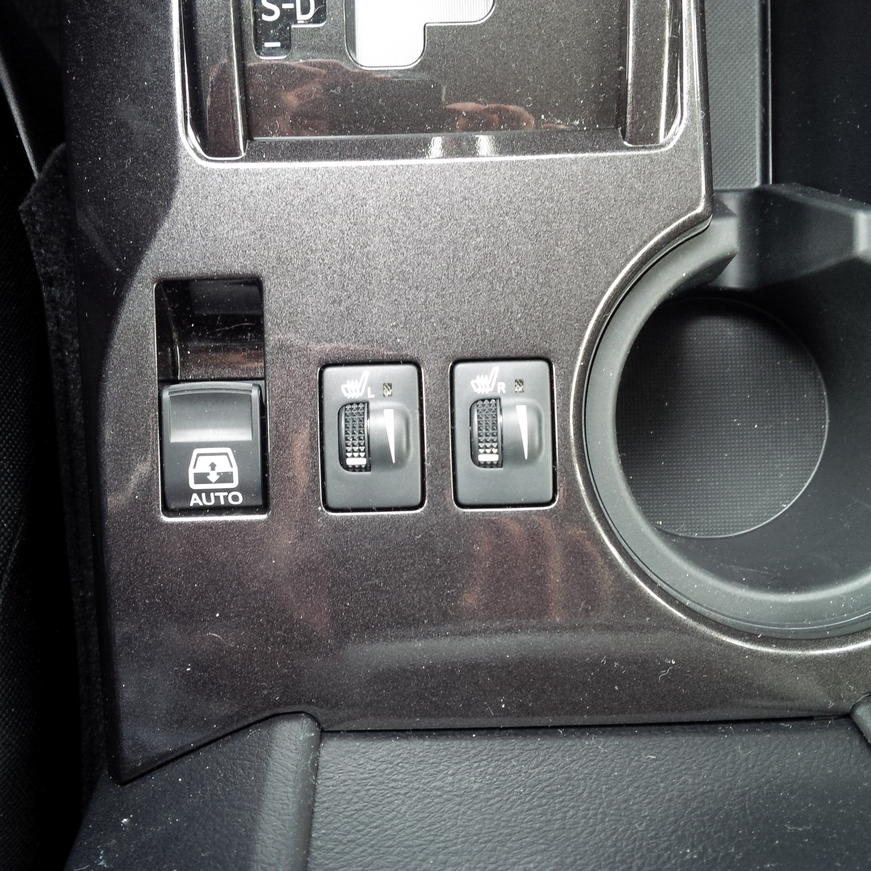

Switches installed.


Turned on. For those not familiar, there is a slight tactile "bump" to go from the off position to the lowest on position. After that it's a smooth scroll all the way up to the highest position. I'm not sure if that means the temperature is infinitely variable, but there is a clear difference between half-way on and all the way on!

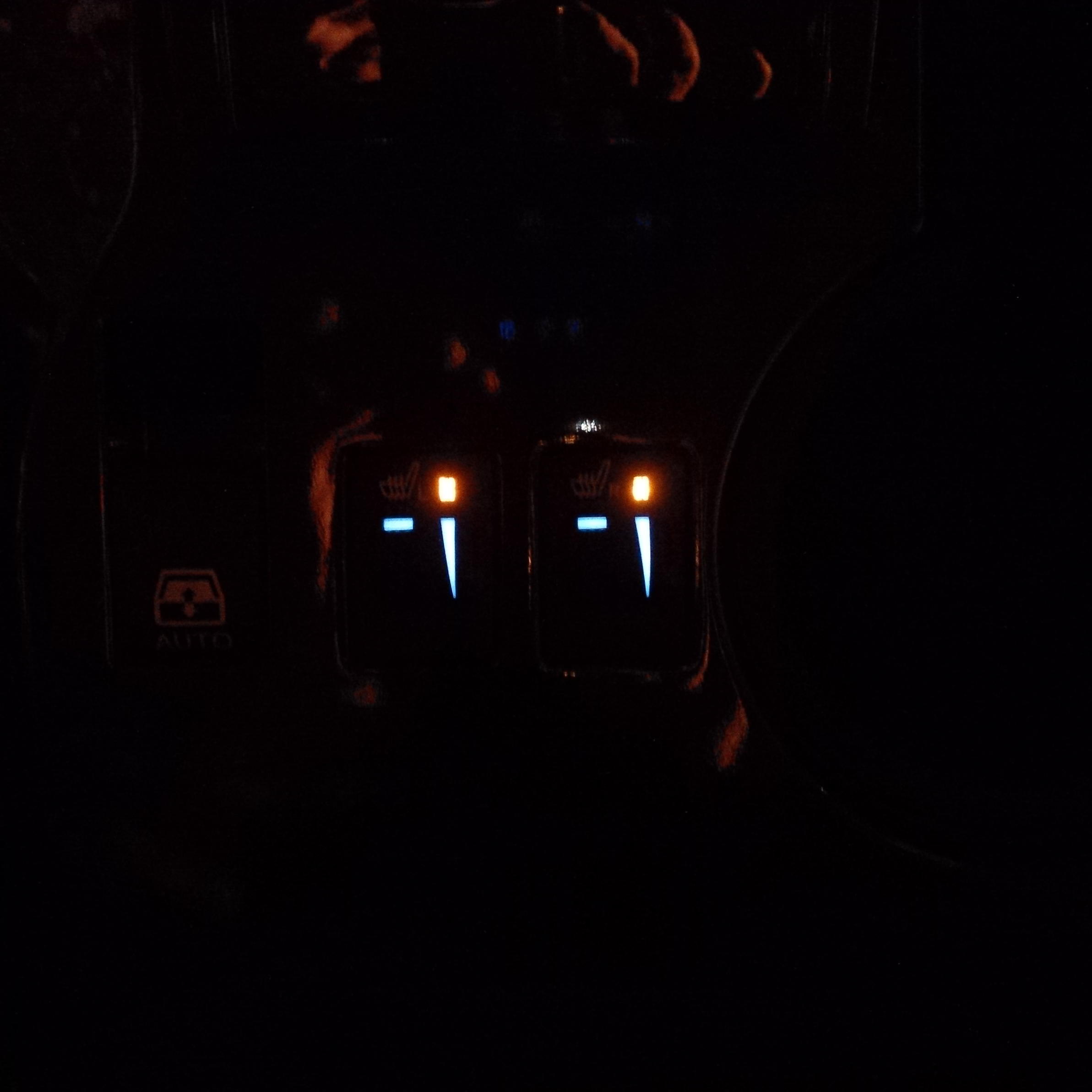

Turned on at night. I love how the white-blue backlight matches the rest of the dash, as does the orange power light. The lights are controlled by the main dimmer switch just as they should be. The heaters go off when you turn the car off, so can leave it on your favorite setting in the winter and not worry about draining your battery or starting a fire!


That's it for the pictures. For those of you looking to do a similar mod, I have a few words of advice:

I bought all the parts from http://www.toyotaonlineparts.com. There are many other parts sites out there, but I found this one to be the cheapest, even if it was only by a few cents on some parts. With that said, you will quickly see that these parts are QUITE expensive. Aftermarket options are a fraction of the cost, and may work just as well for you, so unless you are super-picky about keeping everything OEM like I am, you may want to look elsewhere. With that said, the tech that installed them said he had never see seat heaters like this, that go all the way to the top of the seat, and even cover the side bolsters. Are they nicer than aftermarket? Yes. Are they worth the extra cost? That's up to you.

If you choose to attempt the install yourself, be aware that it will be significantly harder than installing aftermarket options. The shop I took it to severely underestimated how long it would take. They had to fully disassemble each seat to replace the wire harnesses, and since these OEM pads are much larger than aftermarket ones, they had to fully remove the seat covers so they could position the pads properly. With that said, everything is plug-and-play, so there's no need to cut wires, solder stuff, or make your own harnesses.

Lastly, if you decide to let a shop do the install for you, be sure you call them ahead of time, explain what you are trying to do, and make sure they are willing to do the job. I also personally showed the shop tech what each piece was, and how they connected together. They did a great job, so I'm glad I went with the shop I did.

Standing by for comments or questions



[patch]

If you don't mind what was the price of parts total? How much did your shop charge? Are the parts the same for all 5th gens? I have a 13 trail and miss the heated seats that I had in my old truck. Thanks!
