Help an idiot wire up LED's

[DeadbeatYota]

I've spent I don't know how much time looking at diagrams and reading tutorials and still can't figure out how to get these lights to work. I tested them straight to the battery so I know they're good, it's just once the switch is involved everything goes out the window. I need someone to break it down in as simple of terms as possible what goes where. I have these lights: Buy ProStrobe QUADFIRE WHITE 70623 at Advance Auto Parts and this switch: http://www.amazon.com/gp/product/B00DWVNBIC?psc=1&redirect=true&ref_=oh_aui_detailpage_o01_s00



[VolcanoT4R]

I've spent I don't know how much time looking at diagrams and reading tutorials and still can't figure out how to get these lights to work. I tested them straight to the battery so I know they're good, it's just once the switch is involved everything goes out the window. I need someone to break it down in as simple of terms as possible what goes where. I have these lights: Buy ProStrobe QUADFIRE WHITE 70623 at Advance Auto Parts and this switch: http://www.amazon.com/gp/product/B00DWVNBIC?psc=1&redirect=true&ref_=oh_aui_detailpage_o01_s00

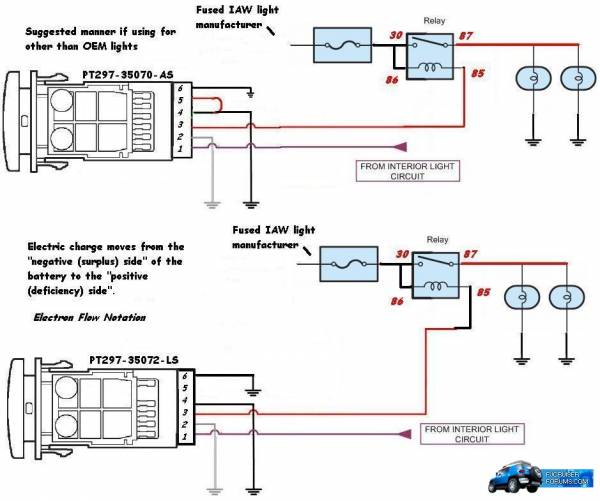

Not sure if this is what you are looking for, but the link below references the attached schematic for a 6-pin switch (which, it looks like you have)

https://www.tacomaworld.com/threads/3-wires-5-pins-need-some-help.275128/#post-6806995



[VolcanoT4R]

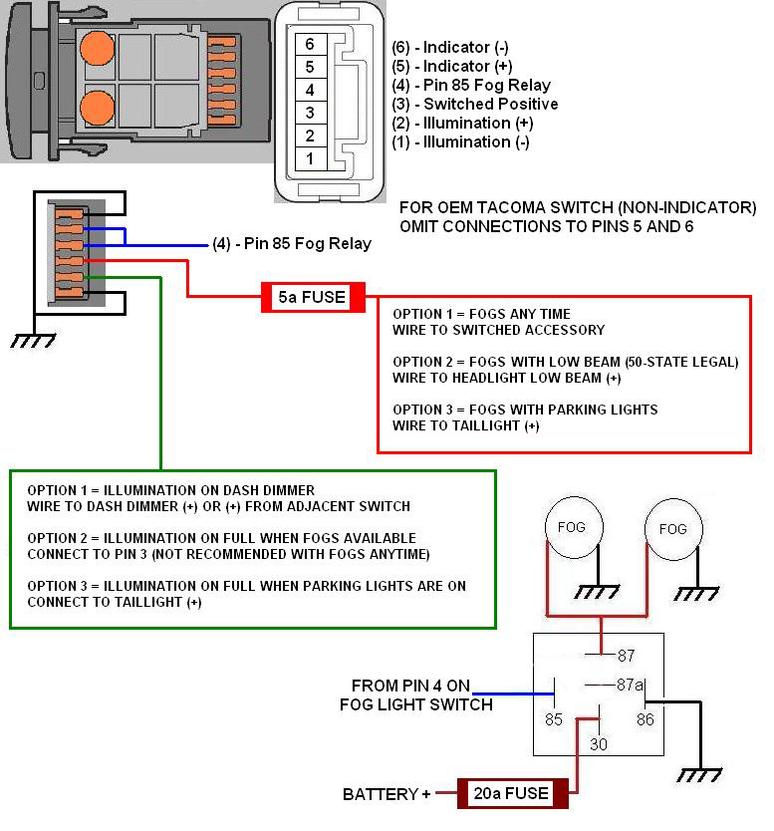

And another schematic for your switch:

Source: https://www.tacomaworld.com/threads/need-oem-fog-light-switch-wiring-diagram.156454/



[CookieRoe]

Great post. This can be applied to everything you want to turn with the "FJ fog light" switch.
