How many trail editions?

[CoosTE09]

Does anyone know how many 09 Trail editions were produced? One of those interesting useless facts I have never found.



[TheFauxFox]

Does anyone know how many 09 Trail editions were produced? One of those interesting useless facts I have never found.

I think somewhere around 10-15k total 09's were made so I imagine the number of TE's is less than 20% of that? You're very lucky, OP



[grave]

yah, let's see some photos!



[chmura]

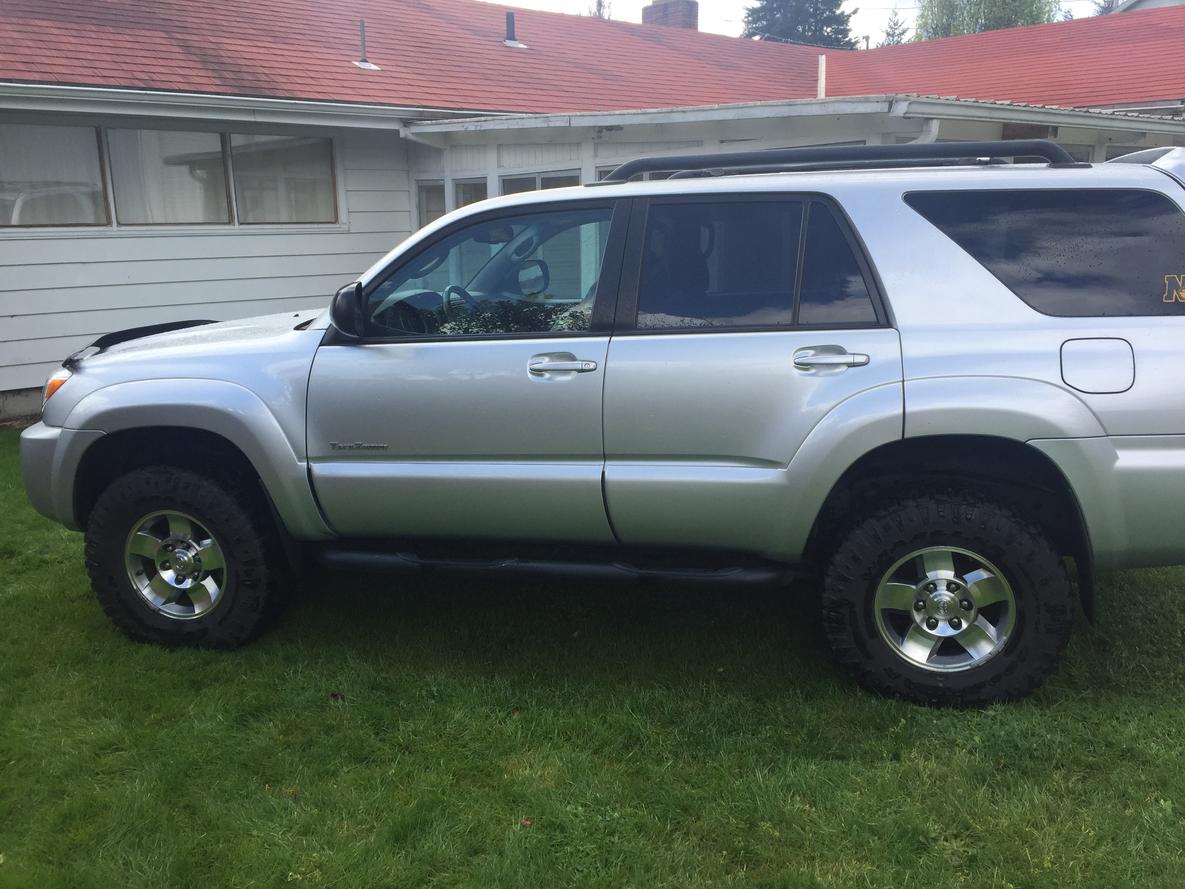

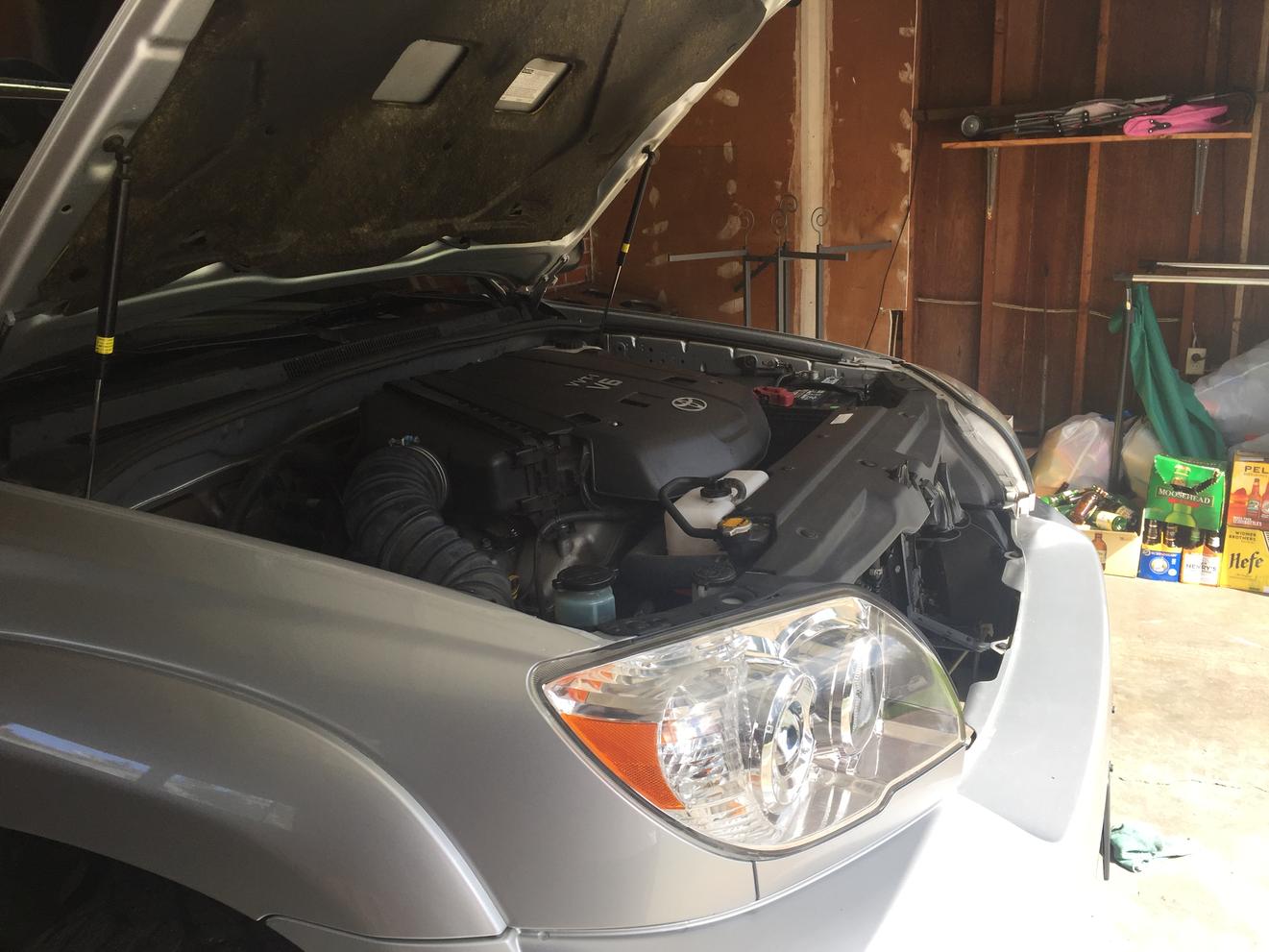

Here are some recent pictures of my Trail Edition.

In July I am taking my truck to CBI off road for them to develop a rear bumper for me with dual swing out similar to the 5th gen 4runner.



[flipflopnfly]

Courtesy of [MENTION=149207]AuSeeker[/MENTION]:

4Runner US production numbers by year model, starting from 1994 to 2016.

https://en.wikipedia.org/wiki/Toyota_4Runner

Sales
Calendar year US
1994 74,109
1995 75,962
1996 99,597
1997 128,496
1998 118,484
1999 124,221
2000 111,797
2001 90,250
2002 77,026
2003 109,308
2004 114,212
2005 103,830
2006 103,086
2007 87,718
2008 47,878
2009 19,675
2010 46,531
2011 44,316
2012 48,755
2013 51,625
2014 76,906
2015 97,034
2016 111,970



[grave]

that does not say how many TEs, though.

nice truck, chmura! where in OC do you live? are you active in the socal section? if not, head over → So Cal - Toyota 4Runner Forum - Largest 4Runner Forum



[Staceman]

I have a 2007 Sport Edition V8.
I retrofitted an e-locker diff in the rear axle.
So, it's a "Sport Trail Edition" ;-)



[CoosTE09]

Just replaced the battery two months ago, never have had a problem with it.



[Morphyne]

Courtesy of [MENTION=149207]AuSeeker[/MENTION]:

4Runner US production numbers by year model, starting from 1994 to 2016.

https://en.wikipedia.org/wiki/Toyota_4Runner

Sales
Calendar year US
1994 74,109
1995 75,962
1996 99,597
1997 128,496
1998 118,484
1999 124,221
2000 111,797
2001 90,250
2002 77,026
2003 109,308
2004 114,212
2005 103,830
2006 103,086
2007 87,718
2008 47,878
2009 19,675
2010 46,531
2011 44,316
2012 48,755
2013 51,625
2014 76,906
2015 97,034
2016 111,970

Dang that would explain why 2009s are so hard to find.



[poovs]

Okay... here's mine...

Icon Stage 2 w/front coilovers
TC UCAs
Cooper S/T Maxx 255/85R16 PizzaCutters
SCS Ray 10s

just shy of my first 100k



[grave]

i'm assuming all 4th gen TEs are 4WD, but they don't include the door badge?



[gm350reratliff]

Okay... here's mine...

Icon Stage 2 w/front coilovers
TC UCAs
Cooper S/T Maxx 255/85R16 PizzaCutters
SCS Ray 10s

just shy of my first 100k

Very nice!!

The TE's are pretty rare. In all my travels, I've only come across two in the wild.



[JeffMerr]

i'm assuming all 4th gen TEs are 4WD, but they don't include the door badge?

Mine says trail edition on the outside of the door where other 4runner models are. Picked a silver one up recently with 88k.



[jbssfelix]

Dumb question:

What's the difference between a Trail Edition and the other trim levels (SR5/Sport/Ltd)?



[twa318]

The Trail Edition was 09 model year only and was the only 4th gen that came with a factory e locker. Why Toyota waited until the very last MY to offer an e locker is anyone's guess



[JLRSR5]

Didn't they ever make any trail editions with the V8?



[gm350reratliff]

Didn't they ever make any trail editions with the V8?

No, V6 only. A V8 TE would be badass though!



[SacNorCal]

I have a 2007 Sport Edition V8.
I retrofitted an e-locker diff in the rear axle.
So, it's a "Sport Trail Edition" ;-)

Which e locker did you grab? Did you get full rear axle or just the locker? After market wire harness to engage? Does it affect ATRAC? I'm very interested in doing mine.



[techno]

Dumb question:

What's the difference between a Trail Edition and the other trim levels (SR5/Sport/Ltd)?

Here's the Toyota press release detailing the Trail Edition...

A Trail Edition 4Runner is available as an upgrade to the SR5 model, whereas the Urban Runner remains an upgrade to the Sport Edition. This new Trail Edition 4Runner is only be available on model #8664 (GRN215L-GKAGKA) which is the SR5 4x4 V6 4.0L. It's features are as follows:

Rear Differential: A rear electronic differential lock system is provided. BD20B Type (with Differential Lock Actuator). A RR Diff Lock switch will be located on the center console along side of the DAC switch. A new A-TRAC switch is also located in this area. The Differential Gear Ratio is 3.727, Ring Gear Size is 205mm (8.0") and the Oil Capacity is 2.95L (3.12 us qts, 2.60 imp qts)

Tire & Wheel: Newly designed 16-inch aluminum wheels with tire size P265/70R16. The Offset is 15mm.

Suspension: Bilstein made mono-tube shock absorbers.

Exterior: A color keyed radiator grille, outside door handles and rear license garnish. Distinctive black-painted tubular side steps and roof rack. Unique badging.

Interior: Seating with waterproofed fabric upholstery, a leather shift knob and perforated leather-wrapped steering wheel with integrated audio controls. AM/FM CD with six speakers and detachable TomTom Personal Navigation Device with MP3/WMA and Bluetooth capability.

Meter: The combination meter has been changed to include an A-TRAC indicator light and a rear differential lock indicator. The downhill assist control (DAC) indicator light and washer indicator light have been discontinued.

Brake Control System: ABS, EBD, brake assist, Auto LSD, TRAC, A-TRAC, and VSC are provided. An A-TRAC switch is provided.



[duffdog]

Which e locker did you grab? Did you get full rear axle or just the locker? After market wire harness to engage? Does it affect ATRAC? I'm very interested in doing mine.

The 05+ tacoma elocker works great. I have one installed. As long as its not engaged, ATRAC works normal. On an obstacle it works great because the ATRAC only plays with the front wheels while the rear wheels never engage the traction control.
