In the middle of the frame swap: what’s the Part Number for the fuel/brake line to frame retaining clips?

[cl4Rk]

In the middle of the frame swap: what’s the Part Number for the fuel/brake line to frame retaining clips?

Hey all,

I'm in the middle of this frame swap (I'll do some documenting of the frame swap later) and I've been on parts.toyota.com but I can't figure out the part number for the fuel-line-to-frame and brake-line-to-frame retaining clips. I think I've seen them called Frame Rail Retaining Clips or something like that.

Any clues? I need about 8-10 of these.

Photos forthcoming. Thanks!



[cl4Rk]

Looks like the images won't load, even after re-uploading them. Lemme try again.



[cl4Rk]

Lemme try again.



[spartacus]

Hey all,

I'm in the middle of this frame swap (I'll do some documenting of the frame swap later) and I've been on parts.toyota.com but I can't figure out the part number for the fuel-line-to-frame and brake-line-to-frame retaining clips.

Any clues? I need about 8-10 of these.

Photos forthcoming. Thanks!

I think its 77285-35300.



[spartacus]

Here is a link that might help.
If I ever strip the nuts that screws the fuel lines onto fuel filter



[cl4Rk]

I think its 77285-35300.

Holy smokes thank you!!! That pointed me in the right direction.. Looks like there's several variations of this part.



[cl4Rk]

Here is a link that might help.
If I ever strip the nuts that screws the fuel lines onto fuel filter

There it is. Awesome. Thank you!



[ToyotaBrah]

Good luck on the swap. Coat the frame channels with oil while it's off the truck.



[cl4Rk]

Good luck on the swap. Coat the frame channels with oil while it's off the truck.

Thanks!

Oh yes, down to bare metal, POR-15, coated the inside, painted, etc..



[cl4Rk]

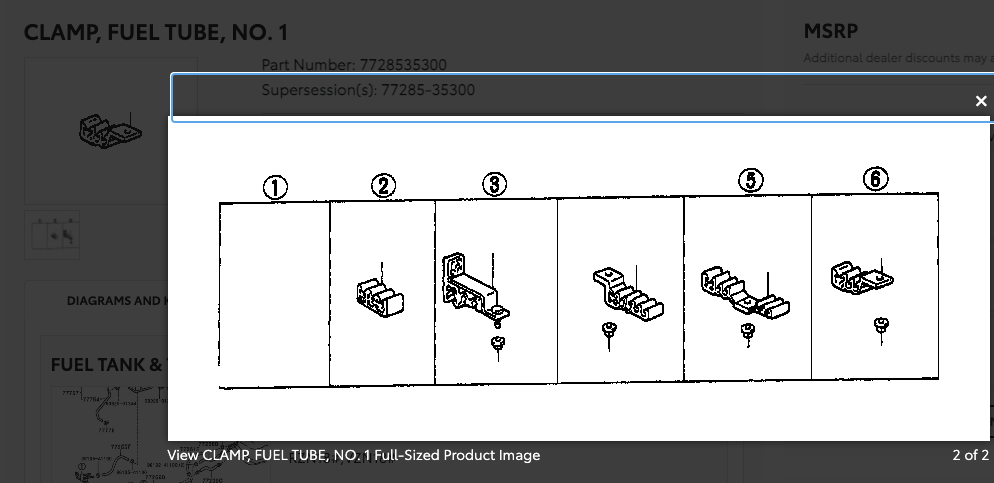

After [MENTION=50279]spartacus[/MENTION] pointed me in the right direction, I consulted with my local Toyota Part Department. They seem to think I want to get the so-called “GROMMET, FUEL TUBE” Toyota Part Number 77295-35110

The technical drawings are not very clear, so I’ll update this thread and get a photo if I find that they’re the right part.



[HiLife]

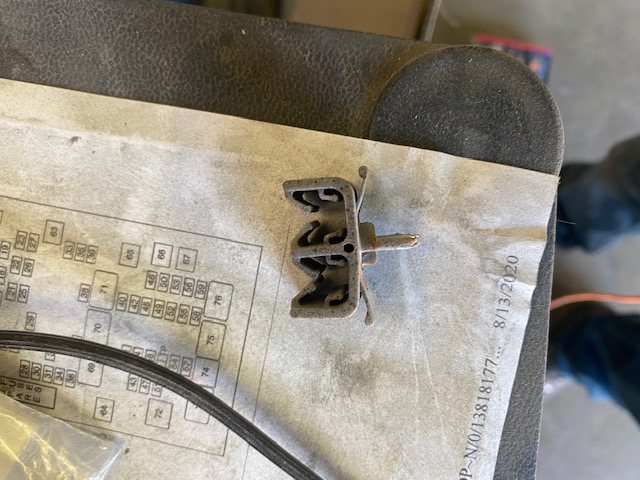

This could be how 77295-35110 looks like.



[cl4Rk]

This could be how 77295-35110 looks like.

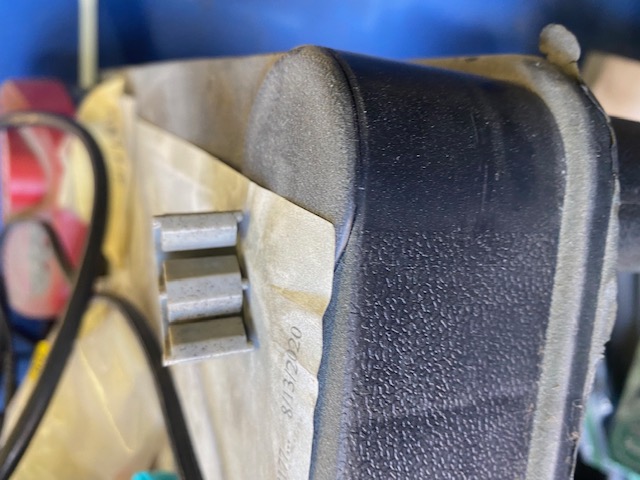

Looks like a different part. Darn.



[cl4Rk]

Looks like a different part. Darn.

Can confirm: they are in fact different parts, but they work and are essentially interchangeable.
