Installing a new Brake Dust Shield without taking the hub apart.

[19963.4lsr5]

So, I figured I’d put this here instead of burying it in my way too long thread to make it easier for others to find.

As I noted before my old shield literally fell off from rust.

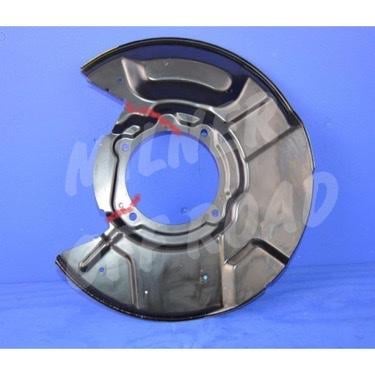

@%1; gave me a picture of where to cut a new shield to install it on the steering knuckle loosing one of the mounting bolts.

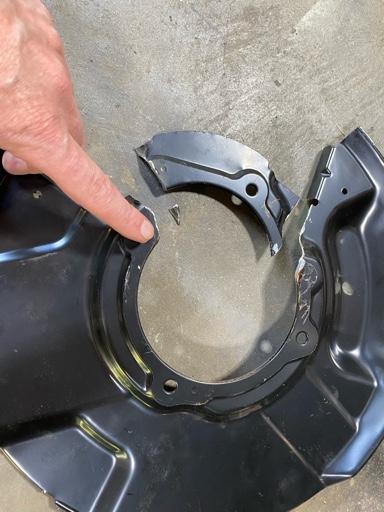

So I followed the picture and first cut

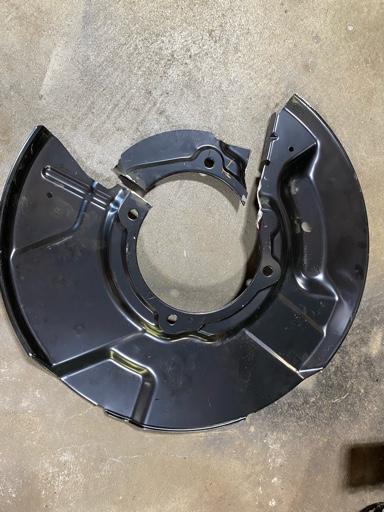

Then some trimming was required

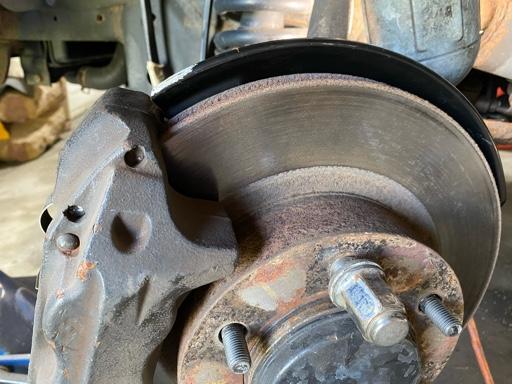

And done…piece of cake….

I will mention those bolts that hold the dust shield on had me worried removing them without rounding them or breaking the heads off. But I had a shallow 12mm socket and used my 3/8 breaker bar and got them loose and then used a wrench for removal. There iis not is not much room for a socket and ratchet between the back of the hub and the bolt head.
