JBL 10 spk system HU wiring pinouts.

[gregtay]

Just in case you were wondering how the JBL 10 SPK system is wired up... here are the pinouts from the HU connections. There are three connectors. The unit sends pre-outs to the AMP as well as a communications channel to the AMP. All speakers connect to the AMP and the AMP controls surround, fader, balance, etc. I believe the HU still takes care of the volume. I have the AMP pinouts as well if you want them. (As well as the Camry and Solara radio pinouts.)

Head unit pinouts:
PINOUTS

2003 4Runner Radio and Player w/out NAV, w/10 Speaker JBL
Offically from Toyota: "Radio and Player (w/o Navigation System Execpt 6 Speaker)
RADIO AND PLAYER

Connector
R1(A) 20pin
PIN Color Cnx to
1 L-Y pwr
2
3
4
5 B TX+ to AMP
6
7 W-R MUTE to AMP
8 G L- to AMP
9 R L+ to AMP
10 SHLD goundloop
11 GR ACC
12
13 B ANT AMP
14
15 W TX- to AMP
16
17
18 R- R- to AMP
19 L- L- to AMP
20 BR GND

R4(B) 12pin
PIN Color Cnx to
1
2
3
4
5
6 P MUTE to rear audio
7
8
9 R TX+ to rear audio (remote and display)
10 G TX- to rear audio (remote and display)
11
12

R5 (C.)
PIN Color Cnx to
1
2
3
4
5
6 W-R SW Remote (steering wheel)
7 V-W SW Remote (steering wheel)
8 Y-B SW Remote (steering wheel)
9
10
11
12
13
14 SHIELD ground loop
15 B Rear seat audio R+
16 W Rear seat audio R-
17 R Rear seat audio L+
18 G Rear seat audio L-
19 V R Mute
20


-gregtay



[RL Lemke]

Thank-you so much for this info. I have a BlitzSafe Aux In connector on the way to me. Still trying to decide whether to do the install myself or to take it somewhere. Any thoughts? Any photos of the back side of the JBL radio?



[Dude]

If the amp controls the fader and such....wouldn't you want to tap the leads after the amp and use a line-level converter if you are adding amp/subs to the OEM headunit?

Hey....any more info on the Blitzsafe product? I assume this is an aux-in adapter for an ipod or XM. How is it hooked up?



[gregtay]

I have added wiring diagrams for the Solara and Camry w/ NAV here:

http://www.toyota-4runner.org/showthread.php?s=&threadid=2806



[sal16]

what is tx? which is front, and which is rear?

do you have the diagram? that would be a lot easier to read than the schematics. something like the camry/solara ones you posted.



[gregtay]

what is tx? which is front, and which is rear?

do you have the diagram? that would be a lot easier to read than the schematics. something like the camry/solara ones you posted.

TX is a communications channel, jsut think of it as data. I do have the diagrams for the 10spkr JBL, I will post it as soon as i get a chance.



[sal16]

thanks. can you also include what each color is abbreviated by. i really appreciate it.



[sal16]

anyone else have them? or if you still have them gregtay, could you please post them. thanks a lot.

Salvador



[gregtay]

anyone else have them? or if you still have them gregtay, could you please post them. thanks a lot.

Salvador



[gregtay]



[gregtay]

thanks. can you also include what each color is abbreviated by. i really appreciate it.

It is pretty easy to figure out the colors. BR=Brown, etc. I don;t have a color copy.. so i can't really help out. Sorry about that. B-R means black with red stripe, etc.



[gregtay]

hmmm. i tried uploading all of them.. but it doesn;t look like that worked. here are the missing two...



[gregtay]

,



[sal16]

so it looks like the amp only powers the sub and the far back speakers. is this correct? from what i gather, all the other speakers are powered by the deck. or is there an amplifier somewhere that i am missing for the door speakers. thank you so much.

Salvador



[gregtay]

so it looks like the amp only powers the sub and the far back speakers. is this correct? from what i gather, all the other speakers are powered by the deck. or is there an amplifier somewhere that i am missing for the door speakers. thank you so much.

Salvador

No, look again. The AMP is shown on two different pages. The AMP powers all 10 speakers.



[NoDak]

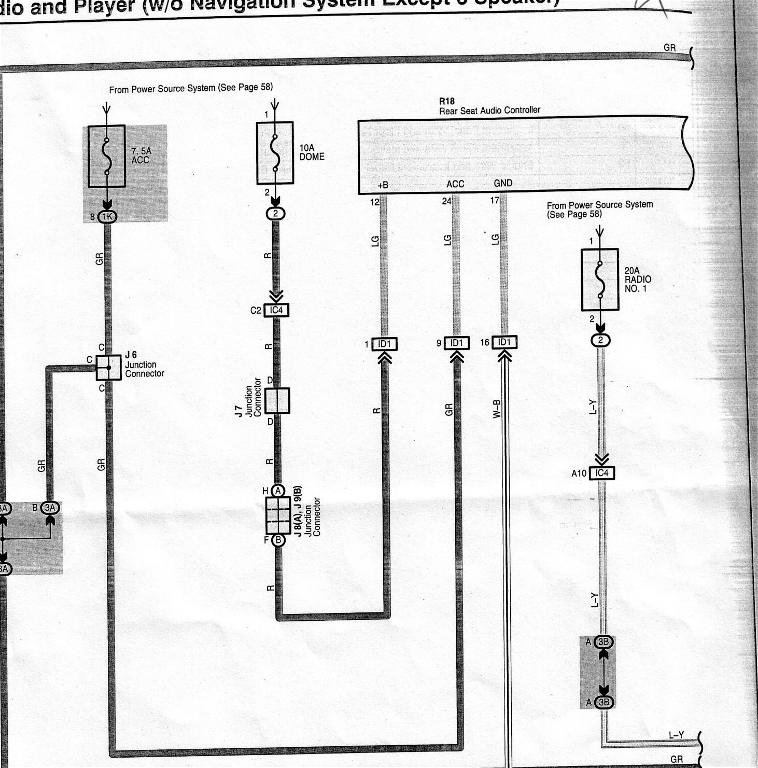

here is the extreme left side of the picture



[NoDak]

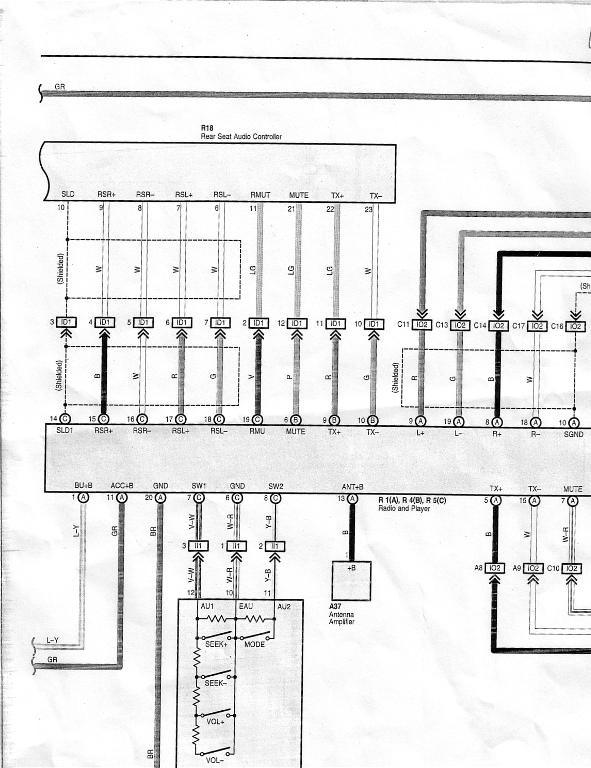

here is the left picture



[NoDak]

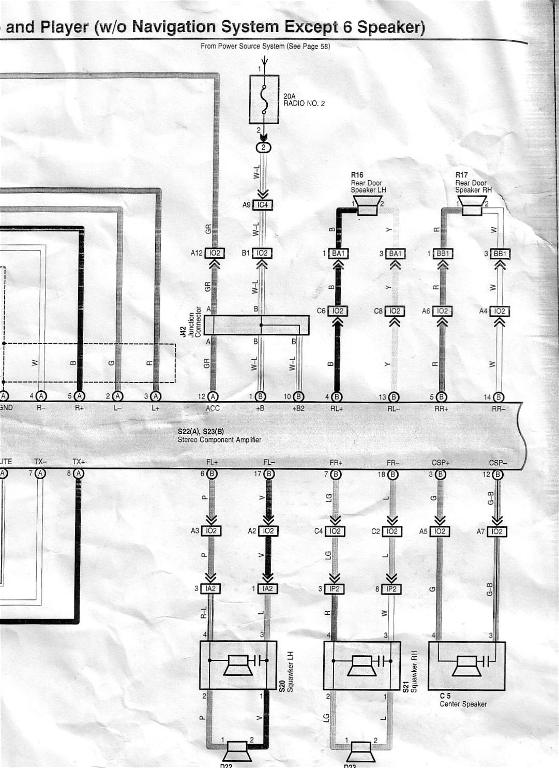

here is the middle picture



[NoDak]

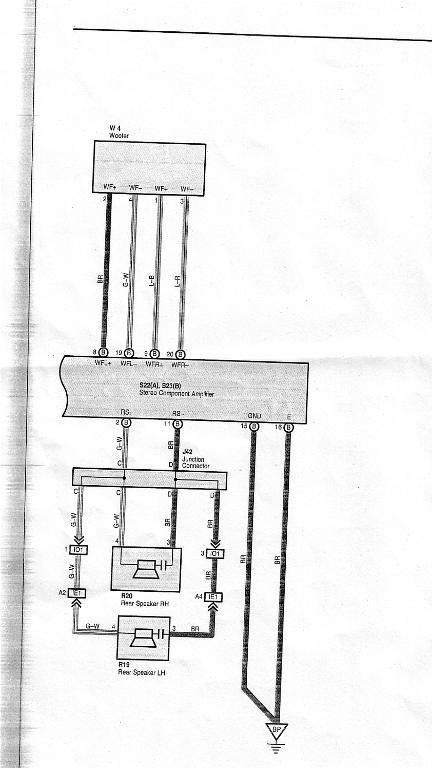

here is the right picture



[sal16]

so the deck only outputs shielded left and right to the amp? and the amp does the processing? in the diagram it looks like and readio and player is continous with stereo component amplifier, and that all the shielded wire go back into it.
