JerkyDrewster's 2001 4Runner Build V2

[JerkyDrewster]

2001 Toyota 4Runner SR5 Sport Edition - Millennium Silver

Current picture - April 2018
https://flic.kr/p/21DCjx3

I bought this 4Runner on February 4th, 2017 with just over 214,000 miles on the clock. It was very well maintained by the previous owners with most of its services from Toyota, including 2 timing belt jobs. It lived its entire life in the Bay Area, so there is almost no rust on the entire vehicle. So far, it has been so much nicer to work on compared to my previous rig.

The day I brought it home - Feb. 2017
https://flic.kr/p/WoYT92

Upgrades & Modifications - February 2022

Wheels & Tires
- 285/75R16 Cooper Discoverer S/T MAXX (Page 1, Post 9)
- 315/75R16 Falken Wildpeak AT3W (Page 11, Post 154)
- Stealth Custom Series 16x8 Stealth 6 (Page 1, Post 9)

Suspension
- Fat Pats 1" Body Lift
Front
- ICON 58716C 2.5 Extended Travel Remote Reservoir Coilover with CDCV (Page 1, Post 9)
- ICON 650 Lbs/in Springs (Page 1, Post 9)
- ICON 58400 Tubular Upper Control Arms (Page 1, Post 9)
- MStudt's Sway Bar End Links (Page 1, Post 9)
- Energy Suspension Sway Bar Bushings (Page 1, Post 9)
- Whiteline Lower Control Arm Bushings (Page 1, Post 9)
- Toytec 1" Differential Drop (Page 1, Post 9)
- Total Chaos Weld-On LCA Cam Tab Gussets (Page 2, Post 27)
- Strongflex LCA Bushings (Page 9, Post 121)
- Total Chaos Spindle Gussets (Page 10, Post 136)
- Eimkeith Strut Tower Reinforcement (Page 10, Post 148)
Rear
- Toytec Superflex Springs (Page 1, Post 9)
- ICON 57800CP 2.5 Remote Reservoir Shock with CDCV (Page 1, Post 9)
- 2001 Chevy Blazer Bump Stops (Page 1, Post 9) [Junkyard Bumps]
- MStudt's Sway Bar End Links (Page 1, Post 9)
- Energy Suspension Sway Bar Bushings (Page 1, Post 9)
- Toytec Panhard Drop Kit (Page 2, Post 27)
- EimKeith Panhard Correction Kit (Page 9, Post 122)

Undercarriage/Drive Train
Front
- Power Stop 231mm Tundra Calipers (13WL) (Page 1, Post 9)
- OEM Tundra Rotors (Page 1, Post 9)
- Toytec Braided Brake Lines (Page 1, Post 9)
- Energy Suspension Steering Rack Bushings (Page 1, Post 9)
- CVJ Re-manufactured CV Axles with Extended Inner Boots (Page 1, Post 9)
- B&M 70264 SuperCooler Transmission Cooler (In series)
- 4.88:1 Nitro Gears (Page 10, Post 143)
Rear
- Extended Rear Diff Breather
- 4.88:1 Nitro Gears (Page 10, Post 143)
- ARB Air Locker RD132 (Page 10, Post 143)
- Wheeler's Braided Brake Line

Electrical
- Blue Sea Systems 12 Circuit Fuse Block (Page 4, Post 56)
- Blue Sea Systems 100A & 120A Circuit Breakers (Page 4, Post 56)
- Blue Sea Systems 150A Busbar (Page 4, Post 56)
- Ripcord's Fuse Block Bracket (Page 4, Post 56) [Thread]
- Modified Ripcord's Fuse Block Bracket (Page 11, Post 153)
- Mega-Tron Plus MTP-24F Battery
- Delphi Weather Pack 22-Position Bulkhead Connector (Page 4, Post 56)
- 12V 100A SPST Relay (Page 4, Post 56)
- Upgr8 7" Electric Fan
- CS144 Alternator (Page 8, Post 114)
- "Big 3" Upgrade (Page 8, Post 114)
- EP35 Flasher Relay (Page 8, Post 114)

Stereo System/CB/Ham
- Kenwood DDX371 Receiver
- Sony XAV-AX6000 Receiver
- Polk Audio db6501 6-1/2" Front Speakers
- Kicker 43DSC504 5-1/4" Rear Speakers
- Pioneer TS-SWX2502 Sub
- Pioneer GM-D8604 Amp (Page 3, Post 43)
- 2015 Baofeng UV-5R5 Handheld Ham Radio
- Uniden Pro520XL CB Radio (Page 4, Post 60)
- Yaesu FT-7800R Ham Radio

Interior
- Rexing V1 Dashcam
- WeatherTech Floor Liners
- OTRATTW Lower Independent Light SPST Switches (Page 5, Post 63)
- Advanced Keys Smart Keyless Entry and Push Button Start (Page 6, Post 81)
- Custom Cargo Box V2 (Page 9, Post 129)
Interior Lighting
- LED Gauge Lighting (Red)
- LED Dome and Cargo Lights (White)

Exterior
- WeatherTech Window Deflectors
- Smittybilt 9.5K Synthetic Line Winch (Page 2, Post 25)
- Poly Performance Aluminum Winch Fairlead
- MStudt's Drifter CB Mount (Page 6, Post 81) [Thread]
- FireStik FL3-B 3' Black CB Antenna
- Diamond NR-770HBNMO Antenna
- ARB High Output Air Compressor (Page 9, Post 135)
- Spiker Engineering Hood Struts (Page 11, Post 153)
Exterior Lighting
- TRS Bi-Xenon: Morimoto Mini D2S Stage III Headlight Retrofit (Page 3, Post 33)
- KC HiLites 6" Pro Sport LED Lights (Page 2, Post 25)
- Rigid Industries Dually Flood Lights
- Offroadtown Flush Mounted LED Pods (Page 8, Post 120)
- Eagle Eye LED Rock Lights (Page 10, Post 144)

Armor
- CBI Offroad Front Hybrid Bumper (Page 2, Post 19)
- Savage Offroad Front Engine and Differential Skids
- Stubb's Welding HD-SKO Sliders (Page 2, Post 27)
- CBI Offroad Rear Plate Bumper (Page 5, Post 74)
- Lil Skip's Gas Tank Skid (Page 8, Post 116)

https://flic.kr/p/PeRBbh

https://flic.kr/p/29ZeBL8

https://flic.kr/p/21fH9gG

https://flic.kr/p/21fH9iW

https://flic.kr/p/WmtGFz



[JerkyDrewster]

Background:

While my history with 4Runner's might not be as long as others, I'll still share a little bit.

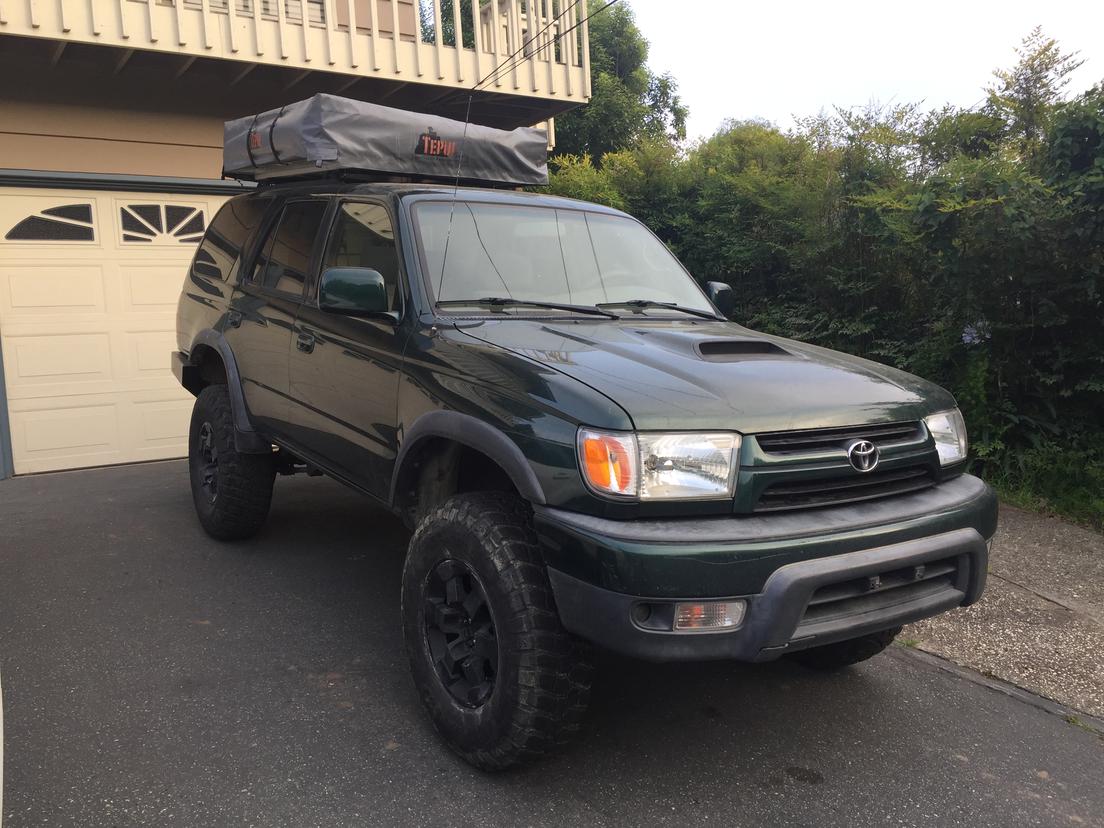

My love for the 4Runner started 2.5 years ago when I got my 1999 4Runner SR5 "Highlander" in black. I learned everything I know now about cars and how to work on them, and I wouldn't trade anything for that experience. It left me frustrated countless times due to the rust, but I did get it when it only had 92,000 miles on it. Over the past couple years, I put 25,000 miles on it, but is good life ended short when I was heading up to snowboard in Bear Valley this past January. The back end hit some ice and I wasn't able to recover it. I regained traction going sideways and I did a complete roll of the car. Luckily no one was injured, but all of the work I put into it had vanished in an instant. Here is the video from the accident that I captured on my dash cam...funnily enough, we were all talking about how I had not captured anything interesting on it yet...

Insurance definitely came through on this one which included aftermarket insurance. I was able to salvage a lot of my old components including suspension, axles, the front bumper (only minor damage), and a lot of electrical! Some pictures of the aftermath and parts can be seen below.

Original Build Thread - Jerkydrewster's 99 4Runner Build Thread



[JerkyDrewster]

February 5th, 2017

Unlike my previous rig, I wanted a good amount of "before" pictures. I snapped a ton of shots around the car just so I could see how everything looked prior to me upgrading and modifying it. In terms of what I want to do with this one, I think I want to stick with a medium amount of wheeling and actually try to do some overlanding with it. I want to do everything the "right" way this time, instead of just making it all work. The goal is to put more thought into what I'm installing, mainly in the electrical department, but everything else as well. The way I wired the other one was messy and a PITA to work on. I'm thankful that I was able to experience that before and now apply what I learned this time around. Hopefully it will show!

https://flic.kr/p/WoYT92

https://flic.kr/p/V7CAdS

https://flic.kr/p/V7Czo5

https://flic.kr/p/WkuR1E

https://flic.kr/p/WkuPqq



[JerkyDrewster]

February 10th, 2017

General Engine Maintenance

Even though the timing belt had been completed at around 175,000 miles, I wanted to have piece of mind and start it all fresh. This step was mainly engine maintenance since I wanted to do all of the suspension at the same time. I didn't take a ton of pictures of the install, but I'll post what I got.

Parts List:
- Aircabinman 3.4L V6 Timing Belt Kit from eBay
- 5W-30 Mobil 1 Extended Performance Synthetic Oil (5.5 Qts.)
- 75W-90 Synthetic Gear Oil (3 Qts.)
- 80W-90 Synthetic Gear Oil (1 Qt.)
- Zerex Red Coolant (3 Gallons)
- Toyota Fuel Filter
- Toyota PCV Valve and Grommet
- Wix Oil Filter (51348)
- NGK Spark Wire Set
- NGK Spark Plugs
- Generic Air Filter

Most of the parts:
https://flic.kr/p/VNL9jY

In-process of removing covers:
https://flic.kr/p/WcqugK

New vs. old spark plugs:
https://flic.kr/p/V7CMmJ

All buttoned up:
https://flic.kr/p/Wkv27G



[Unner]

About time you get a build thread up for the new beast! Can't wait to see where this one takes you, looks good so far!



[JerkyDrewster]

About time you get a build thread up for the new beast! Can't wait to see where this one takes you, looks good so far!

Thanks Unner! I'm excited with what it is turning into so far. Yours is looking extremely clean, and I like how you did the pinch weld mod. I couldn't even leave the driveway without rubbing so I did a quick and dirty job...I'll have to fix it eventually.



[Jayjayb96]

The new rig looks dope! Im partial to silver too haha were you able to salvage the rear bumper?



[JerkyDrewster]

The new rig looks dope! Im partial to silver too haha were you able to salvage the rear bumper?

Thanks man! Unfortunately, the rear bumper was pretty damaged with the entire driver side of it was caved in. I sold it to [MENTION=53337]SCRunner12[/MENTION] and he had hoped to repair it, but I'm not sure how far along he has gotten with it.



[JerkyDrewster]

May 11th, 2017

Suspension Maintenance and Upgrade

Parts List:
Upgrades:
- ICON 2.5 Extended Travel Remote Reservoir Coilovers with CDCV [58716C]
- ICON Tubular UCA [58400]
- ICON 2.5 Remote Reservoir Rear Shock with CDCV [57800CP]
- "Junkyard" Bump Stops
- Toytec Superflex Coils [024RCB]
- Energy Suspension Polyurethane Steering Rack Bushings [8.10101G]
- Energy Suspension Polyurethane Front Sway Bar Bushings [8.5141G]
- Energy Suspension Polyurethane Rear Sway Bar Bushings [8.5142G]
- MStudt's Sway Bar End Links
- Power Stop 231mm Calipers
- Ceramic Brake Pads [Napa - Adaptive One]
- Toytec Front SS Braided Brake Line [SS-4RFBL]
- Toytec 1" Differential Drop [TAC-DR]
- CVJ Re-manufactured CV Axles with Extended Inner Boots

OEM Parts:
- Lower Ball Joints [43330-39585 & 43340-39465]
- Outer Tie Rods [45046-39335 & 45047-39215]
- Tundra Rotors [43512-0C011]

Also Replaced:
- Inner Tie Rods [Napa]

OEM Fasteners:
- Lower Ball Joint bolts x8 [90080-10066]
- Damper Bolt washer x2 [94622-41400]
- Damper Nut x2 [90170-14026]
- Damper Bolt x2 [90105-14104]

After a long time of mulling over the many options out on the market, I finally decided to go with the the ICON Stage 5 suspension system. While it might be a little overkill for what I'm going to end up doing with it, I did like that it was fully adjustable and that I would be able to tune it to whatever I'll be doing.

It took about 6 weeks to receive the parts from the time I ordered, but I did run in to some issues. I received the correct UCAs and rear shocks, but the coilovers were meant for a first gen Tacoma. These might have worked, but I contacted ICON and they assured me that they would have a rush job done on the correct set as well as a tool bag and t-shirt. Unfortunately, they were delayed for a week before I got a package, and even more so, it still wasn't the coilovers. After 2 weeks of waiting after the initial set, they had finally arrived! I had started on my car when I first got the packages thinking everything was ready to go, so the car sat idle for quite some time which was an inconvenience, but not the end of the world. Overall, it was a pain to deal with, but the guys over at [MENTION=120150]TotalAutomotiveLV[/MENTION] and ICON handled it very well.

I started by removing the front brakes, suspension, and axles on the passenger side. I replaced the inner and outer tie rods as well as the sway bar and steering rack bushings with polyurethane Energy Suspension bushings. Had some trouble getting the long bolt through the rack, but managed to semi press it through with a socket and a wood clamp. It would have been much easier to remove everything from the vehicle but I was determined!

Next up was pressing out the LCA bushings and getting the Whitelines in. I used the same method that [MENTION=120071]mtbtim[/MENTION] outlined in one of his videos where they used a bottle jack to press out the old bushings. I didn't use heat or a lubricant and they came right out. Had to use a box to make sure they didn't punch a hole through the wall. The new bushings pressed in easily using a bench vice, and I reinstalled the LCAs using the same hardware. At the time I didn't notice, but the alignment shop informed me that my passenger side Cam alignment tabs were bent and broken. I just received the Total Chaos replacement tabs in the mail and I should be able to weld them on sometime in the near future.

Pressing the ball joint adapter into the spindle was easy using a regular ball joint press I borrowed from O'Reillys. After that, everything just fell into place. I greased bushings that go into the UCA and fastened everything together. I was happy to be able to reuse the brakes off my old car too. Definitely liked saving some money there! It wasn't until I was going to install the coilovers that I realized they were the wrong ones. I put the tires back onto the front and lowered it to the bump stops before I jacked the rear up.

The back was pretty simple to get through. I started by removing the shocks and dropping the axle all the way to remove the coils. I had to use a spring compressor to get the Superflex coils in since they are much larger than the stock ones. The shocks went in without issue as well, just had to drill some holes in order to mount the reservoir bracket. I ended up using some junkyard bump stops that I intended to use for the other rig. Glad I was able to salvage them! Dropped the rear end down with the new tires and wheels and while it seems a little high, it does look great!

After I received the correct coilovers, I installed them almost immediately without issue. I used the bottle jack to lower the control arms a little bit, but I almost could have gotten by without it. The mount for the front reservoir utilizes a couple of holes meant for clips that hold in some rubber shielding. Once completed, I bled the brakes and lowered everything to its own weight. The following day I got it aligned at the shop and was able to drive it again!

Overall, I am extremely impressed with the suspension in how it feels and how it looks. After a short 200 mile break in period, the suspension feels really good. I just need to finish up with the alignment tabs and the panhard bar drop bracket.

Alright, that was a lot of text...now time for the picture dump!

New tires - Cooper Discoverer S/T MAXX
https://flic.kr/p/WcqHFk

SCS Stealth 6
https://flic.kr/p/VPc7LY

CDCV Coilovers
https://flic.kr/p/V7DqSf

CDCV Shocks
https://flic.kr/p/Vas8vK

Stock vs. Superflexes
https://flic.kr/p/V7Doq1

Removing everything
https://flic.kr/p/W958bY

Removing the LCA Bushings
https://flic.kr/p/V7DpPU

Getting more installed
https://flic.kr/p/V7Dp57

https://flic.kr/p/Vas5Jn

Fully installed front!!
https://flic.kr/p/VNM6x3

Working on the rear
https://flic.kr/p/WoZzQ2

https://flic.kr/p/VNM8ZN

On its own feet
https://flic.kr/p/WoZxuk

https://flic.kr/p/VNM8d7

https://flic.kr/p/WoZwo2

https://flic.kr/p/W94VYs



[mtbtim]

May 11th, 2017

Suspension Maintenance and Upgrade


Next up was pressing out the LCA bushings and getting the Whitelines in. I used the same method that [MENTION=120071]mtbtim[/MENTION] outlined in one of his videos where they used a bottle jack to press out the old bushings. I didn't use heat or a lubricant and they came right out. Had to use a box to make sure they didn't punch a hole through the wall. The new bushings pressed in easily using a bench vice, and I reinstalled the LCAs using the same hardware. At the time I didn't notice, but the alignment shop informed me that my passenger side Cam alignment tabs were bent and broken. I just received the Total Chaos replacement tabs in the mail and I should be able to weld them on sometime in the near future.

Hey Drew, just so you know and anyone reading your build thread knows the reason for the heat when using the bottle jack technique to remove the LCA bushings is so you don't have to use a ton of force to get them out. With this bottle jack technique, we're applying forces on the LCA that it probably wasn't designed for so that's why the heat is a good idea to allow you to remove the bushings with less spreading force on the LCA.

Good job on all the work you did. You've invested quite a bit of money into your new rig and just think what all that work would have cost you if you paid someone to do it for you. I like seeing people tackle their own work.



[4-Ripcord]

Having a new platform to start on with the experience from the first is such a valuable resource.

You are starting out really clean on this one, I am excited to see where you take it!



[Hepar]

We're almost twins! Looking good.



[Tyler James Inc]

Hell yeah man! Lookin so good [emoji1598]



[TotalAutomotiveLV]

Looking Good!

This was an awesome post. Thank you for sharing all the details and pics.

__



[JerkyDrewster]

Hey Drew, just so you know and anyone reading your build thread knows the reason for the heat when using the bottle jack technique to remove the LCA bushings is so you don't have to use a ton of force to get them out. With this bottle jack technique, we're applying forces on the LCA that it probably wasn't designed for so that's why the heat is a good idea to allow you to remove the bushings with less spreading force on the LCA.

Good job on all the work you did. You've invested quite a bit of money into your new rig and just think what all that work would have cost you if you paid someone to do it for you. I like seeing people tackle their own work.

That's a really good point, and I didn't think about that aspect of it. Makes sense that the arms would not experience that kind of force often, if ever. And thanks for the kind words! I definitely enjoy doing my own work, and the fact that it saves me money is definitely a bonus. I'm thankful to be able to use the things I have learned to help others out as well...pretty rewarding!



[JerkyDrewster]

Having a new platform to start on with the experience from the first is such a valuable resource.

You are starting out really clean on this one, I am excited to see where you take it!

Thanks Jim! I've gotten a lot of inspiration from your threads and how methodical you are in completing the work that you've done to yours. Maybe we will meet up one day now that you'll be moving to CA!

We're almost twins! Looking good.

Thanks Hepar...now I only need a supercharger! :naughty:

Hell yeah man! Lookin so good [emoji1598]

Looking Good!

This was an awesome post. Thank you for sharing all the details and pics.

__

Thanks guys! Very excited for this one.



[SCRunner12]

Thanks man! Unfortunately, the rear bumper was pretty damaged with the entire driver side of it was caved in. I sold it to [MENTION=53337]SCRunner12[/MENTION] and he had hoped to repair it, but I'm not sure how far along he has gotten with it.

Bumper is actually on the truck now...but needs more adjustment. It's still too close to the body and needs to be bent down. Probably going to bring it to a welder to cut the support bar, bend the wing back down and reweld the bar.


Your 4runner looks awesome right now! That must have been a ton of work but totally worth it.



[JerkyDrewster]

Bumper is actually on the truck now...but needs more adjustment. It's still too close to the body and needs to be bent down. Probably going to bring it to a welder to cut the support bar, bend the wing back down and reweld the bar.


Your 4runner looks awesome right now! That must have been a ton of work but totally worth it.

I'm glad it worked out for you! Looking forward to seeing it on the truck once it's all complete.

And thanks dude. It was really more downtime than work time though. Having the experience of doing it before definitely helped, but I had a hard time remembering how I did certain things for sure.



[JerkyDrewster]

May 13th, 2017

Bumper Restoration and Installation

Parts List:
- CBI Offroad Front Hybrid Winch Bumper

Once I installed the suspension, tires, and wheels, I knew rubbing was going to be a problem. An easy way to alleviate the issues I was seeing in the front was to install my CBI hybrid front bumper that was originally on my old 4Runner. It had seen some damage from the accident, but definitely not as bad as the rear. Both sides and the hoop were scraped against the ground. The weight of the car also buckled the top plate slightly where the hoop impacted the ground. The passenger side also caved in, but not enough to where it wouldn't fit anymore.

I started out by grinding down the road rash until it was mostly smooth. Some high grit sandpaper finished it up to my satisfaction. I then primed and painted it flat black, which looked pretty close to the original powdercoat. I was going to heat and hammer out the ripple in the metal, but I wanted to see if it was going to fit/look okay. Once it was on, I liked the character it added, plus there's a good story behind it!

I was able to install it with the help of some guys at the meet-up held at [MENTION=120071]mtbtim[/MENTION]'s home! Thanks guys!

You can see the main damage in the first picture on the far side of the bumper.

Damage to the sides
https://flic.kr/p/W94gqq

https://flic.kr/p/WcqJix

After grinding and painting
https://flic.kr/p/VNLn5h

Front bumper removed
https://flic.kr/p/W94UFY

https://flic.kr/p/WkvsGj

Installed
https://flic.kr/p/WkvsDy



[octanejunkie]

This is a text book build thread and I can't wait to see where it goes.

Well done on everything so far!
