Jicko Build Thread ... (finally got the T4R)

*Updated 8/6/2015*
With a whole big list of additions & planned additions.


2/9/2015 (stock):

3/10/2015 (running board removed + tint):

4/6/2015 (TRD skid added):

4/19/2015 (Slider Installed):

6/21/2015 (Temp. mounting of Roof Top Tent):

Current 8/7/2015 (Gobi Rack and Ladder, Rigids going up soon!):

---------------------------------------------------------------------------------
Stock
---------------------------------------------------------------------------------

4Runner 4x4 SR5 Premium
Exterior: Classic Silver Metallic
Interior: SR5 SofTex Graphite
[TI] 3rd Row Seat
[KH] Rigid Running Board {SOLD}
Factory Wheels and Tires {SOLD}
Factory Roof Rails {GONE}


---------------------------------------------------------------------------------
Build - I will try to provide links for where to get these stuffs (and the right part numbers)
---------------------------------------------------------------------------------

Misc Inside:
* Husky Weatherbeater (#99571 Front+Back & #25741 Cargo) Great Deal!! #99571 and #25741
* ARB 50qt Freezer/Fridge 50Qt model [Received, haven't installed yet; temp running with 31M battery]
* Habour Freight Pittsburgh Automotive 12V 150PSI Air Compressor
* Toyota OEM Cargo Cover & Cargo Net PT311-89100 Cargo Cover and PT347-89102 Cargo Net
* Beyond Cargo Slide/Tray

Misc outside:
* TRD Black Wheels PTR20-35110-BK
* BFG AT T/A KO2 LT265/70R17 LRC Model 66255
* 3M 35% CS tint on front 2 windows
* Gobi Stealth rack & Ladder - best place to order Gobi is thru TrailDuty
* Raingler Net 5th Gen Gobi Set - Toyota lineup
* ARB Awning 2500x2500, 8.2ft by 8.2ft Model: ARB4401A (Please note, 4401A is the larger one, the spec in Amazon is incorrect) [Received, haven't installed yet]
* ARB Awning Room, 4-sided, 2000x2500, 6.5ft by 8.2ft Model: ARB4412A [Received, haven't installed yet]
* Tepui "Autana" Roof Top Tent Newer, improved, SKY version
* 6x Scepter 20L/5Gal MFC (Military Fuel Can) Not the best price, but they are very much impossible to get in US
* 2x Scepter 20L/5Gal MWC (Military Water Can) Water cans are more available, but still....
* Rigid Industries 5th gen+ (2014+) Front Grille [On Order]

Lighting:
* Interior White LED Package (there are multiple packages, I am not endorse any particular one, all are about the same, expected "ebay" quality)
* Front Grille - Rigid Industries High/Low D2 [Received, haven't installed yet]
* Xenon Depot HID H11 Low beam (4300K-philips) Regular 5K XD Bulbs or Preferred 4.3K Philips Bulbs
* Toyota "pseudo" OEM LED Fog/DRL 00016-48011 Kit
* 4x Rigid 6" E-series Combo (Roof Front) SKU: 106312
* 2x Rigid 6" SR-series Combo (Roof Rear) SKU: 906312 (or 90631)
* 1x Rigid 20" E-series Dual Color Amber/White (Grille Front) SKU: 120312AW [On Order]
* 2x Rigid Flush Mounted Dually Flood Pair (Rear Bumper) SKU: 21211 [On Order]
* 2x Rigid D2 High/Low Driving Pair SKU: 50231H [On Order]

Under the hood:
* Odyssey Marine/Deep-cycle 31M Battery Model: 31M-PC2150ST

Suspension:
* ICON

Armor:
* Shrockworks Sliders with Dimpled Tread Plate 5th-Gen-Toyota-4Runner-Rock-Sliders
* TRD Front Skid PT938-00140
* RCI AL Gas Tank Skid + AL Transmission Skid + S LowerLink Skid [Waiting to be mounted] RCI 2010-2015 4Runner
* RCI AL TRD Integration Filler Skid

Comms:
* 2x Yaesu FT-60R 2M/70CM Dual Band Handheld Model: FT-60R
* Yaesu FTM-400DR 50W, Dual Band, GPS+APRS Mobile Unit Model: FTM-400DR [Received, haven't installed yet]
* $33 Baofeng Dual Band (UHF/VHF) Handheld, cheap and pretty good Model: UV-5R

Recovery:
* Smittybilt Hitch Shackle Model: 29312B
* Smittybilt Shackle Model: 13047B
* Hitch Pin Master Lock 1465DAT
* Smittybilt 2" x 30ft 20,000lb Recovery Strap Model: CC230
* Jumper Cable
* Mechanix Glove
* TRED4X4
* ARB Snatch Strap Model: ARB705US
* ARB Tree Strap Model: ARB730US
* ARB Puncture Repair Kit Model: 10000010
* Hi-lift 48" Jack Model: H12 HL485

TO GET:
* Diamond K9000 Motorized Antenna mount
* Diamond NR73BNMO or NR770HBNMO Antenna
* ARB Fridge Jacket
* ARB Fridge Wireless Temp Monitor
* Hi-lift Jack Base Plate

TO DO:
* Switched always ON power outlets [Researching]
* On-demand foglights [Researching]
* On-demand reverse camera
* 3 states rear off-road/backup lights (ON on-demand, ON with-reverse and OFF)
* 2nd row seat, 120V outlet


---------------------------------------------------------------------------------
Mods/Installations
---------------------------------------------------------------------------------

Green "ECO" light off
Interior White LEDs Mod
Paint Coating & Detailing
Rigid Running Board Gone {SOLD}
3M 35% CS tint on front 2 windows
Fedex bringing TRD Black Wheels
BFG AT T/A KO2 LT265/70R17 LRC Installation
Factory 17" SR5 "Honeycomb" Wheels & Bridgestone Dueler H/T 684ii Tires {SOLD}
HID H11 Low Beam Installation
Painting the TRD Skid plate to match the TRD color scheme
TRD skid added
Shrockworks Rock Slider Installation
BeyondCargo Slide/Tray Installation
Toyota OEM Dual Purpose LED Fog & DRL
Tepui Roof Top Tent Installation (on Factory Roof Rails)
Gobi Roof Rack & Ladder Installation
Odyssey 31M-PC2150 "Trolling Thunder" Deep Cycle Battery Installation
RCI TRD Integration Skid Installed

---------------------------------------------------------------------------------
Trips
---------------------------------------------------------------------------------

Anza Borrego Desert State Park - Metal Dinosaur Hunt & Slot Canyon Adventure
Thomas Mountain / Toolbox Spring Offroading and Camping



[jicko]

I've got it today!!

Silver 2015 4x4 SR5 Premium
w/ 3rd row seat

Now.... let's the build started!



[mikey's2010SR5]

fancy gauges. congrats and good luck with the build.



[jicko]

fancy gauges. congrats and good luck with the build.

Actually, I found it quite distracting....... too many colors.... and especially the bright green (cannot be dimmed down) "ECO" light....



[415T4R]

ECO Light

Actually, I found it quite distracting....... too many colors.... and especially the bright green (cannot be dimmed down) "ECO" light....

If you roll through the ODO settings you can turn the "ECO" light off. (Page 87)
http://www.toyota.com/t3Portal/document/om/OM35B18U/pdf/sec_02.pdf



[mikey's2010SR5]

You can turn the ECO light off. At least my crummy gauges I could.



[jicko]

Thanks guys. DONE!

My first mod (wasnt really one), but this is a good one. I picked up the car last night and drove almost 100miles to come home. The green ECO is hella annoying.

Now, how to stop nav's voice turn by turn instructions? And the right little screen with the lanes and lots of red (-) wrong way display? I couldnt believe a Japanese car's 2014/15's navi is worse than those of 5yrs old BMWs or 10yrs old garmin......



[415T4R]

Thanks guys. DONE!

My first mod (wasnt really one), but this is a good one. I picked up the car last night and drove almost 100miles to come home. The green ECO is hella annoying.

I had the same problem, I dove 1.5 hours to pick up my T4R, driving back in the pouring rain at night, I always kept thinking my turn signal was on down there. Just the ECO light.



[jicko]

First 2 pics..... FOB (fresh off the boat)....

So sad that the dealership has already *drilled* the front license plate holes..... :-(

Anyways,

Interior LEDs package ordered (Sizes 194 & 3022)
18pcs Deluxe White LED Bulbs for 2014 2015 Toyota 4Runner Interior Package Kit | eBay

Reverse/Backup Bulbs ordered (Size 921, ie. T15 LEDs)
Amazon.com: Cutequeen LED Car Lights Bulb White T15 1206 68-SMD 906 579 901 904 908 909 912 914 915 916 917 918 920 921 922 923 926 927 928 939 (pack of 2): Automotive



[jicko]

Failed!

Sadly..... the first mod is a "failure"

I wanted brighter back-up lights, so I ordered these:
http://www.amazon.com/Cutequeen-Lights-Bulb-White-68-SMD/dp/B00J7HBRL8

The package they came in:

They are definitely "whiter", but it is NOT "brighter". :-(

Left is the new white LEDs, right is the stock 921:

Left is the stock 921, right (may not even be visible) is the new white LEDs:

Now, I need to hunt for some brighter 921-sized brighter LEDs....

Any recommendations?



[mikey's2010SR5]

Don't waste your time. Get some Rigids and put them in the bumper. Someone just recently did a clean install on a stock bumper.



[Kotrin]

I had the same problem, I dove 1.5 hours to pick up my T4R, driving back in the pouring rain at night, I always kept thinking my turn signal was on down there. Just the ECO light.

So thats interesting...because in my 2014 when i adjust my roller switch it dims..



[jicko]

So thats interesting...because in my 2014 when i adjust my roller switch it dims..

Can you please dims your dash to the lowest and take a picture???

My roller do not dims the "GREEN" oval (ECO) light..... it dims everything else.... maybe I have a defective one....

Please post a pic.



[jicko]

Don't waste your time. Get some Rigids and put them in the bumper. Someone just recently did a clean install on a stock bumper.

I will do that once I get my Gobi roof rack, I will probably wire 2 rear facing, roof mounted light to turn on with a switch as well as with "reverse" (probably picking that signal up from the "reverse sense" line).



[jicko]

My 18yrs old 3rd gen (plasti-dip'ed black a few weeks ago) & the brand new 2015 SR5P.



[jicko]

2nd light mod... done!

Ordered the EBAY kits, came after a few days..... not as nice as the Precision LED's kit, but certainly NOT $100+ (it's only $20)

Came in 2 anti-static bags:

Black ones, size 194 (left) for most of the replacements; and size 3022 (right) for the dome & trunk:

Map & vanity, stock (left) vs LED (right) comparison:

I don't really have much of a problem with the dome light as many other members has reported.



[jicko]

Detailer's Pro - Coating Prep, Paint Coating & Poli-Coat Sealant

This is not much of a "mod", but none the less, it is *some* work done to the car. Last weekend, I washed and applied "Detailer's Pro Series - Paint Coating" to my new SR5P. They say that this semi-perm "paint coating" is as durable, if not more durable, as those dealership applied "clear coat". It should last a year or 2, I don't really expect it to last *that* long; if I can get 9mo to a year out of it, I will be pretty happy!

I washed the car, dried it. Did an all-a-round "Coating Prep Polish", then applied the "Paint Coating" to everything - paint, glass, black trims, wheels, mirrors etc... the only thing I left out is the tires... I even did the inside trims (hard plastic), and inside of the glasses..... Lastly, I did the "Poli-Coat Sealant" on the paint.

Dug out my detailer's self:

The shine is awesome and sick!!

Autogeek Forum:
Up Close & Personal: Detailer's Paint Coating - Auto Geek Online Auto Detailing Forum

An youtube video about the product:
https://www.youtube.com/watch?v=ebOcj3ls2gM



[jicko]

3M 35% CS Tint to front 2 windows, applied by San Diego Tint | San Diego Window Tinting



[Mooney]

Ordered the EBAY kits, came after a few days..... not as nice as the Precision LED's kit, but certainly NOT $100+ (it's only $20)

Came in 2 anti-static bags:

Black ones, size 194 (left) for most of the replacements; and size 3022 (right) for the dome & trunk:

Map & vanity, stock (left) vs LED (right) comparison:

I don't really have much of a problem with the dome light as many other members has reported.

If your married you'll change the mirror/map lights back . . . yet to find a female who likes harsh white LED light when looking in mirror.



[jicko]

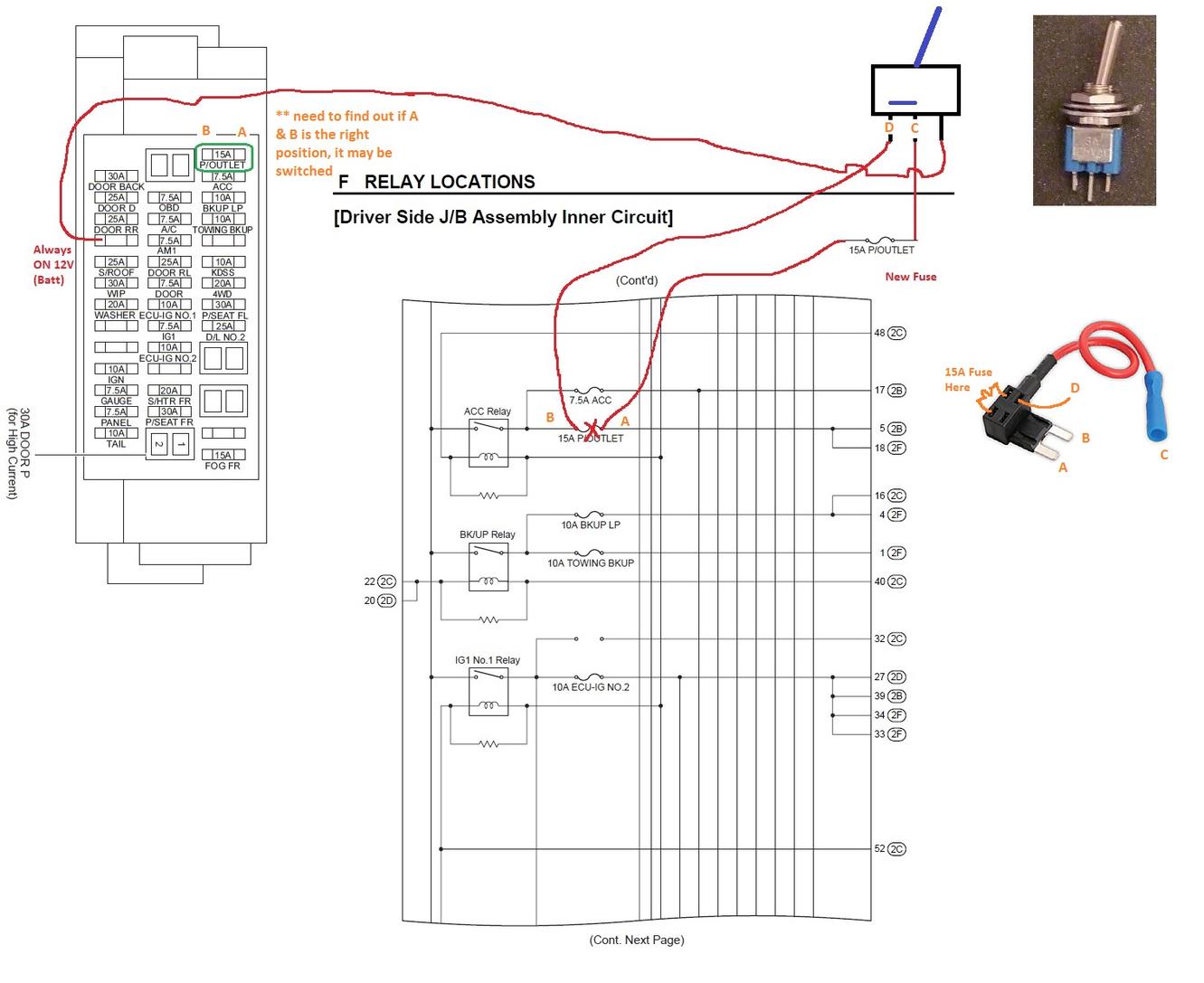

All Power Outlet constant ON(switched) - *Research Phase*

I think I will go add a switch besides the power-inverter switch, you will get 2 choices:
1) back to original configuration, only when IGN, power outlets (rear 12V) will be ON
2) power outlets always ON even when the car IGN is off

I may go fancy and find a nicer switch later.
