Just a small inverter install I did over the weekend

[2000se]

Nothing too fancy..But I'll post it anyways 'cause I want to show you!

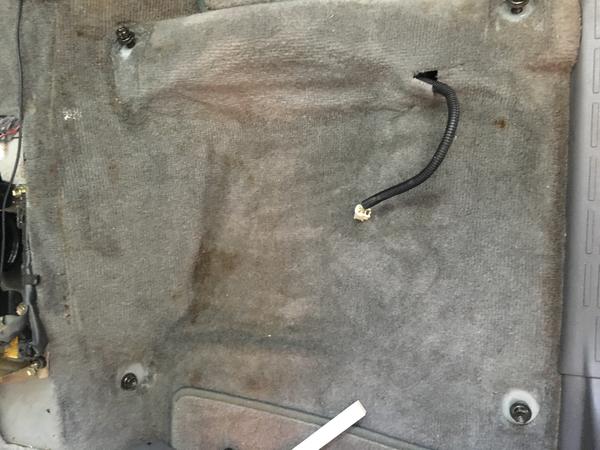

This is where is starts (oh and sorry for it being so messy)

This is where it's going

This is the flexible 4 gauge wire I used

Here's where the main is coming in

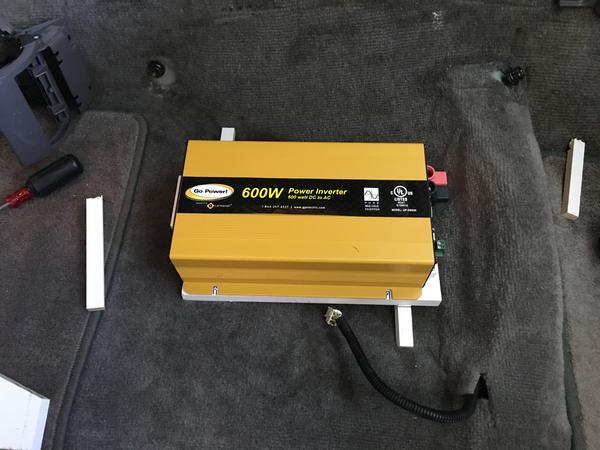

Test fit

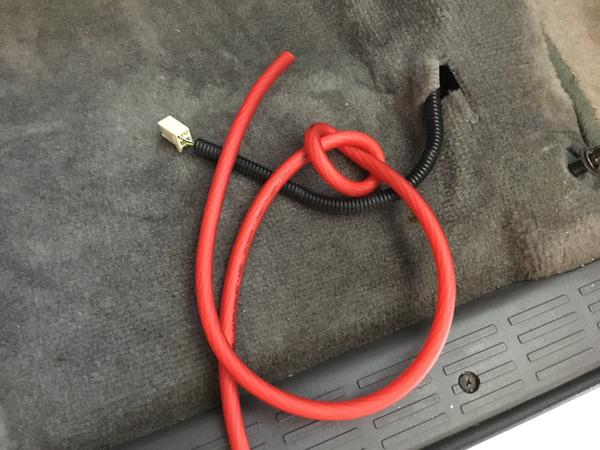

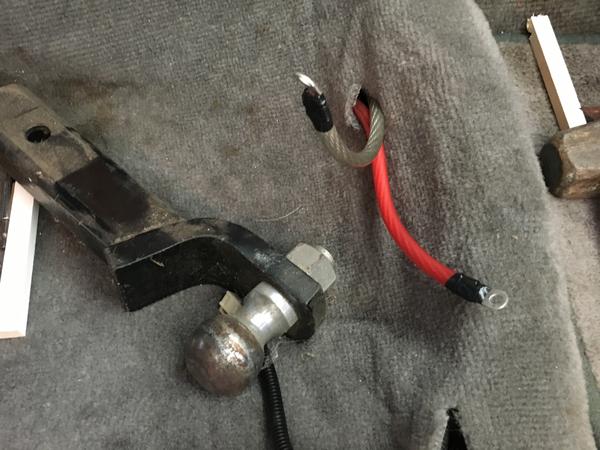

Running the wire and adding ends (trailer hitch for scale : ) )

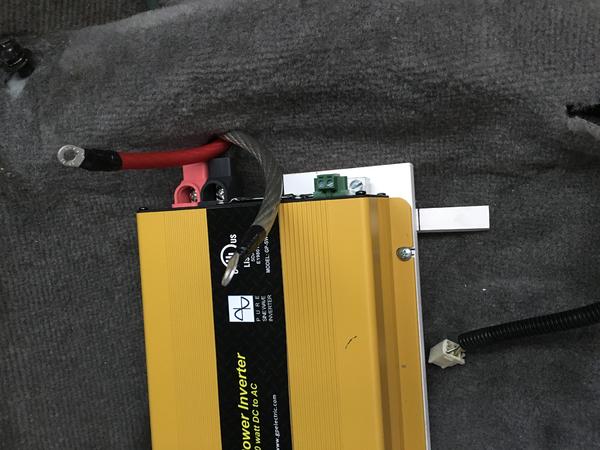

Bringing it together

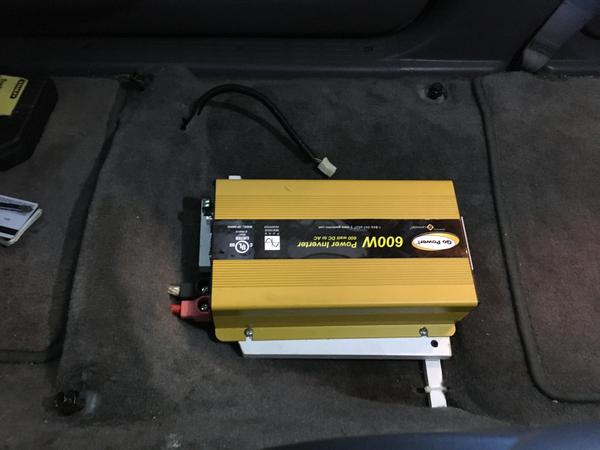

Mounting it down

Cleaned up my wiring

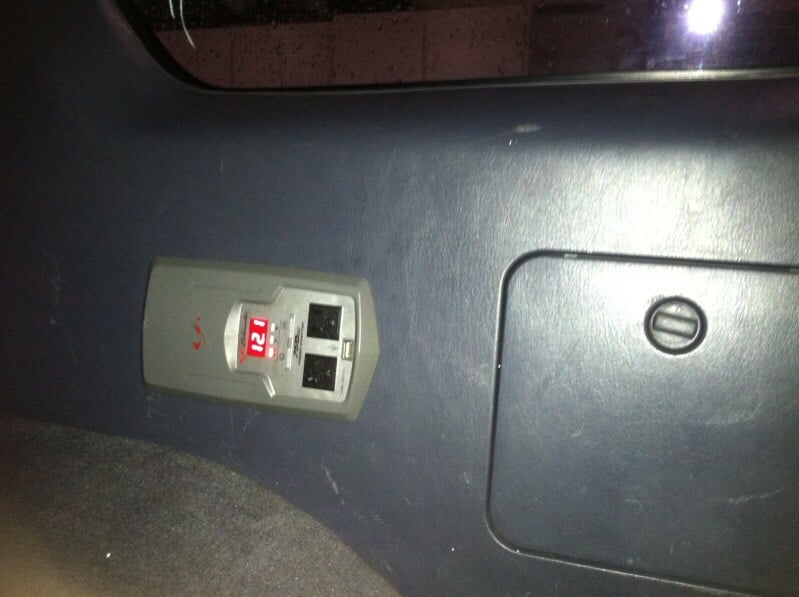

Calling it a day.. woohoo!



[4Runner4TW]

Would something like this power a blender? I have been thinking about doing this mod so I can continue having my green smoothies while at camp using a NutraBullet



[snow junky]

Would something like this power a blender? I have been thinking about doing this mod so I can continue having my green smoothies while at camp using a NutraBullet

Moline powers a blender have to have truck running tho

Sent from my iPhone using Tapatalk



[snow junky]

Nothing too fancy..But I'll post it anyways 'cause I want to show you!



This is where is starts (oh and sorry for it being so messy)

This is where it's going

This is the flexible 4 gauge wire I used

Here's where the main is coming in

Test fit

Running the wire and adding ends (trailer hitch for scale : ) )

Bringing it together

Mounting it down

Cleaned up my wiring

Calling it a day.. woohoo!

Is that a gfci on your inverter???


Sent from my iPhone using Tapatalk



[Mark_BC]

What is the black and grey box thing?



[2000se]

Is that a gfci on your inverter???


Sent from my iPhone using Tapatalk

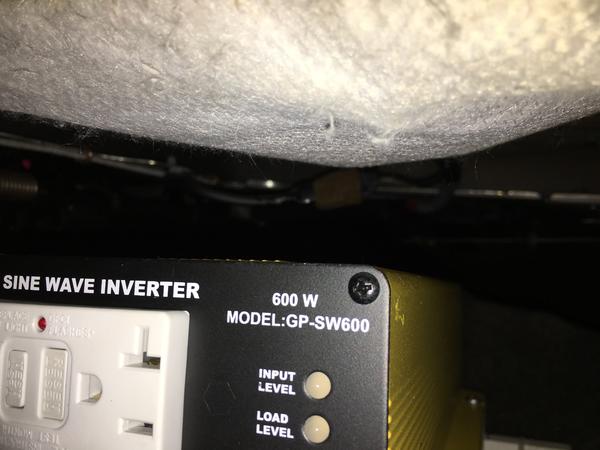

yes, it is gfci.



[2000se]

What is the black and grey box thing?

If I'm not mistaken, I believe you are referring to the item in the 1st, 4th,and 9th image - That is my amp for my radio.

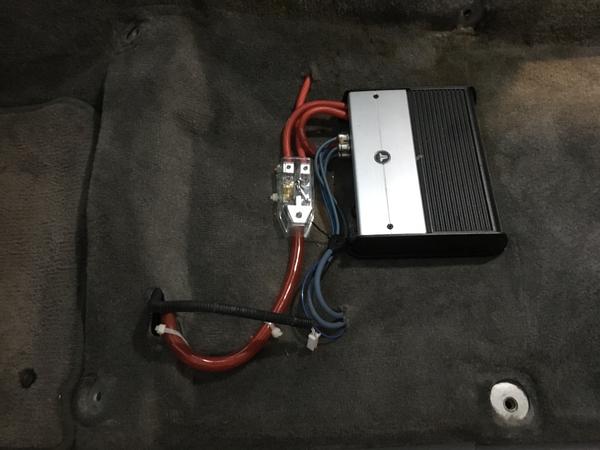

Reason I was showing that is because I have a 0 gauge main coming in there that has a 150amp breaker at the battery. From there, the 0 gauge splits to 2 x 4 gauge wires. One to the amp and the other to the inverter. Both have their own fuse in the clear block next to the amp.



[2000se]

Would something like this power a blender? I have been thinking about doing this mod so I can continue having my green smoothies while at camp using a NutraBullet

This particular one surges to about 865watts. Your nutrabullet is 600 watts right?

I think it would...heck, I'd try it.



[4Runner4TW]

I know my next mod than! My wife will be happy haha!



[thor999]

You running a dual battery setup? Big 3 upgrade?



[2000se]

So I know I'm going to catch it on this one !!

No dual battery - no big 3.

Stock alternator - stock battery.. (hides under desk)

I would like to change all of that, but at this point it's working as is so I'm not gonna mess with it.

You running a dual battery setup? Big 3 upgrade?



[IBallEngineer]

So I know I'm going to catch it on this one !!

No dual battery - no big 3.

Stock alternator - stock battery.. (hides under desk)

I would like to change all of that, but at this point it's working as is so I'm not gonna mess with it.

No need to hide, I personally think it's much to do about very little. I have two 3rd gens both with over 200K and neither one has big 3. As long as you maintain the existing system it works just fine. The addition of the inverter is only relevant if you want to use it for some thing like a refrigerator that runs all the time. If you have the engine running, even at the full 600W you will draw 50A, well below the capability of the alternator. Short bursts will be no problem for your charging system, again providing it is operating as designed.

Using it wisely is the key here. Dual batteries afford you other options, but are not absolutely necessary.



[Kbuch1]

Green smoothies sounds like a margarita party
Love this mod!!



[2000se]

Y-know - - hmm.....green icy slushy adult beverages do sound really good...

Green smoothies sounds like a margarita party
Love this mod!!



[2000se]

I kinda was thinking the same as I am pretty easy on my equipment. I do need to make sure I keep a check on the usage though when operating it over extended periods. Especially in cold weather. I'm glad I'm not the only one that thought this would be ok as is.

No need to hide, I personally think it's much to do about very little. I have two 3rd gens both with over 200K and neither one has big 3. As long as you maintain the existing system it works just fine. The addition of the inverter is only relevant if you want to use it for some thing like a refrigerator that runs all the time. If you have the engine running, even at the full 600W you will draw 50A, well below the capability of the alternator. Short bursts will be no problem for your charging system, again providing it is operating as designed.

Using it wisely is the key here. Dual batteries afford you other options, but are not absolutely necessary.



[Gelthos]

Orange whip? Orange whip? Orange whip? 3 Orange whips



[4flyer]

How did you wire the power cables to the battery?



[ranchdog]

Sweet, nice work



[2000se]

Let me take a few pics and will post back...

How did you wire the power cables to the battery?



[4flyer]

Let me take a few pics and will post back...

Thanks!
