Mounting a simple removable shallow rear cargo box ?

[Seasparrow]

Good Morning everyone,

I am tired of the clinking and clanking when I turn corners and finally have the last woodworking project nearly complete. I would like to add a box to the runner to hold all that noisy stuff.

The box will be short enough to go under the upper cargo deck and be removable.

My question is what is the best method of securing this thing if I want it removable. Anyone else built such a thing ??

Thanks



[Tironeous]

Pull back the carpet or mat and there are tie down points. Most guys with drawer systems use these to attach the drawers to the floor.


Sent from my iPhone using Tapatalk



[jcaino]

Yup, there are tie downs back there (near the liftgate on the sides, and up front near the seats) that you can use to strap down stuff.

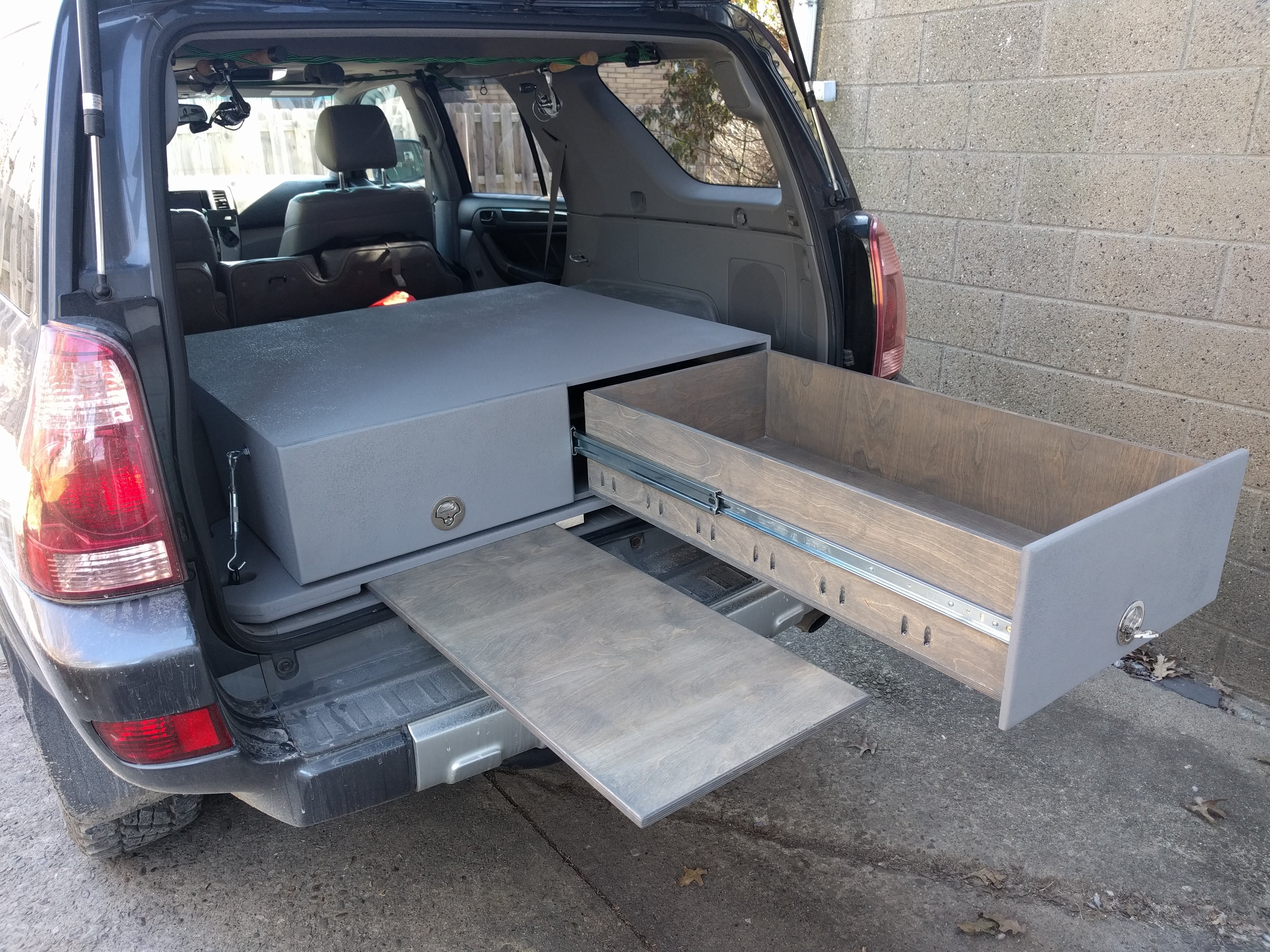

I ended up pulling out the double-deck system entirely to put in a new 'floor' with a pull out table and a drawer system that is strapped in with turnbuckles to these mount points.

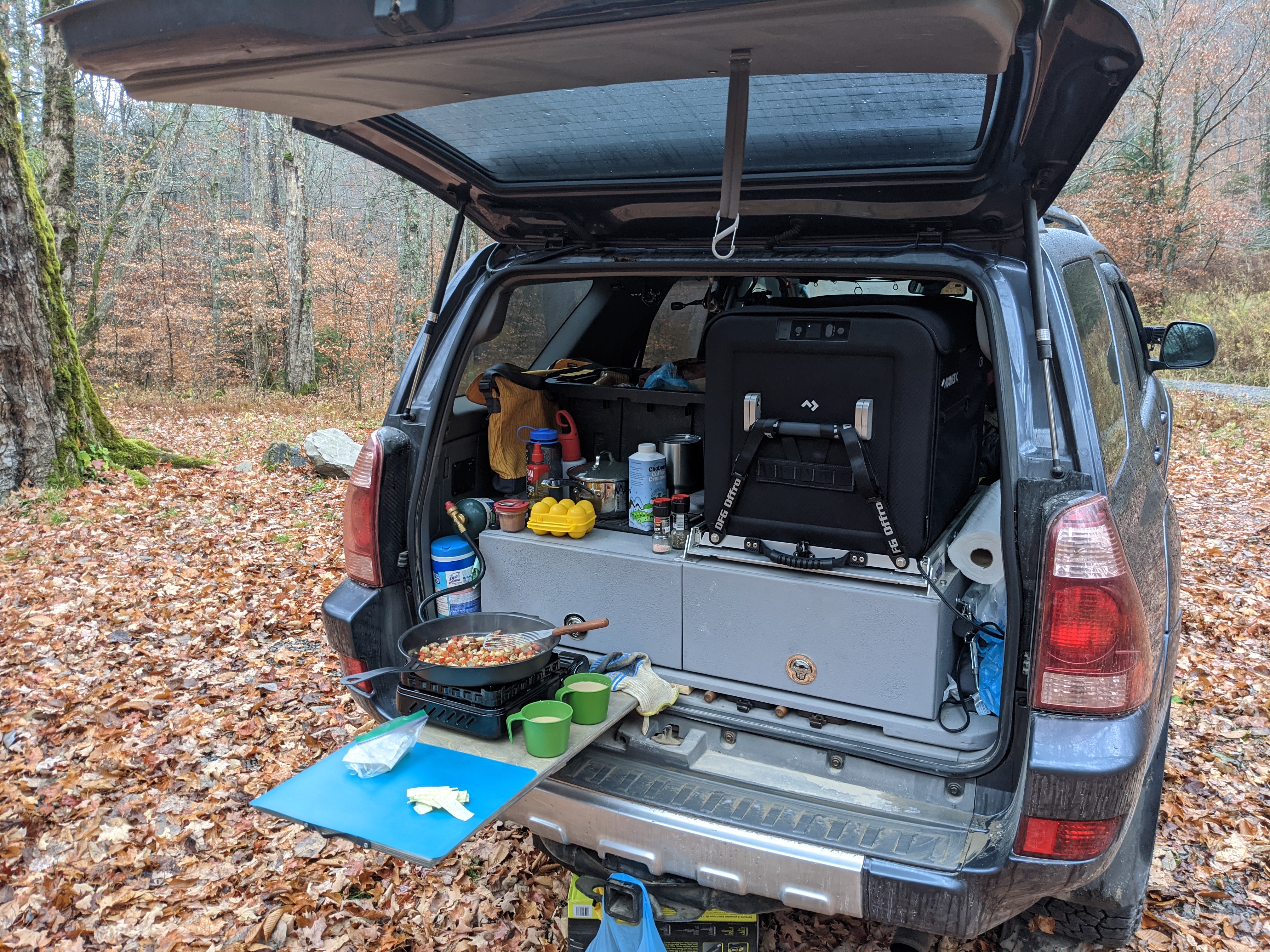

While I set this up so I can take the drawers in and out, I nearly never do, it's just too convenient having them back there since this is our main adventure vehicle. Heck, even the fridge gets used for grocery trip runs.

You can see where the mount locations are here, I reused the tie downs and just got longer bolts.



[Seasparrow]

So I am trying to put this under the cargo deck, are you saying the carpet has to come up and there are tie downs underneath ?? Remove the carpet like your trying to replace the subwoofer, plastic side pieces and all ?

Thanks for the replies so far.



[jcaino]

So I am trying to put this under the cargo deck, are you saying the carpet has to come up and there are tie downs underneath ?? Remove the carpet like your trying to replace the subwoofer, plastic side pieces and all ?

Thanks for the replies so far.

Yes, all 4runners have the mounting locations there.
<blockquote class="imgur-embed-pub" lang="en" data-id="a/X8tAps3" data-context="false" ><a href="//imgur.com/a/X8tAps3"></a></blockquote><script async src="//s.imgur.com/min/embed.js" charset="utf-8"></script>



[Seasparrow]

Thank you very much for helping that answers the question.



[yourfriendcasey]

Yup, there are tie downs back there (near the liftgate on the sides, and up front near the seats) that you can use to strap down stuff.

I ended up pulling out the double-deck system entirely to put in a new 'floor' with a pull out table and a drawer system that is strapped in with turnbuckles to these mount points.

While I set this up so I can take the drawers in and out, I nearly never do, it's just too convenient having them back there since this is our main adventure vehicle. Heck, even the fridge gets used for grocery trip runs.

You can see where the mount locations are here, I reused the tie downs and just got longer bolts.

Are you referring to the flip up cargo shelf thingy? I have been thinking of making some kind of drawers that integrate with that but i think you made the right move just removing it. Any idea of the net weight gaun with these drawers? Those look awesome, love the slide out tables.


Sent from my iPhone using Tapatalk



[Boort]

[MENTION=642626]yourfriendcasey[/MENTION]

Are you referring to the flip up cargo shelf thingy? I have been thinking of making some kind of drawers that integrate with that but i think you made the right move just removing it. Any idea of the net weight gaun with these drawers? Those look awesome, love the slide out tables.

I built a set of 2 drawers similar to those pictures w/o the under-mount table and fridge but with sleeping platforms. My whole setup weighs in at 150 lbs.
When made from 1/2" Baltic birch for the Drawers and Carcass with one section of 3/4 for the middle divider. 1/3rd of the weight is the lockin/lock out slides.

Ways to shed weight on my setup while still using woodworking techniques:

• 3/8" ply all around. 1/4" Drawer bottoms
• Cutout sections of the bottom beneath the drawers
• Cutout sections from sides by the wheelwells
• Replace plywood drawers with custom 3 ply Coroplast with metal reinforced top mounted drawers slide

Boort



[jcaino]

Are you referring to the flip up cargo shelf thingy? I have been thinking of making some kind of drawers that integrate with that but i think you made the right move just removing it. Any idea of the net weight gaun with these drawers? Those look awesome, love the slide out tables.


Sent from my iPhone using Tapatalk

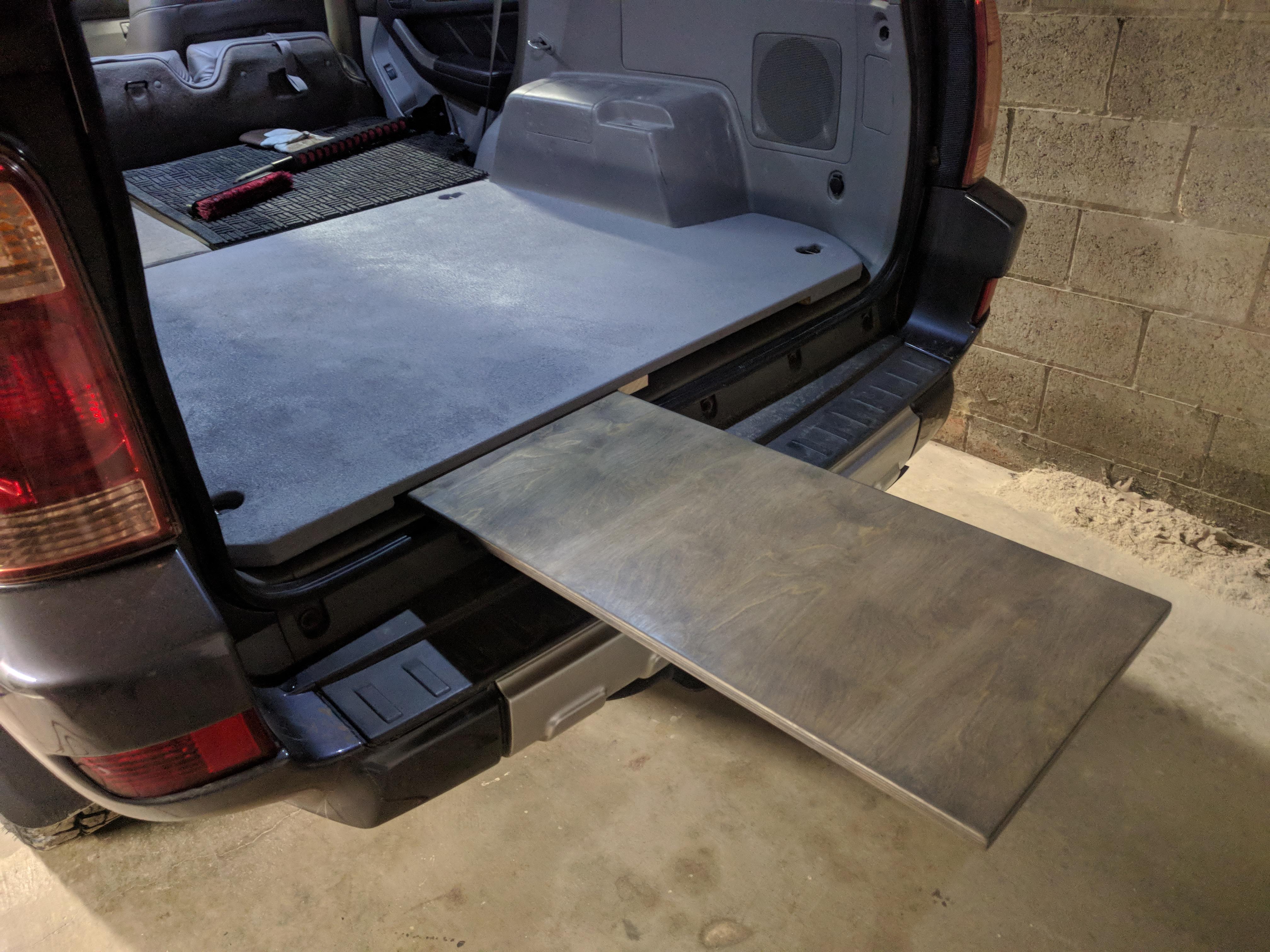

Yup, the double-decker cargo shelf. Took it out. It's right around 1.5" of space, which worked out well to do the 3/4" platform, and then the pull-out table is 1/2" with some ptfe tape on the sides and under the platform to make it slide in and out nicely...

Thanks! The slide-out table was a 'light-bulb' moment when I was thinking about what to do back there and so glad I did that....we use it just about every trip out, even if its just a day trip.
