Well, this is odd. The F9 connector lacks the tiny 5-digit number that (up until now I thought) every Toyota connector has on it. I checked mine this past weekend. So no joy on the terminals hwell:

Put the terminals into the existing F9. I went to a junkyard and grabbed a bunch of plugs, some of the terminals must work. May find out this weekend.



[numbay]

I think below item is same, but without the beauty case, and plug. I am not an expert on this matter, but if someone knows, it will be nice to hear

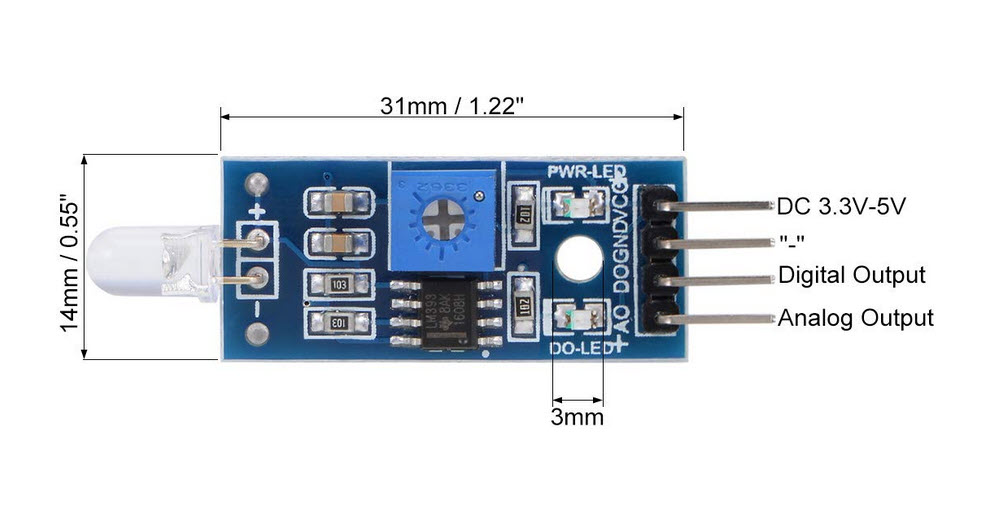

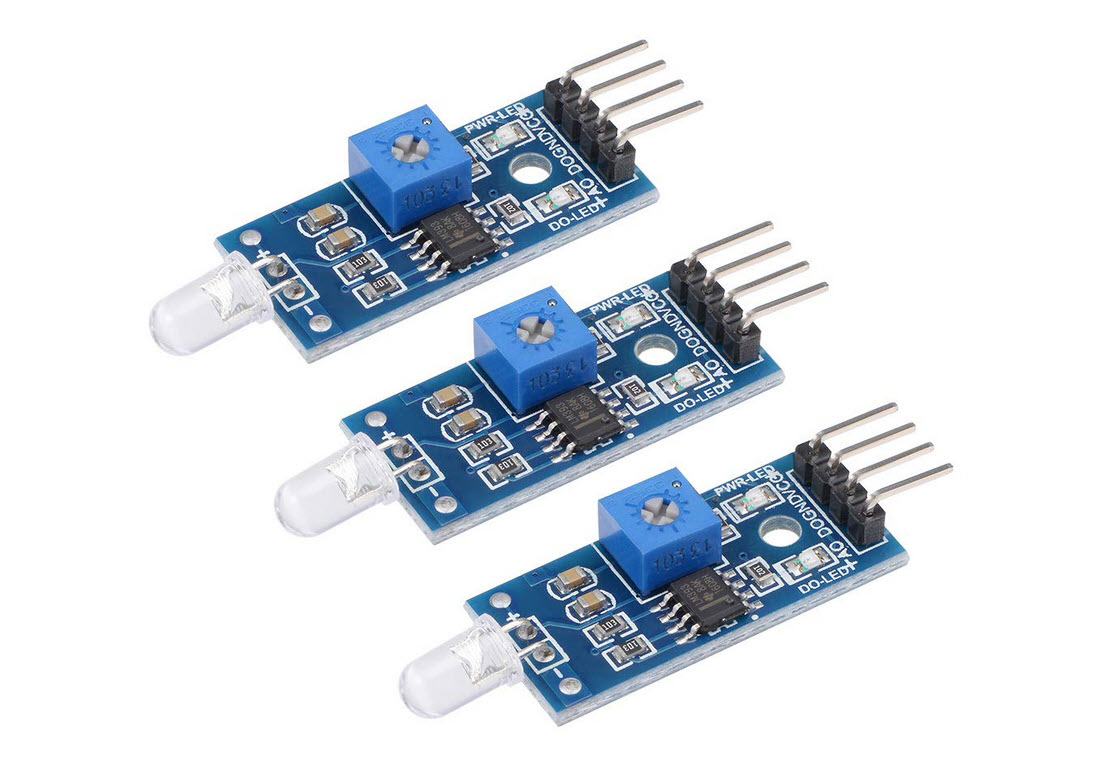

Photosensitive Diode Sensor Light Detection Photodiode Module with Digital and Analog Output for Arduino Smart Car

https://www.amazon.com/uxcell-Photo...coding=UTF8&psc=1&refRID=ZWH5QCG63P53T9V77AR8



[clintg]

Haven't seen a successful SR5 yet.

I have a SR5, and it does work as long as you add the extra wires.



[SICKwidIT]

Extra wires? Can you please link us or point us to the source with this information.

Much appreciated!



[clintg]

Extra wires? Can you please link us or point us to the source with this information.

Much appreciated!

See post 267 in this thread.



[SICKwidIT]

See post 267 in this thread.

Thanks Bud! Great info!

Here's the link for those that don't want to search:

https://www.toyota-4runner.org/3435385-post267.html



[dcguy]

Dumb question, but does the 2020 TRD Pro already have this automatic dimming feature?

I haven’t been in a situation yet where it is dark enough in the middle of the day to have the need to automatically have the display dim



[B.E. Coyote]

Nice work!



[ForRun]

Dumb question, but does the 2020 TRD Pro already have this automatic dimming feature?

I haven’t been in a situation yet where it is dark enough in the middle of the day to have the need to automatically have the display dim

Yes it's there



[tomb_rnr]

Does anyone know where those 3 wires lead to the radio harness?

I replaced my headunit with the T9 and lost the function of the auto dimming feature. I’m assuming the T9 harness is not plugging to those ambient sensor wires. A simple tapping to the right wires should give me the dimming ability back.



[LakeRunr]

I got this to work on my SR5!

Thanks to all the information that clintg posted, I got the light sensor working on my SR5 today.

My truck already had the light sensor harness, but the 3 wires (red, pink, blue) didn't go all the way to the F9 connector of the BCM. I don't know where they stopped...didn't pull the dash harness apart to find out. Instead I tapped the 3 light sensor wires with PosiTaps and ran 3 new wires to the F9 connector. While that sounds easy, to get to the light sensor harness, the radio and front vent ducts (not for the faint at heart) have to come out.

I ordered the "T" harness that clintg suggested, and harvested 3 unnecessary wires from it as pigtails (with female ends). I soldered those 3 pigtails to my 3 new wires, and inserted them into F9.

I'll have a usable "T" harness left over after I clean up the extra wires, if anyone wants to do this.

This is a rabbit hole...probably 5 hours total.



[Chiral]

2014 orp
No plug attached to blank



[aabottom]

Which "T" harness did you get?

Thanks to all the information that clintg posted, I got the light sensor working on my SR5 today.

My truck already had the light sensor harness, but the 3 wires (red, pink, blue) didn't go all the way to the F9 connector of the BCM. I don't know where they stopped...didn't pull the dash harness apart to find out. Instead I tapped the 3 light sensor wires with PosiTaps and ran 3 new wires to the F9 connector. While that sounds easy, to get to the light sensor harness, the radio and front vent ducts (not for the faint at heart) have to come out.

I ordered the "T" harness that clintg suggested, and harvested 3 unnecessary wires from it as pigtails (with female ends). I soldered those 3 pigtails to my 3 new wires, and inserted them into F9.

I'll have a usable "T" harness left over after I clean up the extra wires, if anyone wants to do this.

This is a rabbit hole...probably 5 hours total.



[LakeRunr]

Which "T" harness did you get?

ADS-THR-TL7, as clintg specified.



[LakeRunr]

"T" harness for sale [SOLD]

Edit: Sold.

For anyone with an SR5 that's missing the 3 wires at F9, I have for sale a "T" harness with the 3 wires that are needed. In the pictures you can see that I've left the 3 wires unwrapped. These 3 wires are F9 positions 20-22, and go to the pink, red, and blue wires (respectively) at the light sensor. You can tap them with vampire taps or PosiTaps, or cut them and solder in your own wires directly.

This was harvested from an iDatalink ADS-THR-TL7, which clintg found has the proper connectors (documented in this post). It has all the wires that an SR5 needs. It's as close to plug-and-play as you can get.

$30 plus shipping. PM me for PayPal info.



[RichinRidgewood]

I checked the part numbers on parts.toyota.com for the "Sensor, Automatic Light Control"

2020 4 Runner SENSOR, AUTOMATIC LIGHT CONTROL
This Fits Your 2020 Toyota 4RunnerPart Number: 8912106020
Supersession(s): 89121-06020; 8912150020
$180

You can only query 2019 on toyotapartsdeal.com. They don’t have 2020 listed yet.
Toyota Part No.: 89121-06020
The vehicle options this part fits:
Production Date: 08/2013-
Fitting Vehicle Options: GRN28#; GRN285
Sensor, Automatic Light Control
LIMITED PACKAGE
TRD-PRO
LIMITED BLACK EDITION(DISC WHEEL=BLACK)
$127

So it looks like 8912106020 is the latest rev and is what's being used on the TRD-PRO and Limited.

I'll give it a try when I get my 2020 SR5 Premium



[SKT_07]

.

Anyone find a less expensive option for the 2020 4Runners yet?

.



[Wnghks701]

Anyone got their clock to work with the sensor?

I got the head unit and cluster to work but clock still dims out.


Sent from my iPhone using Tapatalk



[SKT_07]

Anyone got their clock to work with the sensor?

I got the head unit and cluster to work but clock still dims out.


Sent from my iPhone using Tapatalk

IIRC, you have to change something in the settings on the headunit. Should be info in this thread.



[BEAR x SF]

Worked beautifully on my '19 ORP thank you
