picture of the back JBL stock radio anyone?

[mole177]

Does anyone have a picture(s) of the back of the stock jbl radio?


my friend would like to see if it matches close towards an eclipse head unit.

TIA!

btw, is the stock nav unit for the 06 or 07 4runner an in dash cd changer or just single cd and single dvd ?



[airbur]

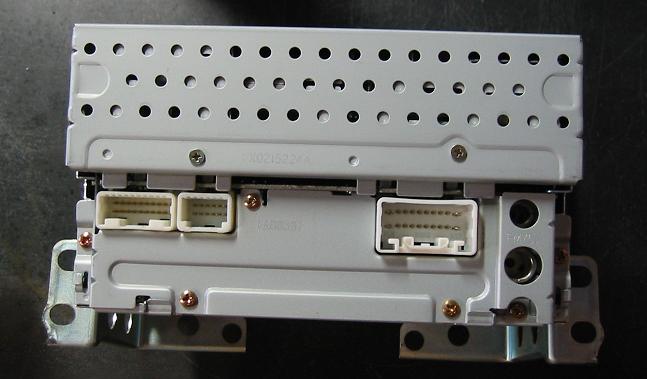

Here's the rear of the '04 JBL 6 Disc unit:

(Refresh this page...I replaced the pic with a better one.)



[mole177]

cool. thnx!!!

did you upgrade to something else?



[airbur]

I'm in the process of upgrading now to a Kenwood DNX7100.



[cardenmf]

Where did you get a wiring harness from?



[airbur]

Where did you get a wiring harness from?

I'm in the process of writing up a thread that describes my installation. Basically you need this for steering wheel control integration:

SWI-JACK
4Runner Installation Guide
General Installation Instructions

And this for speaker/amp integration (I have the 10 speaker JBL system):

METRA TYTO-01: $79.99 Circuit City
Metra Application Chart

There is also the issue of the diversity antenna cables. The 4Runner has two cables instead of one and the stock stereo has slots for both of them. Most upgraded systems don't have these slots. I've ordered this adapter by METRA and am hoping it fits correctly.



[airbur]

Fyi...the dual antenna adapter I mentioned above DOES NOT fit correctly. The female ends are both the same size....and the leads out of the 4Runner are different sizes.
