rear dvd entertainment plug

[matthewkristof]

does anyone have a picture of the harness and/or plug that goes into the back of the navigation unit? i am not sure what it even looks like.

I am not trying to add the toyota factory rear entertainment system...rather, i am trying to connect aftermarket units to the system and need to know what it looks like. my goal is to purchase a cable that can be connected to the back of the unit, and give me the output of rca cables so i can connect whatever i choose

thanks in advance



[CookieRoe]

This may not be 100% accurate for your E7019, but should be similiar:

You mentioned your goal is to attach other accessories? I'm guessing DVD (judging by your title). Anyway, you don't have to directly plug into the HU to get audio from your DVD players in the back. I got a Rosen AV7900 dual DVD headrest DVD and didn't plug anything into the back of the HU. Sounds goes through wireless FM modulator. Also, this particular system (Rosen) allows you to plug in other monitors if you want.

Hope this helps!

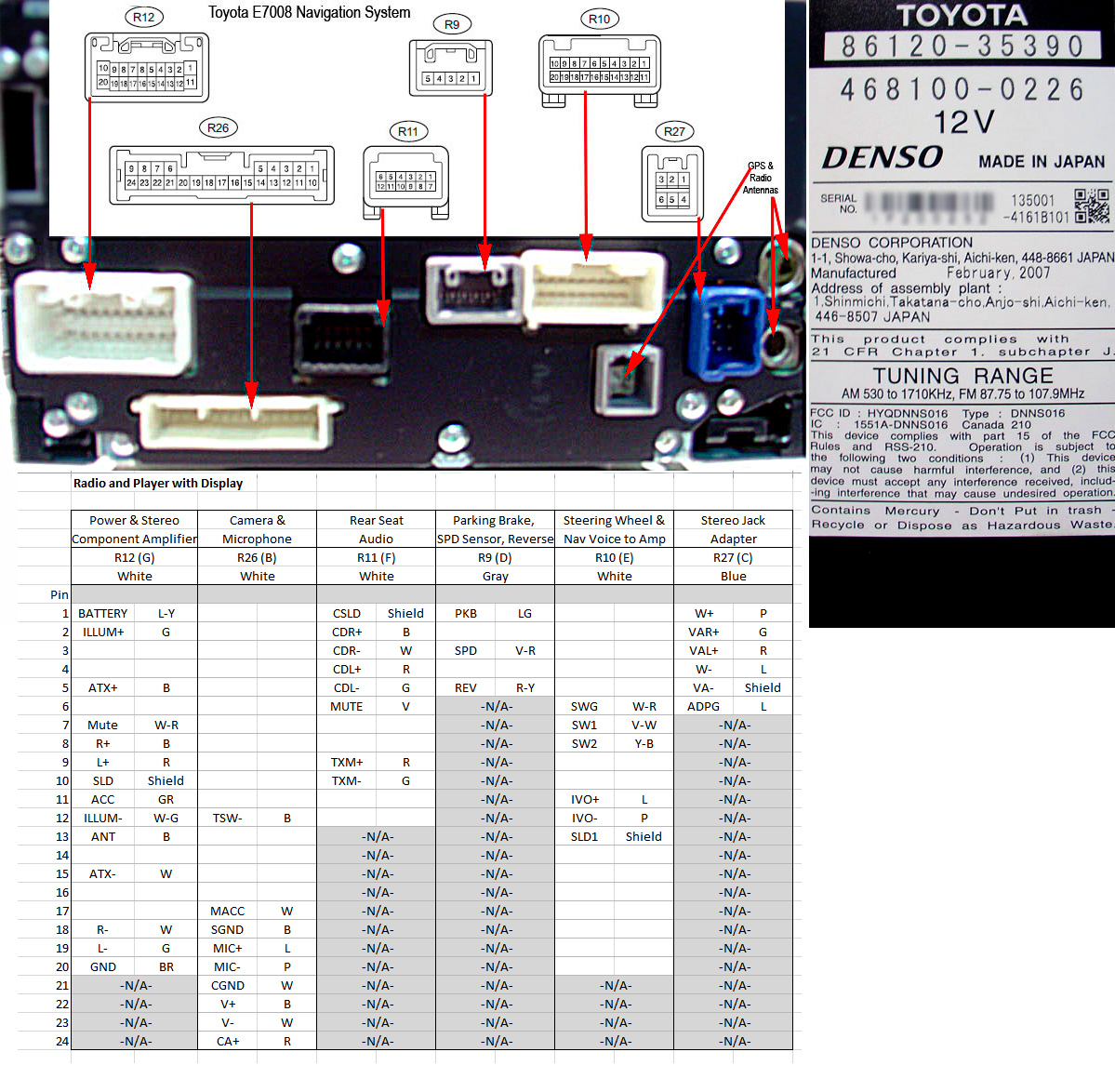

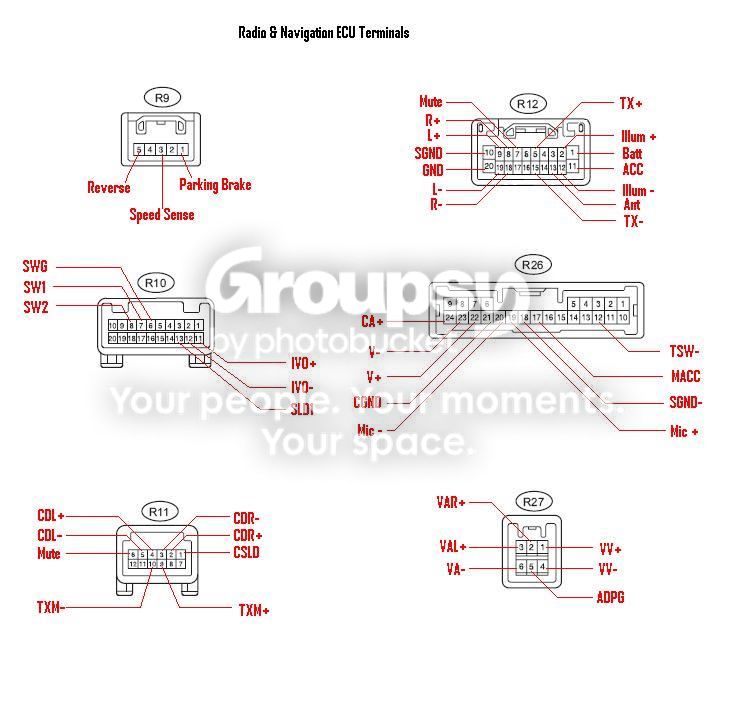

EDIT: Found this: (FJ cruiser forum, it's an E7019)



[J.A.]

lost of pics on these pages...

Toyota 4Runner Factory Navigation Override and Unblock Bypass Module
Toyota 4Runner Video on Nav and Anytime Backup Camera Mods
