Remote rear window button

[ryani]

I recently camped a weekend in the 4 runner and it worked great except when you got hot or cold you had fumble through the front packed with stuff, find the key turn it on, hope the radio wasn't cranked find the rear window button and roll it up or down. Alot of hassle. I made something better.

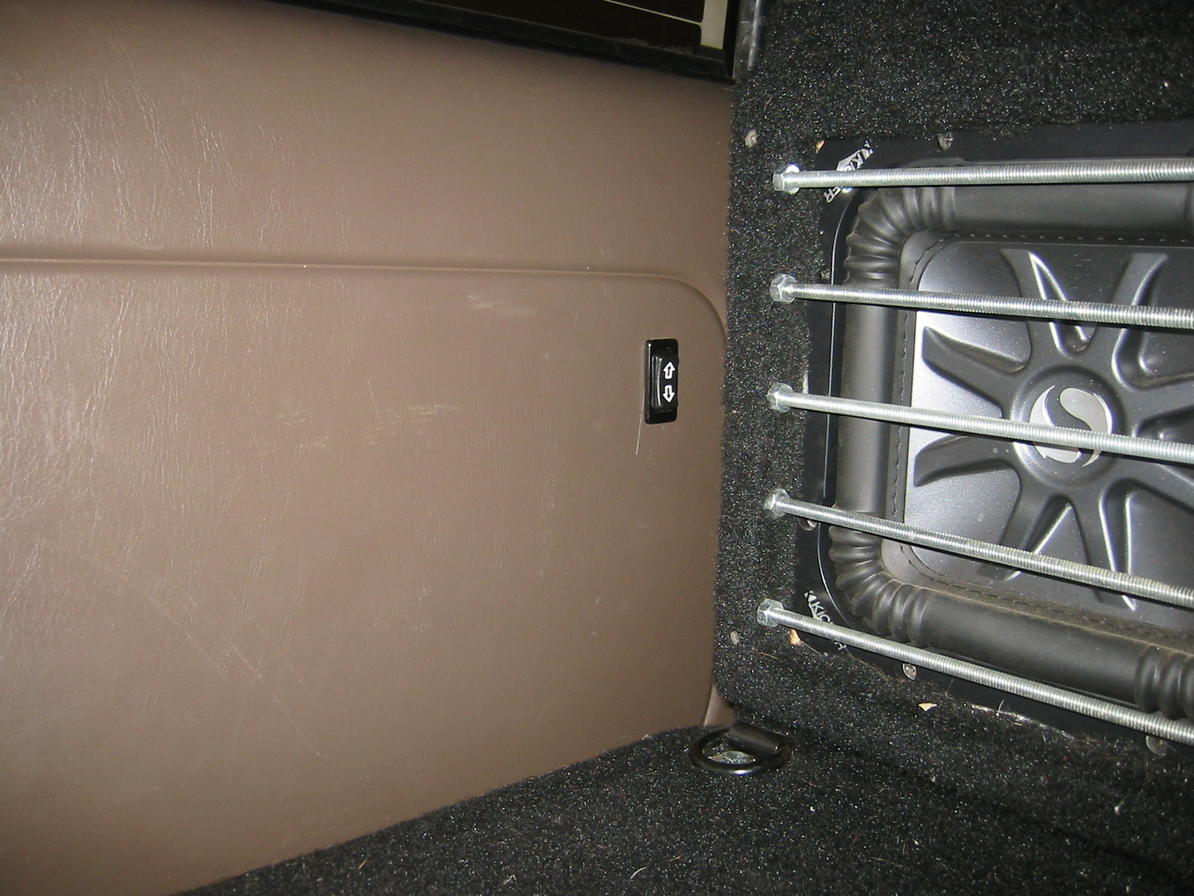

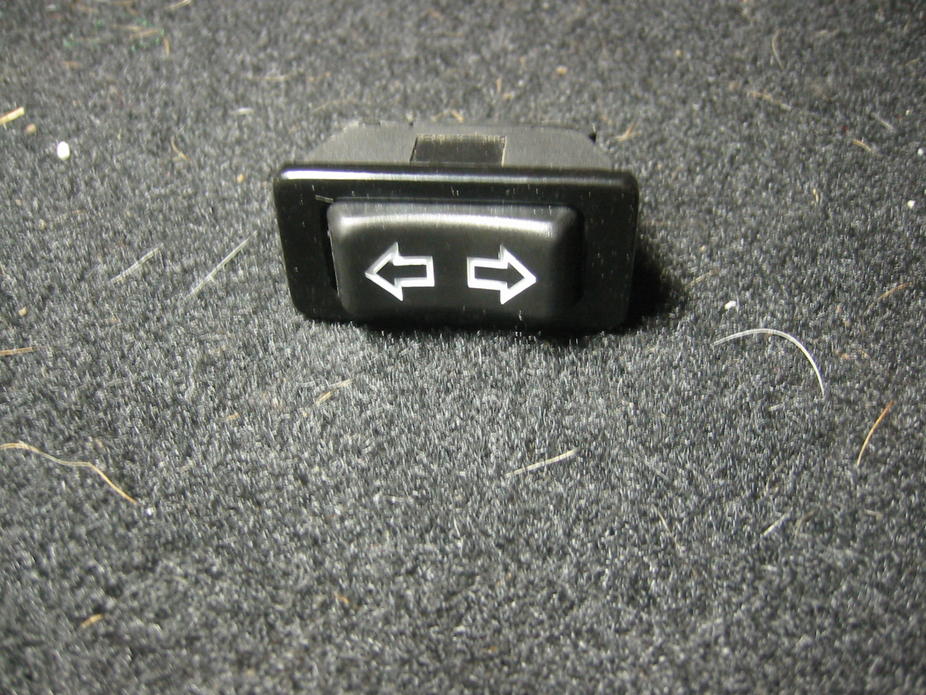

I purchased a window universal switch from parts express for 10 bucks shipped, did a little wire tracing and Viola! I have window switch on the inside of the rear cargo hatch that you don't have to worry about the key.

I traced the wires off the key tumbler for the rear window. I hooked up the 3 wires up and cut a hole in the plastic cover.

Works great and cheap mod too.



[g8rdmd]

I like it! I also wish that the rear window button on the remote would raise the window too, instead of just lowering it--anybody know if that can be made to happen???



[Perrone]

Nice. I think I'll have to try this one out. I bet I can find a switch like that at a local store somewhere.



[ksroqclimber]

This is one hell of an idea. Can you offer any more as far as where you tied in, which wires, etc?

Thanks



[Hepar]

Wow. That's a killer idea. Definitely adding that to the list of future mods!

:thanks:



[ryani]

Yeah there's three wires running from the back of the switch down to the blue control box.

One white and black one which is the ground. It would be your center post on the switch.

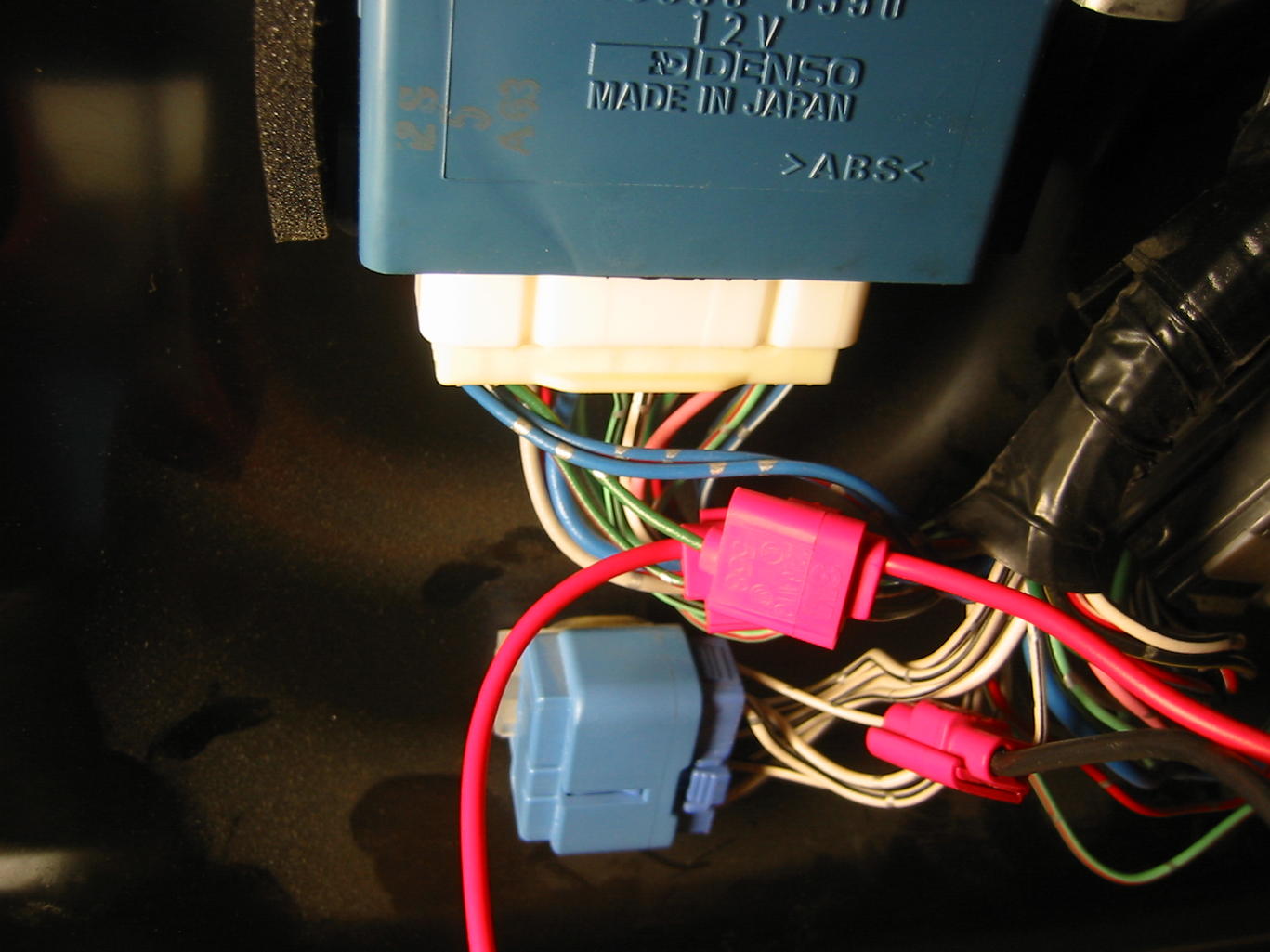

Then there is a dark green with a yellow stripe and dark green with a red stripe. These are your +12v. One is up and one is down. They are located on the blue box. One row in from the passenger side stacked on top of each other.

They go on the momentary part of the switch.



[Duhockey]

This is awesome! I am so gonna do this mod!

Rep added!



[hrt4me]

great idea, thanks!



[atoqe]

Works like a charm

I did this mod with no problems. My toggle switch sat too deep in the door panel cutout, but nothing I couldn't work around.



[3bears]

now on my list of things to do



[jhuerta22]

Does anyone have the wiring diagram to do this? Do both of the switches work off of the single wire?



[stever1000]

Added this to my list!



[stever1000]

How many pins did the bottom of your switch have?

I found this one, but it has 5 pins? Wouldn't I only need 3 like you mention?

Black Plastic DC 12V 20A Auto Car Power Window Switch 5pins Momentary Universal | eBay

Edit:

nevermind, I found this diagram:



[league4]

How do you get to all the wiring? Is it under the panel on the trunk? Does that piece just pry off?



[TinBucket]

Definitely worth doing!



[S2KT4R3]

Cool idea, on my to do list for sure!



[JD914]

Do these 2 wires continue in the same colors up into the truck? I'm considering mounting the remote switch in the trunk area - maybe on the C pillar.


Sent from my iPhone using Tapatalk



[busmup808]

Do these 2 wires continue in the same colors up into the truck? I'm considering mounting the remote switch in the trunk area - maybe on the C pillar.


Sent from my iPhone using Tapatalk

Yes they do.


Sent from my iPhone using Tapatalk



[JD914]

Yes they do.


Sent from my iPhone using Tapatalk

Great, thanks.
This will be the perfect compliment to the sleeping platform I'm building this weekend (and next).


Sent from my iPhone using Tapatalk



[busmup808]

Great, thanks.
This will be the perfect compliment to the sleeping platform I'm building this weekend (and next).


Sent from my iPhone using Tapatalk

Your going to have to take the plastic piece that runs along the fender well and seat belt. The wire will be under the rug


Sent from my iPhone using Tapatalk
