Rugged rear sway bar links for 3rd Gens

[pearlj10]

Hi all,

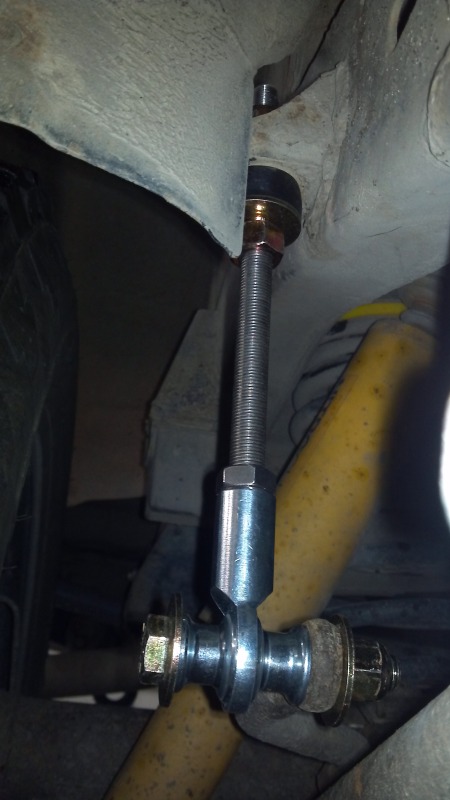

I recently made a pair of rear end links for my heavily modified 4Runner, attempting to build upon the great aftermarket upgrades that are already offered. After running trails such as Elvis and Woodpecker in Arizona (YouTube them if you’re not familiar!), I am convinced that these are a superior product. I am offering these to fellow forum members only, if interested. Psraff was kind enough to provide me with the correct sway bar dimensions on the 3rd Gens and I am now offering these for sell to 3rd Gen owners (already have sold many sets for 4th/5th Gens). The main features of the sway bar links that I am offering:

• Zinc plated, Teflon lined rod end for superior longevity
• The unique feature of stainless steel misalignment spacers on both sides of rod end. In my experience this prevent premature wear of rod end from bolt and nut contacting rod end at full articulation
• Beefy zinc plated threaded steel rod rated at 125,000 PSI tensile strength
• New Energy Suspensions polyurethane bushings (I have tried thermoplastic and, in my opinion, these are too soft to hold up to many episodes of intense articulation). The supplied bushings are notched to carry additional lubricant. Much like Total Chaos UCA bushings, I have found that a waterproof and multi-purpose synthetic lubricant containing PTFE - such as Super Lube - prevents squeaking.
• All new Grade 8 hardware
• Hardware and bushings ship preset to fit a 2" rear lift, if you have more than 2" of rear lift I can customize the link lengths and setup (please PM me if that is the case)
• Simple installation with 19 mm wrench/socket.
• Instructions for installation/proper bushing deflection are provided

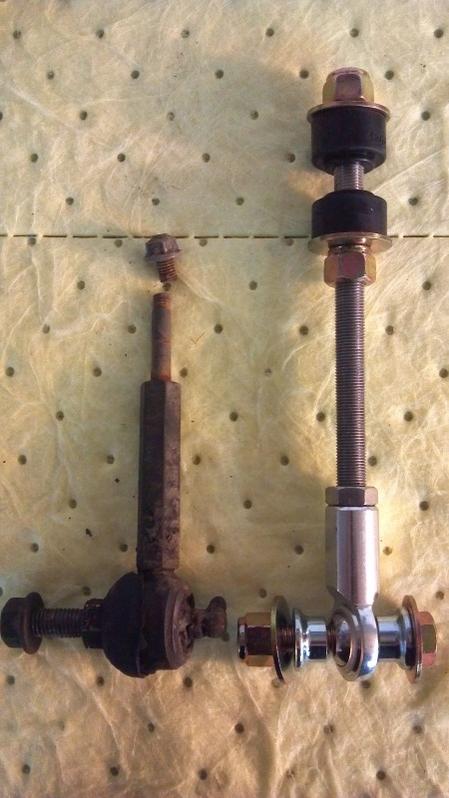

Also note the comparison picture showing the anemic stock link, and these stout, extended length links.

Introductory priced at $110 shipped per pair (PayPal only please).

My commitment to you: all orders will be shipped USPS within 7-10 days with tracking info.

PM me with any questions, or if you are interested in buying a pair.

Thanks for looking!
Chris

P.S. These are intended for off-road vehicles and you are using them at your own risk!



[gannonrt]

The link you included takes me to a 4th gen sticky page??? No mention of your product that I quickly saw.



[psraff]

Hi all,

...sway bar dimensions on the 3rd Gens and I am **not** offering these for sell to 3rd Gen owners. The best part is that these links will be every bit as tough as the ones I am making for the newer models.

http://www.toyota-4runner.org/5th-gen-t4rs/127648-heavy-duty-rear-sway-bar-links-3.html

Thanks for looking!

Chris

Chris... Just checking, but was that NOT suppose to be a NOW?



[psraff]

The link you included takes me to a 4th gen sticky page??? No mention of your product that I quickly saw.

Worked for me... Maybe he fixed it.



[pearlj10]

Thanks gannonrt and psraff! Typo has been fixed, pictures and text updated within 3rd Gen forum.



[psraff]

Also guys, I don't know about down there, but here in Alaska, I went to Auto Zone to replace my broken MOOG end links.... Just shy of $150 for the pair. And these are only $110....

No Brainer for me....
(Just hope Chris don't see this and up his price to $150.....)



[Millerad1651]

You need to call the police or BBB or someone on Autozone...$150 for Moog sway bar links! Thats outrageous. Trailmix built some nice, sturdy ones for like $25...and I know a few of us have as well. Glad I don't live in Alaska.


http://www.toyota-4runner.org/3rd-gen-t4rs/97769-built-new-swaybar-endlinks-my-runner.html

Not to say his aren't good quality at all either...but wow.



[pearlj10]

Millerad1651: you are correct, I could have built a set of these for $20. But I wouldn't want to put that grade of hardware in those narrower sizes though the punishment I put mine through. I actually like the ES link idea, have seen it a few times, I just don't like how narrow the shaft diameter is or the grade of hardware use for those DIY kits. Granted they'd probably work for most people just fine. I was just sick and tired of bending links. Or wearing out the ball joint component of the Moog type of link. In my opinion, if your going to do it, overdue it and never worry about it. But then again, a certain amount of OCD may play into my decisions:lmao::lmao::lmao: I just really, really don't wont any suspension components to fail. Been there, not going back.



[hrt4me]

I would like to order a set; how do I determine my lift so you can set them up for me appropriately, and what is your PayPal address?



[steezemcqueen]

How much longer than the stock links do you set them to?



[Gerdo]

How much longer than the stock links do you set them to?

The max length the 3rd gen rear links can be is one inch longer than stock.
Any longer and they will come in contact with the lower control arms when fully compressed.
(this is for stock thickness LCAs, thicker LCAs would require the links to be slightly shorter)



[Stick Figure]

Millerad1651: you are correct, I could have built a set of these for $20. But I wouldn't want to put that grade of hardware in those narrower sizes though the punishment I put mine through. I actually like the ES link idea, have seen it a few times, I just don't like how narrow the shaft diameter is or the grade of hardware use for those DIY kits. Granted they'd probably work for most people just fine. I was just sick and tired of bending links. Or wearing out the ball joint component of the Moog type of link. In my opinion, if your going to do it, overdue it and never worry about it. But then again, a certain amount of OCD may play into my decisions:lmao::lmao::lmao: I just really, really don't wont any suspension components to fail. Been there, not going back.

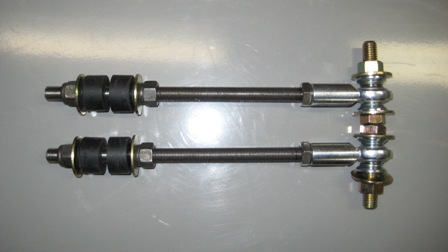

I couldn't agree more if your going to do it, OVER do it ... here's the set I offer

<img src="http://www.mostdesigns.com/zgallery/albums/For%20Sale/SFF/DSC04294.JPG" width="800" height="400" alt="SFF">


VS stock
<img src="http://www.mostdesigns.com/zgallery/albums/Personal%20Vehicles/4Runner/end%20links/DSC01457.JPG" width="600" height="400" alt="SFF">



[pearlj10]

Hrt4me: pm sent, thanks for your interest.



[pearlj10]

steezemcqueen: I set these to 2" longer than stock. This is the limit where everyone that I've known starts hitting the lower control arm (including those who have successfully run the 2 gen links, which are still weak but 2" longer than the 3rd gens). If your rear suspension setup happens to be the first that rubs with a 2" extended link these are fully adjustable and you can decrease the length slightly to work properly on your setup.

Thanks for your interest,
Chris



[pearlj10]

Stick figure: those are nice! But the more misalignment the better :trophy:.

J/k... The more options the better!



[Scramble]

Hi all,

I recently made a pair of rear end links for my heavily modified 4Runner, attempting to build upon the great aftermarket upgrades that are already offered. After running trails such as Elvis and Woodpecker in Arizona (YouTube them if you’re not familiar!), I am convinced that these are a superior product. I am offering these to fellow forum members only, if interested. Psraff was kind enough to provide me with the correct sway bar dimensions on the 3rd Gens and I am now offering these for sell to 3rd Gen owners (already have sold many sets for 4th/5th Gens). The main features of the sway bar links that I am offering:

• Zinc plated, Teflon lined rod end for superior longevity
• The unique feature of stainless steel misalignment spacers on both sides of rod end. In my experience this prevent premature wear of rod end from bolt and nut contacting rod end at full articulation
• Beefy zinc plated threaded steel rod rated at 125,000 PSI tensile strength
• New Energy Suspensions polyurethane bushings (I have tried thermoplastic and, in my opinion, these are too soft to hold up to many episodes of intense articulation). The supplied bushings are notched to carry additional lubricant. Much like Total Chaos UCA bushings, I have found that a waterproof and multi-purpose synthetic lubricant containing PTFE - such as Super Lube - prevents squeaking.
• All new Grade 8 hardware
• Hardware and bushings ship preset to fit a 2" rear lift, if you have more than 2" of rear lift I can customize the link lengths and setup (please PM me if that is the case)
• Simple installation with 19 mm wrench/socket.
• Instructions for installation/proper bushing deflection are provided

Also note the comparison picture showing the anemic stock link, and these stout, extended length links.

Introductory priced at $110 shipped per pair (PayPal only please).

My commitment to you: all orders will be shipped USPS within 7-10 days with tracking info.

PM me with any questions, or if you are interested in buying a pair.

Thanks for looking!
Chris

P.S. These are intended for off-road vehicles and you are using them at your own risk!

OP, are you still making these?
Thanks



[pearlj10]

Yes, I'm still making the links, at the same price ($110 shipped) too! Want a pair? I have all of the goodies in stock.

Thanks,
Chris

OP, are you still making these?
Thanks



[Scramble]

Yes, I'm still making the links, at the same price ($110 shipped) too! Want a pair? I have all of the goodies in stock.

Thanks,
Chris

Yes Chris, I'll take a pair! 99 4runner rear sway bar end links 3" lift. PM your PP & I'll send money today.
Thanks,
Mike



[Scramble]

Yes, I'm still making the links, at the same price ($110 shipped) too! Want a pair? I have all of the goodies in stock.

Thanks,
Chris

Please send me your PP info.
Thanks,



[1moreToy4me]

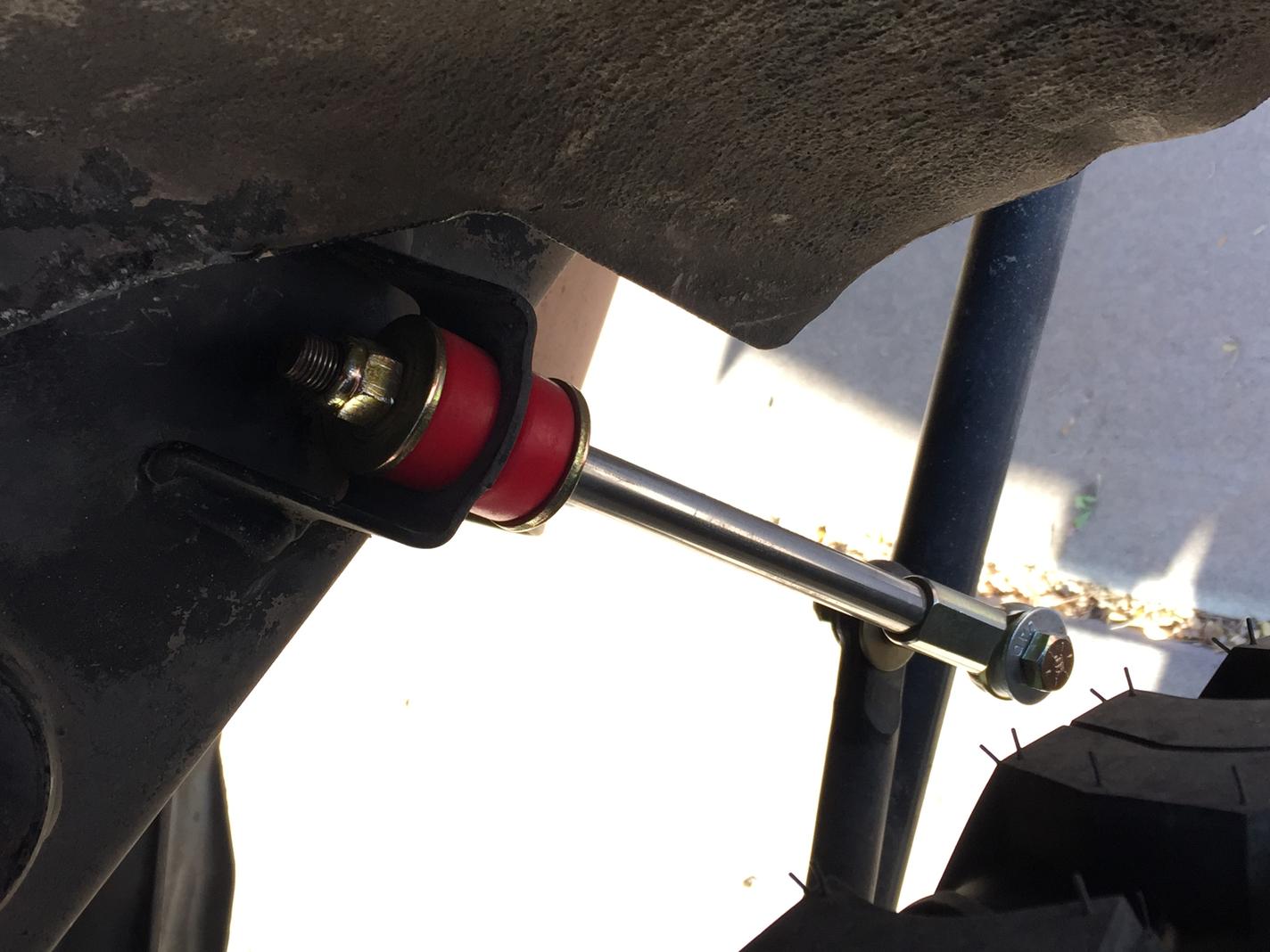

My creation.
