TRD Pro parts

Cheers!

Cheers!

Member
So here is a new thread for TRD Pro parts...

Keep the posts coming.

So far:

Wheels: http://www.toyota-4runner.org/5th-gen-t4rs/121417-info-these-trd-wheels-2.html#post1687503

Part number gray: PTR20-35110-GR

Part number black: PTR20-35110-BK

Edit: more info

For vehicles with OE 20 inch wheels, you must order & install the TRD 17 inch Tire Pressure Label (MDC# 00602-35155) when installing these TRD 17" wheels & 17" OE tires.

TRD Owner's Manual Label (MDC # 00602-35061) also required and available thru the MDC.

Matte GRAY Paint Color with Red TRD Logo on Center Cap.

17 inch x 7.0 inch x 4 mm offset, Cast Aluminum TRD Wheel with TRD snap-in center cap (PTR20-35111-GR).

This wheel is designed for use with OE Flat-Seat lugnuts (90942-01058), sold separately.

Optional 4Runner DIO Wheel Lock Kit is 00276-00901

Optional FJ Cruiser DIO Wheel Lock Kit is 00276-42960 (includes 5th lock for spare tire)

This wheel is designed to re-use the OE 17" Tires P265/70R17 113S

Bridgestone Dueler H/T D684 II A/S OR Dunlop Grandtrek AT20 A/S

Register to hide this ad
Skid Plate:

NEW! TRD Skid Plate for FJ Cruiser! 2010-14 (PT938-00140)

•Enhances vehicle’s tough, capable stance
•Helps protect vehicle underbody from damage that can result from flying stones, branches, ice chunks and other types of road debris
•Made from stamped and formed 1/4-in.-thick silver powder-coated aluminum
•Skid plate won’t interfere with or block the cooling system, while providing cut outs for unobstructed access to all maintenance points and vehicle tow hooks
•Engineered to help prevent vibration stress and noise issues while ensuring no compromises to vehicle performance systems
•Easy, no-drill installation uses vehicle’s existing attachment mounts

1/4" Aluminum Functional Skid Plate.

Powder Coated in Silver with TRD logo.
This is a REAL skid plate!
4runners:
This skid plate conflicts with the KDSS sway bar system.

This part fits the following vehicles:
Toyota: 4Runner 2014 - 2015
Toyota: FJ Cruiser 2010 - 2014

c2one: How did you find these parts? When I surf the TRD webpage I don't see it pop up.

I wonder how the bilstein shocks on the TRD Pro compare to say Fox coilovers...

Someone posted a high res photo, low angle - front end, of the 4Runner. If you zoom in on the shock you could read the part number PTR13-35120-AB.

Toyota has talked about how the coils on the TRDpro are softer.

Cheers! said:
Skid Plate:

NEW! TRD Skid Plate for FJ Cruiser! 2010-14 (PT938-00140)

•Enhances vehicle’s tough, capable stance
•Helps protect vehicle underbody from damage that can result from flying stones, branches, ice chunks and other types of road debris
•Made from stamped and formed 1/4-in.-thick silver powder-coated aluminum
•Skid plate won’t interfere with or block the cooling system, while providing cut outs for unobstructed access to all maintenance points and vehicle tow hooks
•Engineered to help prevent vibration stress and noise issues while ensuring no compromises to vehicle performance systems
•Easy, no-drill installation uses vehicle’s existing attachment mounts

1/4" Aluminum Functional Skid Plate.

Powder Coated in Silver with TRD logo.
This is a REAL skid plate!
4runners:
This skid plate conflicts with the KDSS sway bar system.

This part fits the following vehicles:
Toyota: 4Runner 2014 - 2015
Toyota: FJ Cruiser 2010 - 2014
Click to expand...

Thanks for the info.
Info from the FJCruiserForums states that the plate comes with new hardware.

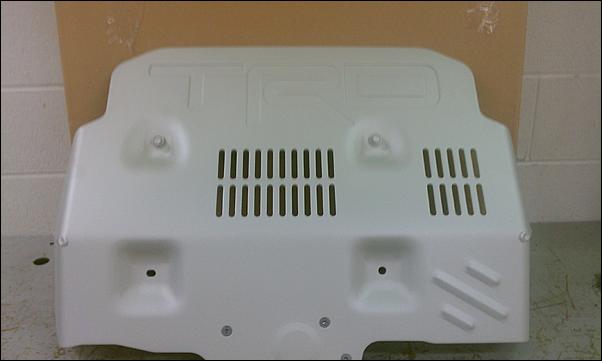

Here is a photo shot by TITAN620:


Attachments

  • TRD_SKID.jpg
    16.6 KB · Views: 11,949
does anyone know what it would take to fit the skid plate on a 2012 4runner? I know is says 14-15 but im hoping with a few slight tweaks it could be made to fit my year truck.

letzrace said:
does anyone know what it would take to fit the skid plate on a 2012 4runner? I know is says 14-15 but im hoping with a few slight tweaks it could be made to fit my year truck.
Click to expand...

Should bolt right on my 2014 uses the same skid as the 2012 non KDSS.

Skid is $269.00..

Last edited:
Man, I really want the TRD skid plate for my runner. I wonder what kind of modifications need to be done to make it work with my TE equipped with KDSS ;-(

Cheers! said:
So here is a new thread for TRD Pro parts...

Keep the posts coming.

So far:

Wheels: http://www.toyota-4runner.org/5th-gen-t4rs/121417-info-these-trd-wheels-2.html#post1687503

Part number gray: PTR20-35110-GR

Part number black: PTR20-35110-BK

Edit: more info

For vehicles with OE 20 inch wheels, you must order & install the TRD 17 inch Tire Pressure Label (MDC# 00602-35155) when installing these TRD 17" wheels & 17" OE tires.

TRD Owner's Manual Label (MDC # 00602-35061) also required and available thru the MDC.

Matte GRAY Paint Color with Red TRD Logo on Center Cap.

17 inch x 7.0 inch x 4 mm offset, Cast Aluminum TRD Wheel with TRD snap-in center cap (PTR20-35111-GR).

This wheel is designed for use with OE Flat-Seat lugnuts (90942-01058), sold separately.

Optional 4Runner DIO Wheel Lock Kit is 00276-00901

Optional FJ Cruiser DIO Wheel Lock Kit is 00276-42960 (includes 5th lock for spare tire)

This wheel is designed to re-use the OE 17" Tires P265/70R17 113S

Bridgestone Dueler H/T D684 II A/S OR Dunlop Grandtrek AT20 A/S
Click to expand...

Any info on the grill?

letzrace said:
does anyone know what it would take to fit the skid plate on a 2012 4runner? I know is says 14-15 but im hoping with a few slight tweaks it could be made to fit my year truck.
Click to expand...

I just ordered this for my 2012 trail non-kdss and will report back on fitment. Part guy at Toyota said it should work as the factory "skid plate" is the same for 2010+. I get it next week, will report back, hopefully with pics of a success :dance: I paid $275 and I'm in AK.

Is anyone actually planning on buying all of the suspension parts to turn their 4runner into a TRD PRO?

I love the TRD Pro but had my heart set on silver so it looks like i'll be getting a trail premium and looking to lift it. I dont know how feasible it would be to use OEM TRD Pro suspension parts though (cost wise). It looks like it will be just as expensive if not more than a lot of the aftermarket kits.

Does anyone know how soon these parts will be available or if they already are?

Malonewolf said:
Is anyone actually planning on buying all of the suspension parts to turn their 4runner into a TRD PRO?

I love the TRD Pro but had my heart set on silver so it looks like i'll be getting a trail premium and looking to lift it. I dont know how feasible it would be to use OEM TRD Pro suspension parts though (cost wise). It looks like it will be just as expensive if not more than a lot of the aftermarket kits.

Does anyone know how soon these parts will be available or if they already are?
Click to expand...

I'm kinda on the fence about doing this; love the wheels (set on-order); wish the skid plate fitted with the KDSS; and will see how much they will charge etc for some of the other parts.

Saker said:
This is the best price I can find:
TRD SKID PLATE | Genuine Toyota | PT938-00140 = 206.25 @ time of posting
from SUPERTOYOTAPARTS.COM
Click to expand...

I just placed my order.

These are coming from:
Super Toyota Parts,
29330 South Dixie Hwy
Homestead, Florida, 33030
USA
305-246-1151


Order Info:

Order Content
Part Number--------Part Name------------Price------Quantity------Total
PT938-00140 ------TRD SKID PLATE----$206.25------1----------$206.25

Subtotal:-------------------------------------------------------------$206.25
Shipping (UPS - Ground):--------------------------------------------$15.09
Total:-----------------------------------------------------------------$221.34
