Under Dash Connections - Where do they go!? Help Needed

[xxJAMxx]

So I just bought a 2002 4runner SR5 4wd Sport Edition for $350 that I'm rebuilding. There are these 5 harness connectors coming out of the loom near the fuse box under the driver's side dash. I have looked everywhere and can't figure out where they go. I'm not sure if a harness is missing or what. Can anyone help me locate where these connections go?



[TheDurk]

You only give a good pic of the business end of one of them (the big 3-row white one.) That one looks like the E10 plug shown here:

http://tacoma.site40.net/4Runner_96-02_Repair&Wiring/techinfo.toyota.com/ileaf/ewdtmc2/ewdtmpdf/ewdsourc/2002/024runne/connecto/connecto.pdf

which this shows as one to plug into the ECM.

http://tacoma.site40.net/4Runner_96-02_Repair&Wiring/techinfo.toyota.com/ileaf/ewdtmc2/ewdtmpdf/ewdsourc/2002/024runne/connecto/connecto.pdf

Need better pics to match the other ones or if I'm wrong about the first one. The black one possibly could be E12, which also goes to the ECM, but need an end-on pic to be sure. Not that many big black ones, so with a decent pic, it would be easy to figure out.



[xxJAMxx]

So I figured out where these go. They plugin to the VSC Ecu which is missing. Thus the reason I couldn't find anywhere to plug them in. so I will have to source one of these units. Thank you 'TheDurk' those links you provided were extremely helpful.



[sawguy]

You only give a good pic of the business end of one of them (the big 3-row white one.) That one looks like the E10 plug shown here:

http://tacoma.site40.net/4Runner_96-02_Repair&Wiring/techinfo.toyota.com/ileaf/ewdtmc2/ewdtmpdf/ewdsourc/2002/024runne/connecto/connecto.pdf

which this shows as one to plug into the ECM.

http://tacoma.site40.net/4Runner_96-02_Repair&Wiring/techinfo.toyota.com/ileaf/ewdtmc2/ewdtmpdf/ewdsourc/2002/024runne/connecto/connecto.pdf

Need better pics to match the other ones or if I'm wrong about the first one. The black one possibly could be E12, which also goes to the ECM, but need an end-on pic to be sure. Not that many big black ones, so with a decent pic, it would be easy to figure out.

These links have malware



[TheDurk]

These links have malware

No, they don't. I've been using them for years. So have many others. You're the first one to say that.



[gmcmanus663]

$350? What a deal! Good luck with rebuilding it. Hopefully you can find a good vsv ecu at a local junkyard or something to keep costs down.



[amalik]

$350 for an 02? Unless the engine and tranny both need replacement, what a nice find. The freaking OEM plastic cladding on a limited is over $350 if you were to buy a few of them new, or a set of new leather seat bottoms on eBay cost about the same.



[xxJAMxx]

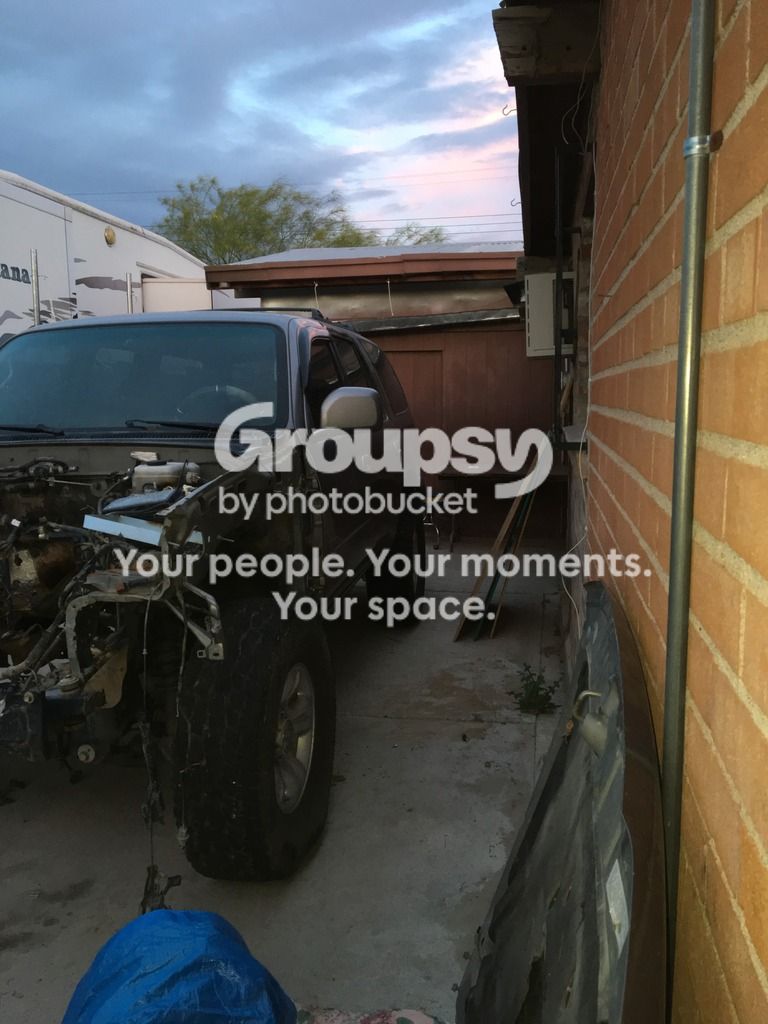

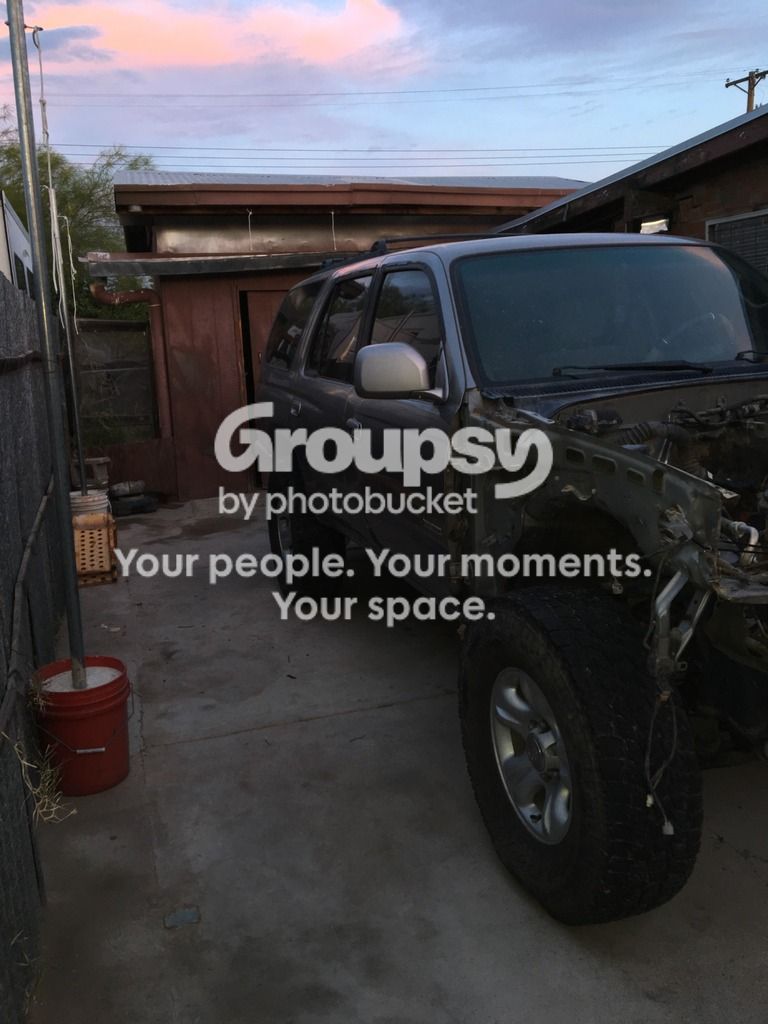

Ya, I couldn't pass it up. The interior is complete minus a few missing items and no rips in seats. Body is straight except for a few small spots. It also came with a rebuilt transmission but no motor but I have a running 5vzfe I'm going to throw in. I probable could sell the transmission and transfer case for more than I bought the truck for. I disassembled the front end to fix some damage so that is the current state as you will see in the pics. I'll start a build thread eventually.



[kolelt]

So I just bought a 2002 4runner SR5 4wd Sport Edition for $350 that I'm rebuilding. There are these 5 harness connectors coming out of the loom near the fuse box under the driver's side dash. I have looked everywhere and can't figure out where they go. I'm not sure if a harness is missing or what. Can anyone help me locate where these connections go?

I feel like the 2nd pic one of the plug goes. I where ? I have 2 plugs above my feet under the plastic. Where the stock elocker button goes. And they aren't plugged in anywhere



[phattyduck]

I feel like the 2nd pic one of the plug goes. I where ? I have 2 plugs above my feet under the plastic. Where the stock elocker button goes. And they aren't plugged in anywhere

You'll have a plug for the e-locker under the dash, along with a plug for the electric mirrors (same as the plug in the doors) and and probably some extra stuff beyond that.

-Charlie



[kolelt]

You'll have a plug for the e-locker under the dash, along with a plug for the electric mirrors (same as the plug in the doors) and and probably some extra stuff beyond that.

-Charlie

i have electric mirrors. And the other plug did not look like a elocker plug at all. OH well, not worried lol



[phattyduck]

i have electric mirrors. And the other plug did not look like a elocker plug at all. OH well, not worried lol

All 3rd gens have electric mirrors. Some have manual (door) windows, which then puts the mirror control on the dash with no switches on the doors... The dash harness is the same with or without electric windows, so the plug is there regardless. Heck, my 2WD dash harness has the rear locker plug.

-Charlie
