Wiring schematic for 99 overhead console moon roof operation?
Seems that I have a aftermarket headliner in the 99SR5. I just purchased a nice OEM headliner from a 2000 limited. I also purchased the overhead console with the integrated moonroof switch in it from the limited as well.

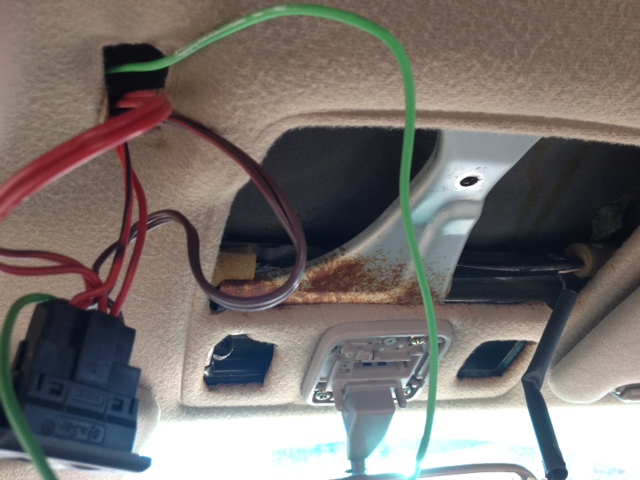

Presently.. My switch happens to be mounted into the actual headliner with some after market wiring and was wondering which wires will I have to connect in order to make this work properly?
Im not sure the switch was mounted in the headliner from factory, the wires look like an extension cord rig job!
Check out pix below to the differences between 2 consoles and harnesses..
The blue harness is from the limited w/switch in console, it also seems to have a relay in there which my 99 does not have.
The 99 just has 1 little thin wire for the two bulbs.
Does anyone have a color coded wiring schematic for the 99 overhead console moon roof operation?
Thanks guys!
Seems that I have a aftermarket headliner in the 99SR5. I just purchased a nice OEM headliner from a 2000 limited. I also purchased the overhead console with the integrated moonroof switch in it from the limited as well.
Presently.. My switch happens to be mounted into the actual headliner with some after market wiring and was wondering which wires will I have to connect in order to make this work properly?
Im not sure the switch was mounted in the headliner from factory, the wires look like an extension cord rig job!

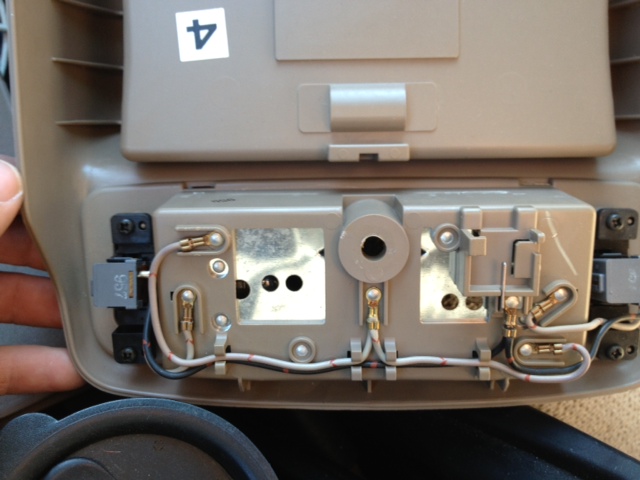

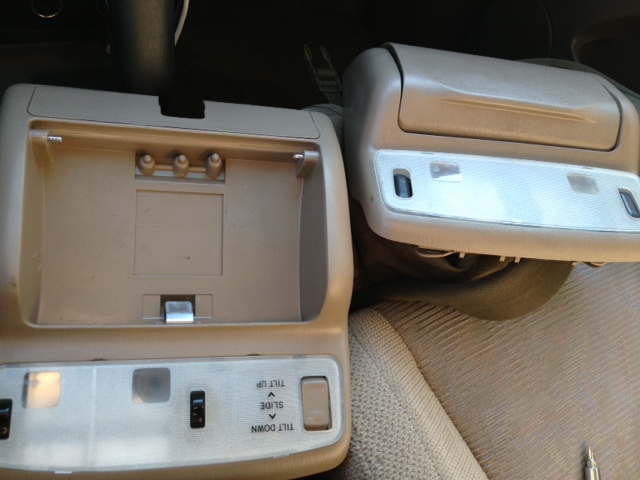

Check out pix below to the differences between 2 consoles and harnesses..

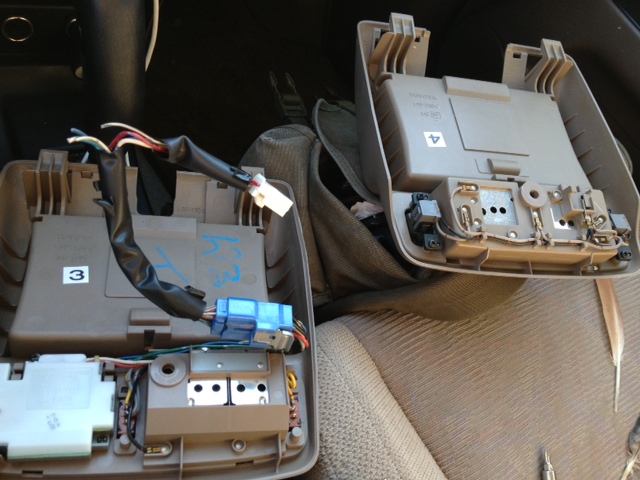

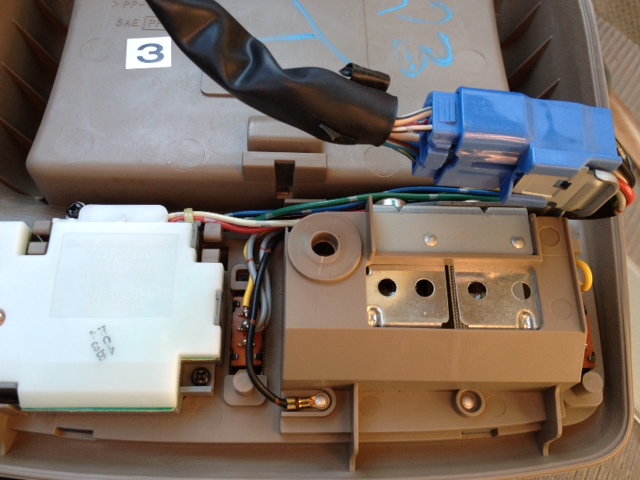

The blue harness is from the limited w/switch in console, it also seems to have a relay in there which my 99 does not have.
The 99 just has 1 little thin wire for the two bulbs.
Does anyone have a color coded wiring schematic for the 99 overhead console moon roof operation?
Thanks guys!
