wiring help.

[SkylineGTRracer]

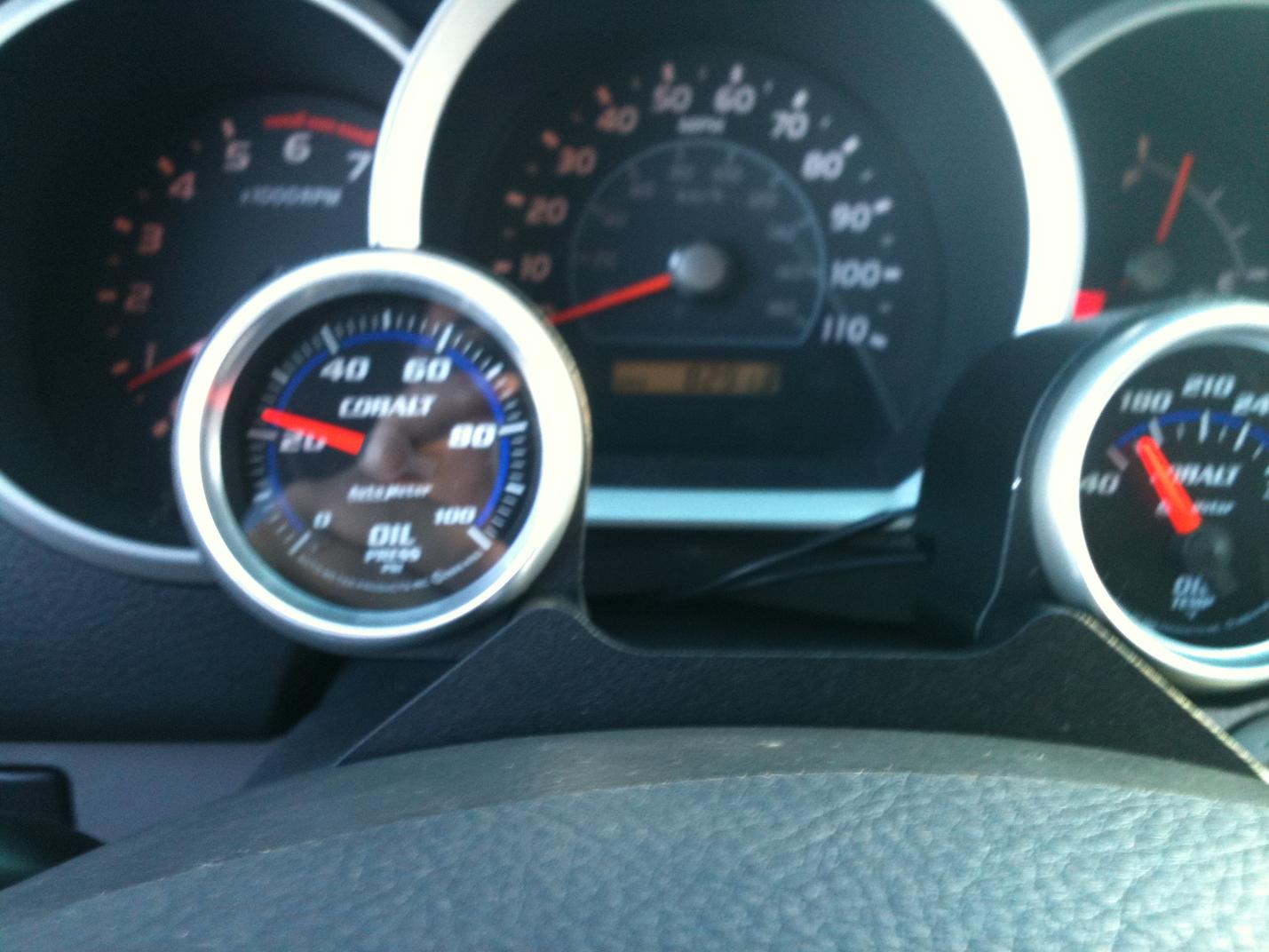

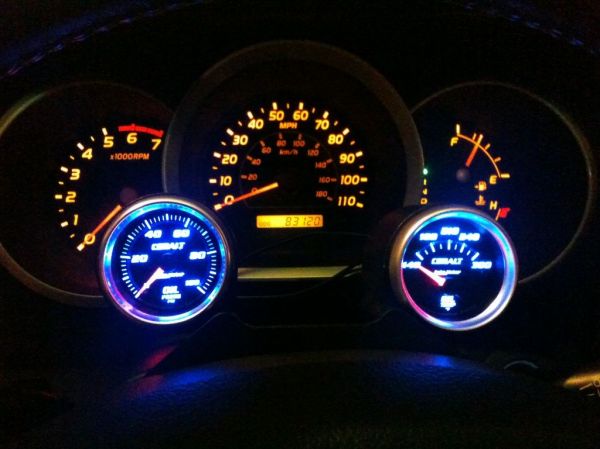

Does anyone happen to have a wiring schematic for the headlights and where they get there power when turned on? I installed my gauges and I've been looking for the right wire to tap into but I've had no luck. I've got them wired into a temporary source but that just means the lights on the gauges are on full time. here are some pics of the near finished product.



[BlackWorksInc]

What model year and trim? I'll snag you some PDF's from work tomorrow if I have some time on my hands.



[SkylineGTRracer]

It's a 2006 SR5 2wd with factory fogs if that helps. :/ thanks in advance.



[Casper421]

Those gauges look sick! :bravo: Hope you get them wired up soon.



[SkylineGTRracer]

Thanks for the complement. They work great and I love the color it just for now the back light will always be on (in a key on position, don't wanna drain the battery) I just can't find the wire/wires for the headlight that get there signal to turn on when you flip them on. :ybrick: After midterms I'm gonna install my afr gauge in my new exhaust and my water temp gauge at the same time.



[BlackWorksInc]

Unfortunetly, TIS no longer uses PDF to view their wiring diagrams, some sort of Java based app that won't let you save the diagram. In any case, if you follow the Solid Green wire from the TAIL fuse from the fuse box to Connector C, Pin 9 (C9) on the back of the combination meter that looks to be the signal wire for illuminating everything when you turn the head lights on.

Let me know if that works or not Skyline, that's what found when I was looking through the combination diagram.



[SkylineGTRracer]

Thanks, I'll give that a try later tonight.
