here is a write up for replacing bulbs in a 2000 limited with climate control.
(dash bulbs to come)
might be a good one to sticky or move so other can reference it quickly.

For the update.
Late 1999 to 2000 Limited

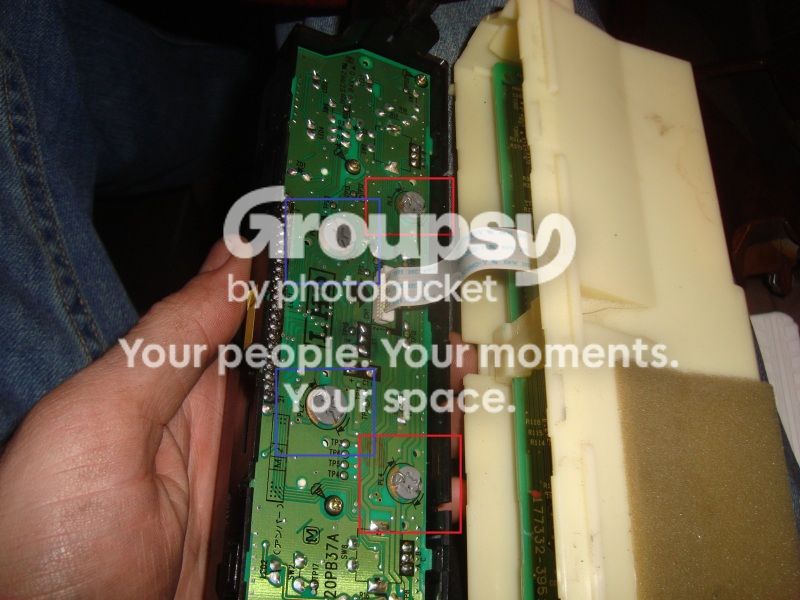

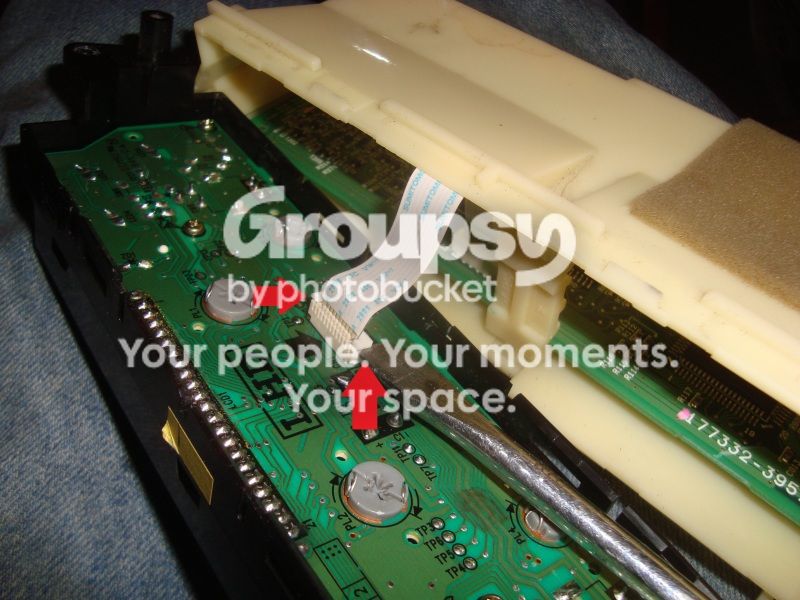

Smaller bulbs that light the knobs are part number 81850-35050
These are a common size used in toyota products. The base plastic that holds the lamp should be dark green. Different colors are different voltage.
The larger bulbs that light the LCD are part number 81850-35040
I don't know what the future availability of the larger bulbs will be. All I can say that in my case. One came from a dealer in Washington state, And another is due in next week from a dealer in California.
If your dash is dim. I would get it taken care of sooner then later.

For general bulb size or LED conversion see chart:

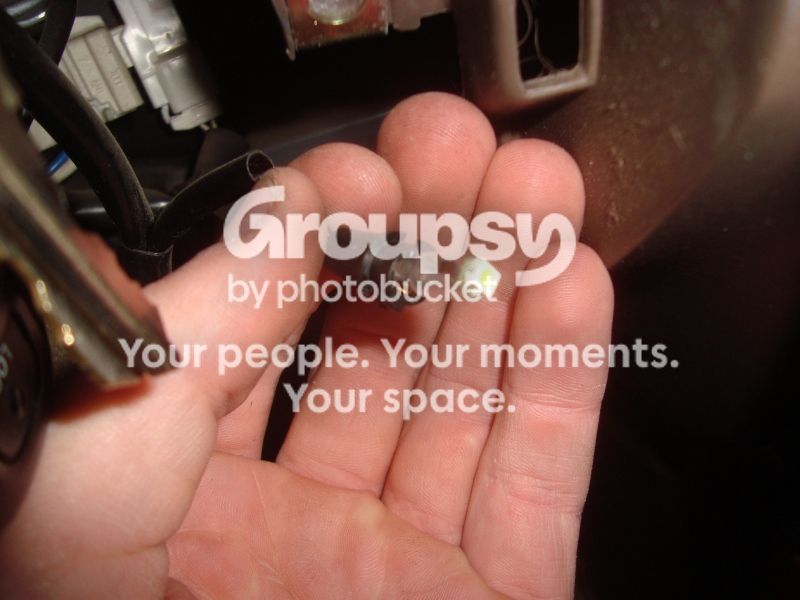

word of caution: the LED bulbs i got were directional. they only light up on way. some of them i put in backwards and had to take stuff apart once i learned that. be sure you test them before you put everything back together.
this page also helps too. http://www.toyota-4runner.org/3rd-gen-t4rs/78310-led-conversion-questions-4.html

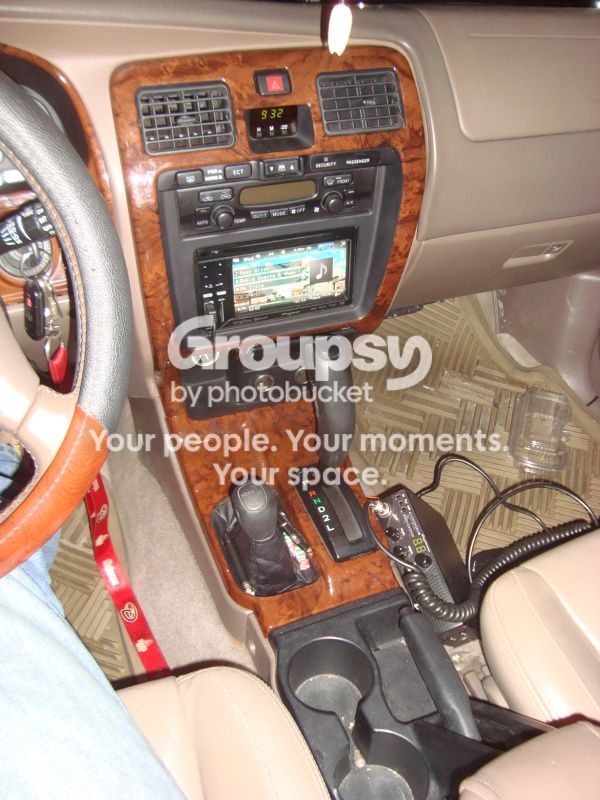

1st time. aprox. 15-25 min



[shootmymime]

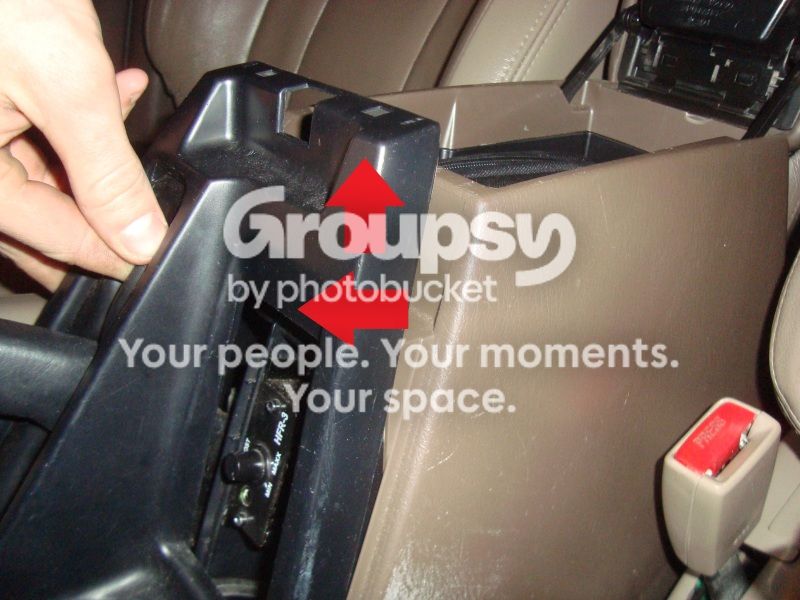

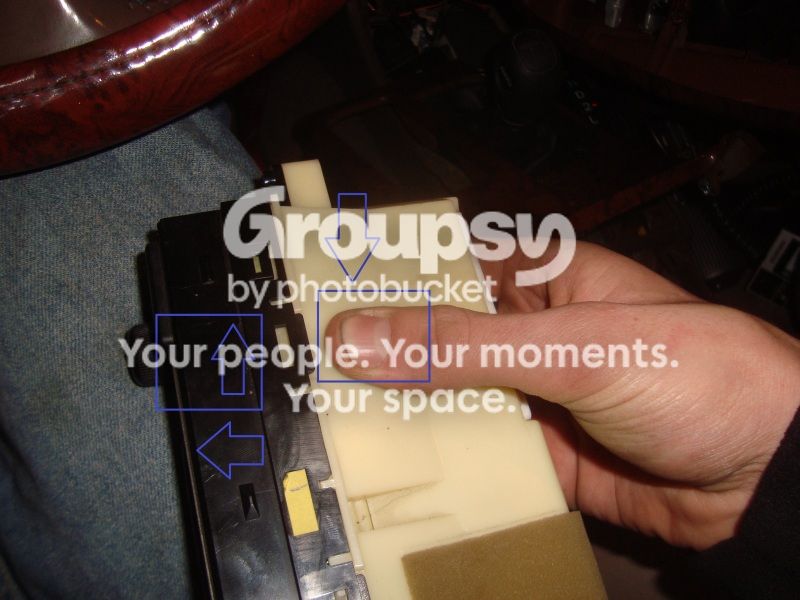

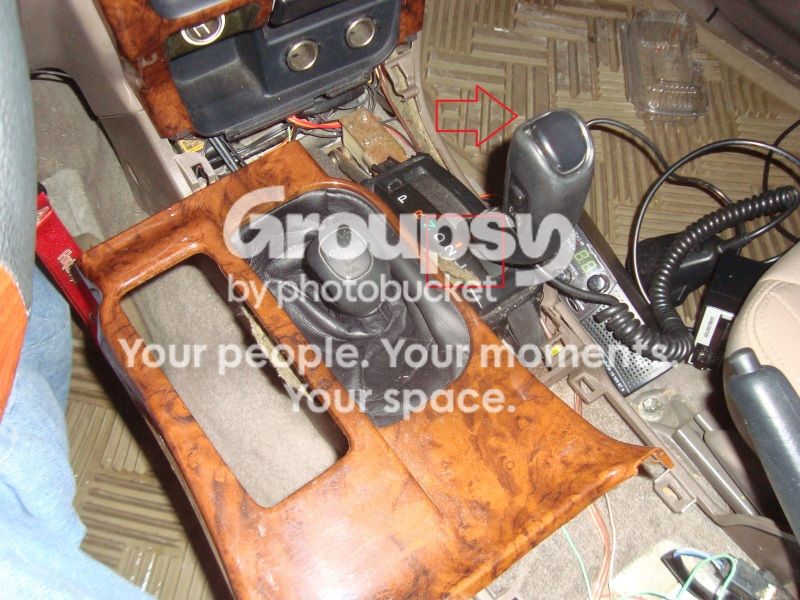

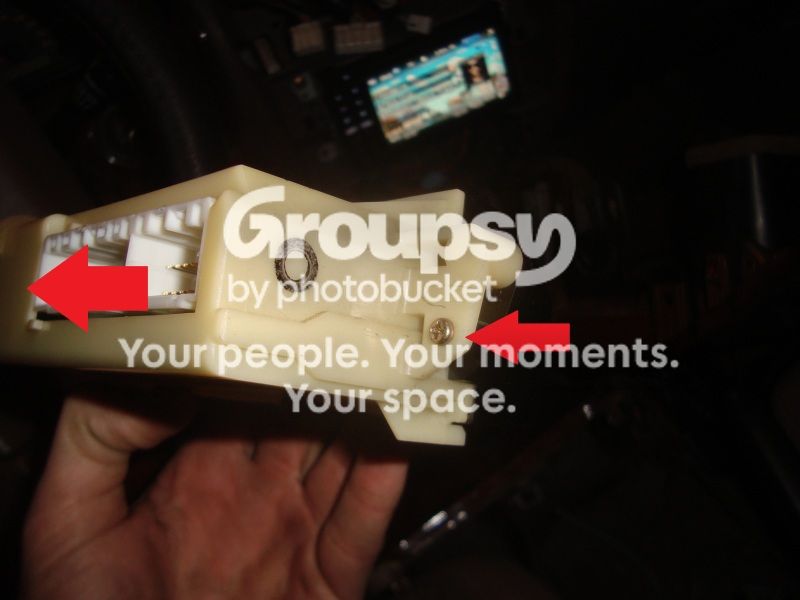

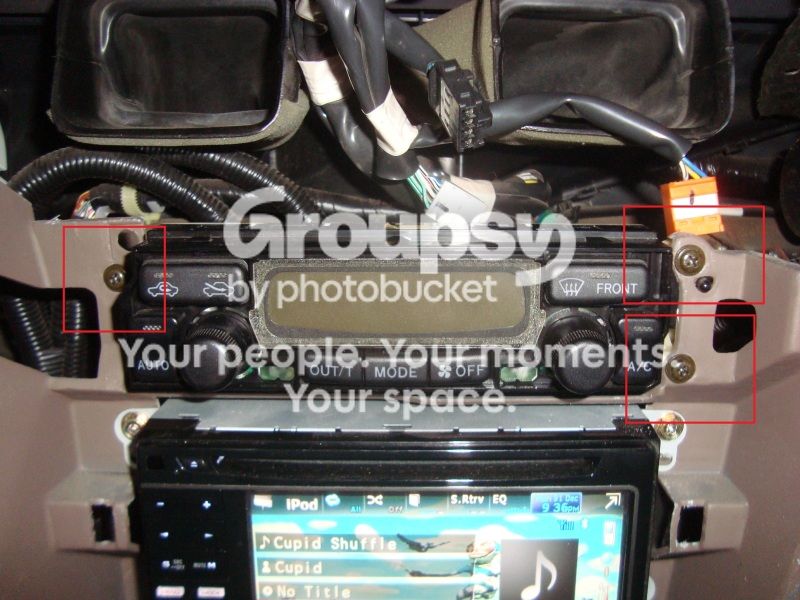

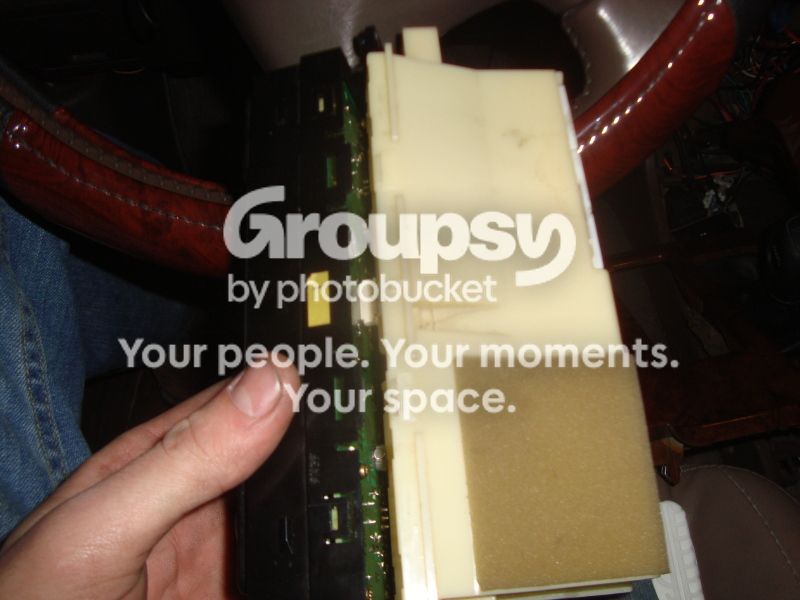

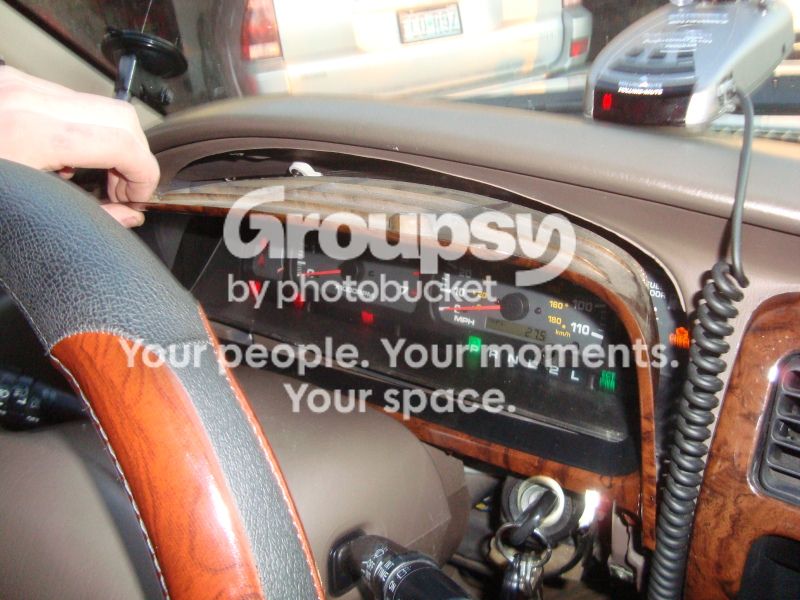

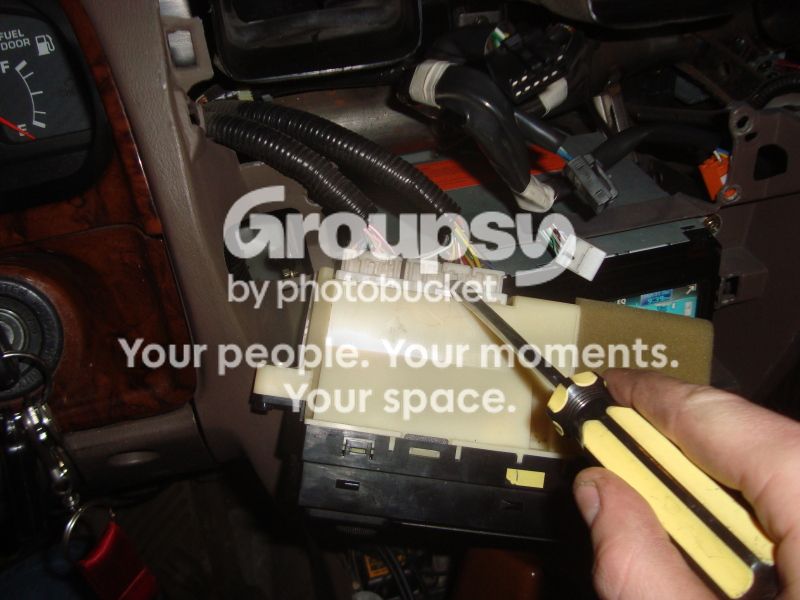

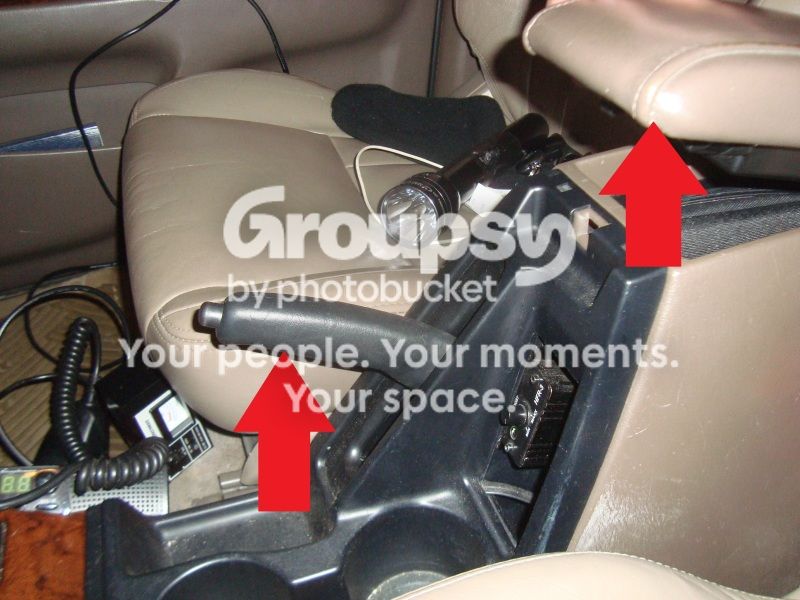

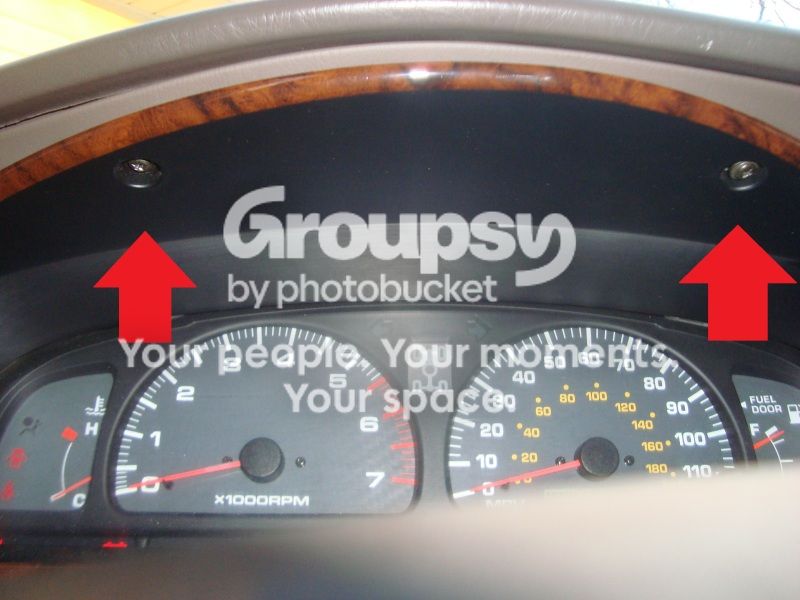

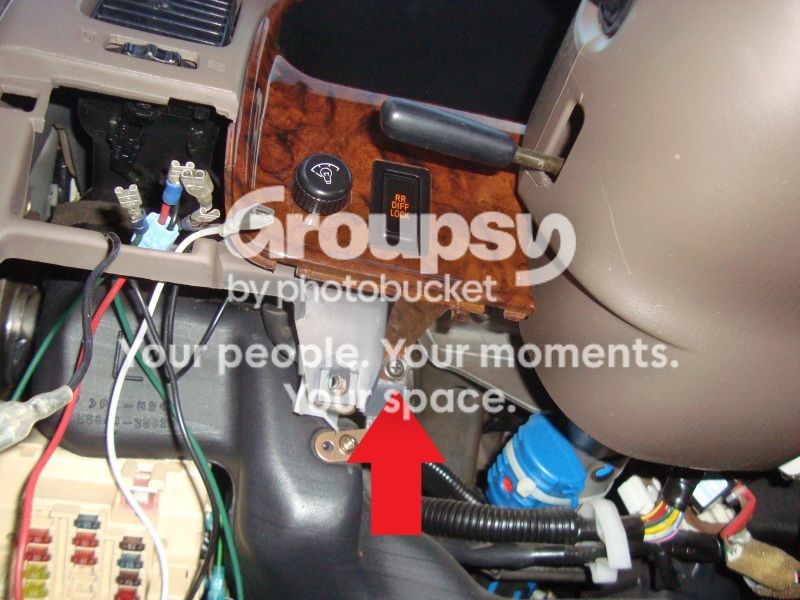

REMOVE BOTH SCREWS

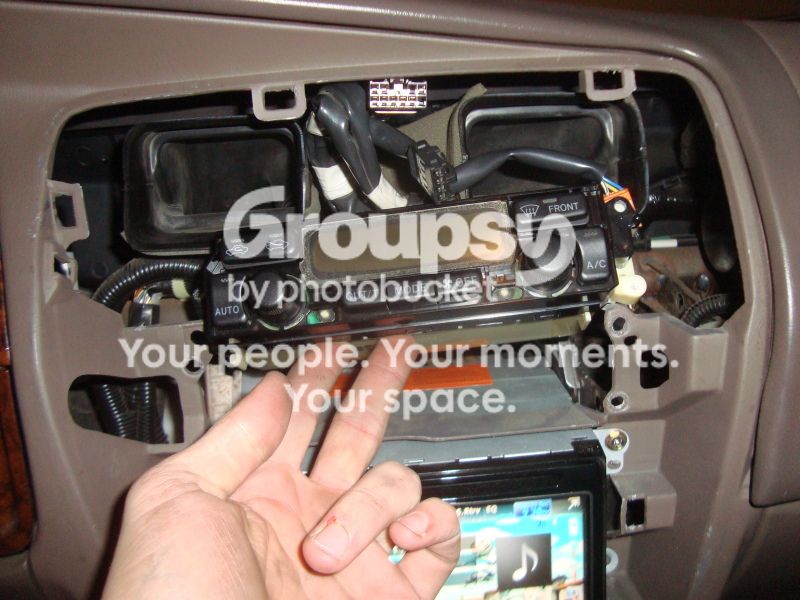

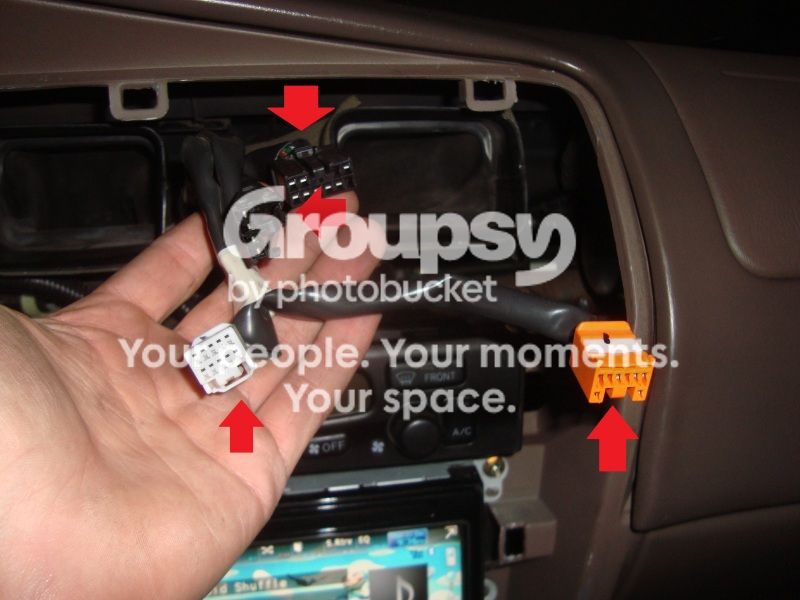

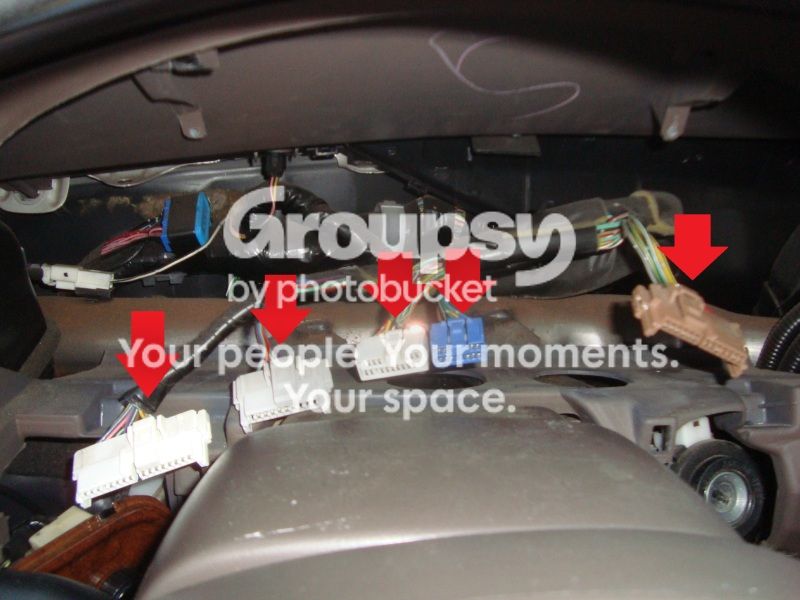

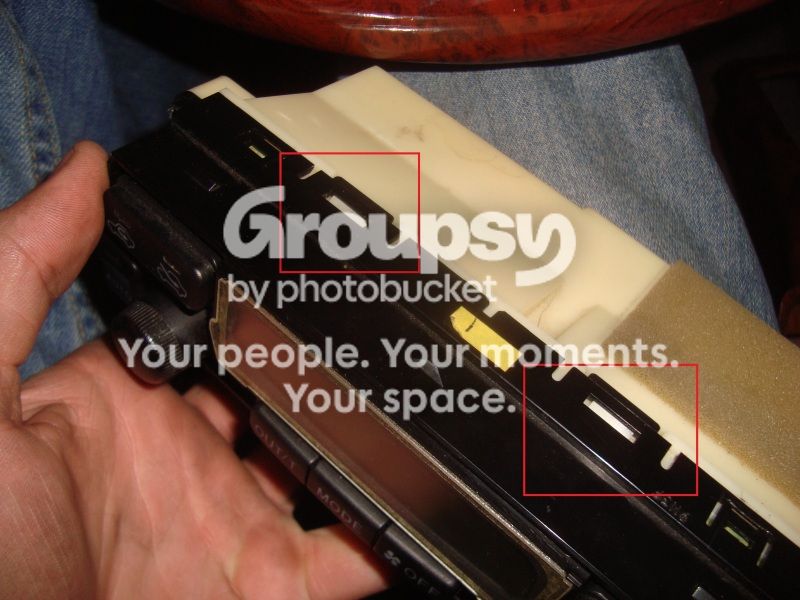

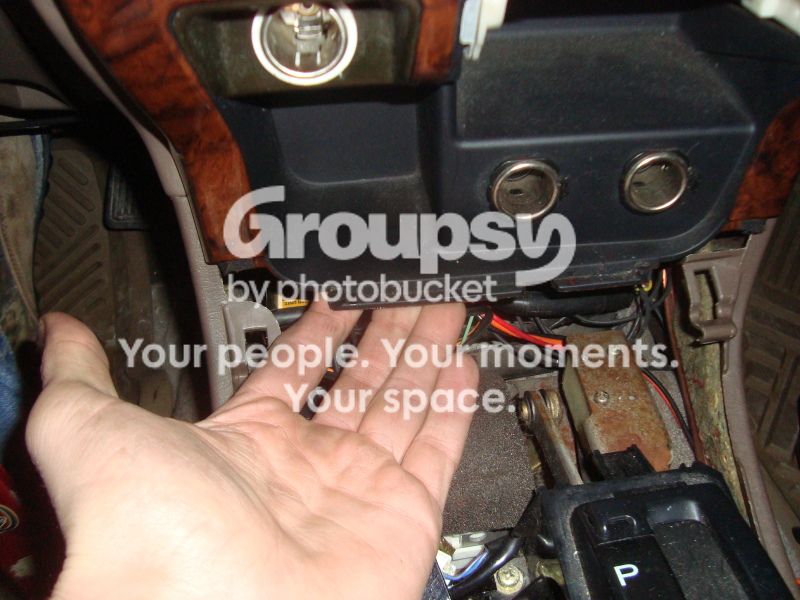

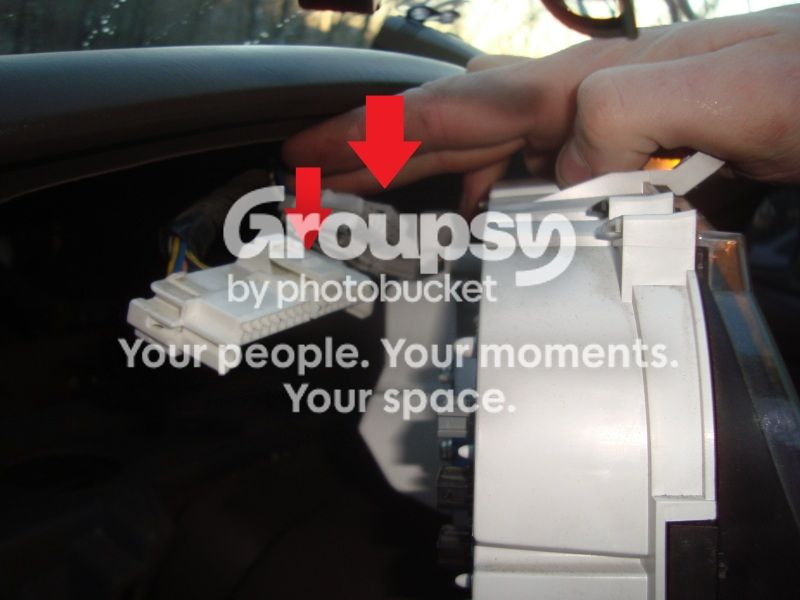

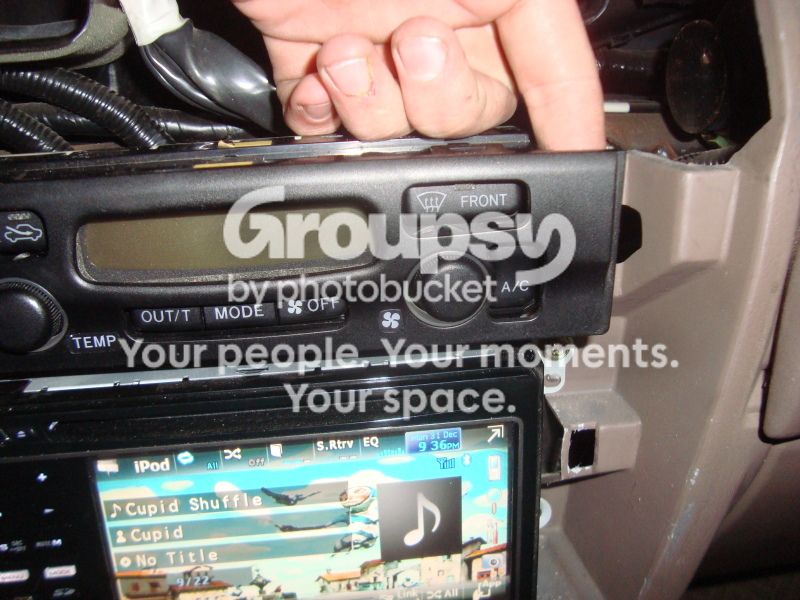

IF YOU WANT YOU CAN DISCONNECT THE WIRE AND HAVE MORE ROOM TO WORK. DO THIS.



[ICD]

Freaking amazing.

Great write up. I can't wait for you dash one



[RussToy]

Freaking amazing.

Great write up. I can't wait for you dash one

^^ What he said^^

I'm really looking forward to you changing out the dash lights...are you going LED?...:snacker:



[shootmymime]

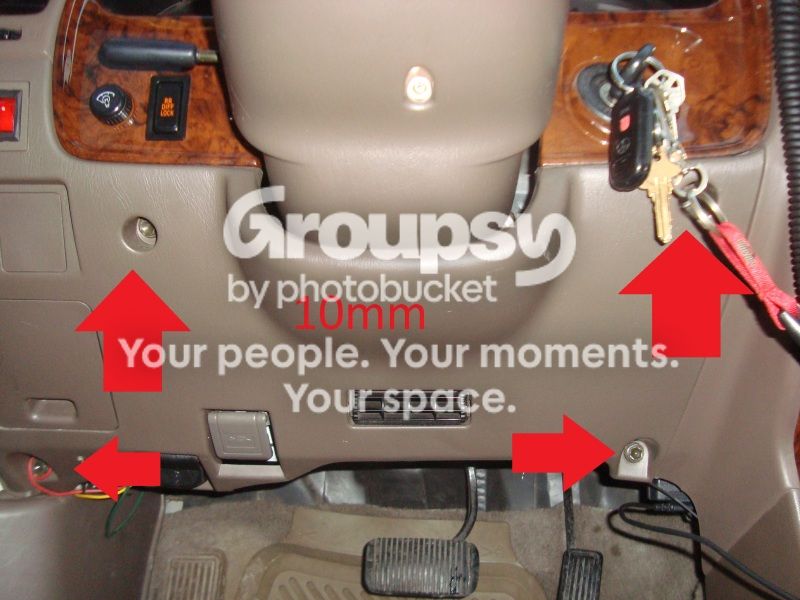

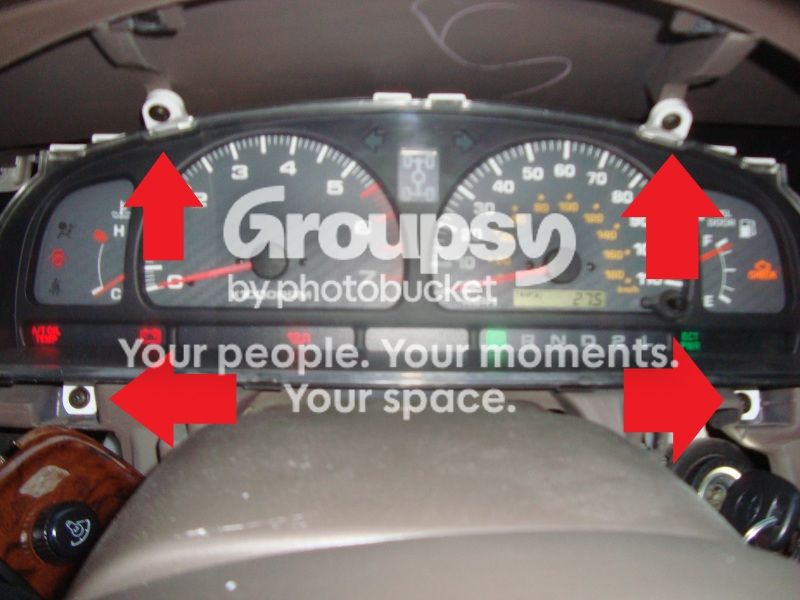

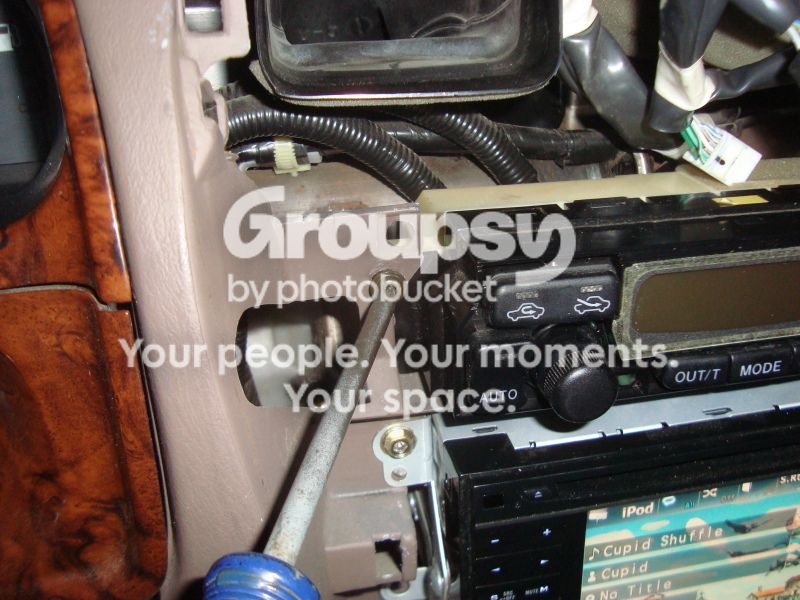

These are the tools you will need. 10mm socket and phillips screw driver

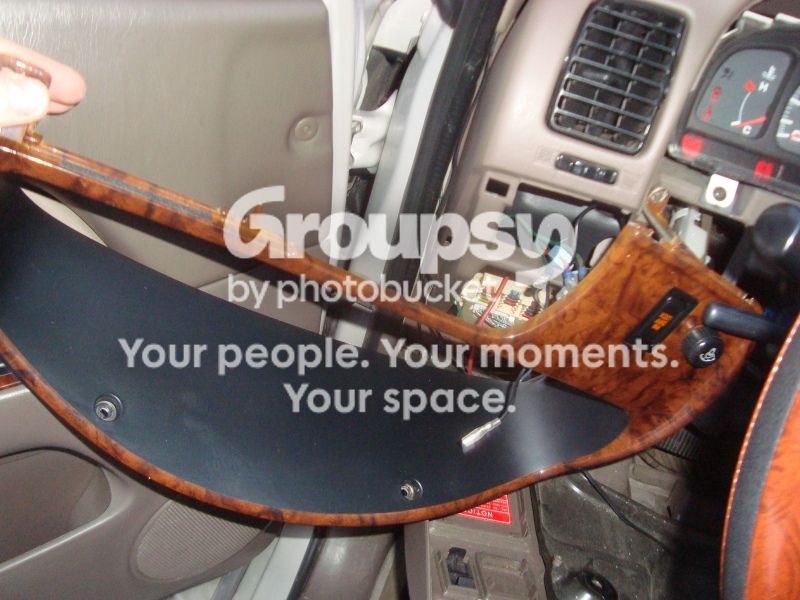

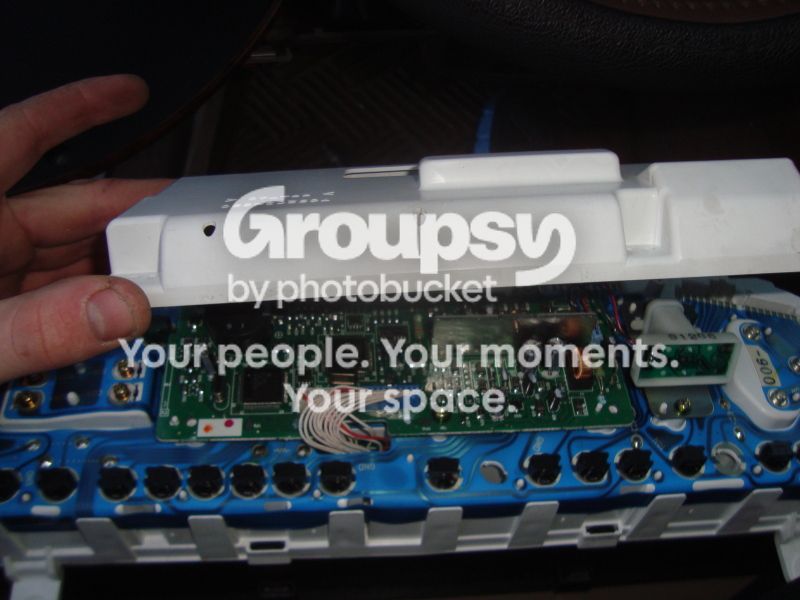

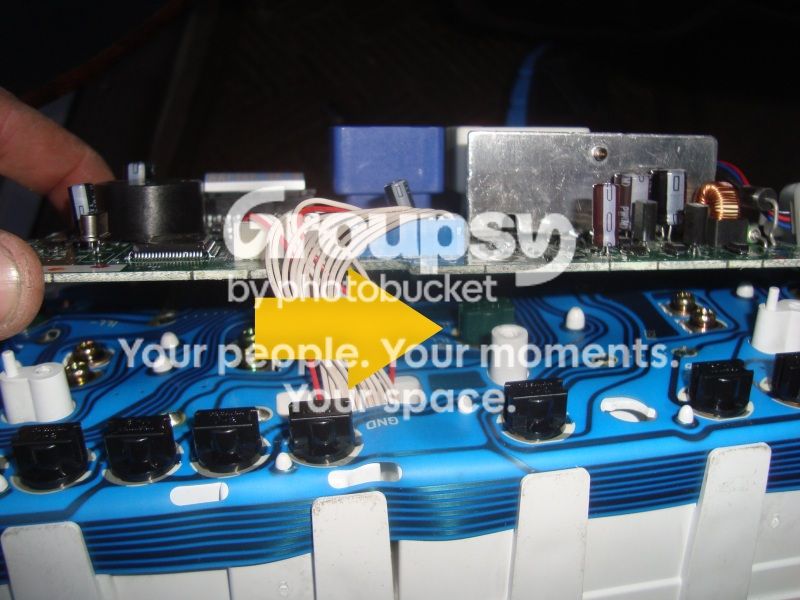

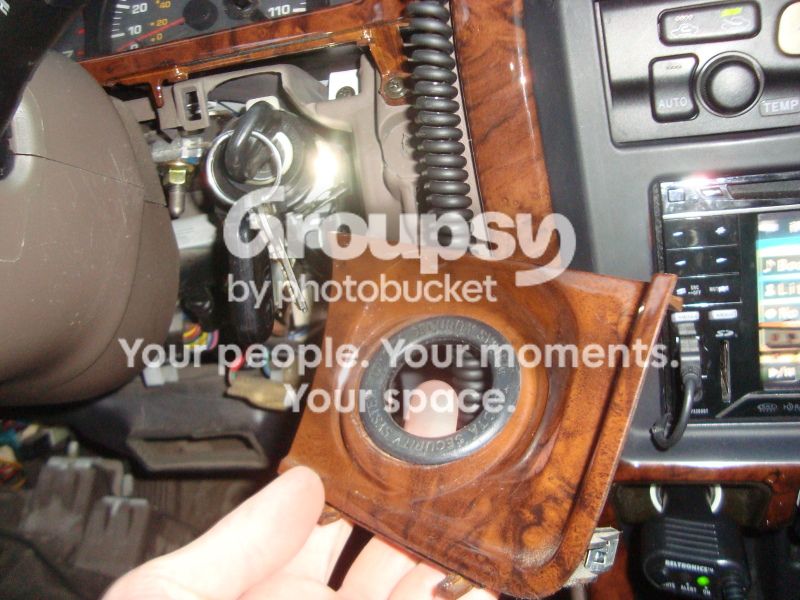

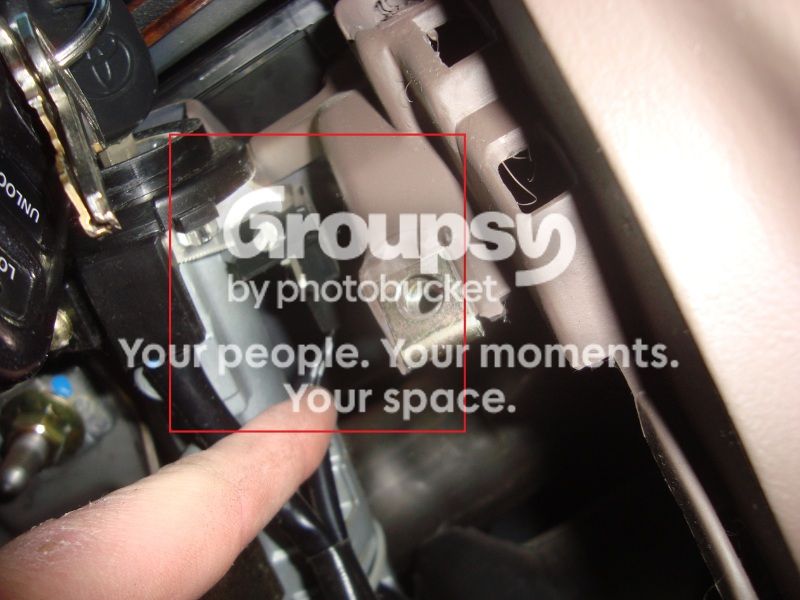

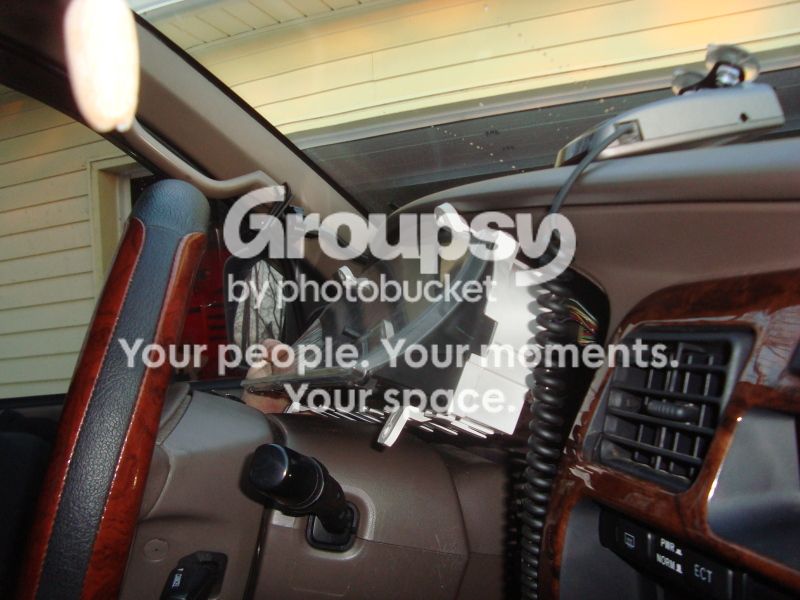

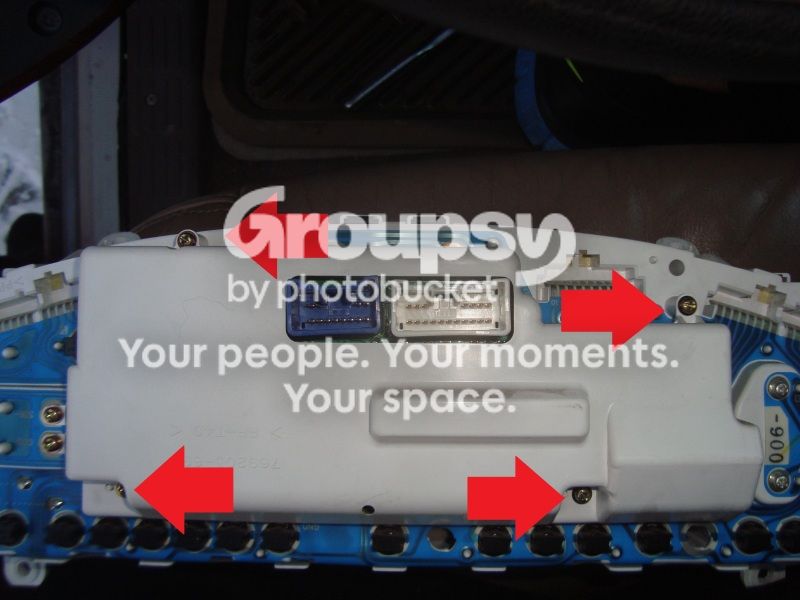

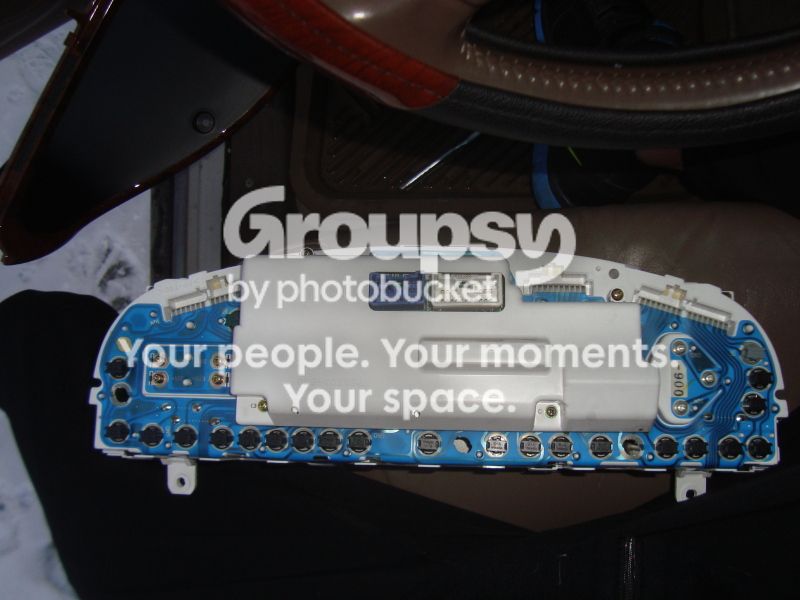

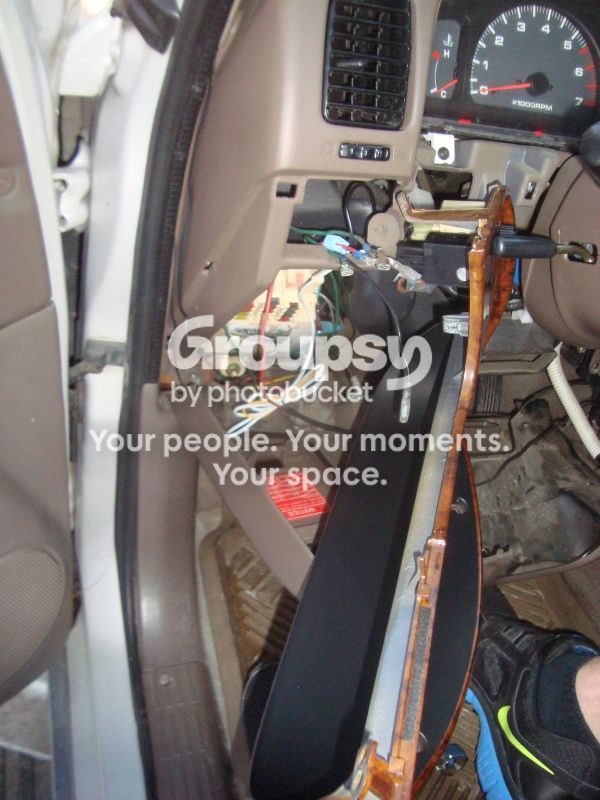

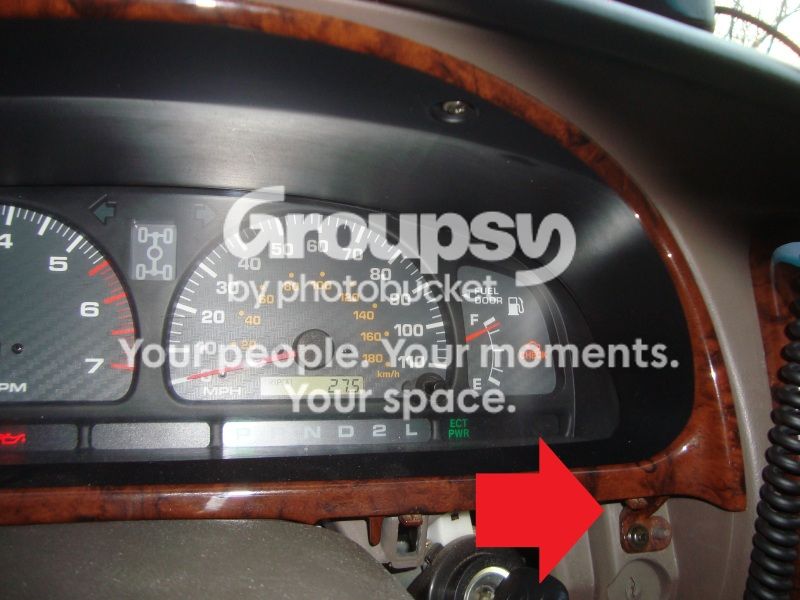

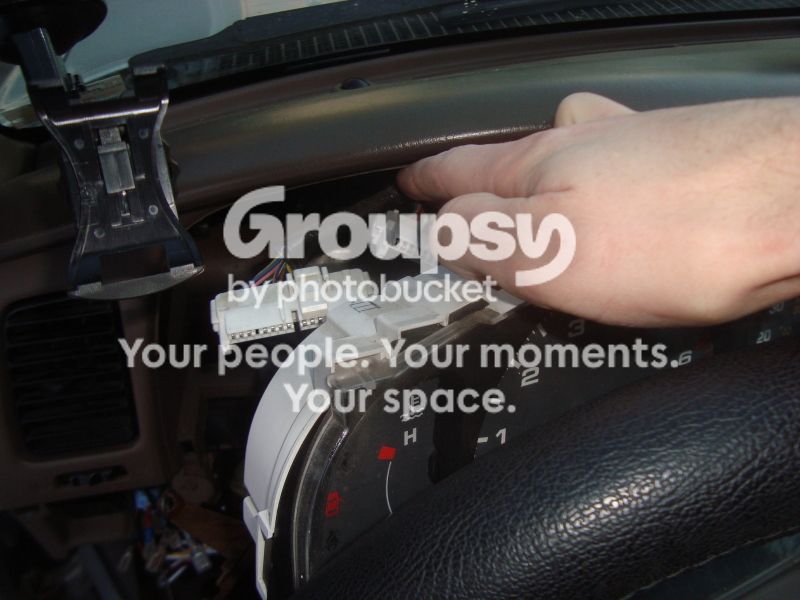

aprox 30-45 min for first time



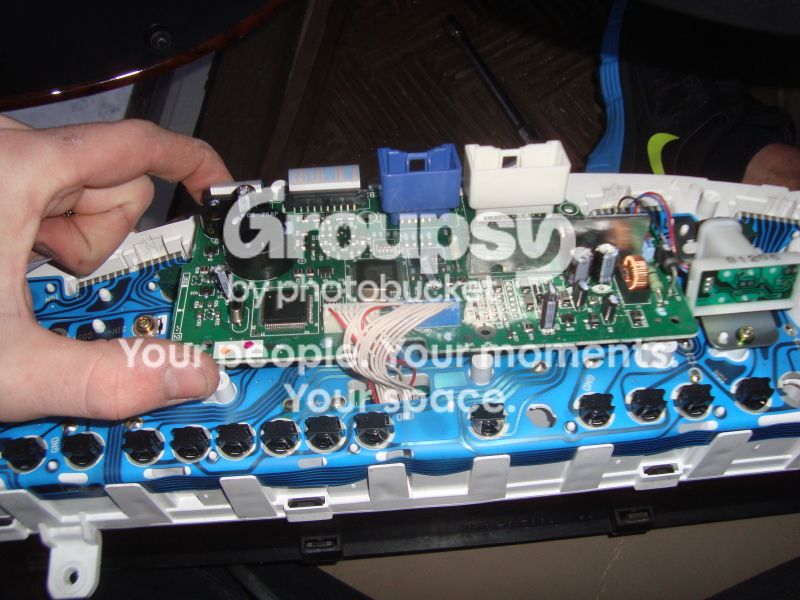

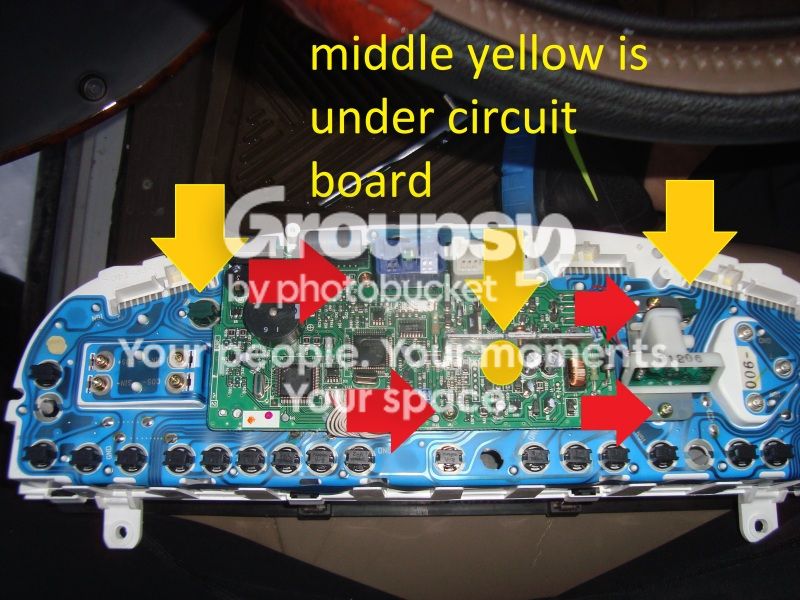

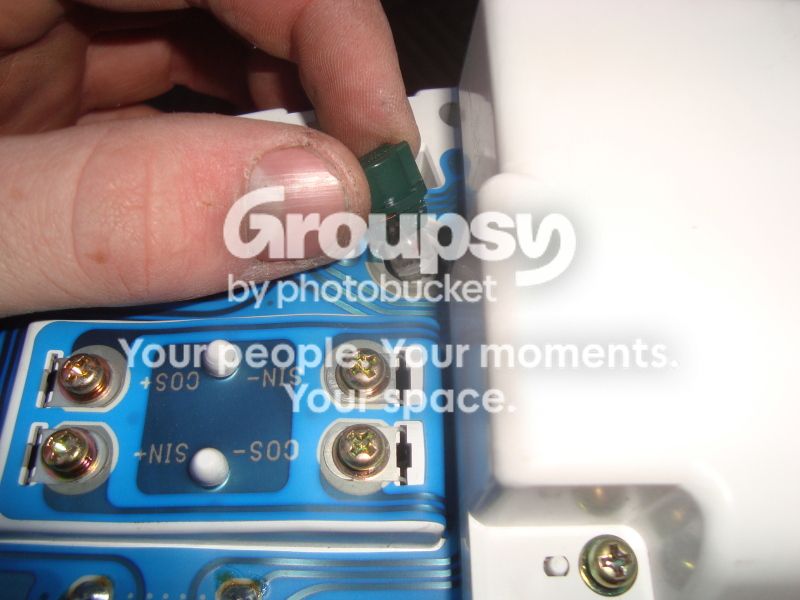

[GottaBeTRD]

its about time someone did a detailed version of this. Pair this with Ripcords diagram and we gotta perfect Sticky!

You've got the hard part done, the dash should be a breeze!



[shootmymime]



[Brilliant]

Need to add the bulb types to this write up. The real value is the bulb type info. The rest is pretty self explanatory.

http://www.toyota-4runner.org/3rd-gen-t4rs/98463-brilliants-mod-thread.html#post895039

.



[shootmymime]

:reddance: there all done.



[GentryGoon]

thanks!!



[awpsome]

NICE. arrows actually made it very easy to know where to pay attention to! haha



[wdhigh]

Will this fix the backlight on the actual display? Swapped out my control head today with a better used one, but has zero lighting working.



[shootmymime]

bump of a few simple updates for everyone.



[jsmith811]

Bulb Type

Did I miss it, I don't see the Bulb type for the Dash light LED Conversion, I just done the interior lights, and have been trying to find the Exact bulb type and best place to order LED for the instrument cluster...

Nevermind, I see the chart now, didn't load on the first view.



[hrt4me]

going to tackle this project over the weekend



[capt.chris]

great write up, super helpfull!



[3onetwoMauro]

Great write up!!! (follow up questions)...

Shootmymime,

Thanks for all the info and the pics... they really helped me out in the process of replacing all my bulbs. I was able to complete the whole center console lighting (shifter, ashtray, climate control, Rear Window, ECT, Rear defrost buttons). The Power Key ring gave me fits then I realized the set up is not for a 74 bulb, I may just opt for a factory replacement bulb from Toyota and will remove the colored "condom" from it to match the rest of the cool white bulbs I have installed.

A couple of follow up questions on the dashboard...
1) The background lighting bulbs... in your write up (#21, #22, #23) they are listed as #194. Is this accurate? I got these bulbs from SuperbrightLED (194 LED Bulb - 5 SMD LED Wide Angle Wedge Base) and they dont fit the original socket. I reached out the SuperBrightLED and provided a picture of the LED bulb vs the original and responded that the bulb I am trying to replace is a 74 type (and I wanted to confirm with you)

2) I am having a hell of a time trying to remove the old 74 bulbs in the dash from their twist-in sockets.... is there a trick to this that I am missing (... being a bit of a novice at this)? or did you buy the sockets as well as the new bulbs and installed them?

Thanks!



[TideRunner]

holy mother of good write up batman!

this is the next thing i'm hoping to tackle...that's for making it SOOOO much easier for me



[GA Runner]

If I read it correctly the gauge bulbs on a 2002 are #24, correct? Been looking but not seeing many options for bulbs that size.

Also does anyone have a link to the correct bulbs I need for the ECT and rear window switch?



[MStudt]

If I read it correctly the gauge bulbs on a 2002 are #24, correct? Been looking but not seeing many options for bulbs that size.

Also does anyone have a link to the correct bulbs I need for the ECT and rear window switch?

Bulb Chart.
