From "WTF is this" to manual case help....

First, a HUGE thank you to ShowStop over on TTORA. Helped me out with this one...

Background:
'99 Runner Limited, 4wd conversion, J-shift with push button, manual hub conversion, 1808** on the clock, transmission has over 200k.

http://www.showstop.org/images/misc/doc2012memo.mp3

What the **** is that whine? I'm thinking its the t-case acutator stuck, but I have no idea. Can anyone help out?



[Doc2012]

Ok, So I got the ADD case out, and I noticed there are three Pig tails, two on the driver, 1 on the passenger. Then manual case only has two, one on each side. The second on the driver side is plugged. Do I need to put all of the pigtails back in, or just the two that fo into the manual case?

Also, How much oil do I put in this, and where? I'm guessing the plug on the back of the case toward the top? I'm guessing it's 75-90 as well?

Heres some Pics of what I was talking about....

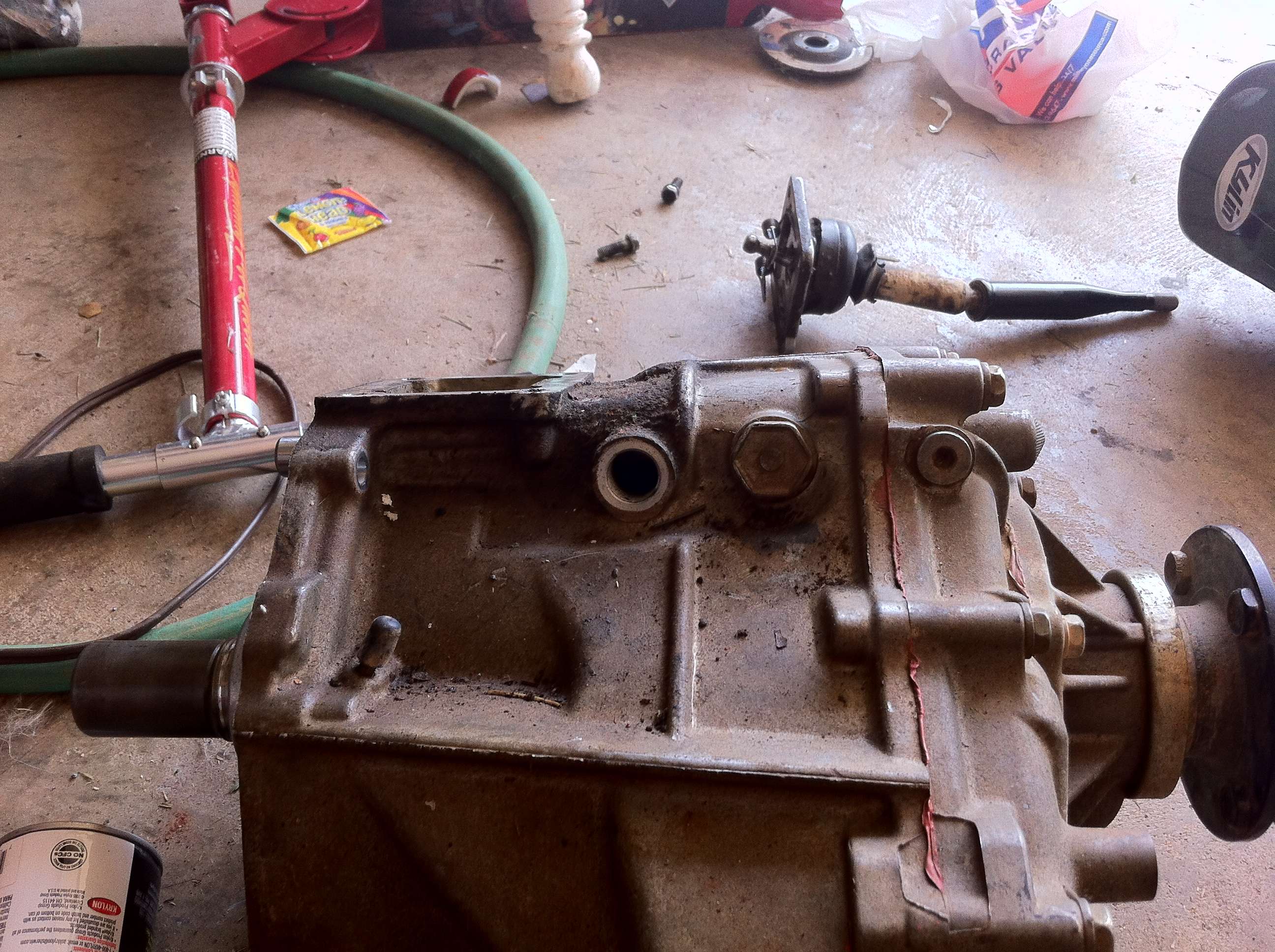

Manual Case:

By doc11 at 2012-06-23

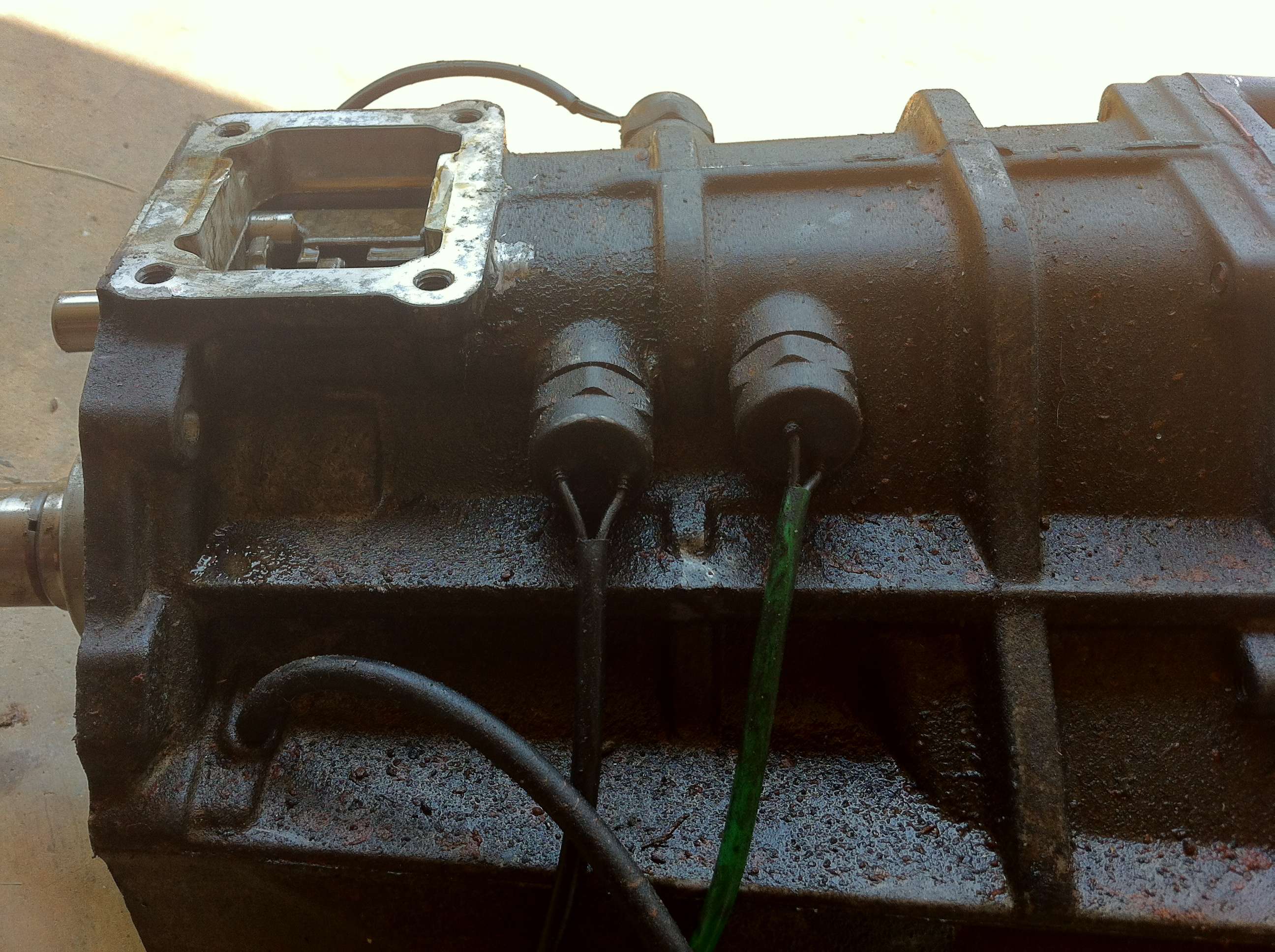

ADD Case:

By doc11 at 2012-06-23



[fourwd1]

Ok, So I got the ADD case out, and I noticed there are three Pig tails, two on the driver, 1 on the passenger. Then manual case only has two, one on each side. The second on the driver side is plugged. Do I need to put all of the pigtails back in, or just the two that fo into the manual case?

Also, How much oil do I put in this, and where? I'm guessing the plug on the back of the case toward the top? I'm guessing it's 75-90 as well?

Heres some Pics of what I was talking about....

ADD Case:

By doc11 at 2012-06-23

The front/left one is the L4 position switch, the rear/right one is the #1 4WD position switch.

If I understand, you're removing the ADD case (3 switches) from your truck and want to put the "manual" one (2 switches) in? If your conversion requires all 3, you'll have to swap switches over. But keep in mind, whatever is in the ADD case that works that engages the 3rd switch may not be present in the manual case.
