1990 Fuse Box Diagram?

[rghrdr18]

My 4Runner came without the fuse box cover, or a manual to describe which fuse is which, for the fuse box inside the cab. Could anyone give me a diagram or pictures of it. Thanks a lot for your help.



[mikes4runner]

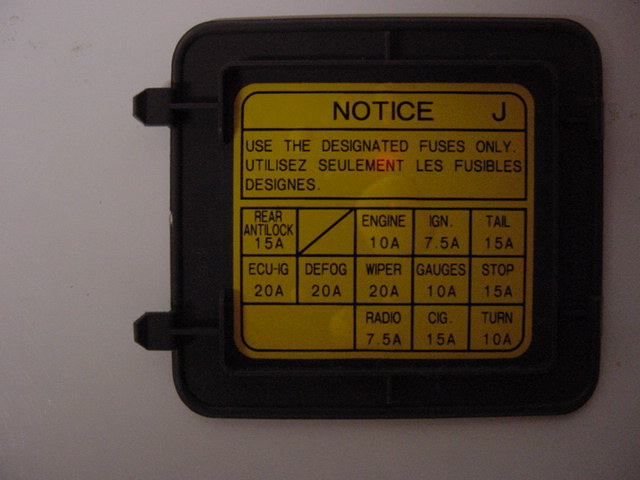

Here you go.



[rghrdr18]

Diagnostic Connector?

Also, I am trying to find the diagnostic connector for my vehicle too. Do you know where that might be located. Also, is that the only fuse panel, the one under the driver's side dash panel? Thanks for the pic, it helps out a lot to know what is the right fuse for each.



[mikes4runner]

Re: Diagnostic Connector?

Also, I am trying to find the diagnostic connector for my vehicle too. Do you know where that might be located. Also, is that the only fuse panel, the one under the driver's side dash panel? Thanks for the pic, it helps out a lot to know what is the right fuse for each.

It is on the passenger side of your engine near the other block of fuses, a little gray colored cap that says "diagnostic" on it.Next to your battery.That is where your other fuses are too.

let me know if you need a pic.
Mike
