2013 TE...does this spacer come-off?

[SShink]

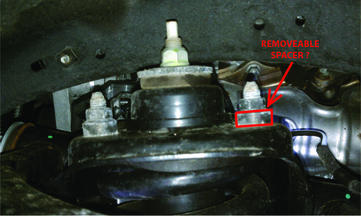

I am getting ready to install a Cornfed 1/2" thick spacer on the front of my 2013 TE to "level" it. I don't want to take it apart and then realize I do need longer studs...

Can anyone tell me with certainty whether or not these spacers or washers come free when you remove the nuts? If they do then it seems like I wont need longer studs with the 1/2" spacers.



[eddiebx]

Isn't that just part of the nut? I think it might be a really thick flanged nut...



[Antman]

I am getting ready to install a Cornfed 1/2" thick spacer on the front of my 2013 TE to "level" it. I don't want to take it apart and then realize I do need longer studs...

Can anyone tell me with certainty whether or not these spacers or washers come free when you remove the nuts? If they do then it seems like I wont need longer studs with the 1/2" spacers.

That's not a spacer, it's the design of the nut.



[SShink]

That's not a spacer, it's the design of the nut.

Bottom line, it will go away when I remove the nut? If so, I should not need longer studs with the Cornfed 1/2" spacers. The kit came with new flanged nuts...I stuck a calipers up under there and there is plenty of thread for the stack-up (1/2" spacer, flange nut).
I was just concerned that the "fat washer" in the photo was a boss spot welded to the bracket and might not be removable.

Thanks for the info.



[Antman]

Bottom line, it will go away when I remove the nut? If so, I should not need longer studs with the Cornfed 1/2" spacers. The kit came with new flanged nuts...I stuck a calipers up under there and there is plenty of thread for the stack-up (1/2" spacer, flange nut).
I was just concerned that the "fat washer" in the photo was a boss spot welded to the bracket and might not be removable.

Thanks for the info.

What you are referring to as a spacer is the nut. It's all one piece.

To directly answer your question, yes- if you unscrew the nut

it

will

go

away...



[Antman]

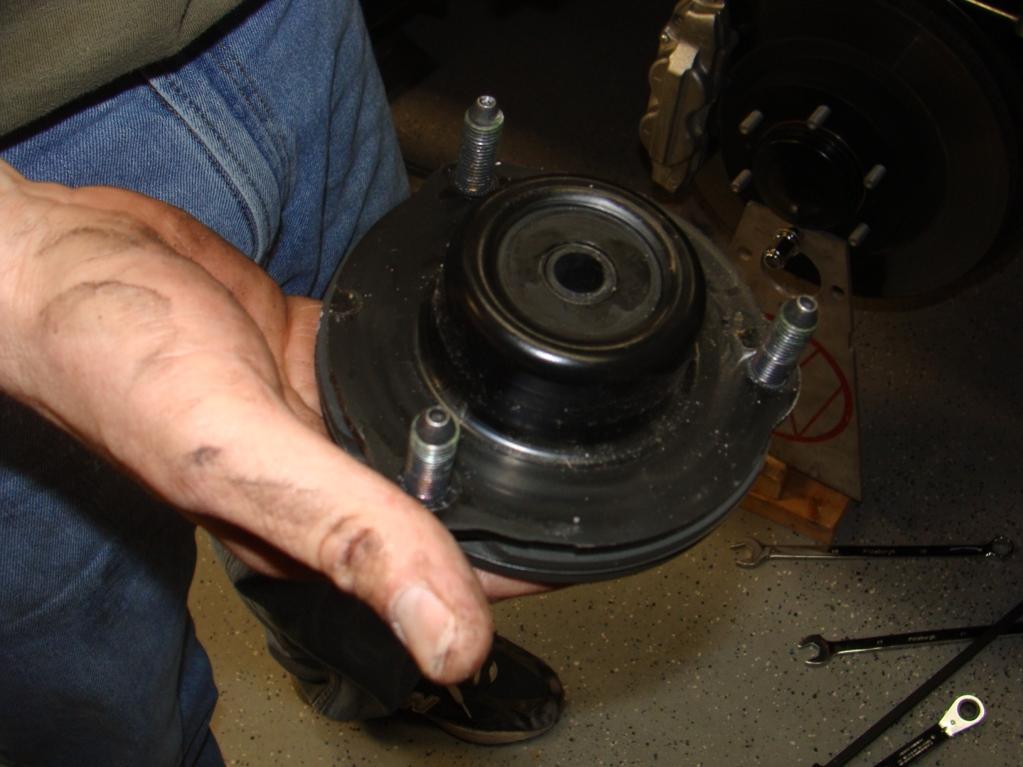

Here's a picture with the 3 nuts removed for reference...



[1engineer]

Here's a picture with the 3 nuts removed for reference...

View attachment 90034

I count eight nuts removed in that picture...



[Antman]

I count eight nuts removed in that picture...

ummmm, if you really want to go there...


add 2 back into the equation...:eyebrows:



[1engineer]

ummmm, if you really want to go there...


add 2 back into the equation...:eyebrows:

I tried to keep that OUT of the equation. Just thought you needed help counting is all.



[eddiebx]

How many people went back to count the nuts in Antman's picture to see if the engineer was being dirty minded or not? :lmao:



[eddiebx]

Bottom line, it will go away when I remove the nut? If so, I should not need longer studs with the Cornfed 1/2" spacers. The kit came with new flanged nuts...I stuck a calipers up under there and there is plenty of thread for the stack-up (1/2" spacer, flange nut).
I was just concerned that the "fat washer" in the photo was a boss spot welded to the bracket and might not be removable.

Thanks for the info.

Just to clarify you got close enough to it to stick a caliper up there and measure the studs, but couldn't tell if it was a welded on boss or part of the nut?

You have the stuff in front of you, did the Cornfed kit come with extended studs? If not, I guess just make sure the new flange nut can completely thread on to the existing stud with a couple of threads to spare and you should be okay without an extended stud...



[eddiegarza]

Kdss

SShink.

Does your TE have KDSS if so would you mind posting back and letting myself and others know if it was an issue. I plan on doing the toytec level kit on mine and little worried about mucking with it.

I did go through the write up from Sp8Ball and Antmans on doing the toytec spacer kit but the runner did not have KDSS.

Thanks!



[SShink]

Just to clarify you got close enough to it to stick a caliper up there and measure the studs, but couldn't tell if it was a welded on boss or part of the nut?

You have the stuff in front of you, did the Cornfed kit come with extended studs? If not, I guess just make sure the new flange nut can completely thread on to the existing stud with a couple of threads to spare and you should be okay without an extended stud...

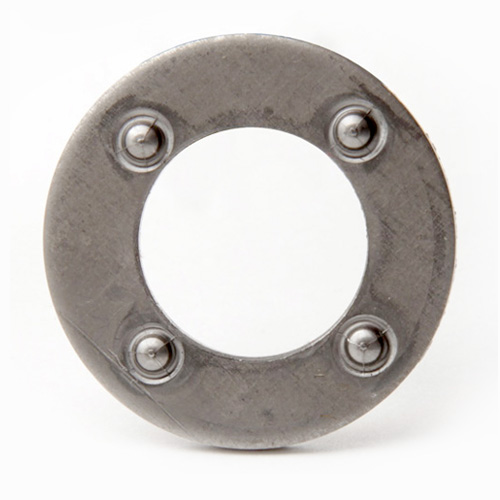

Yes, I got in there as much as I could (6'6", 290) with the vehicle on the ground and measured with a caliper. I have much experience with other vehicles and have seen thick projection-washers (see photo) spot welded to create a reinforcement boss for a flange-nut. The projections create a concentration point for the spot weld and flatten out as they liquify...it's pretty common. You wouldn't know if it's welded until you removed the nut as they're spot-welded on.

Yes, I have the Cornfed kit and it came with new standard nuts. I just wanted to be prepared regarding those "washers" so I didn't buy long studs and not need them OR get the thing apart and find-out I did need them, but not have them on-hand. Looks like the factory studs ARE just long enough for the job (with proper nut-thread engagement).

I will photograph the various steps of the job and let you-all know if there is a KDSS SNAFU.



[eddiebx]

Yes, I got in there as much as I could (6'6", 290) with the vehicle on the ground and measured with a caliper. I have much experience with other vehicles and have seen thick projection-washers (see photo) spot welded to create a reinforcement boss for a flange-nut. The projections create a concentration point for the spot weld and flatten out as they liquify...it's pretty common. You wouldn't know if it's welded until you removed the nut as they're spot-welded on.

Yes, I have the Cornfed kit and it came with new standard nuts. I just wanted to be prepared regarding those "washers" so I didn't buy long studs and not need them OR get the thing apart and find-out I did need them, but not have them on-hand. Looks like the factory studs ARE just long enough for the job (with proper nut-thread engagement).

I will photograph the various steps of the job and let you-all know if there is a KDSS SNAFU.

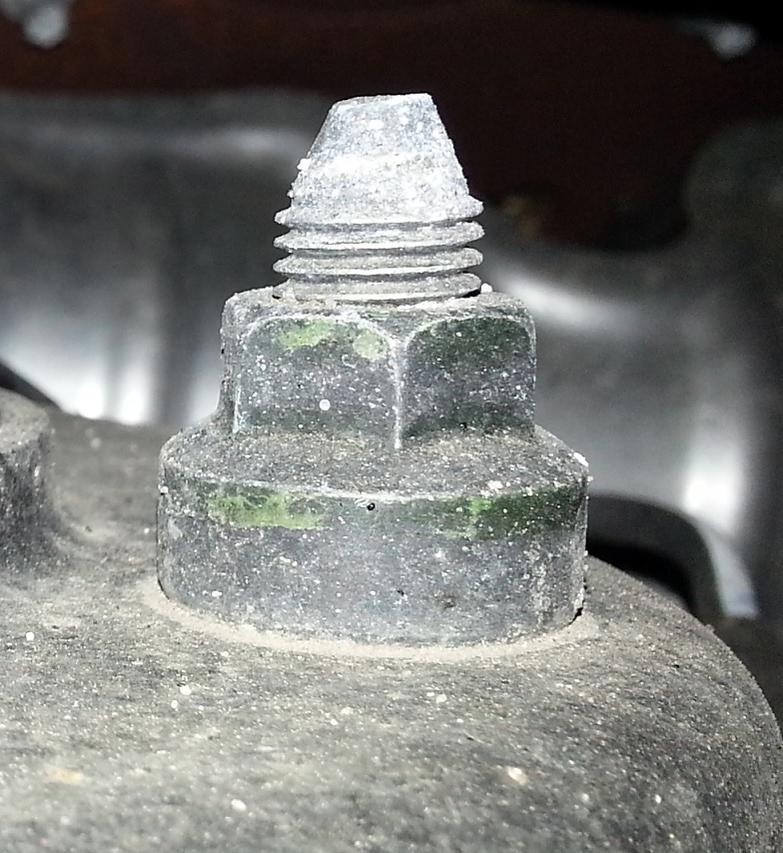

I know what kind of washers you are talking about, but did you actually try taking a close look at the nut? I really don't see how you can liquefy a washer this much to look that integrate to the factory nut (see below). Granted I have not pull that nut off yet, but it sure looks like a real thick flanged nut to me...good luck on the install!
