5100's set @ 1.75 with 1.25" spacers on SR5 with Hankook 265 Tires

[Curtamous]

I just had my 5100's (1.75") and Spidertrax (1.25) spacers installed on my 2WD SR5. Now this (I feel) looks much better than the .85 setting.

Motivation / Result: Leveled, Reduce Nose Dive & Body Roll / Excellent with all 3!

Measurements below.

If you want an All-Terrain tire in the 265 or 285 size, consider the Hankook DynaPro ATM's! I had these on my Taco and now the 4R. Cant say enough good things about these.

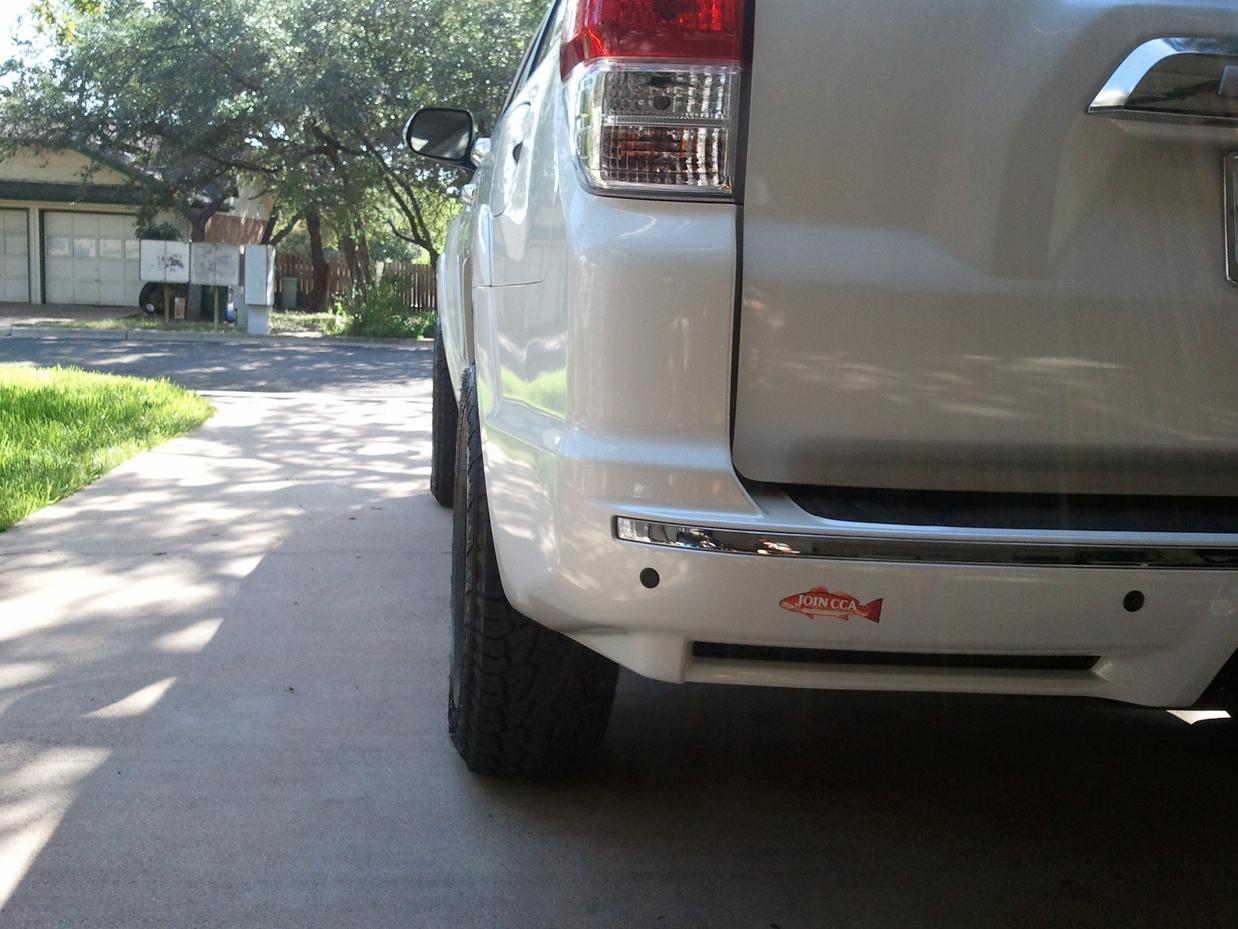

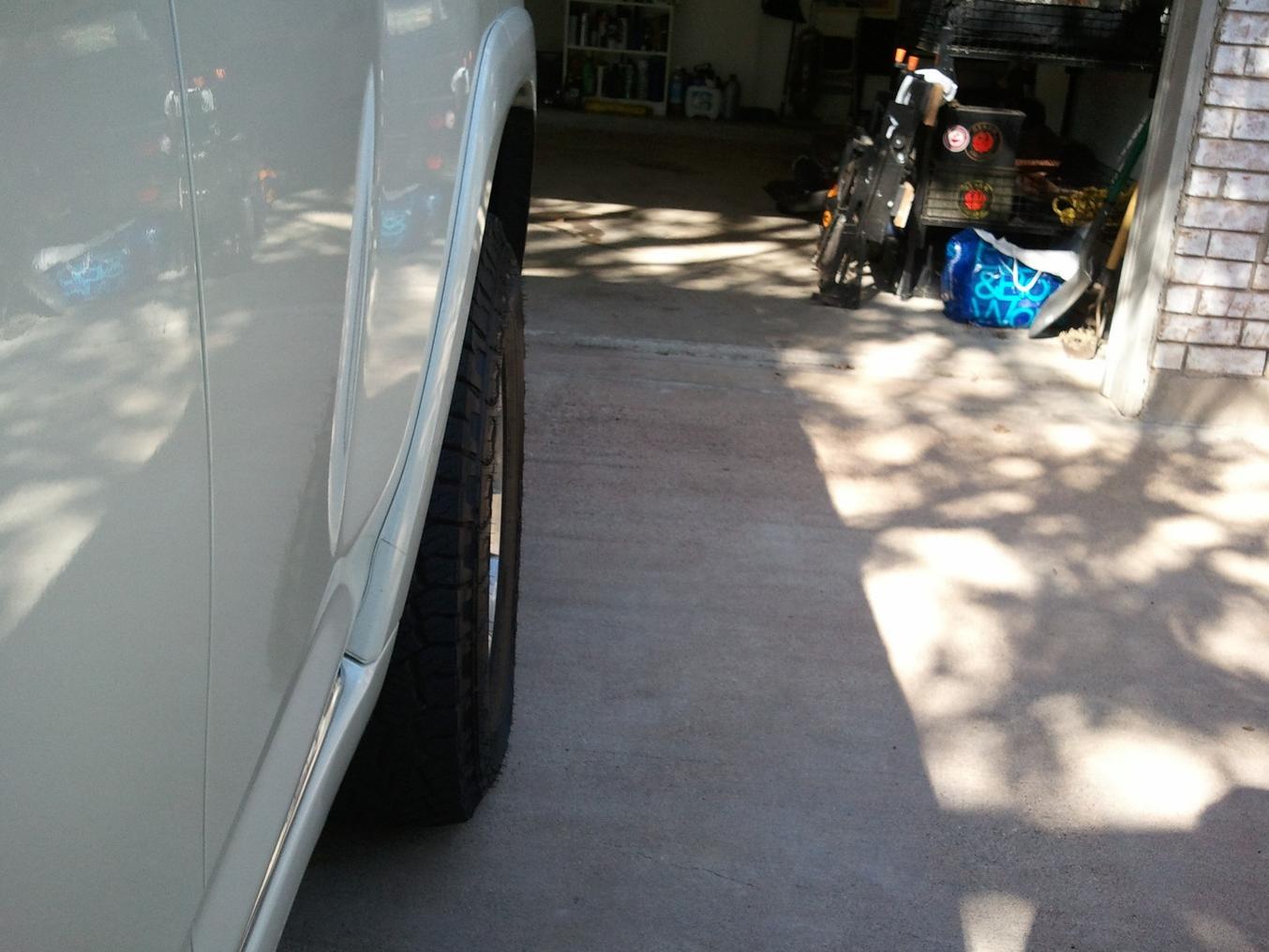

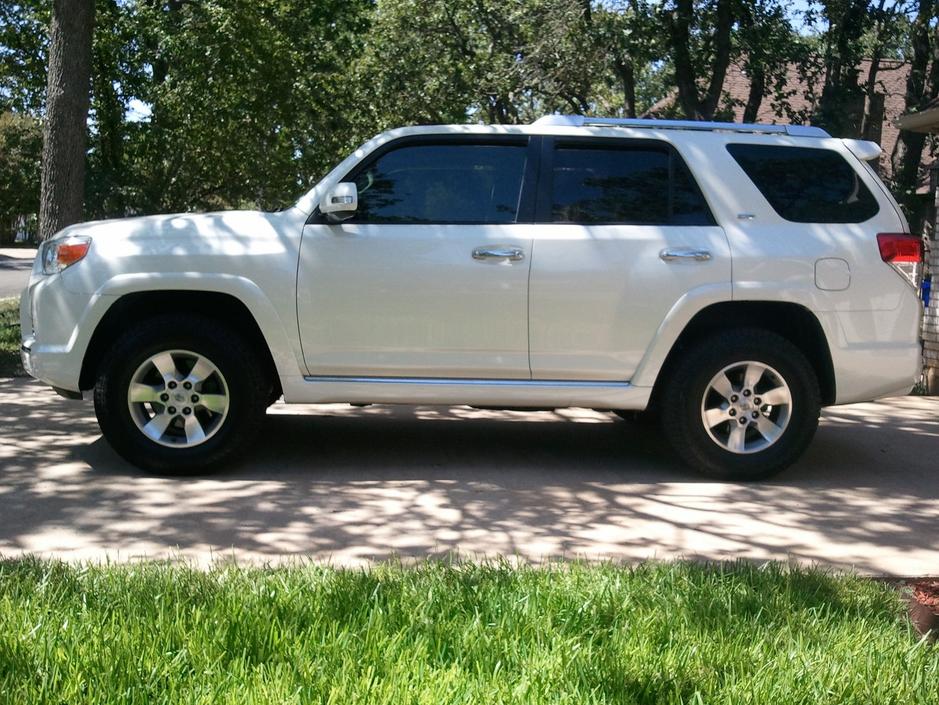

Here are some quick pics. Will try to post better at another time.

Measurements: (with full tank of gas)
Before-
LF: 33.3/4
RF: 34 1/4
LR: 35 7/8
RR: 36 3/4
AFTER-
LF: 35 1/2
RF: 35 7/8
LR: 36 1/2
RR: 37 1/4

Thoughts on look, stance, spacers?



[Rysandro]

Might be the driveway but I see reverse rake.

I'd get a 1" rear spacer lift and go with 275/70/17 Tires



[Will733]

Looks 100x better than stock man. I used to have the same setup.

I found it to be level most of the time, but there is that rare occasion where the front will be a hair higher than the rear depending on the surface you are parked on.



[03_4x4Runner]

It looks good to me. Finally a sensible setup for everyday use. I would probably not use wheel spacers mainly just to keep the tires tucked in to keep from thrownig mud, rocks,tar, slush etc. on the sides of the 4runner.



[Ramzey28]

I would measure from your rocker panels, behind front tire and in front of rear tire on level ground for true measurement to see what rake you have. If I did 1.75 I would have done a 1" rear spacer minimum...IMO. If you think it's great..that's what matters! Enjoy!!! Nice tires!



[SOcalTRAIL]

Looks good to me!

Nice choice on tires too! I'm running the Hankook MT's and cannot say enough good things about em!



[BeefTaco]

Nice set up running almost the same thing. Set the 5100's at 1.75" added a 1.5" rear spacer and running the the 275/70/17 Hankook MT's.
