Another Elocker Wiring Thread

[hoodlm]

I've scoured high and low but haven't been able to find what I'm looking for. So, pretty much all done bringing ‪#‎FrankenYota‬ back from the dead after I was hit. Fixed frame, links and rear axle. However, when I dropped the rear axle, it literally dropped. I had a stand underneath it at the shop and no one was near it and it fell off the stand. The one I was taking out, the bent one. Everything was disconnected except the connector that connects the elocker. The wires were ripped out of both connectors. So, what I'm trying to figure out is, what wires go together? They don't all match. There is a black/white one, green/red, light green, etc, etc. There are 2 connectors on the elocker. A small 2 wire one, I'm not concerned with cause it was already disconnected, and the larger one with 5 wires. That's the one I need to know which wires go together. I have searched high and low but have come up with nothing. The only thing I can think to do is take it to the Yota dealer. Yeah, I haven't been there in years and don't really want to. HELP!! It's the set of wires that come directly out of the elocker motor. It's about 5 inches long then connects to the connector going into the harness.

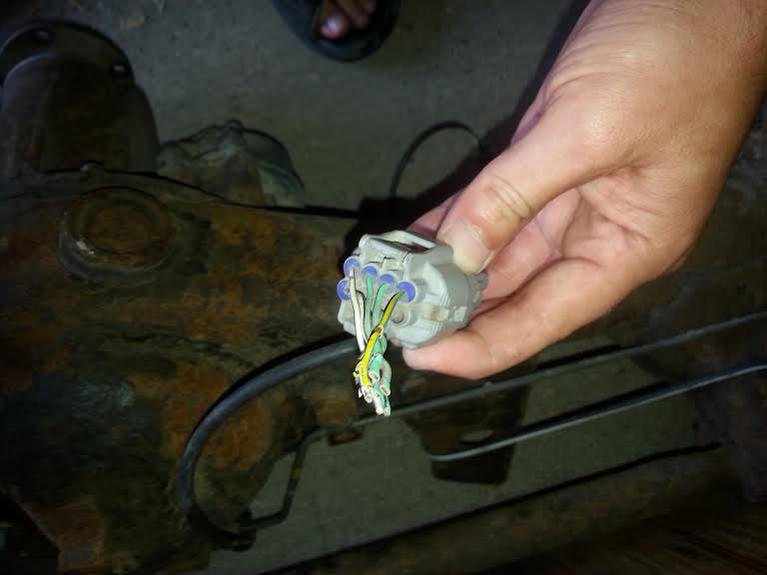

**This pic is from the internet and not my actual connector**



[alanflies]

pin 2 lg-r = m2
pin 3 lg = m1
pin 4 wb = ground
pin 5 lg-b = rly2
pin 6 lg-y = rly1

pin 1 w-b = ground
pin 2 y-l = diff lock light

This is for a 99 so the wire colors may differ, but the pin numbers and functions should be the same...
hope this helps ya...



[hoodlm]

Well, I finally got it figured out. Went to the dealer and the wires on my motor didn't even jive with the ones in their manual. They just stood there scratching their heads. But I finally got it today. So, we're back in business.
