Anyone know what part this is? ***UPDATED*** added pics and detail for the fix!!!

**** UPDATED w/ FIX ****

Follow the link...

This is on a 2010 Limited 4x4.

This is the front driver's side camber bolt. There is a shim directly behind it with two tabs that keep it in place. What part is the shim? I need it on both the front of the lower control arm and the back of the same bolt. Bascially there are two of these per bolt and two bolts per lower control arm. This is the very front bolt.

Seems the guys who first tried to do my alignment didn't know what they were doing...just had another alignment done by a different shop tonight and those shims (the tabs) were completely bent outwards and the camber bolt was loose and turning. I could loosen by hand.

Anyway - I need to R&R these two parts (shims for lack of a better word) - anyone got any ideas?

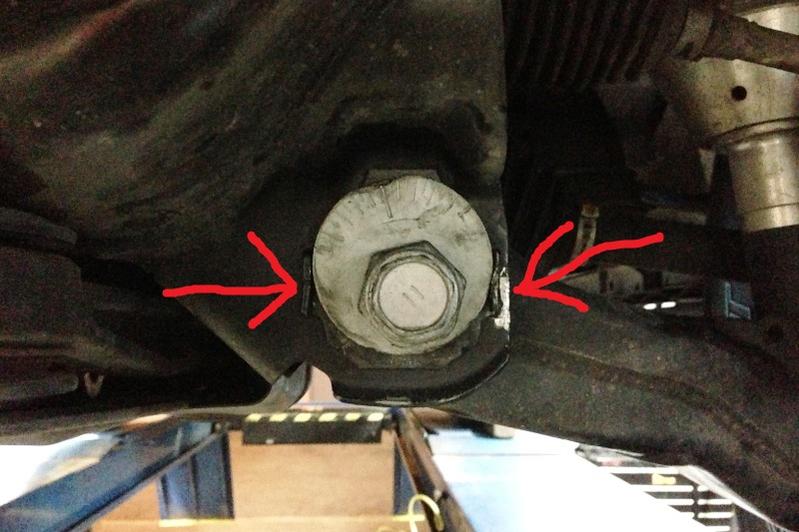

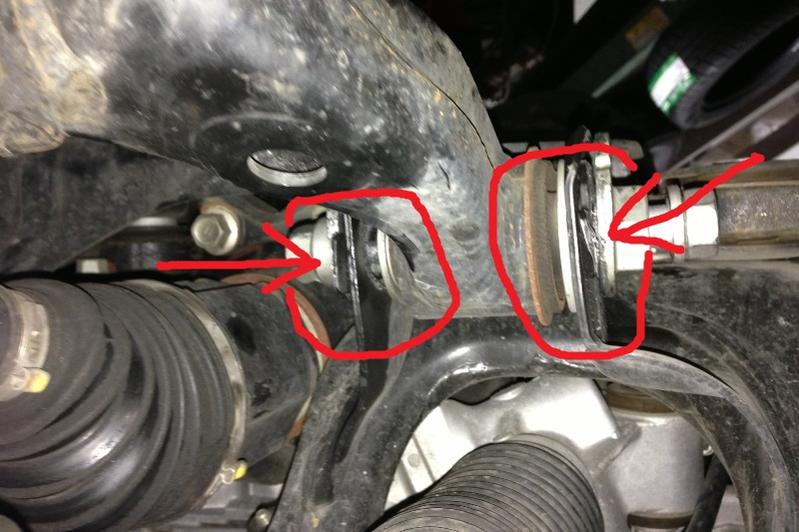

First pic you can see both tabs are bent on both sides of the control arm


Second pic is the shim pic after we had to hammer it back so I could get an alignment and drive out tonight. Need to come back to R&R these parts



[harper7]

This is on a 2010 Limited 4x4.

This is the front driver's side camber bolt. There is a shim directly behind it with two tabs that keep it in place. What part is the shim? I need it on both the front of the lower control arm and the back of the same bolt. Bascially there are two of these per bolt and two bolts per lower control arm. This is the very front bolt.

Seems the guys who first tried to do my alignment didn't know what they were doing...just had another alignment done by a different shop tonight and those shims (the tabs) were completely bent outwards and the camber bolt was loose and turning. I could loosen by hand.

Anyway - I need to R&R these two parts (shims for lack of a better word) - anyone got any ideas?

First pic you can see both tabs are bent on both sides of the control arm
View attachment 97678

Second pic is the shim pic after we had to hammer it back so I could get an alignment and drive out tonight. Need to come back to R&R these part.

Parts manual is in the stickies .....5th link down..."Parts Manual" .
http://www.toyota-4runner.org/5th-gen-t4rs/92594-modifications-write-ups-quick-links-faqs.html

The breakdown of the parts for the LCA your looking for are on page 51



[KVA]

Thanks. I saw that but that specific part isn't listed. It is almost like it is part of the body and not the LCA.



[SOcalTRAIL]

Just a heads up…

If your alignment thingies are shot, you may wanna look at the upgrade available from Total Chaos. I installed these when I did my front suspension and was very impressed, they are burly like all of Total Chaos's stuff. Plus probably cheaper than the OEM replacement.

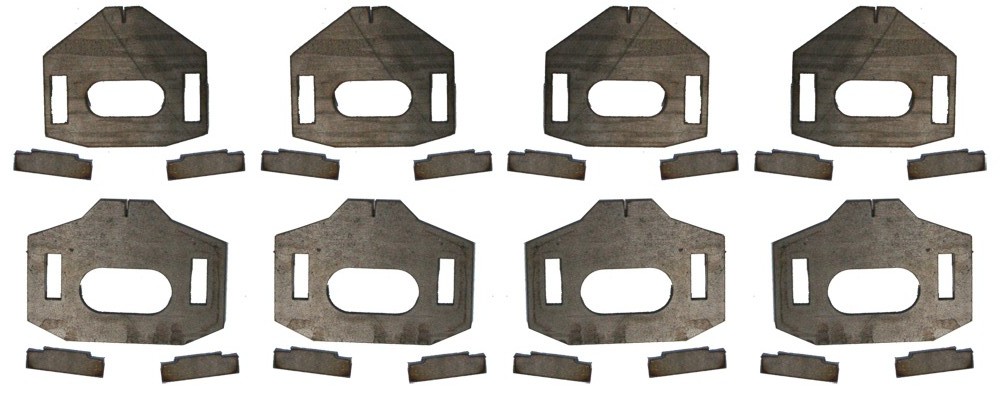

Part # 59860-10FJ

TOTAL CHAOS FABRICATION

Talk to either Pat or Nicole at Total Chaos, they are very helpful. Great people!



[SOcalTRAIL]

Thanks. I saw that but that specific part isn't listed. It is almost like it is part of the body and not the LCA.

You are correct sir, those OEM alignment tab locators are spot welded onto the control arm mounts. Really, your only option is to go with the Total Chaos alignment tabs that I posted above.

Edited to add pic***

Here is what the TC tabs look like installed on my rig.



To remove the OEM ones you have to drill out the spot welds, they come right off. You can see the 3 drill spots in this pic:



[KVA]

Thanks - so basically these:



Requires welding...etc... I assume that Total Choas can recommend someone as my trust level for local folks is not very high at the moment



[SOcalTRAIL]

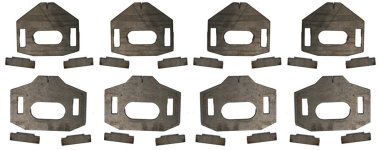

Thanks - so basically these:

View attachment 97682

Requires welding...etc... I assume that Total Choas can recommend someone as my trust level for local folks is not very high at the moment

Exactly-

Seeing as how you are in SoCal, I would recommend going to see Jason Demello at Demello Off Road or going direct to Total Chaos and having them to it. Either way you cannot loose.



[Socalrugger]

Exactly-

Seeing as how you are in SoCal, I would recommend going to see Jason Demello at Demello Off Road or going direct to Total Chaos and having them to it. Either way you cannot loose.

KVA--I'm also in your area and will be getting some work done soon.....in addition to Demello, also check out Outlaw Offroad in Santa Ana and American Overland Expedition in Laguna.....



[nevada]

Thanks. I saw that but that specific part isn't listed. It is almost like it is part of the body and not the LCA.

right. they are on the frame.

Just a heads up…

If your alignment thingies are shot, you may wanna look at the upgrade available from Total Chaos. I installed these when I did my front suspension and was very impressed, they are burly like all of Total Chaos's stuff. Plus probably cheaper than the OEM replacement.

Part # 59860-10FJ

TOTAL CHAOS FABRICATION

Talk to either Pat or Nicole at Total Chaos, they are very helpful. Great people!

this is a good upgrade.


that said, if they were able to get the alignment in spec, leave it alone.

order the parts to repair it, have them ready, but dont put them on until you need it realigned.



[eddiebx]

Exactly-

Seeing as how you are in SoCal, I would recommend going to see Jason Demello at Demello Off Road or going direct to Total Chaos and having them to it. Either way you cannot loose.

You KNOW I'm gonna ask this. Can you mig this on????

BTW, the big blue box just arrived today :naughty:, still need to get a stand and a gas cylinder and I'll send pictures :whoo:



[KVA]

KVA--I'm also in your area and will be getting some work done soon.....in addition to Demello, also check out Outlaw Offroad in Santa Ana and American Overland Expedition in Laguna.....

Thanks.

Pat @ Total Chaos pointed to DMZ Fabrication - I have an appointment to install these on Monday with them. Pat states DMZ have done more of this type of work than anyone else they know of.



[SOcalTRAIL]

You KNOW I'm gonna ask this. Can you mig this on????

BTW, the big blue box just arrived today :naughty:, still need to get a stand and a gas cylinder and I'll send pictures :whoo:

[MENTION=85512]eddiebx[/MENTION] Yesiree! That is how I did mine. Got your PM, the blue box is BEAUTIFUL!!!

Sorry for the off topic KVA!

Thanks.

Pat @ Total Chaos pointed to DMZ Fabrication - I have an appointment to install these on Monday with them. Pat states DMZ have done more of thid type of work than anyone else they know of.

Pat is the man! Glad he got you squared away, he and Nicole up there at TC know all the top dogs in the industry. That is a great suspension upgrade!



[KVA]

right. they are on the frame.

this is a good upgrade.


that said, if they were able to get the alignment in spec, leave it alone.

order the parts to repair it, have them ready, but dont put them on until you need it realigned.

I got alignment in spec, but I already told them I will be back so they will re-do it for free, no issue there.

Anyway, I have some rubbing due to caster (3.9) so I need to bring it down a little and the steering is slightly off since our steering has a bit of play out of gate..

They also had no issue aligning (took maybe 25 minutes total) vs. the folks who did it the first time after the UCA install. They attempted an alignment 4 times - took them hours and clearly left the one camber bolt loose which caused the issue I am having...:ybrick:



[KVA]

Thanks

Pat is the man! Glad he got you squared away, he and Nicole up there at TC know all the top dogs in the industry. That is a great suspension upgrade!

Thanks for all the help Shawn!!



[nevada]

I got alignment in spec, but I already told them I will be back so they will re-do it for free, no issue there.

Anyway, I have some rubbing due to caster (3.9) so I need to bring it down a little and the steering is slightly off since our steering has a bit of play out of gate..

They also had no issue aligning (took maybe 25 minutes total) vs. the folks who did it the first time after the UCA install. They attempted an alignment 4 times - took them hours and clearly left the one camber bolt loose which caused the issue I am having...:ybrick:

cool deal.

dont bring the caster down too far. the higher the better.
deal with the rubbing with a saw, or hammer.



[Intruder]

Just a heads up…

If your alignment thingies are shot, you may wanna look at the upgrade available from Total Chaos. I installed these when I did my front suspension and was very impressed, they are burly like all of Total Chaos's stuff. Plus probably cheaper than the OEM replacement.

Part # 59860-10FJ

TOTAL CHAOS FABRICATION

Talk to either Pat or Nicole at Total Chaos, they are very helpful. Great people!

I foresee myself spending a lot of money at TC over the next couple years...



[KVA]

cool deal.

dont bring the caster down too far. the higher the better.
deal with the rubbing with a saw, or hammer.

lol - I hear you...I was thinking 3.8 or 3.7 as I only need millimeters. I have already fully altered the plastic wheel well to pull it out as far as I can and have had 285's on since 2010 with no issue or rubbing. The only change is the addition of some Icon UCA's



[KVA]

I foresee myself spending a lot of money at TC over the next couple years...

Trust me - the first question out of my mouth was "what else can I do now since your essentially taking everything apart"...

The answer cost a lot of money $$$.

I am only doing the tab gussets. Unless folks have a good source for acquiring new/better bushings for the stock LCA?



[Socalrugger]

Thanks.

Pat @ Total Chaos pointed to DMZ Fabrication - I have an appointment to install these on Monday with them. Pat states DMZ have done more of this type of work than anyone else they know of.

Great! good to have references in the back pocket!



[KVA]

SuperPro Bushings

Company out of Australia...Tein USA in Downey, CA resells for them here. Can't find anything for the 4Runner/Surf for 2010+ BUT did find the FJ in 2010+

Would these fit?

Also see these from Australia as well...there's a theme here

Whiteline Bushings
