Backup Camera -Reverse Wire

singleshot

singleshot

New member
Has anyone wired their backup camera reverse sensor wire to a wire in the dash? I've found several threads where they wired it to a wire coming off the trailer connector and wiring in the rear of the 4runner. I need to tap into a wire in the dash because my reverse wire is coming out of the new head unit.

Any help is appreciated.

Register to hide this ad
look for a red with yellow stripe wire and just make sure you test it with a test light I got my reverse wire on the drivers side lift up the door sill and the wire is in that bundle if you cant find it behind the dash.

I'm going strictly off memory, but I got power for the camera from the reverse light which was yellow with red (I think) and I tapped the trigger wire (the one from the HU you're talking about) into a wire on the driver side door sill. It could have been the same wire but I remember there being purple in the equation as well. Maybe the supplied trigger wire was purple with white or something. Ugh, sorry if that creates more confusion. I can double check it when I get a moment (been a while). Hope that helps. Good luck.

Thanks for the help on locating the reverse wire. My son and I did the backup camera install yesterday. Easily located and tapped into the red/yellow wire in the drivers kick panel area.

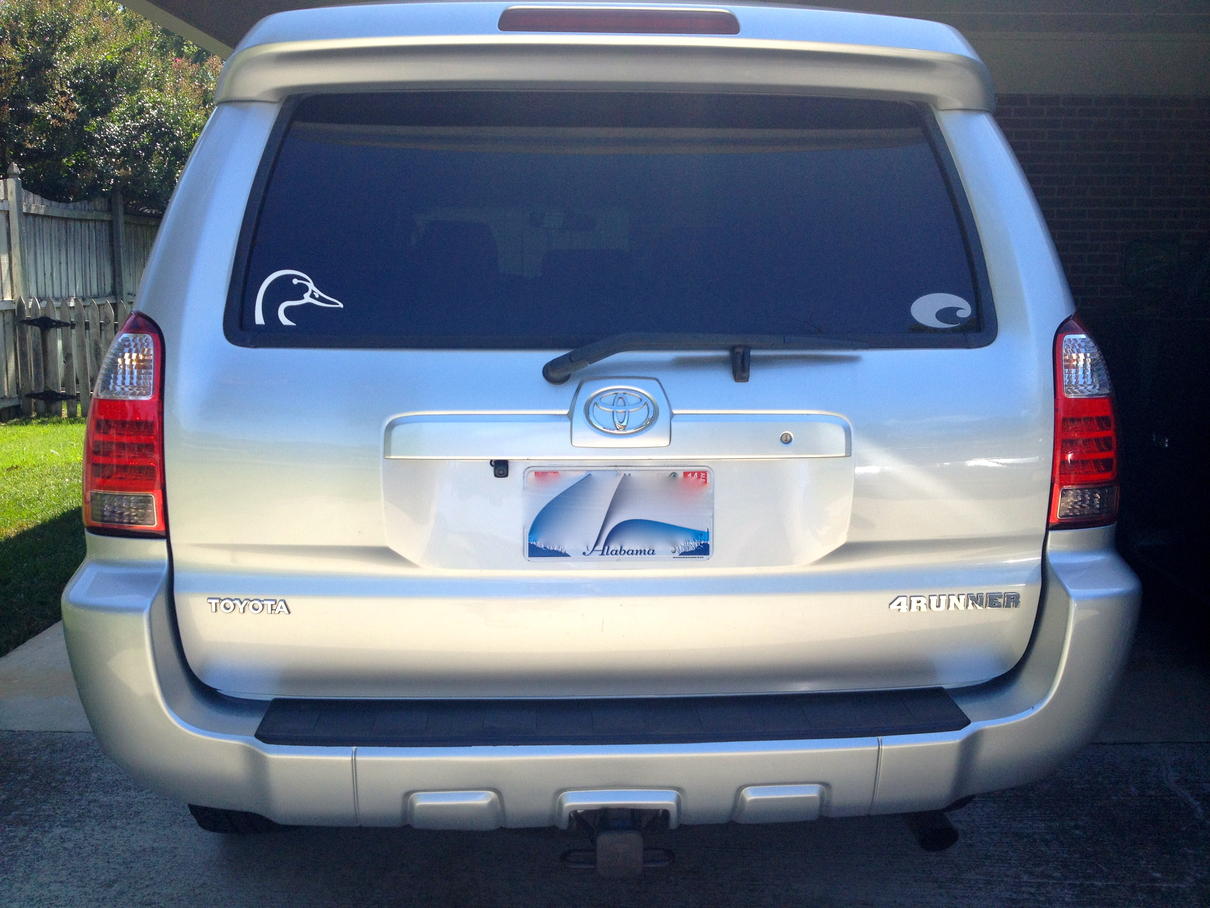

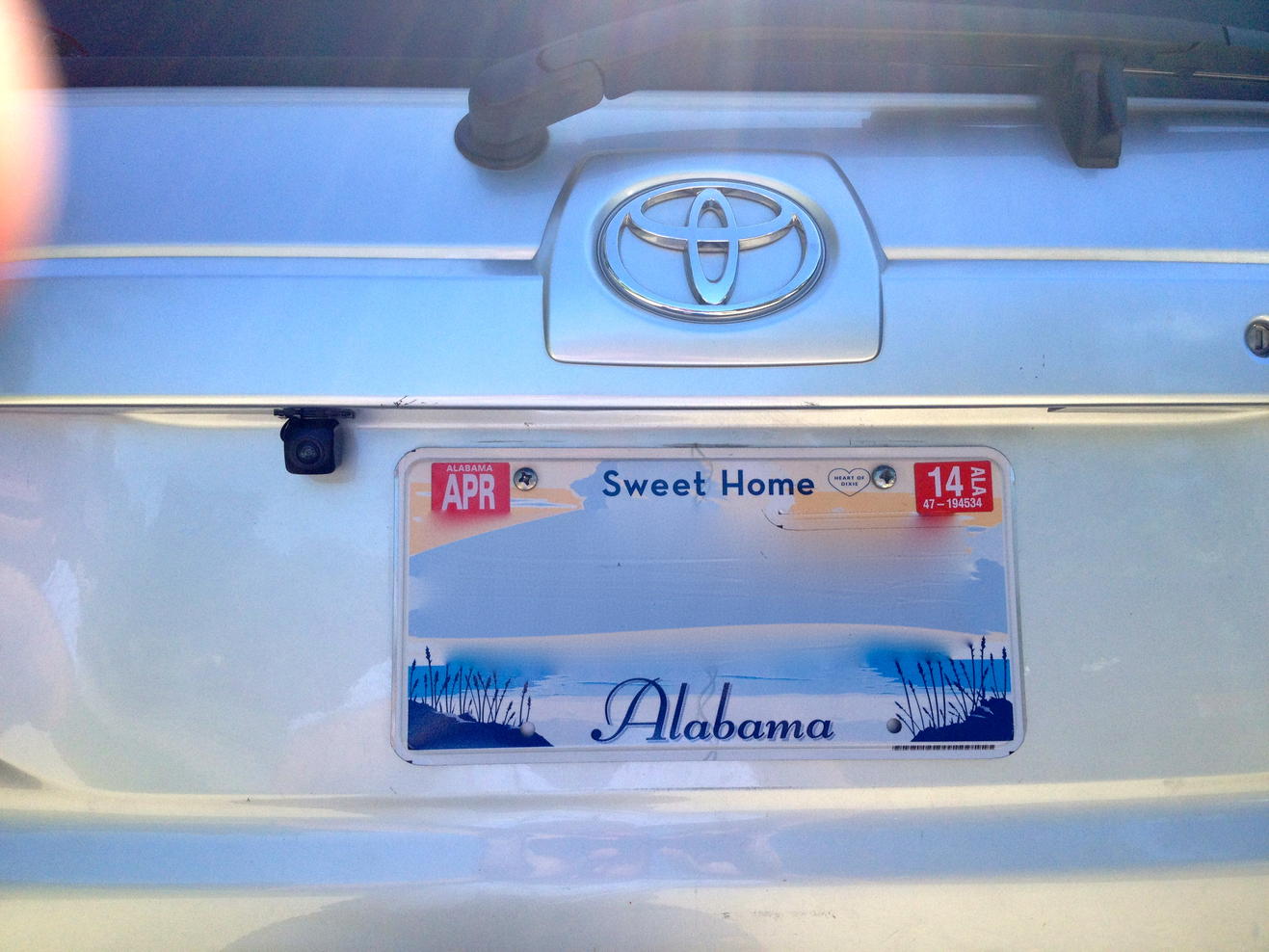

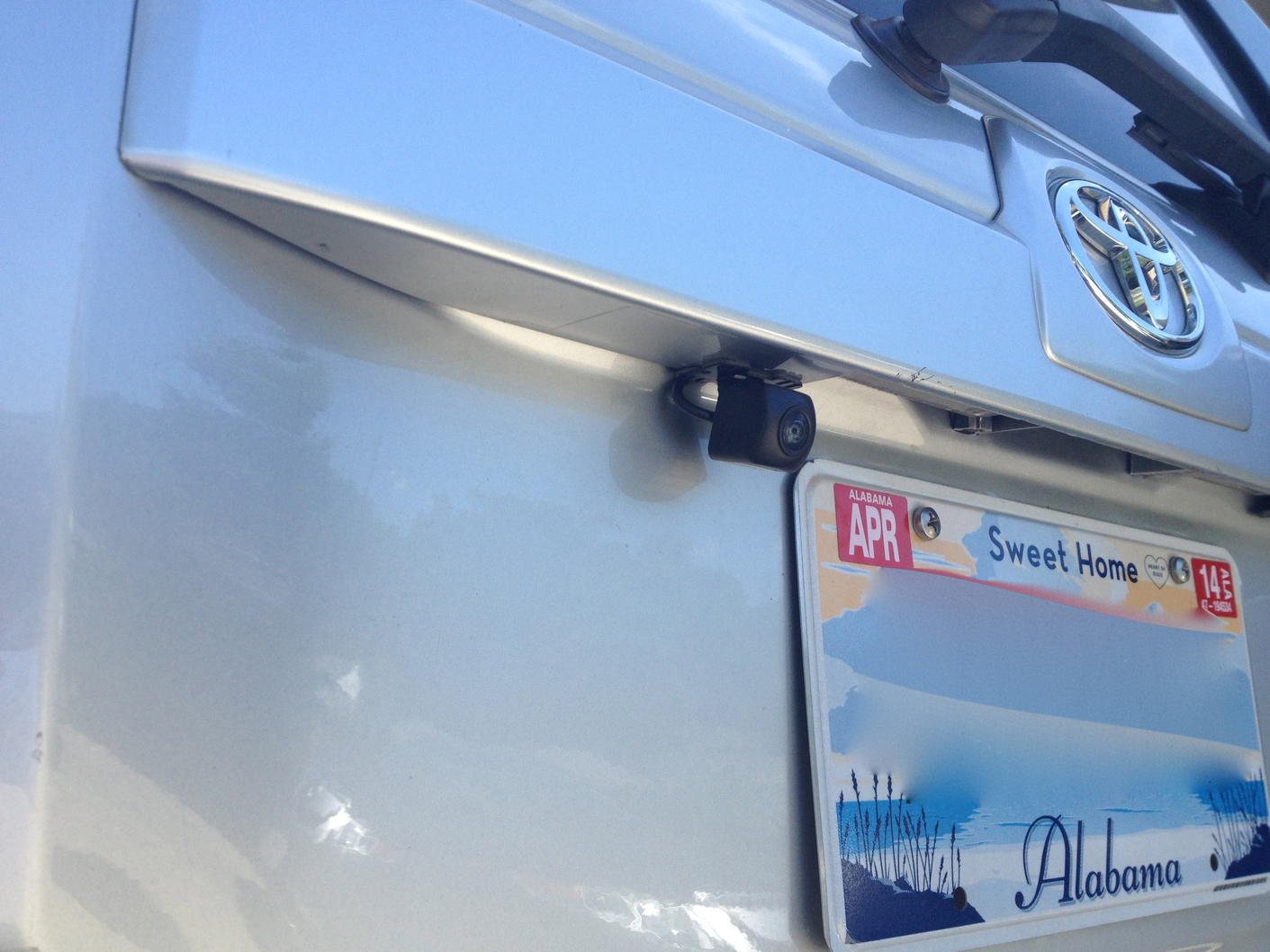

We're not totally thrilled about the camera location, as it it more noticeable that we had hoped. But, it's not bad. It mounted with industrial strength adhesive that came on the camera. I planned to also add a screw or 2, but the adhesive seems to be pretty permanent.

The strangest thing that happened was the rear hatch electric opener switch stopped working at some point during the install. I had dis-connected the rear door ECU so that I could get access for running the video cable. But, I reconnected it and it still wouldn't open. I tried re-setting it by disconnecting the negative battery cable, but didn't seem to help. After about an hour, my son walked out and tried it and it started working again. We have no idea what happened. The switch is newly replaced due to the original melting and has worked fine.


Attachments

  • IMG_0845.jpg
    134.4 KB · Views: 24,184
  • IMG_0846.jpg
    136.4 KB · Views: 19,508
  • IMG_0847.jpg
    131 KB · Views: 23,509
Thats funny the same thing happened to mine it stopped working then about an hour later it started working again must have some kind of reset built in

What method/location did you guys use to get from the rear hatch into the passenger compartment with the camera wire?


singleshot said:
Thanks for the help on locating the reverse wire. My son and I did the backup camera install yesterday. Easily located and tapped into the red/yellow wire in the drivers kick panel area.

We're not totally thrilled about the camera location, as it it more noticeable that we had hoped. But, it's not bad. It mounted with industrial strength adhesive that came on the camera. I planned to also add a screw or 2, but the adhesive seems to be pretty permanent.

The strangest thing that happened was the rear hatch electric opener switch stopped working at some point during the install. I had dis-connected the rear door ECU so that I could get access for running the video cable. But, I reconnected it and it still wouldn't open. I tried re-setting it by disconnecting the negative battery cable, but didn't seem to help. After about an hour, my son walked out and tried it and it started working again. We have no idea what happened. The switch is newly replaced due to the original melting and has worked fine.
Click to expand...

Hi all, I am going to plug my camera into the rear brake lights, but where do you hook up the monitor power supply to?

Is there a place in the fuse box for aux? Which one? Thanks in advance. I want to do it this weekend but wasn't sure where to plug it into. Some people said the radio but then I got to remove the whole console.

jmyer72 said:
What method/location did you guys use to get from the rear hatch into the passenger compartment with the camera wire?
Click to expand...

You can take it through the chrome piece below the windshield wiper. There's a rubber grommet inside, accessed through the inside after removing the plastic liner. There's a youtube video on it. You mount the camera on the side of the chrome piece next to one of the license plate lights.

Back door ECU reset

For anyone wondering, you can "reset" the back door ECU by hitting lock/unlock 3 times each (a total of 6 times) on the driver's side door control. I don't THINK it matters if you start with lock or unlock, but it might.

paraordnance said:
I just tapped into rear-passanger (left) light at the small rear compartment. Way easier than run it to the dash.
Click to expand...

Are you talking about the camera power or the power for the dash monitor? Or is that where you powered the monitor?

I was thinking of tapping into the rear brake light power for both the monitor and the camera. I think you can access all the wires underneath the rubber molding below the driver seat near the door. For ground, I was going to use the screw near the kickbox near the brake pedal.

superman3043 said:
I remember there being purple in the equation as well. Maybe the supplied trigger wire was purple with white or something. Ugh, sorry if that creates more confusion. I can double check it when I get a moment (been a while). Hope that helps. Good luck.
Click to expand...

You might be thinking of the speed signal wire - it's purple with a red trace.:gun6:

Depending on how you intend on using the camera, you may want to simply wire it so that it has power any time the key is turned past off. I wired mine to be hot at all times the car is on, and the reverse wire I got from the engine control module on the passenger side.

I wired it to be hot when the car is on so I can switch to it any time, including moving forward. The reverse signal goes to my Kenwood nav unit, and the mirror monitor I have installed.

runnyeggsham said:
Are you talking about the camera power or the power for the dash monitor? Or is that where you powered the monitor?

I was thinking of tapping into the rear brake light power for both the monitor and the camera. I think you can access all the wires underneath the rubber molding below the driver seat near the door. For ground, I was going to use the screw near the kickbox near the brake pedal.
Click to expand...

I tapped both HU wire marked 'Rear' and back up camera power. I guess you have to run wire from back to front or from front to back either way. I just had it prepared that way when I installed HU and when I got camera it was really easy.

Sorry, i need help but can't open the new thread. Yesterday, i try to install aftermarket backup camera to my 2008 4runner, wire black to back and white wire of back up light, and red to red and white wire of back up light, and the video cable to aftermarket double in recently install but seen it doesn't work. Please helps. Thanks

tonyd said:
Sorry, i need help but can't open the new thread. Yesterday, i try to install aftermarket backup camera to my 2008 4runner, wire black to back and white wire of back up light, and red to red and white wire of back up light, and the video cable to aftermarket double in recently install but seen it doesn't work. Please helps. Thanks
Click to expand...

If everything connected properly did you make sure HU option is "on" for backup camera. I know I had to set it up in HU also
