Bolt On Rock Sliders for 5th Gen 4Runners

[traxman25]

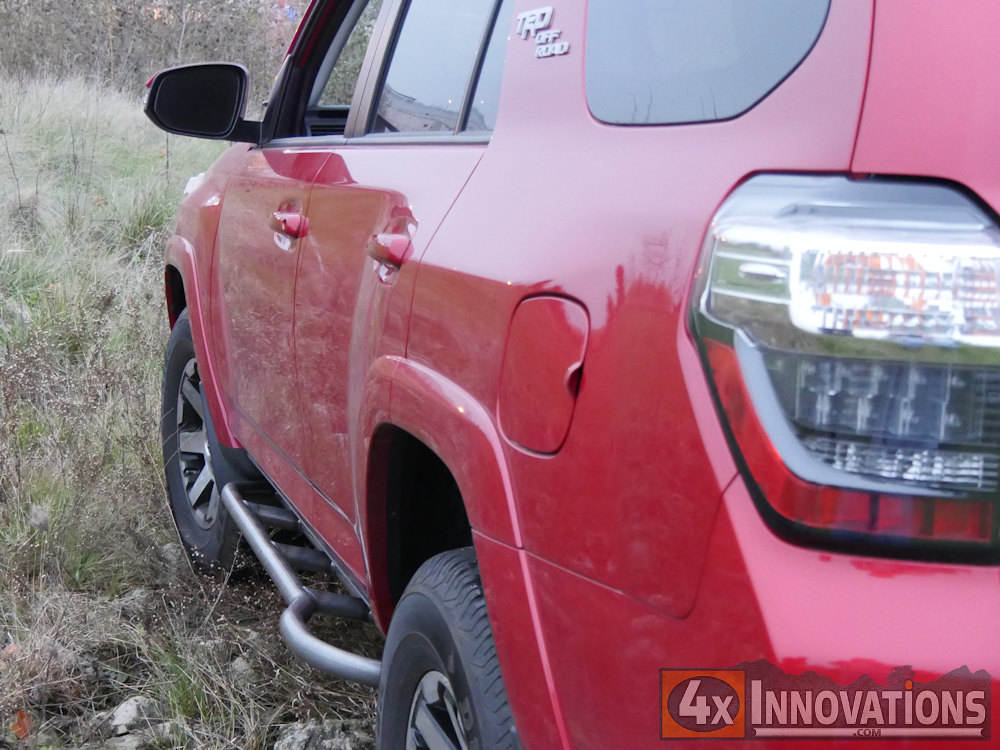

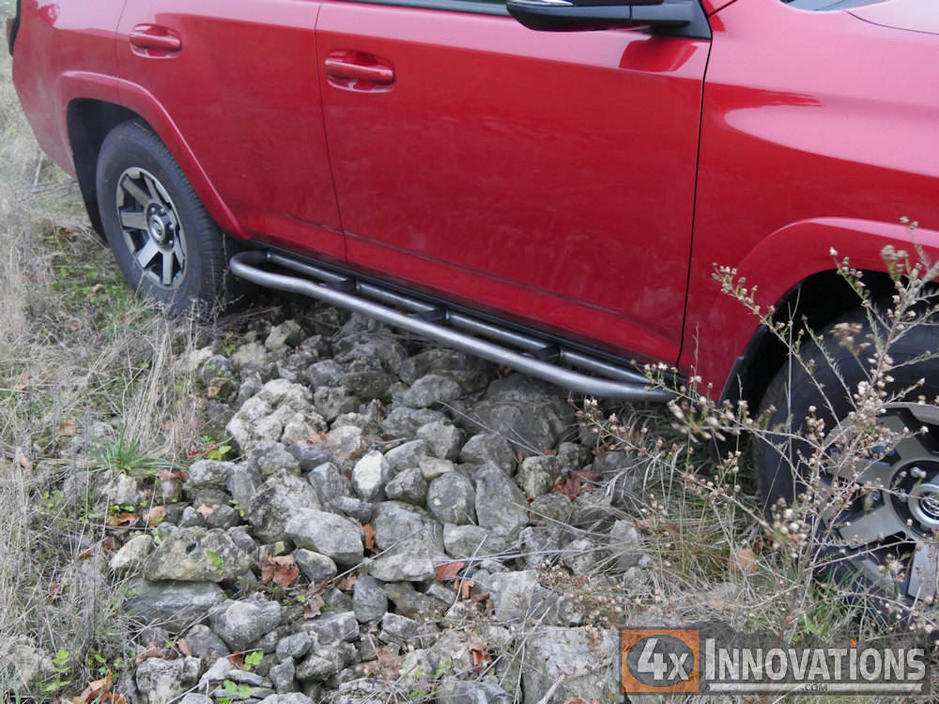

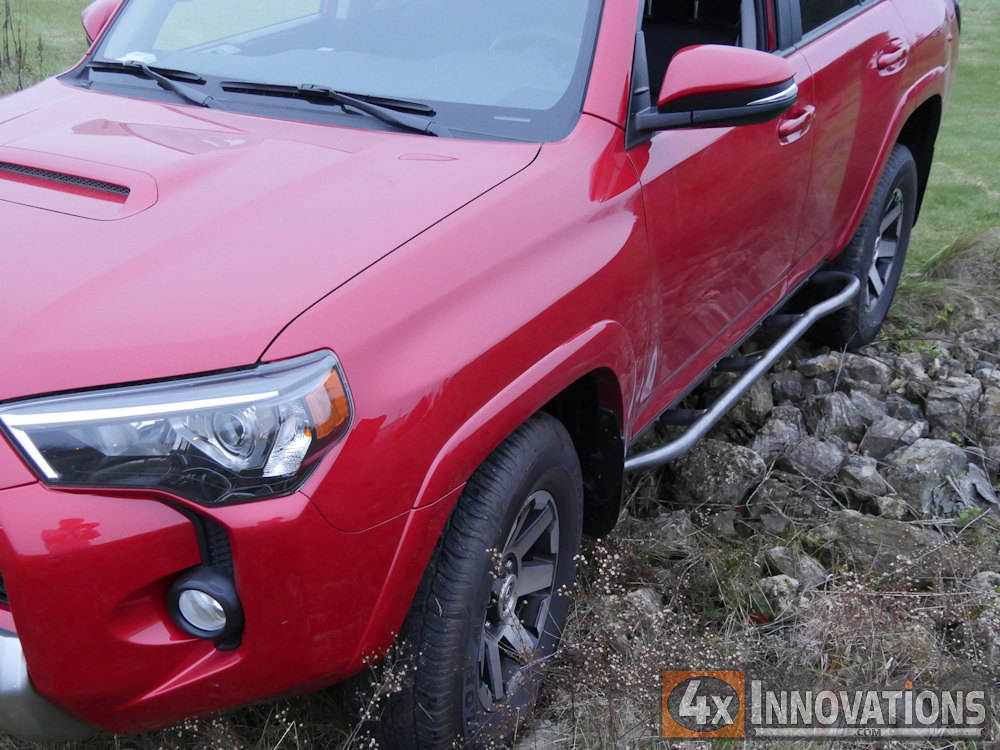

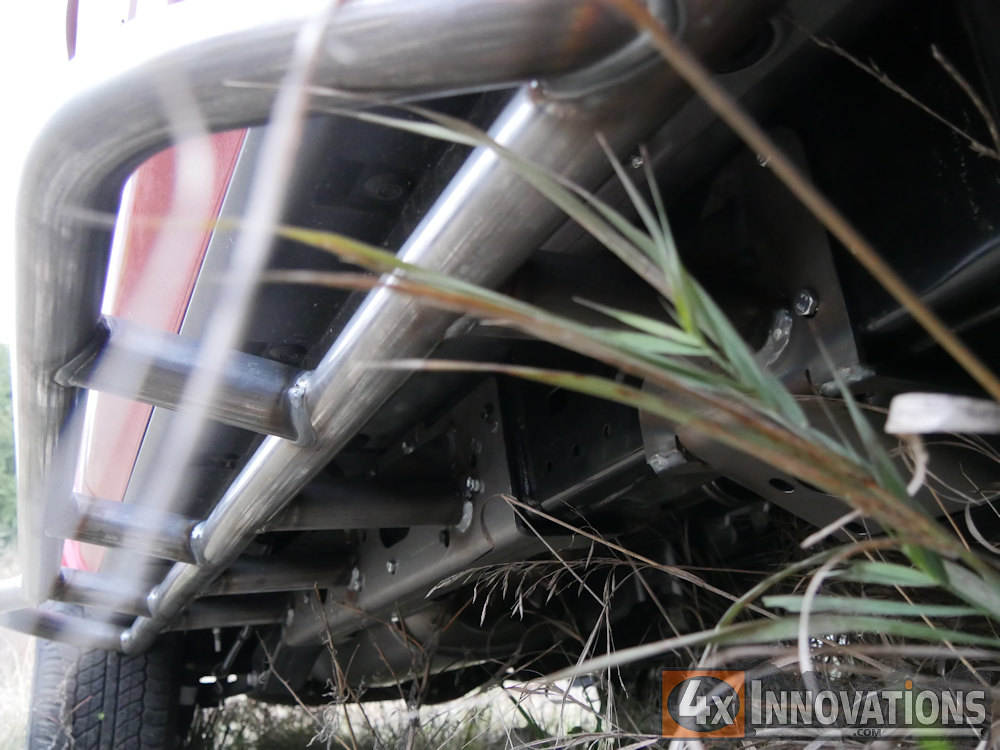

Well I went full crazy and brought home a brand new 4Runner, and promptly started taking it apart. First up is new Bolt On Rock Sliders! Of course we put our years of design experience, and CMM behind these bad boys to give them the strongest mounts available. Super strong 1/4" thick high grade steel mounting plates don't only use the bolt holes on the side of the frame, but also wrap under and inside the frame for maximum resistance against flexing. Even with all that strength these sliders are still 100% bolt on! Adding to that support is oversize leg gussets.

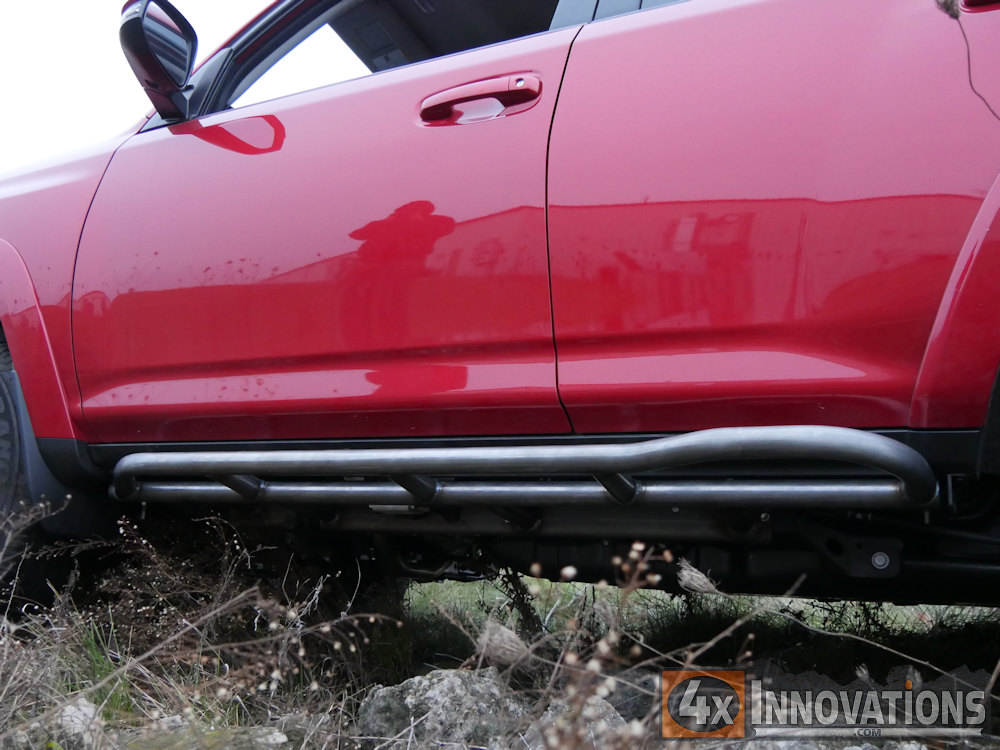

The main body of the slider is available in two options, all 1.75x1/8" DOM round tube, or 2x1/8" square main tube with 1.5x3/16 square tube legs and 1.75x1/8" DOM outer tube. All versions include the 2" kickout, or bump out at the back to help protect your rear fenders and glass. Bolt on Aluminum tread plates are also available.

Check em out here. Fit the 2014-2018 with and without KDSS. We'll be adding other years/models over time as well.

Here is more details of how we engineered these bolt on sliders to have the highest strength of any bolt on slider available.

<iframe width="560" height="315" src="https://www.youtube.com/embed/4iK2DZB3IOs?rel=0" frameborder="0" allow="autoplay; encrypted-media" allowfullscreen></iframe>

<iframe width="560" height="315" src="https://www.youtube.com/embed/R19gBw1pKQ4?rel=0" frameborder="0" allow="autoplay; encrypted-media" allowfullscreen></iframe>



[Chrss]

Looks good. Assuming they exists, can you post photos of the other options when you have a chance? I have limited imagination...



[muscle_doc]

Like the looks, and in my price range (Just posted a thread looking for some!) Few questions: 1. How much do they weigh? 2. How far from the door do they stick out? 3. Pics of square versus round? Thanks!



[doro89]

Available for 2010 limited?



[traxman25]

Looks good. Assuming they exists, can you post photos of the other options when you have a chance? I have limited imagination...

Thanks! I'll have more pics soon!

Like the looks, and in my price range (Just posted a thread looking for some!) Few questions: 1. How much do they weigh? 2. How far from the door do they stick out? 3. Pics of square versus round? Thanks!

Thanks! The round tube version weighs 120 pounds total. I'll have pics of the square tube version soon.

Available for 2010 limited?

Not at this time, sorry.



[traxman25]

We got some pics of the no logo tread plates and square tube sliders finally!

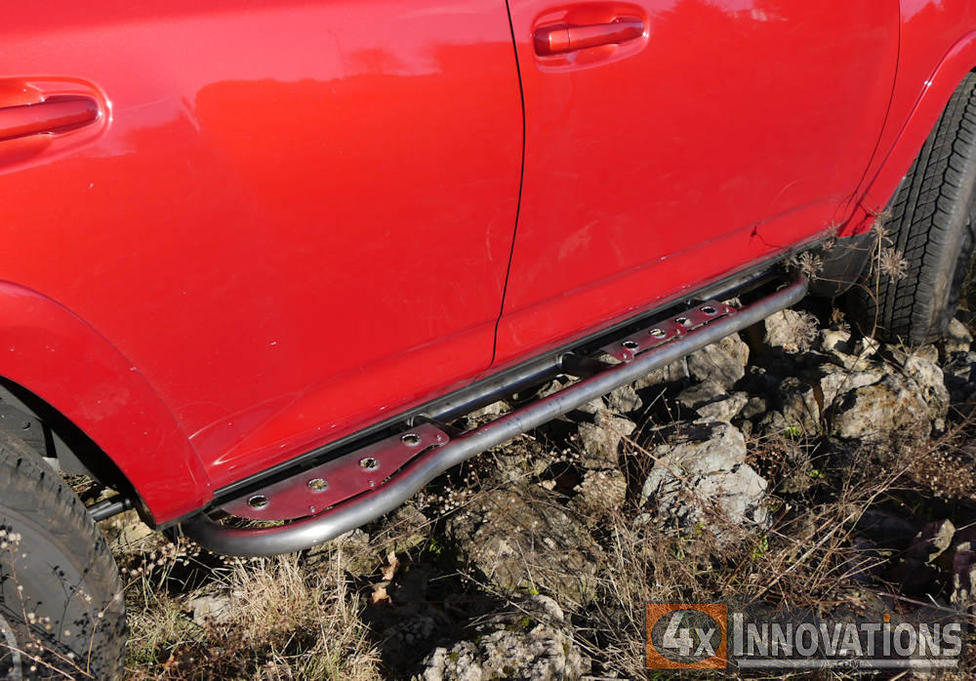

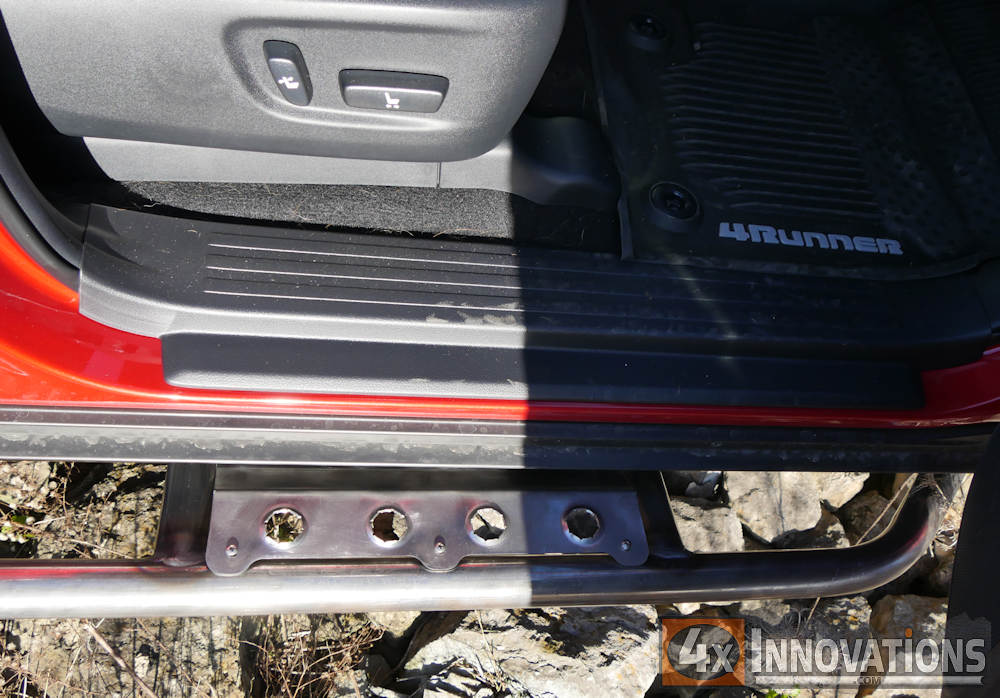

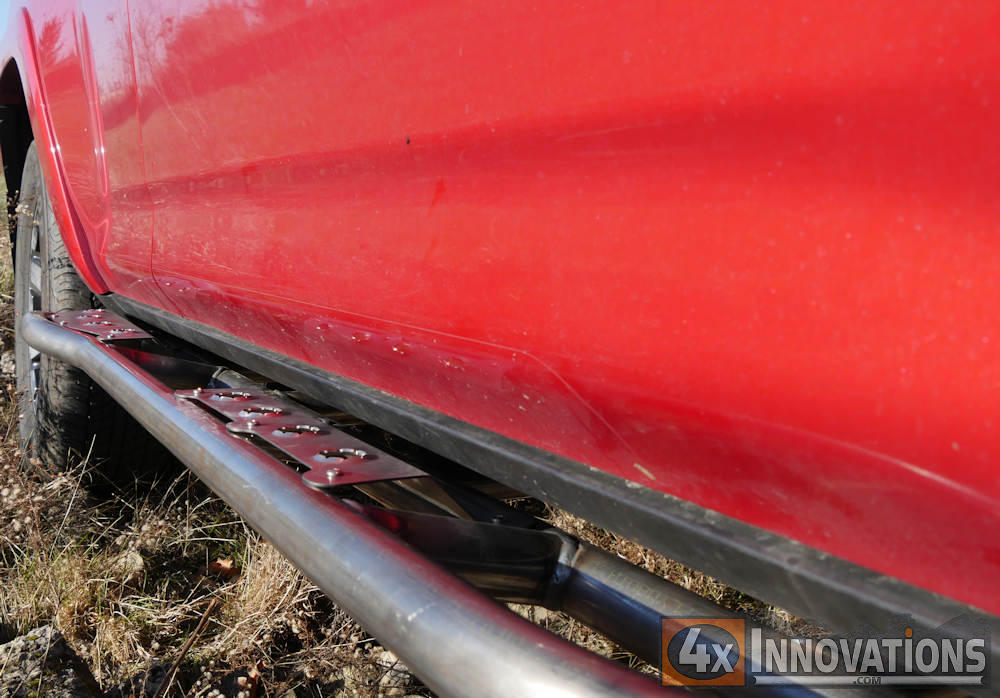

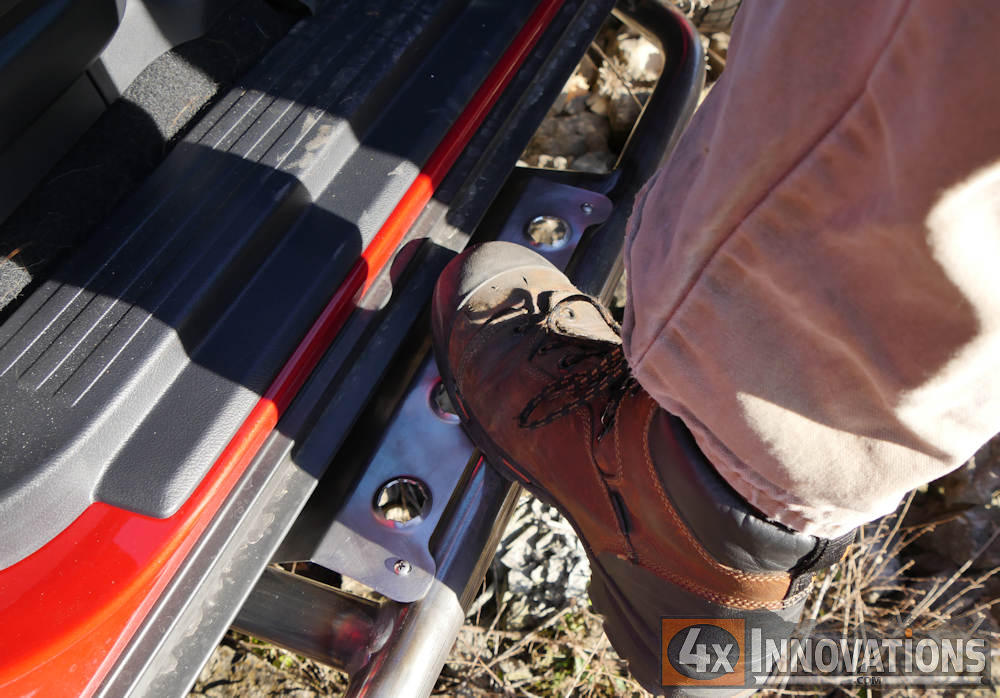

Tread plates feature dimpled tread blocks with extra grip surface to help keep your shoes from slipping. Most importantly our tread plates bolted to tabs welded to the side of the slider tubes. The plates are not bolted through the slider tube, so there is no holes drilled into the slider tube. We take this extra step to keep your new slider tubes from filling with water, keeping them from rusting from the inside out. Both the square and round tube sliders use the same tread plates.

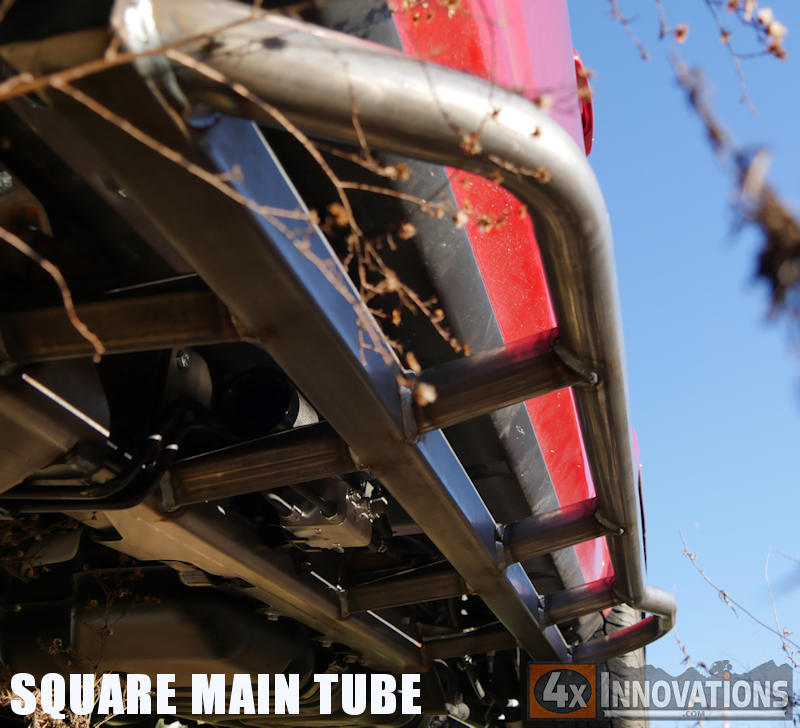

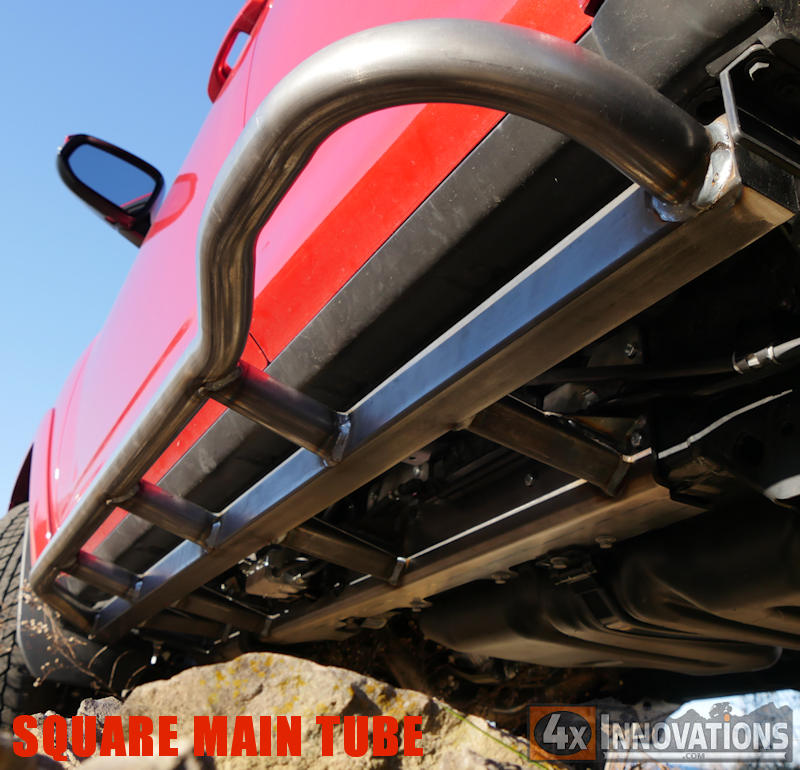

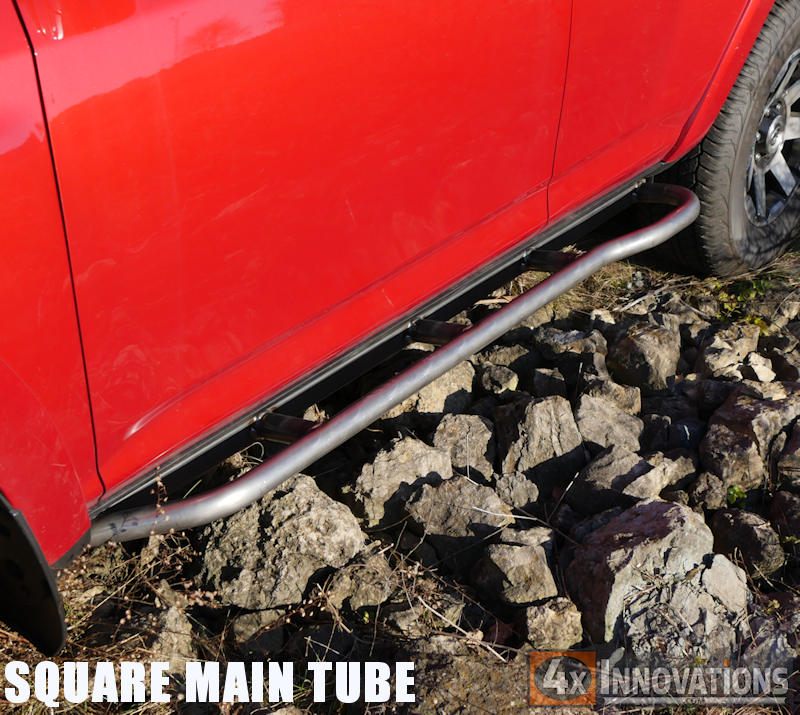

The Square main tube version features a 2" square main tube that is mounted horizontal. They also feature 1.5" x 3/16" wall square tube legs mounted in the diamond configuration for strength and to help keep the legs from catching on obstacles.



[83Mule]

What model comes without a gas tank skid?....or is it removed to fit the slider?



[traxman25]

It's just off for the fitting. No point to put it back on when we have to take those sliders off again. The stock gas tank skid and aftermarket skids will still work no problem.



[2barevo]

Check em out here. Fit the 2014-2018 with and without KDSS. We'll be adding other years/models over time as well. Oh and did I mention that they're available for a ridiculously low introductory price, available till Dec 1st.

Are they not on special anymore? website says 499 but when you add to cart its 637.



[traxman25]

Are they not on special anymore? website says 499 but when you add to cart its 637.

My goof, marked everything not on discount this morning, didn't think about leaving these on sale. That's fixed now.



[traxman25]

We made a product tour video to answer some questions about how we mount these sliders. It also shows you how we've engineered these sliders to have more strength in the mounting system than anything that's come before.

<iframe width="560" height="315" src="https://www.youtube.com/embed/4iK2DZB3IOs?rel=0" frameborder="0" allow="autoplay; encrypted-media" allowfullscreen></iframe>

I'll be putting together an install guide video over this weekend too.
